NuaFix - Solar panel holder and microinverter for square railings - Choose between 0° or 25-45° tilt angle
[NuaSol] We offer solutions for generating your own green electricity. From balcony power plant, solar modules, micro inverter to roof hooks, Z-brackets and many other mounts for your PV system, you will find.

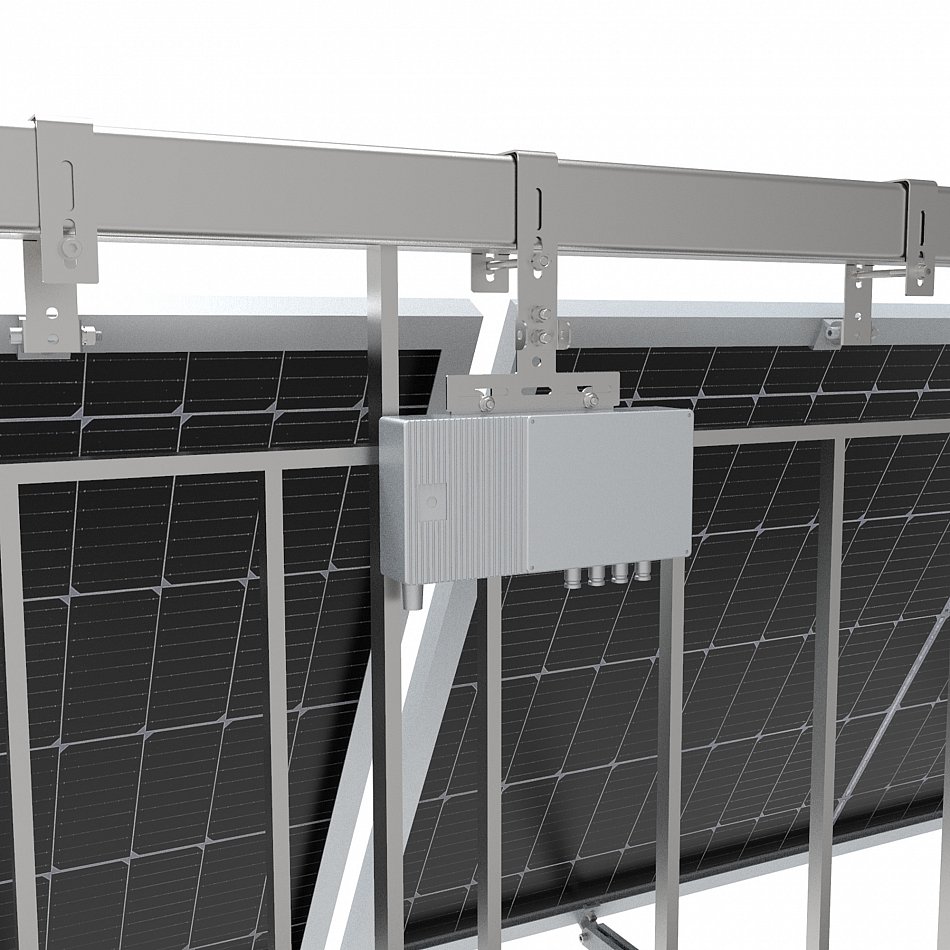

[Balcony mount] With the NuaFix, balcony brackets you are able to fix either 1 or 2 solar modules as well as your inverter to your balcony railing.
[Selectable tilt angle] Choose between the 0° bracket or the 25-45° bracket to achieve the ideal tilt angle, maximum efficiency of your solar panels on your balcony.
[Compatibility] Universally usable for any type of solar module. Suitable for angular balcony railings with a maximum diameter of 80 mm.
[Robust & Stable] Made of stainless steel, the hooks are weather resistant and highly durable. The strut and bracket for regulating the angle of inclination is made of high-quality AL6005-T5 aluminium. The screw set is made of stainless steel and is therefore rustproof.
NuaFix - NuaFix - Corner terrain mount for 2 solar modules
NuaFix offers you different mounting materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks to Z-brackets, you will find the right mounting material for every type of installation.
Highlights
Click-in design for mounting solar modules, stable
25-45 degree & 0 degree mounting
High flexibility: the angle can be freely adjusted using the telescopic tubes
High load capacity and strong stability
High efficiency: ideal for mounting solar panels at an angle on balcony railings
Compatibility: our PV stand is suitable for solar modules of all sizes
Easy to install and assemble: quick installation with
stainless steel fasteners and precise hole placement

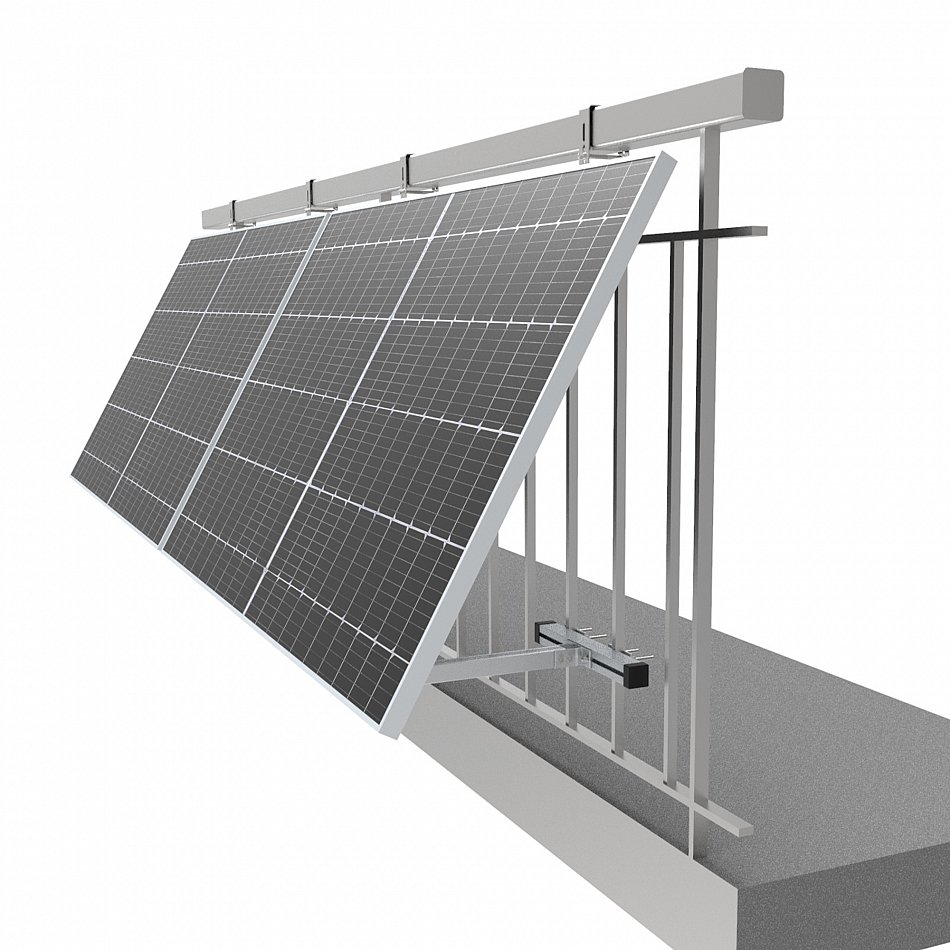

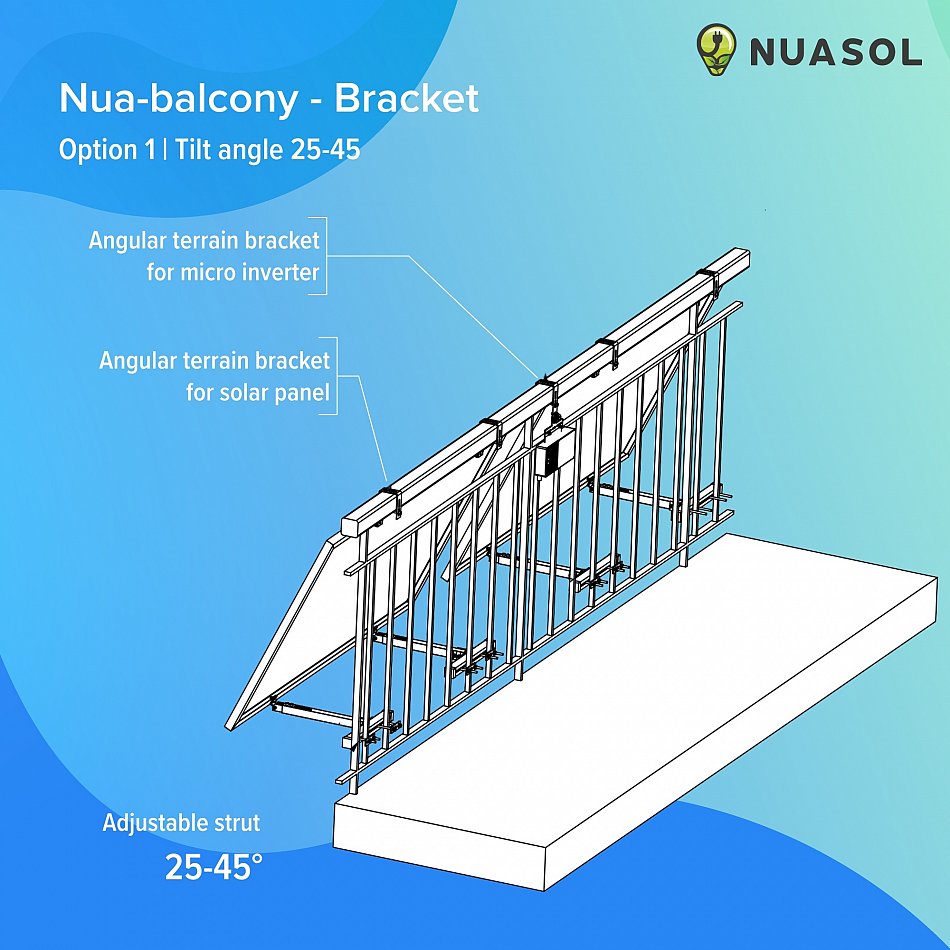

Adjustable braces allow you to attach your solar panels to your railing and choose a tilt angle of 25-45° for perfect alignment.

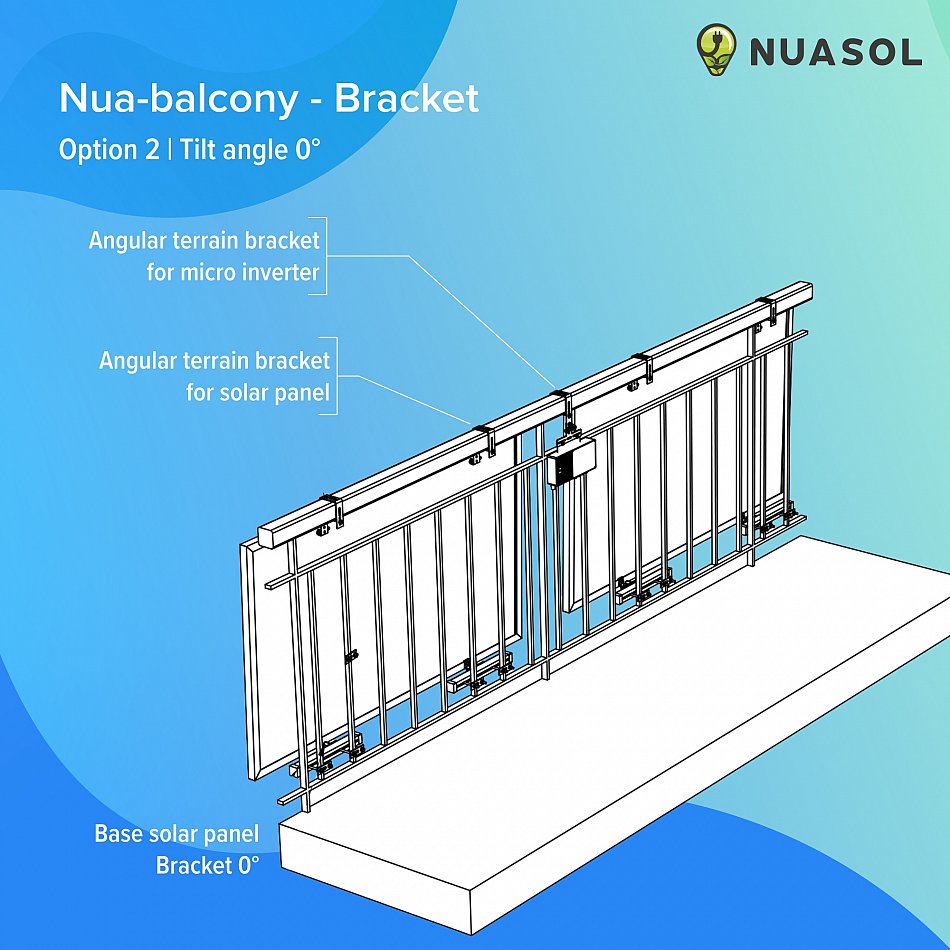

Terrain bracket option 2 - 0°

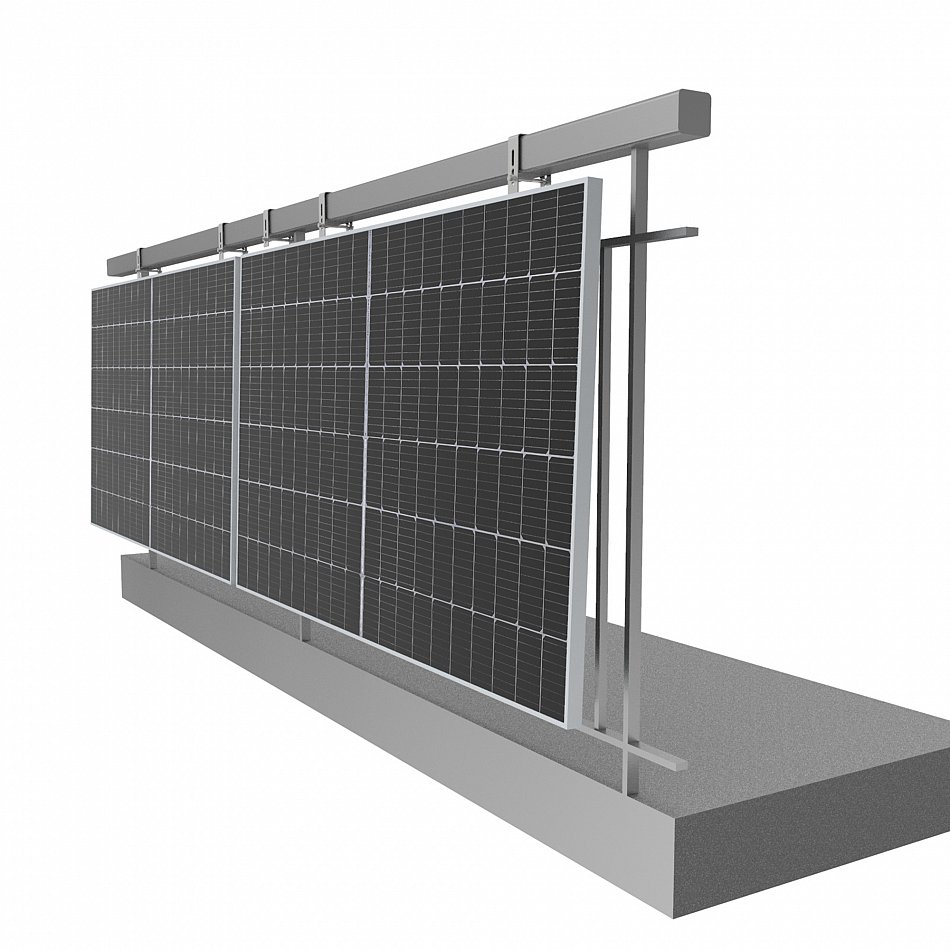

With the terrain bracket, you can easily attach a solar module and your inverter to your balcony railing. With the basic bracket, you can mount your panels parallel to the railing with a tilt angle of 0°.

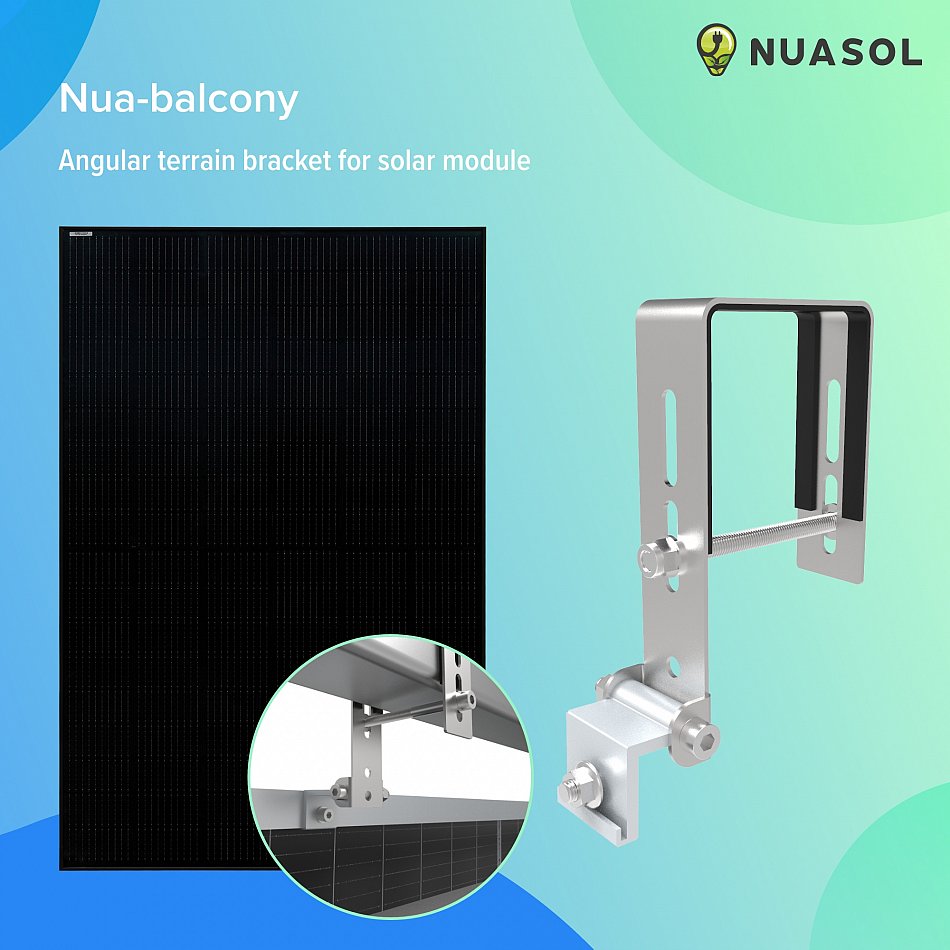

Solar panel hook
Size of hook, without connector:106x44x166mm
Maximum size of railing:80x80mm
Suitable for railing type: square railing
Material of hook: 304 stainless steel
Material thickness:2mm
Base material:EPDM

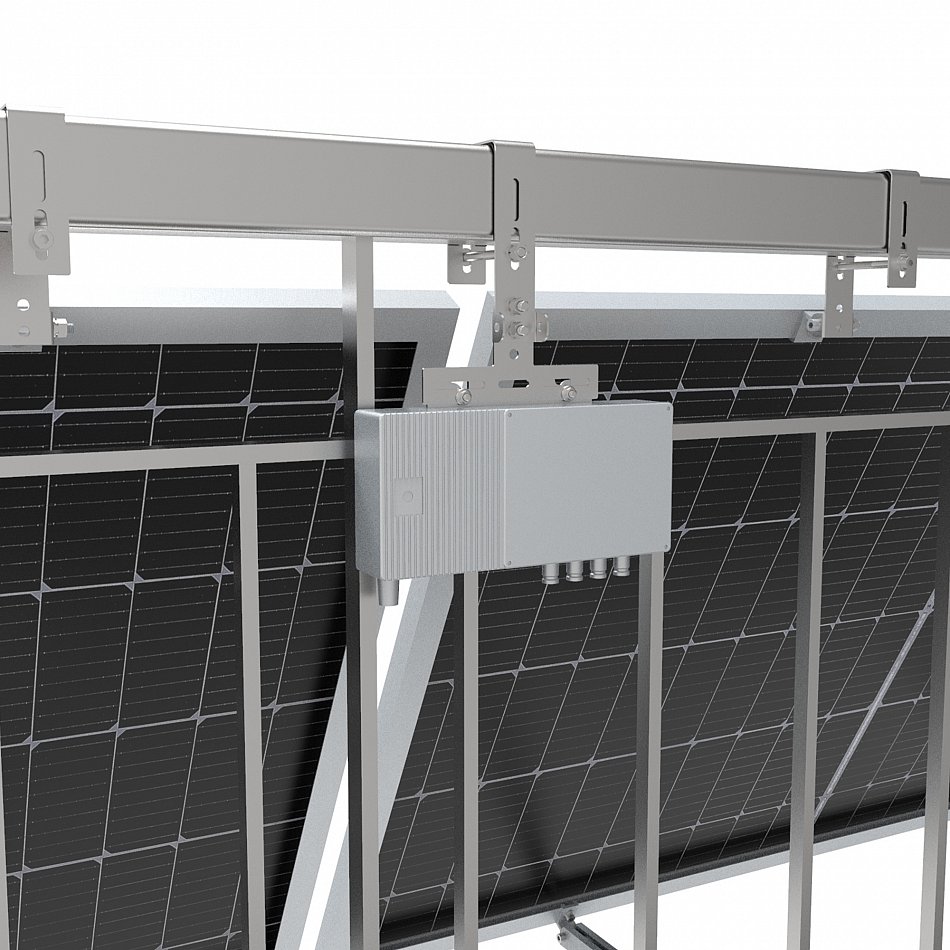

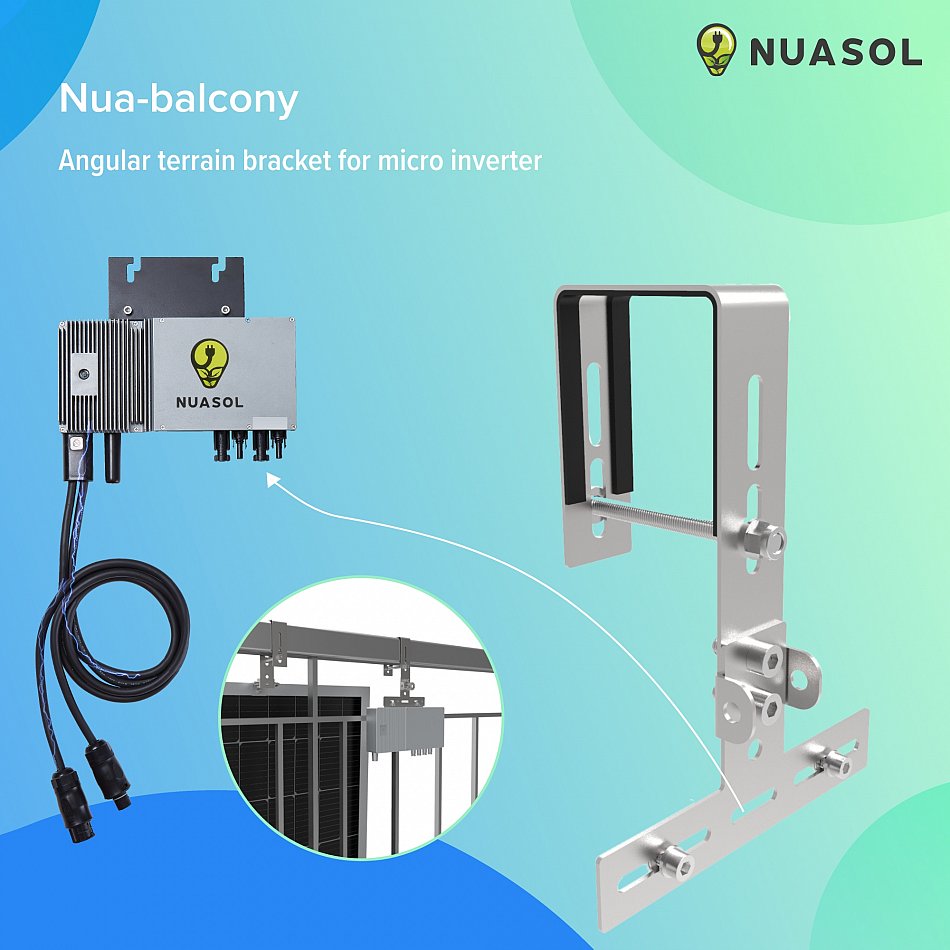

Micro inverter hook
Size of hook:106x170x216mm
Maximum size of railing:80x80mm
Suitable for railing type: square railing
Material of hook:304 stainless steel
Size of T-plate:170x90x2mm

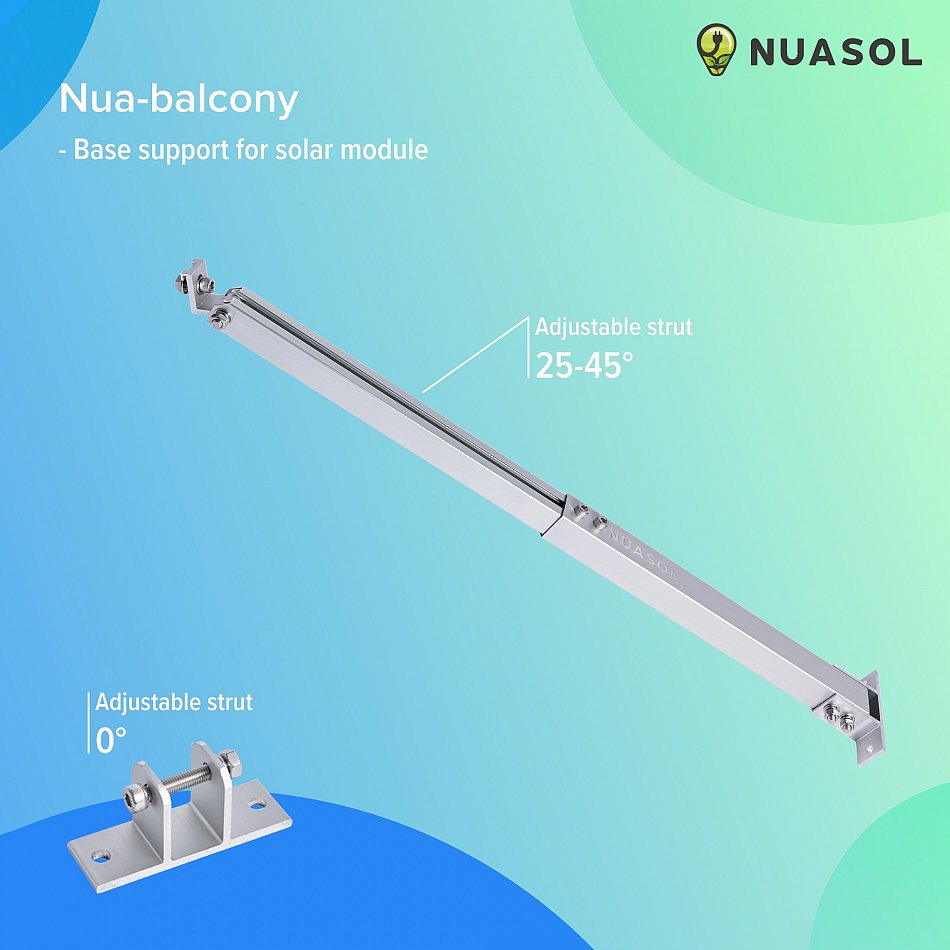

Solar panel tilt angle hook
25-45° adjustable strut
Dimensions (long strut) : 35 x 35 x 380 mm
Length adjustable: 380-670 mm
Size incl. base and connector: 105 x 35 x 479 mm
Material: aluminium AL6005-T5
Thickness: 1,5 mm
Dimensions of L-connector:40.6 x 42.75 x 27.2 mm
Dimensions of long base: 105 x 60 x 35 mm
Max. Module width: universal
Adjustable angle: 25-45

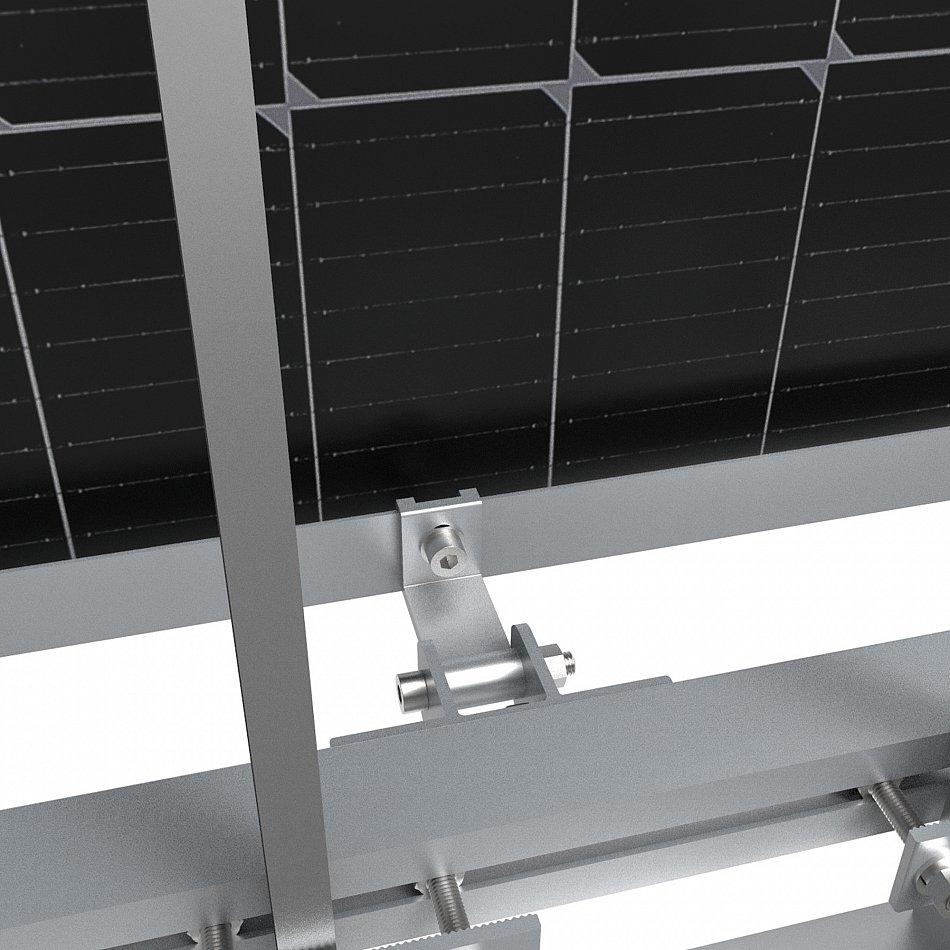

0° base
Dimensions - bracket: 105 x 40 x 35 mm
Material: aluminium AL6005-T5
Thickness: 4 mm

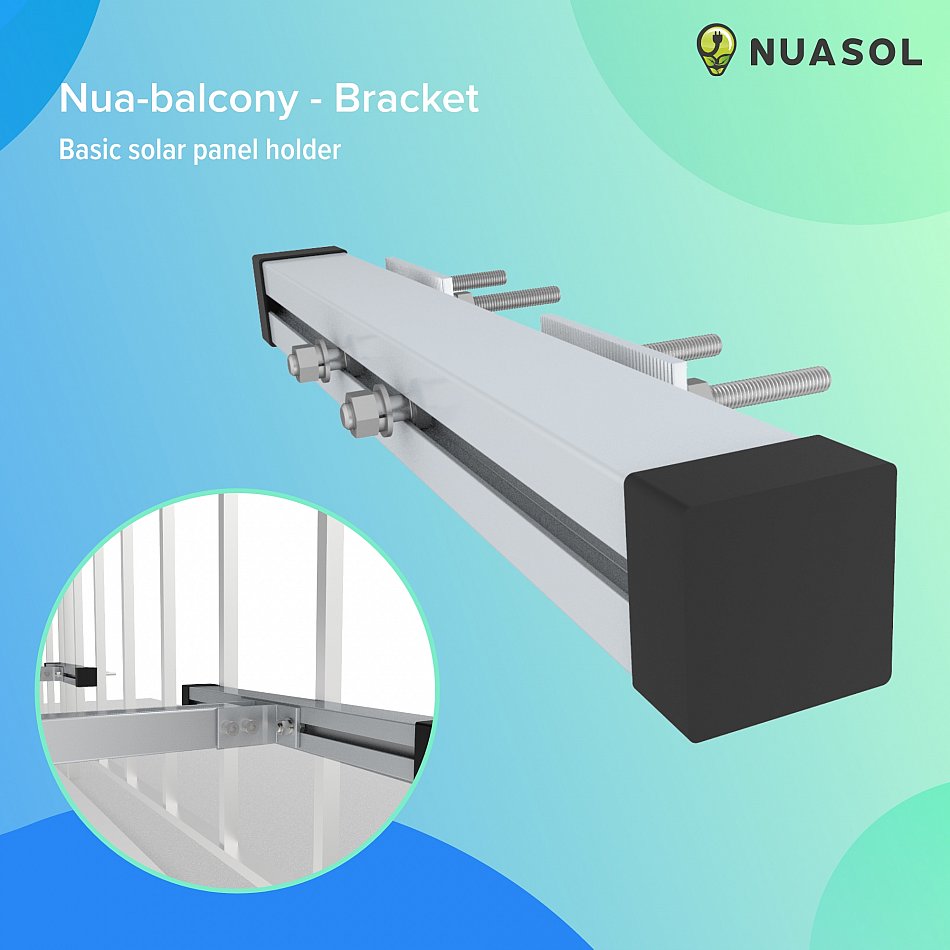

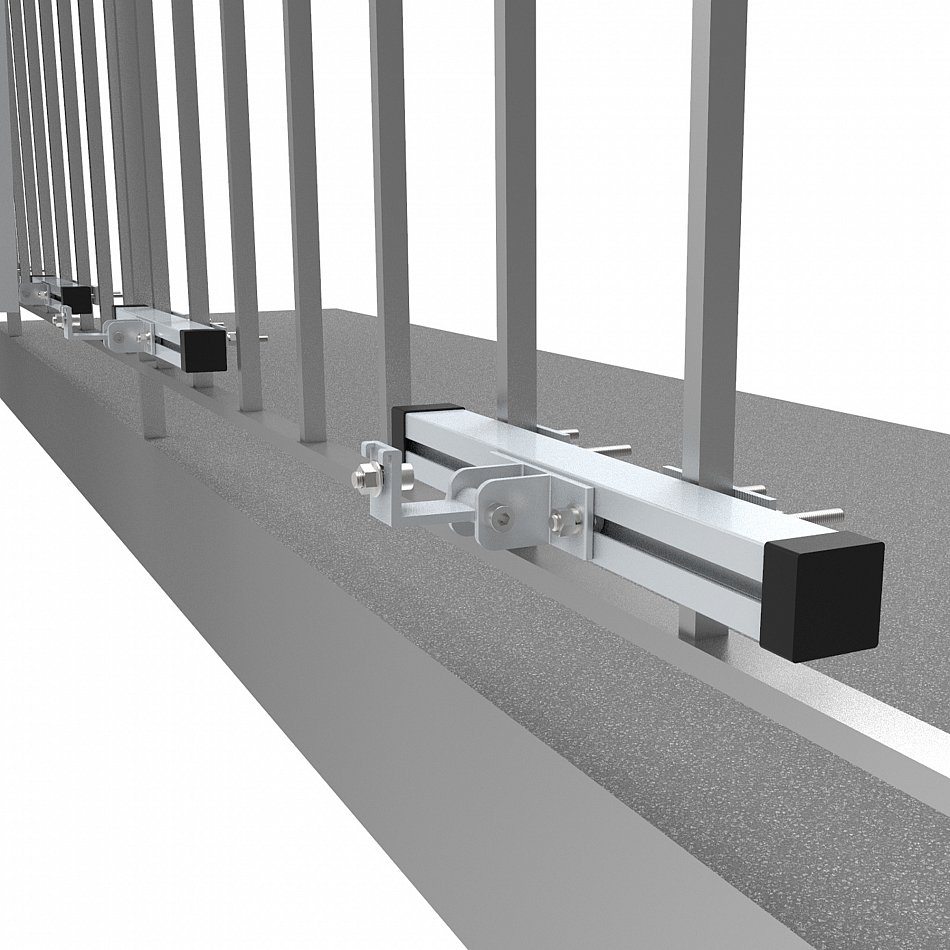

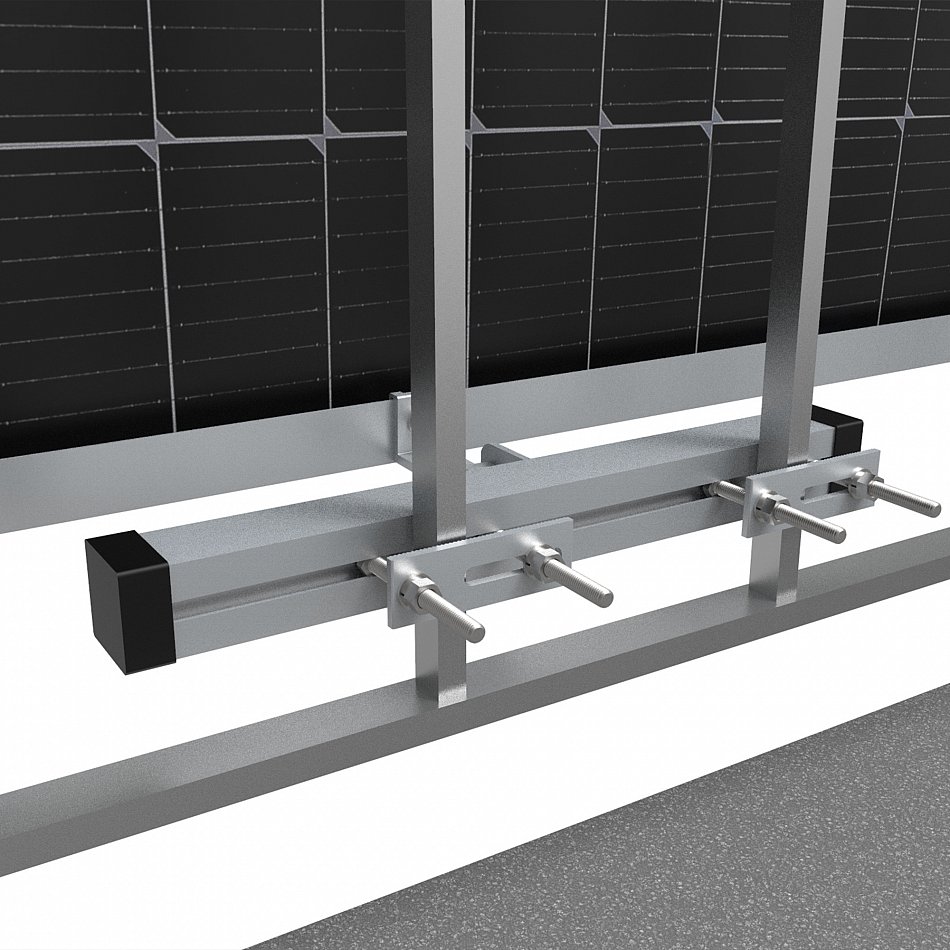

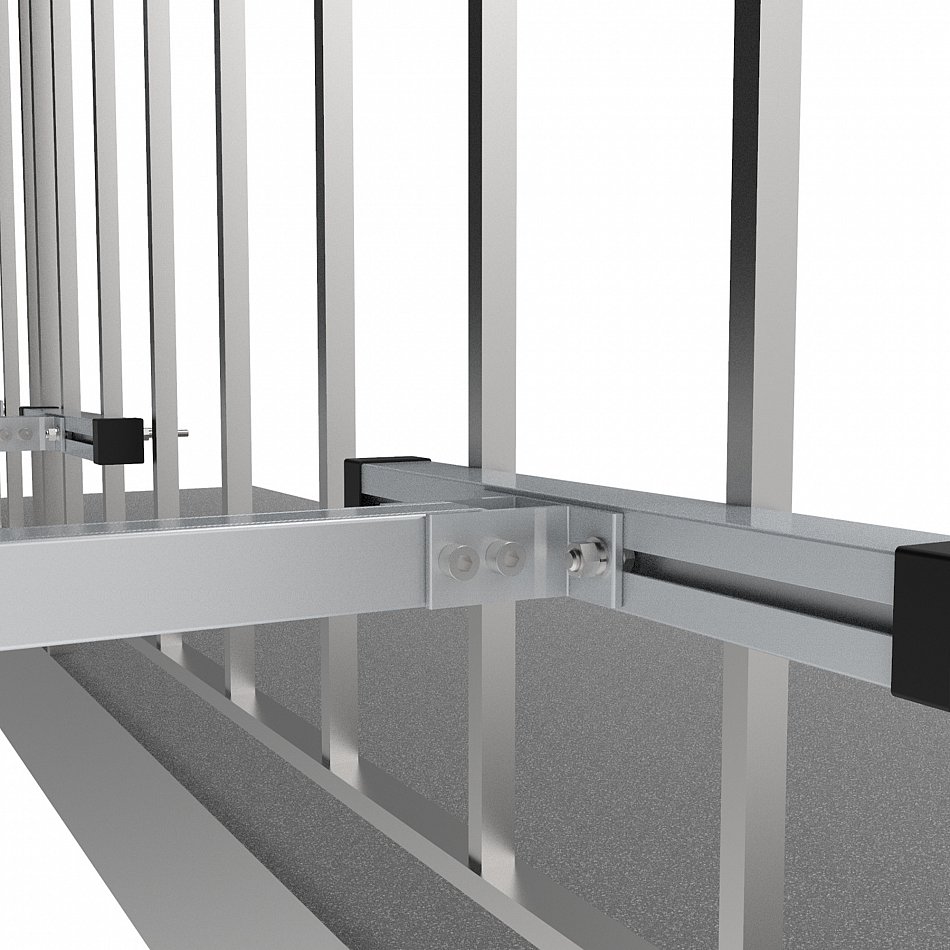

Mounting rail
Size of rail: 35 x 35 x 400 mm
Material of rail: Aluminium AL6005-T5
End cap material: EPDM
Thickness: 1.3 mm
Dimensions of adapter plate: 90 x 30 x 5 mm
