Ev charging level 2 EVSE 32A 7.4KW 1 Phase SAE J1772 Type 1 Wallbox EV Charging Station With blue CEE
Specification
|
Basic Data
|
|
|
|
|||
|
Charging Plug
|
Type 1
|
Power side plug
|
Blue Cee Plug
|
|||
|
Input voltage
|
230V AC
|
Output voltage
|
110V AC
|
|||
|
Output current
|
10A-16A-20A-24A-32A
|
Max. output power
|
7.2KW
|
|||
|

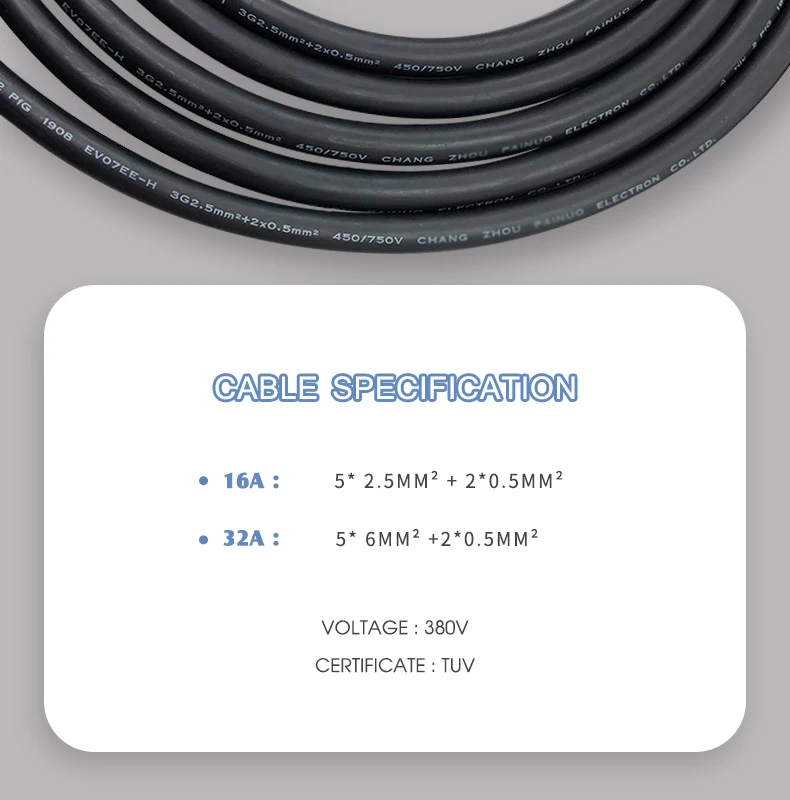

Cable length
|
5m (customizable)
|
Input frequency
|
50-60Hz
|
|||
|
Function and Accessory
|
|
|
|
|||
|
WIFI/4G/Bluetooth
|
No
|
LED Indicator light
|
Flash
|
|||
|
Intelligent power adjustment
|
Yes
|

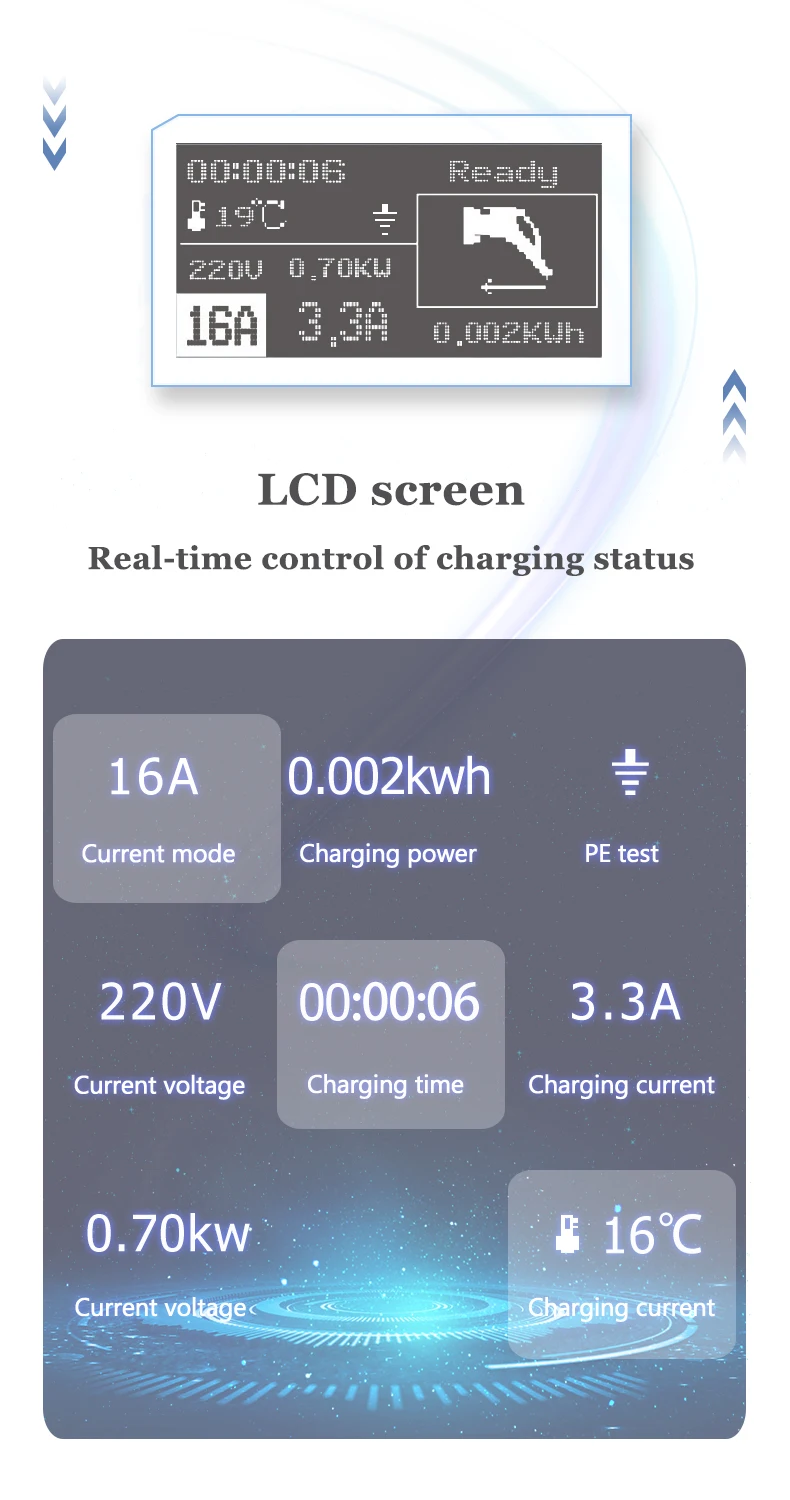

LCD
|
Yes
|
|||
|
Timing Function
|
Yes
|
RCD
|
type B AC 30mA DC 6mA
|
|||
|
Protection
|
|
|
|
|||
|

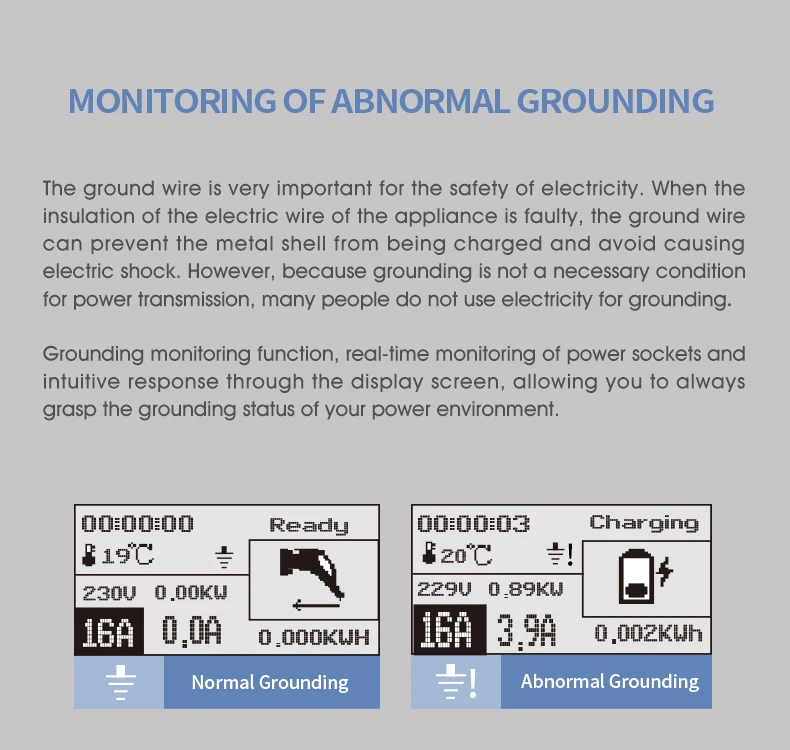

Protection Earth Detection
|
Yes
|
Over Voltage Protection
|
Yes
|
|||
|
Under Voltage Protection
|
Yes
|
Over-temp Protection
|
Yes
|
|||
|
Over current Protection
|
Yes
|
Lightning Protection
|
Yes
|
|||
|
Pressure Resistant
|
Yes
|
Flame Resistant
|
Yes
|
|||
|
Crush Test
|
Yes
|
Intelligent Kernel
|
Yes
|
|||
|
Water-proof
|
Box IP66, Plug IP65
|
Electrostatic Protection
|
Yes
|
|||
|
Package
|
|
|
|
|||
|
Dimension (W/H/D)
|
410/390/120mm
|
Weight
|
3.5KG
|
|||
|
Packing Methord
|
Netruel /Color box
|
|
|
|||
|
Guarantee
|
|
|
|
|||
|
Warranty
|
1 year
|
Certificate
|
CE
|
|||
Product Description
