Product Description：
Hose End Features:
Manufactured using aluminium alloys that meet or exceed minimum requirements for aerospace hose fittings.
Each component is precision-machined to exact tolerances for trouble-free performance.
Aluminium retention pins allow 360 degrees of adjustment after installation.
The unique taper design revolutionised hose assembly by not cutting into the inner hose liner, yet providing a positive grip on the hose to eliminate leakage or separation.



Hose End Specifications:
Fitting Style: Fast Flow Reusable Swivel
Adapter Attachment: Female threads
Fitting Material: Aluminum
Fitting Finish: Black anodized
Hose End Size: -6 AN
Adapter Size: -6 AN
Nylon Braided

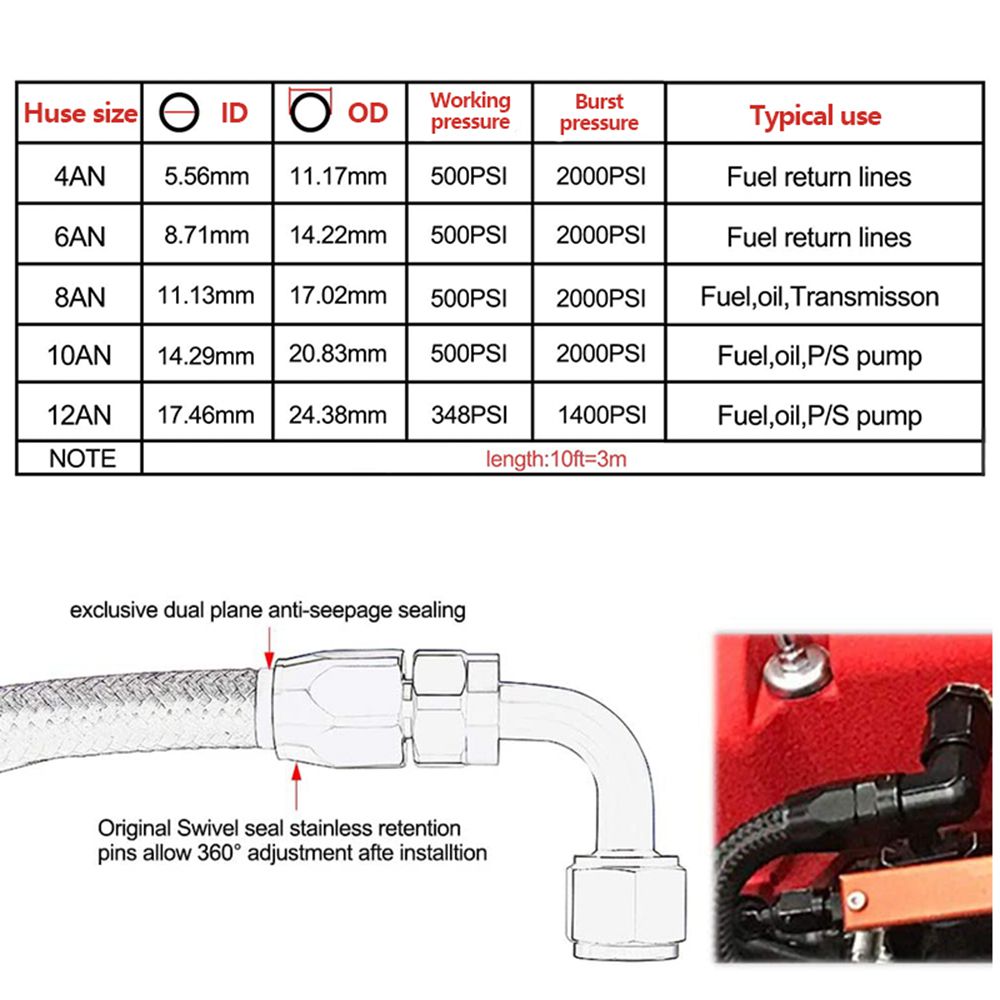

HoseSpecifications:
Hose Size: -6 AN
Equivalent Tube Size(Nominal OD): ​1⁄2"

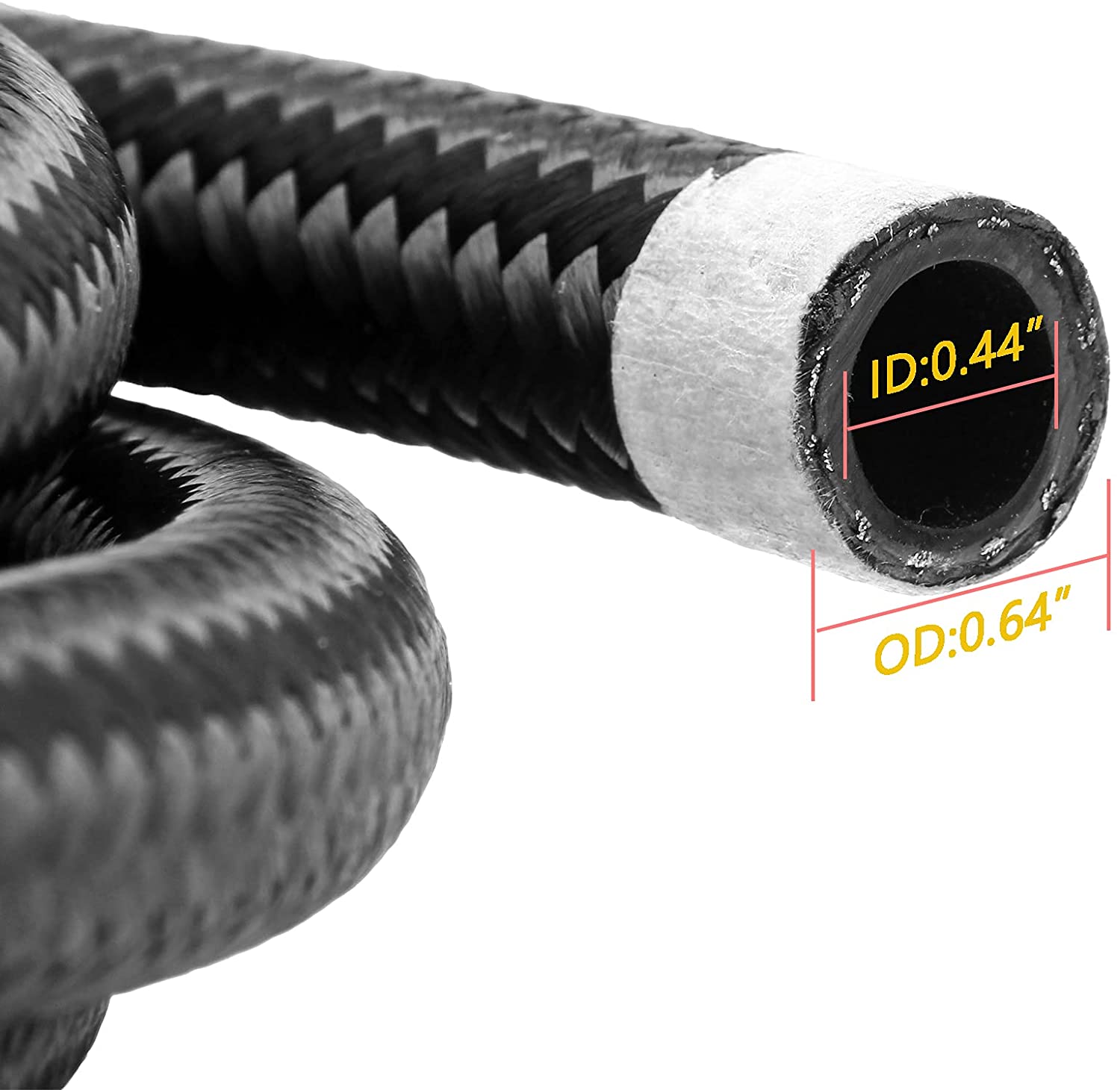

Hose Inner diameter: 0.44" / 11.12mm
Hose Outside diameter: 0.68" /17.2 mm
Maximum Operating Pressure: 500 PSI
Burst Pressure Min: 2000 PSI
Working Temperature: -40 ℉ to +350 ℉


Specification:
1.Type:AN6 33Ft Oil Fuel Fittings Kit
2.Color:Black
3.Size:AN-6

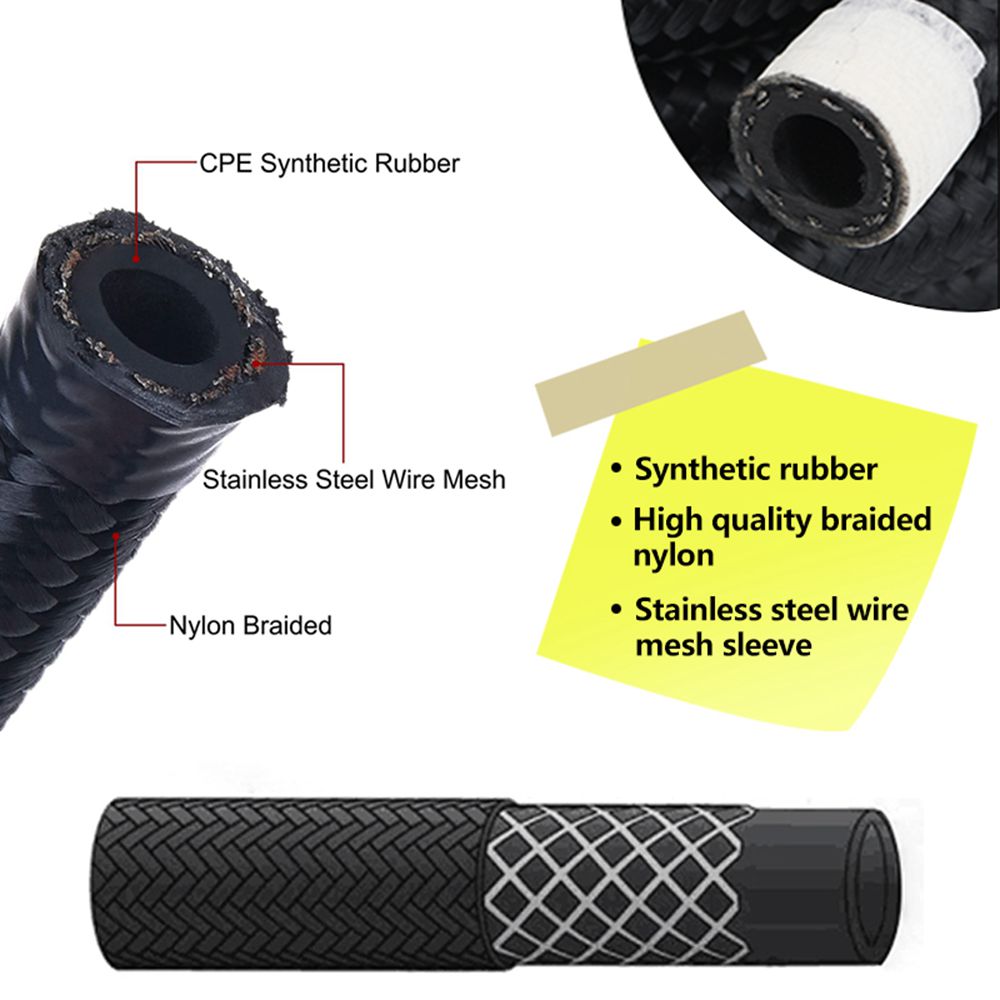

4.Inner hose Materail:Polyurethane material hose
5.Outside Materail:Nylon and Stainless Steel
6.Fitting Material: High Quality 6061 Aluminum Alloy

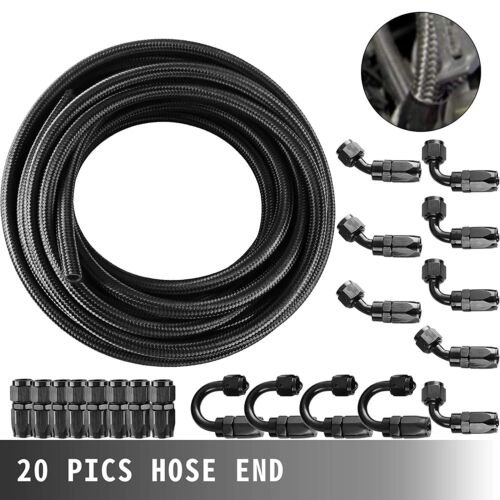

Package includes:

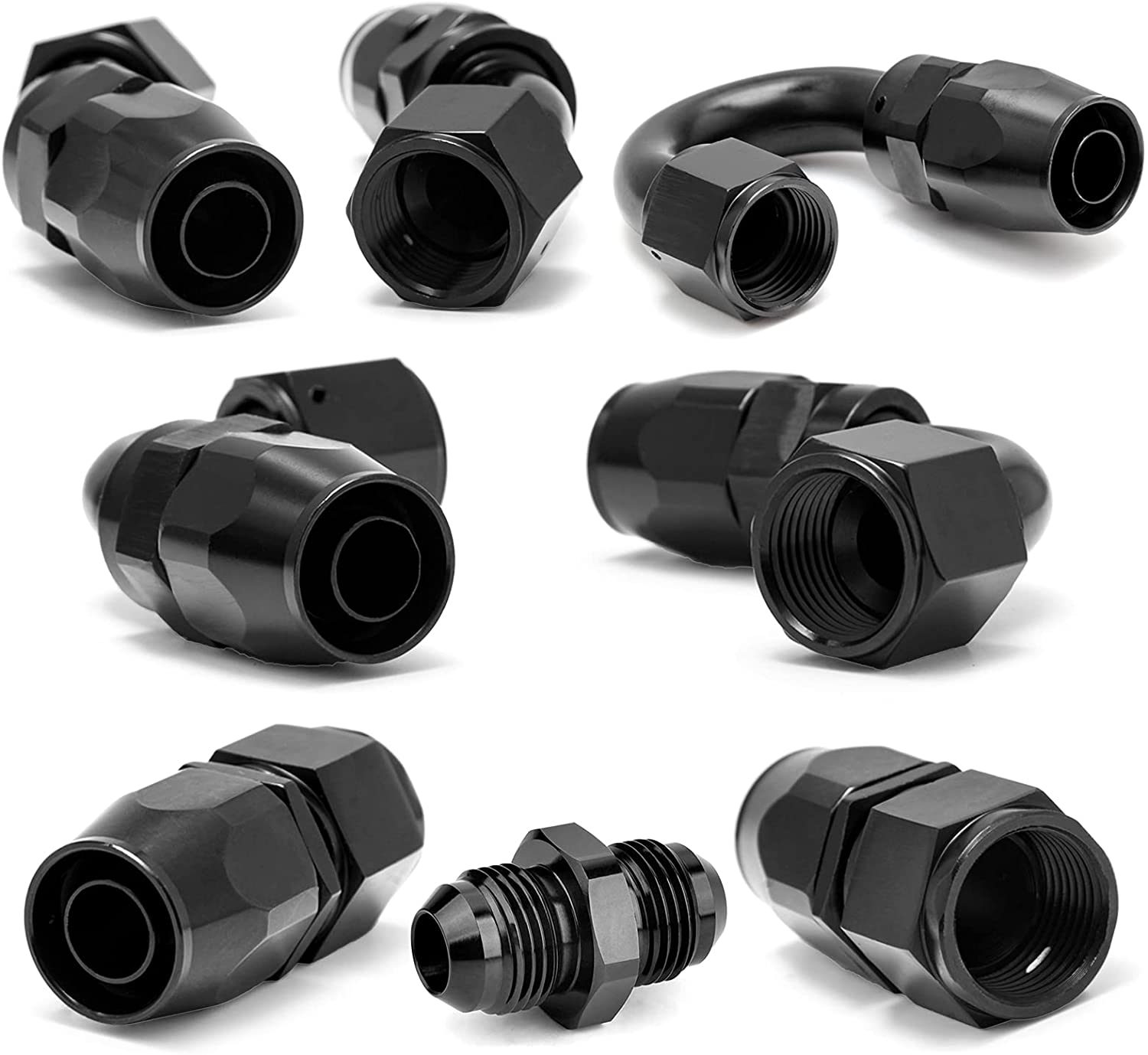

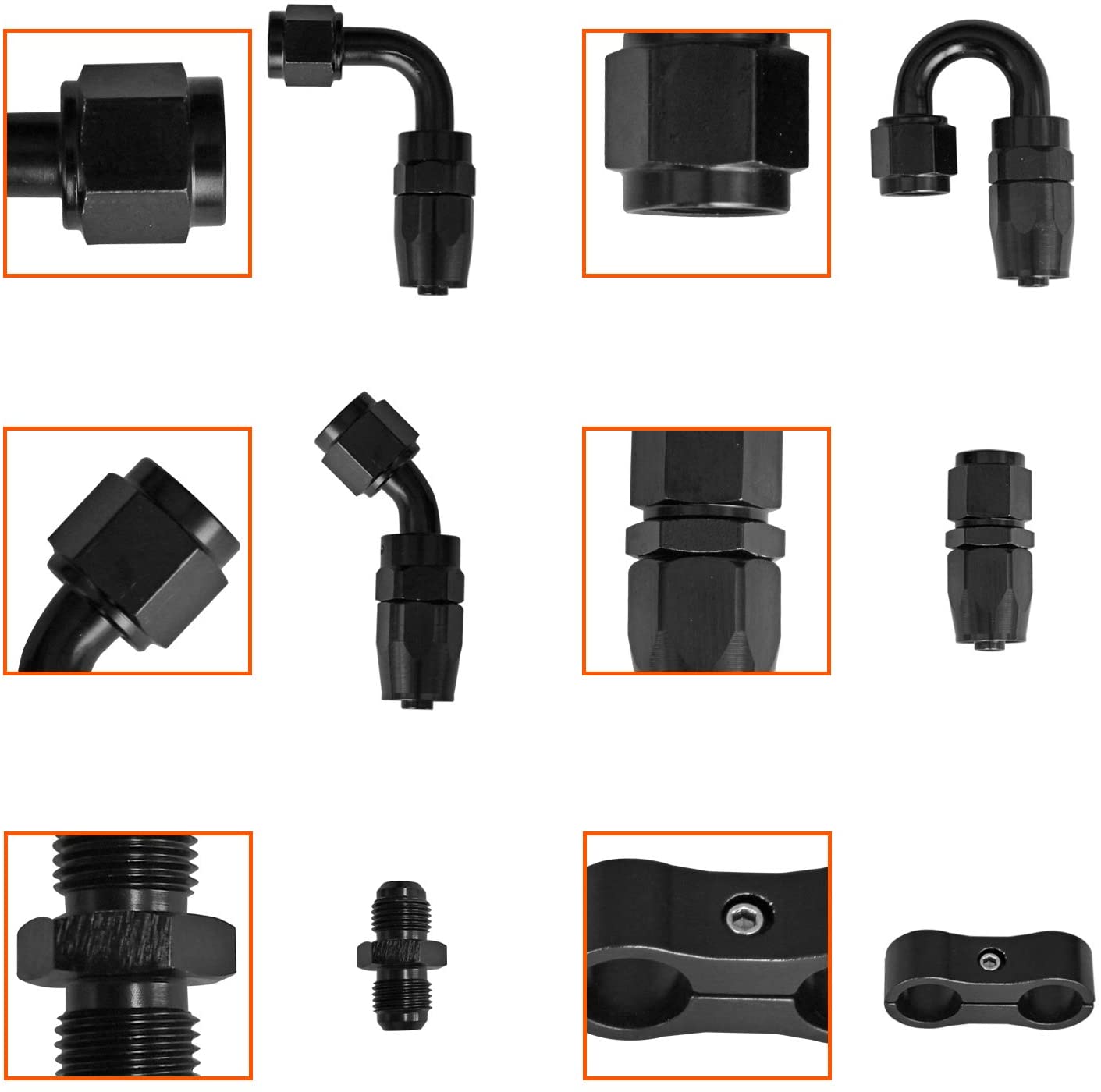

8 PCS AN-6 Straight Reusable Swivel Hose End
4 PCS AN-6 45 Degree Reusable Swivel Hose End
4 PCS AN-6 90 Degree Reusable Swivel Hose End
4 PCS AN-6 180 Degree Reusable Swivel Hose End

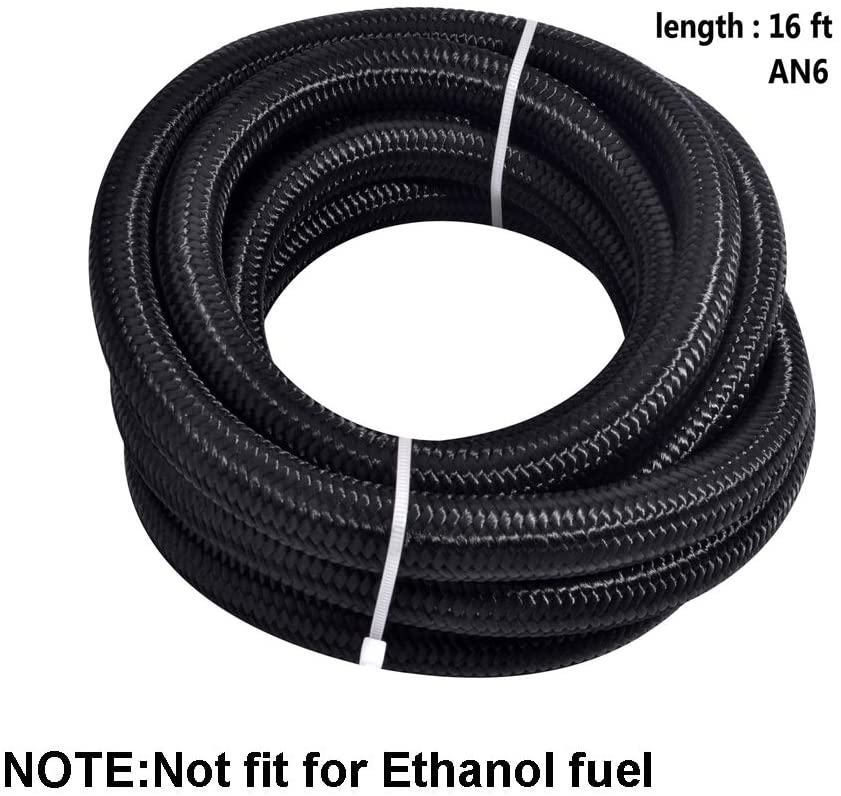

10 Meters / 33 Feet AN-6 Nylon Braided Hose

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please check car models to make sure the item is the one that your car can use
fit.
