Product Description

Features:

1. Embedded wall mount touch screen display

2. 19" 1280X1024 resolution touch screen

3. Can be used with Android/Win/Linux OS device

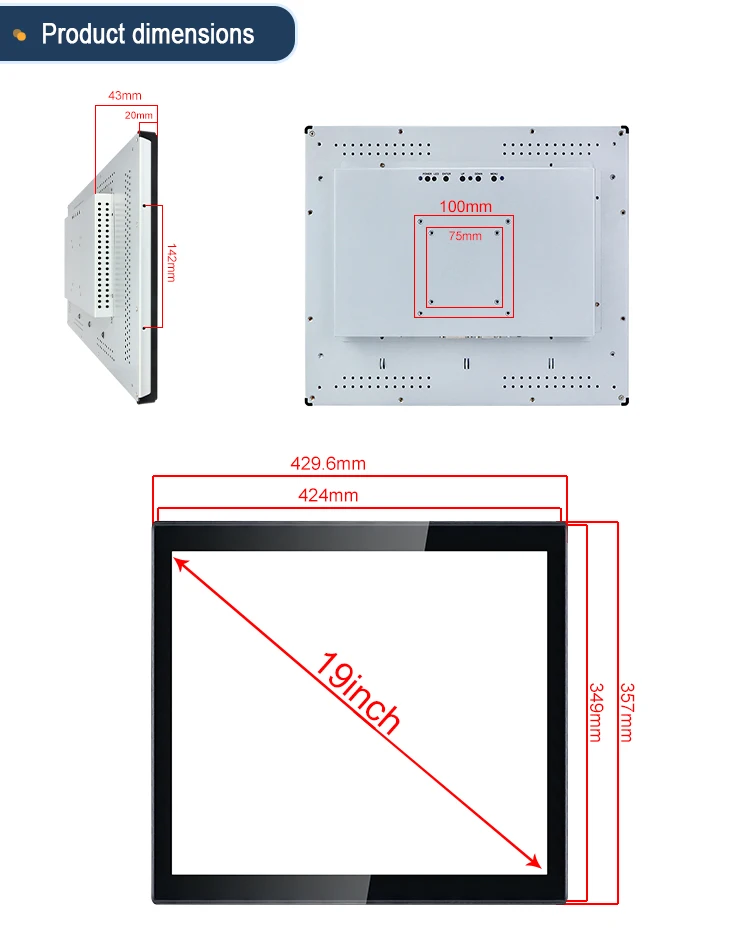

4. Vesa mount 75mm x 75mm, 100mm x 100mm

5. Differnet sizes for option: 7", 10.1", 13.3", 15", 17", 18.5", 19", 21.5" for option

6. Metal Case

7. Can also make with Android system



Specification:



YC-19EBT(19'' Embedded touch screen )
Dispaly	screen	19 inch 10 point capactive touch screen

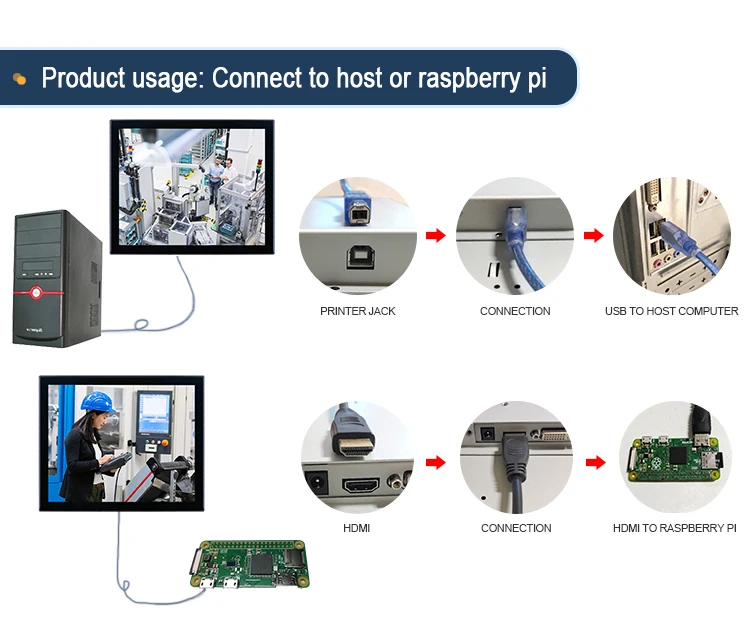

	Touch Panel Drivers	Win; Linux; Rraspberry Pi; Android
	resolution	19" 1280*1024
	Contrast	1000
	Brightness	300 cdm2
	Screen scale/Display area	16:9

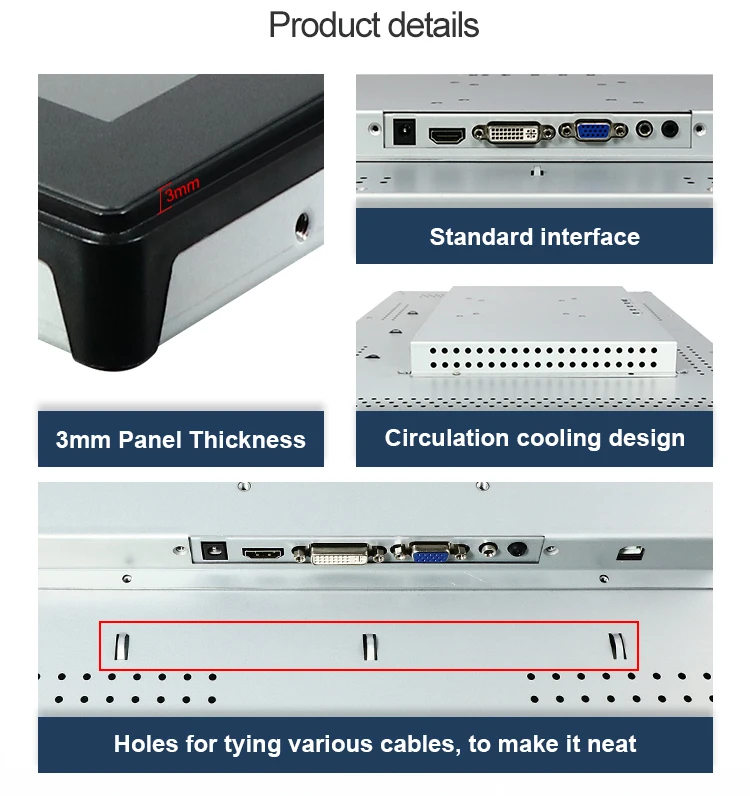

Interface	Printer port(USB type B)	USB type B for touch function
	HD-MI	1*HD-MI
	VGA	1*VGA
	DVI	1*DVI(OPTION)
	DC	DC input
	Speaker	Yes(OPTION)
	Headset	3.5mm stereo headphone output (PC AUDIO IN)
Multimedia	Video	MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p
	Audio	MP3/WMA/AAC etc.
	Picture	jpeg, jpg

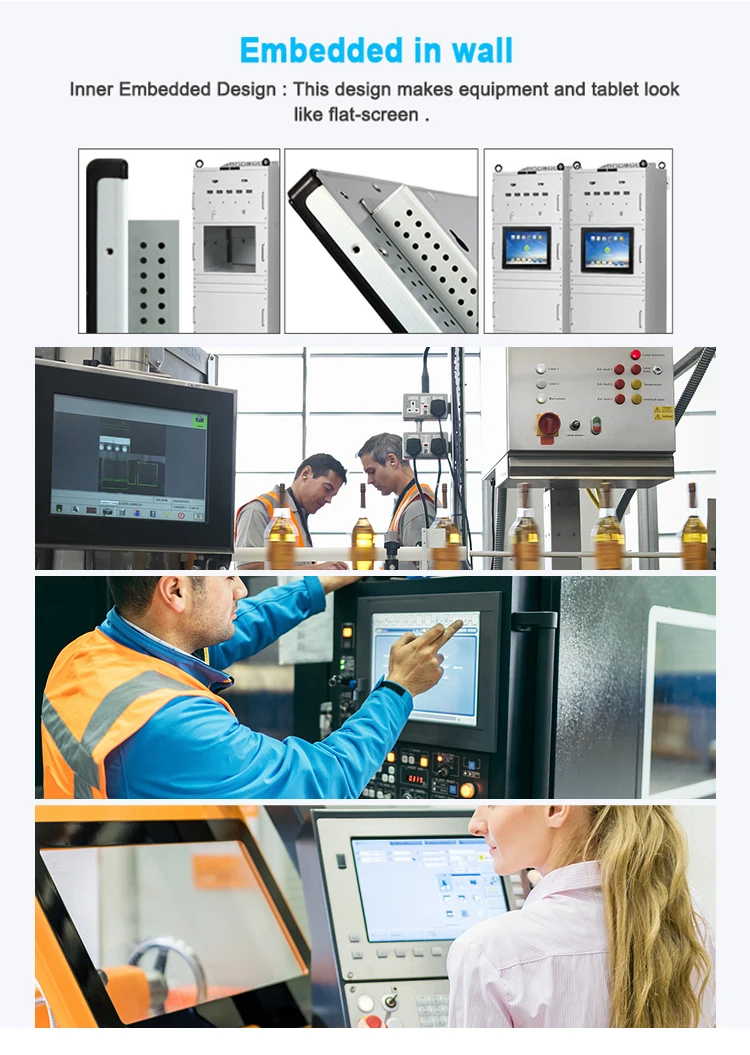

other functions	Installation	1:embedded 2: wall-hanging 3: ceiling-hanging 4: vesa
	Wireless mouse	Support
	Wireless keyboard	Support
	OSD Language	Multi language OSD operation
	software support	QQ/Facebook/map/email/games and so on
attachment	Adapter	12V/2A
	Cable	1*Printer USB cable
	Color	Metal Silver
