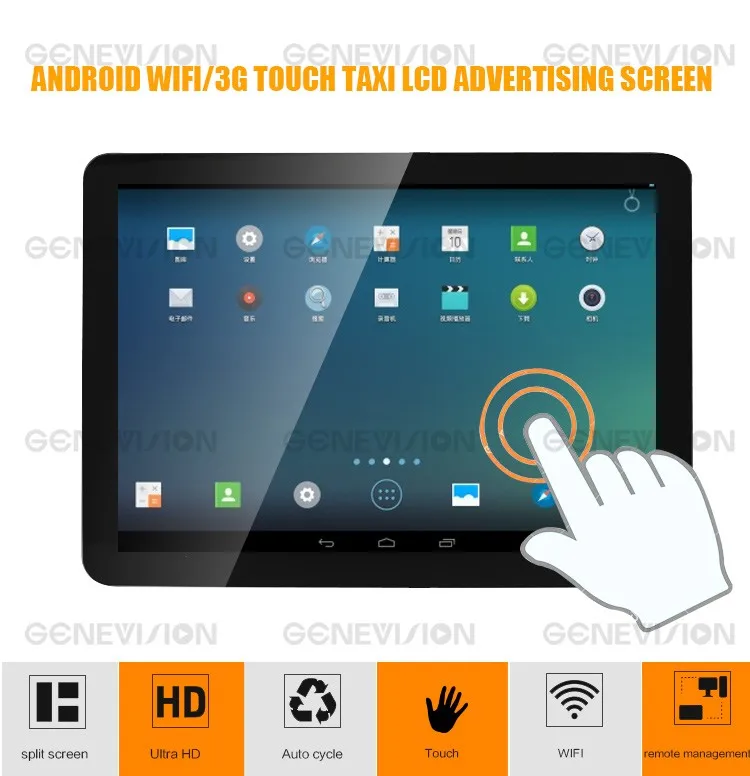

10.1 inch 12V 24V TFT LCD Panel Taxi Advertising screen Android Wifi with 3G car headrest dispaly

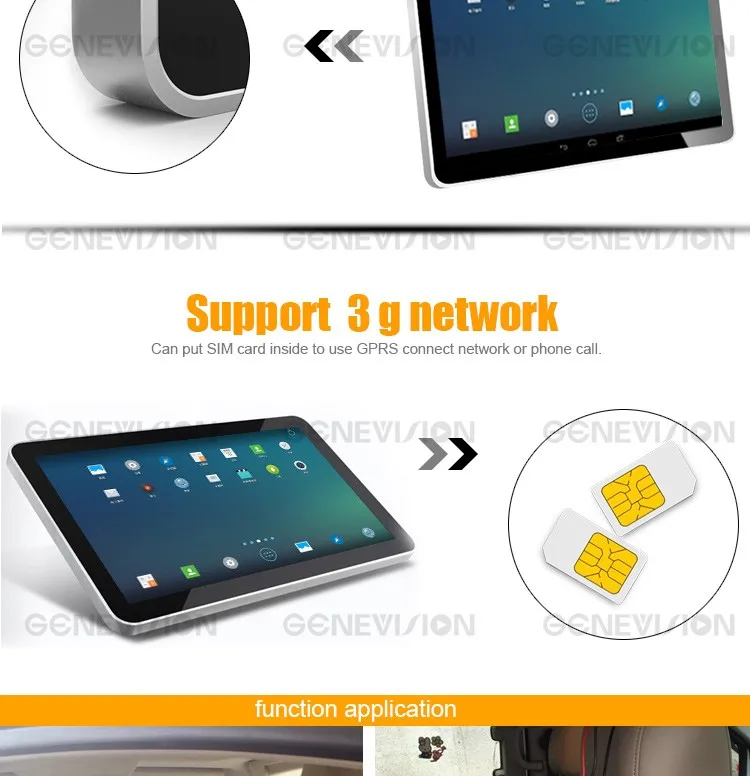

1. Built-in 3G module,Support 3G sim card.

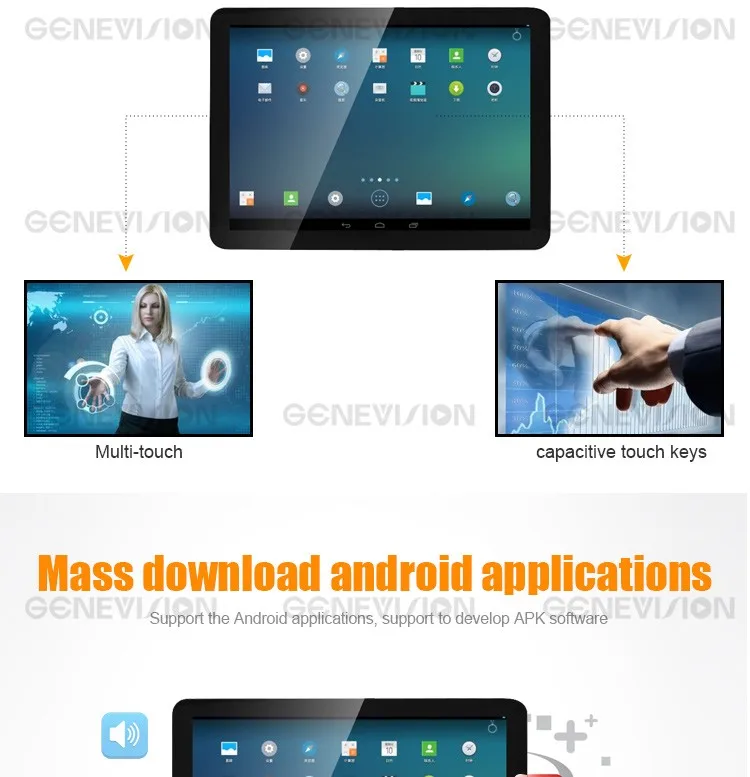

2. With Capacitive touch screen.

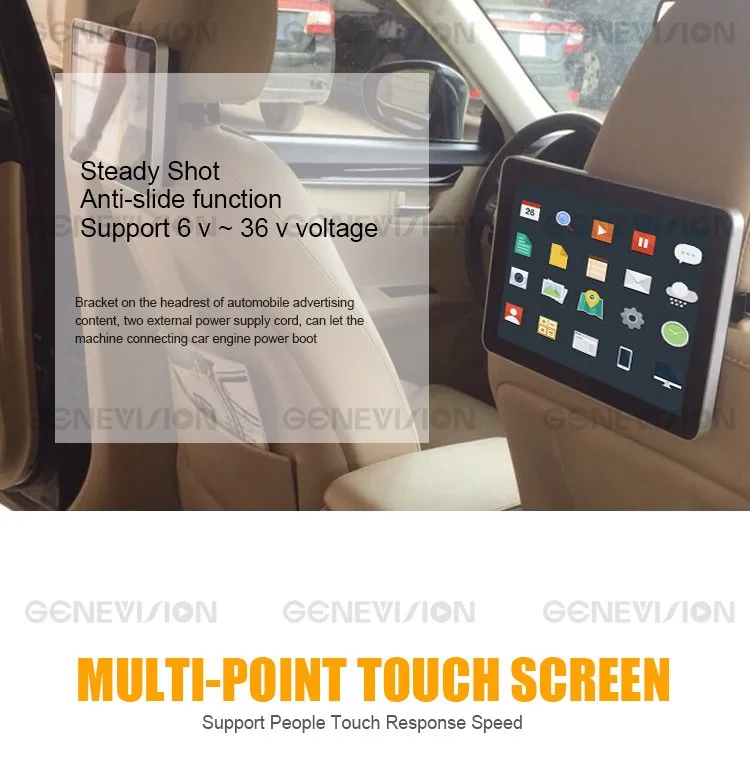

3..DC, 6V-36V power is available
4.Support split screen
5.Inside power amplifier(support 300W outside horn)
6.3G network online update information
7.2mm toughened glass/Acrylic panel cover the surface
8.Free editor rolling subtitle/top sticker/break power memory
9.Set multiple password(machine / card take Safety lock,can guard against theft)

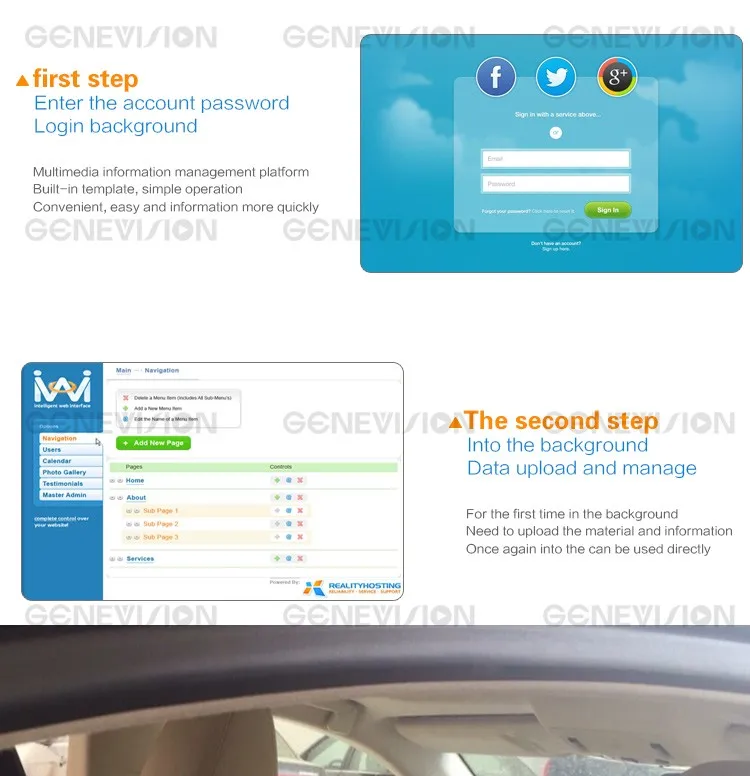

10.Can install the remote control management software.
11.Car horn: users can choose according to the actual need sound system; A builtin video and audio is broadcast system, horn rated power for 2 * 5 W; Another: built-in amplifier (can support 300 W power), users can connect directly with the car horn.
Specifications:
| Technical Parameter for LCD Panel |
Panel Size |
10.1 inch car seat display |
| Aspect Ratio |
4:3 |
|
| Active Area |
216.96mm(H) x 135.60mm(V) |
|
| Max. Resolution |
1280x 800 |
|
| Dot Pitch |
0.0565mm(H)x 0.1695mm(V) |
|
| Number of Color |
16.7M |
|
| Brightness |
350cd/m2 |
|
| Contrast Ratio |
800:1 |
|
| Responsive Time |
8ms |
|
| Panel Life |
above 50000 hours |
|
| Storage Medium |
Flash memory card |
2gb to 36gb for the capacity |
| Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio formats |
MP3 |
|
| Photo formats |
JPG |
|
| OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|
| Audio output |
stereo L/R, 5W*2, 8Ω |
|
| Power supply |
AC 110V - 240V, 50/60HZ |
|
| Storage Temperature |
-7 to 65 Celsius degree |
|
| Normal Working Temperature |
-5 to 65 Celsius degree |
|
| Applications |
Bus,Taxi,Subway |
|
