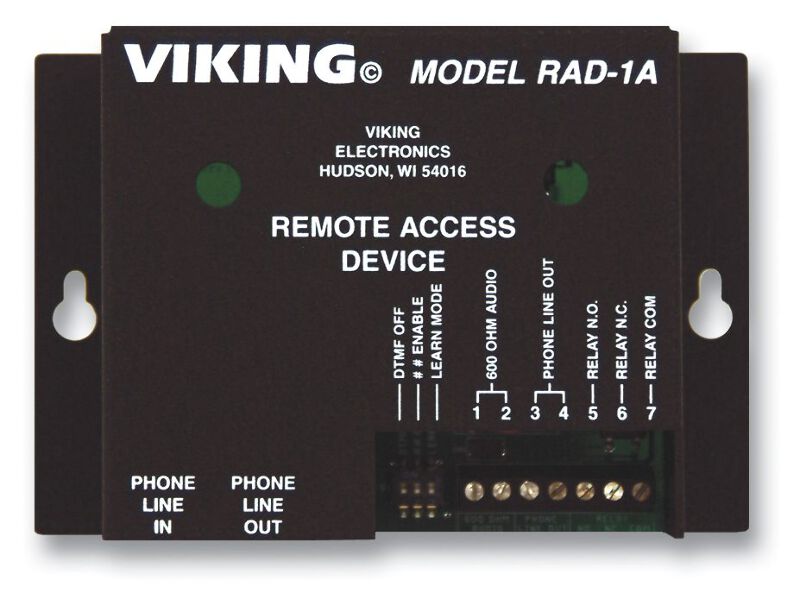

Viking Electronics RAD-1A Line Powered Remote Access Device

The RAD-1A, remote access device, gives authorized users remote access to one way paging amplifiers, digital announcers and other audio programs. A programmable access code prohibits access by unauthorized users.The RAD-1A answers on the first ring and disconnects on CPC, call time out, silence time out, busy or by dialing #7. Separate 600 ohm audio and telephone line outputs are provided, allowing connection to audio amplifiers, digital announcers, or phone systems. The user does not have to hang up and redial the RAD-1A to access other features. Applications Remote Access To:Paging systems (Viking’s CPA-7B or PA-2A) Digital announcers, dictation equipment Advertisements, radio or church programs Audio monitoring for security purposes Features Status LED turns on when the unit is active and turns off to indicate the presence of audio Programmable 6 digit security code Programmable 6 digit access code Separate 600 ohm audio and telephone line outputs Disconnects on CPC, call time out, silence time out, busy or by dialing #7 Programmable 2 hour call timer Programmable 1-99 second silence timer Alternate screw terminal connection for phone line out Provides a 500ms hookswitch flash to access other features Provides a 2 second disconnect Connects phone line to the 600 ohm input/ output of one-way paging amplifiers, digital announcers and other audio programs Auxiliary contacts available for systems that need a dry contact closure (activate whenever the unit’s output is active) Non-volatile memory (no batteries required) Specifications Power: Telephone Line Powered (24V DC 20mA minimum) Dimensions: 133mm x 89mm x 44mm (5.25” x 3.5” x 1.75”) Shipping Weight: 1.13 kg (2.5 lbs) Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity Relay Contact Ratings: .5A @ 125VAC / 1A @ 30VDC Audio Loss (through unit): 1 dB Connections: (2) RJ11 modular jacks, 7-position screw terminal strip

The RAD-1A, remote access device, gives authorized users remote access to one way paging amplifiers, digital announcers and other audio programs. A programmable access code prohibits access by unauthorized users.

The RAD-1A answers on the first ring and disconnects on CPC, call time out, silence time out, busy or by dialing #7. Separate 600 ohm audio and telephone line outputs are provided, allowing connection to audio amplifiers, digital announcers, or phone systems. The user does not have to hang up and redial the RAD-1A to access other features.

Applications

    Remote Access To:
  • Paging systems (Viking’s CPA-7B or PA-2A)
  • Digital announcers, dictation equipment
  • Advertisements, radio or church programs
  • Audio monitoring for security purposes

Features

  • Status LED turns on when the unit is active and turns off to indicate the presence of audio
  • Programmable 6 digit security code
  • Programmable 6 digit access code
  • Separate 600 ohm audio and telephone line outputs
  • Disconnects on CPC, call time out, silence time out, busy or by dialing #7
  • Programmable 2 hour call timer
  • Programmable 1-99 second silence timer
  • Alternate screw terminal connection for phone line out
  • Provides a 500ms hookswitch flash to access other features
  • Provides a 2 second disconnect
  • Connects phone line to the 600 ohm input/ output of one-way paging amplifiers, digital announcers and other audio programs
  • Auxiliary contacts available for systems that need a dry contact closure (activate whenever the unit’s output is active)
  • Non-volatile memory (no batteries required)

Specifications

  • Power: Telephone Line Powered (24V DC 20mA minimum)
  • Dimensions: 133mm x 89mm x 44mm (5.25” x 3.5” x 1.75”)
  • Shipping Weight: 1.13 kg (2.5 lbs)
  • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Relay Contact Ratings: .5A @ 125VAC / 1A @ 30VDC
  • Audio Loss (through unit): 1 dB
  • Connections: (2) RJ11 modular jacks, 7-position screw terminal strip
×
