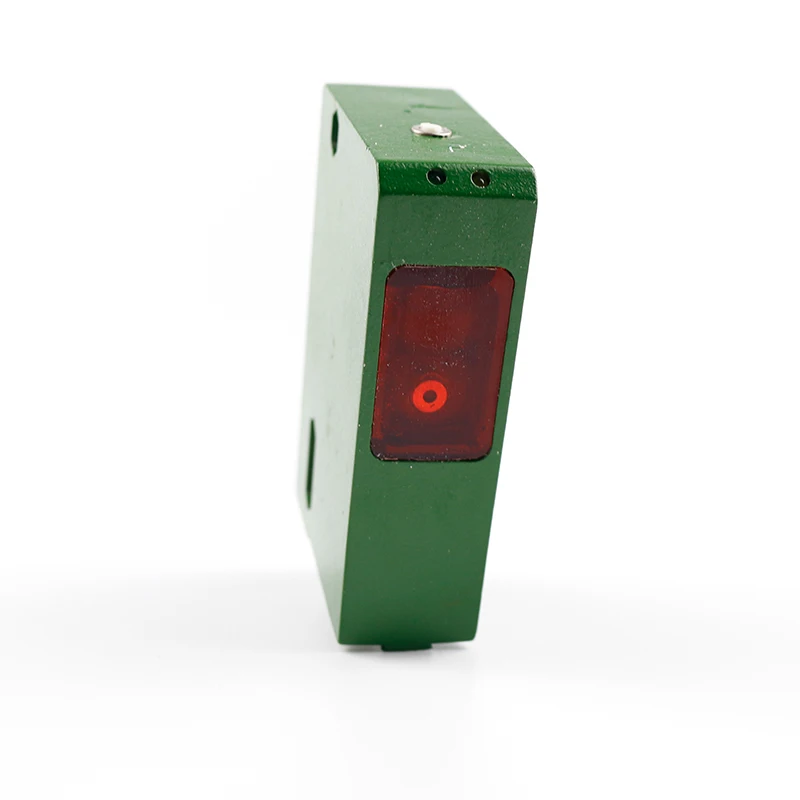

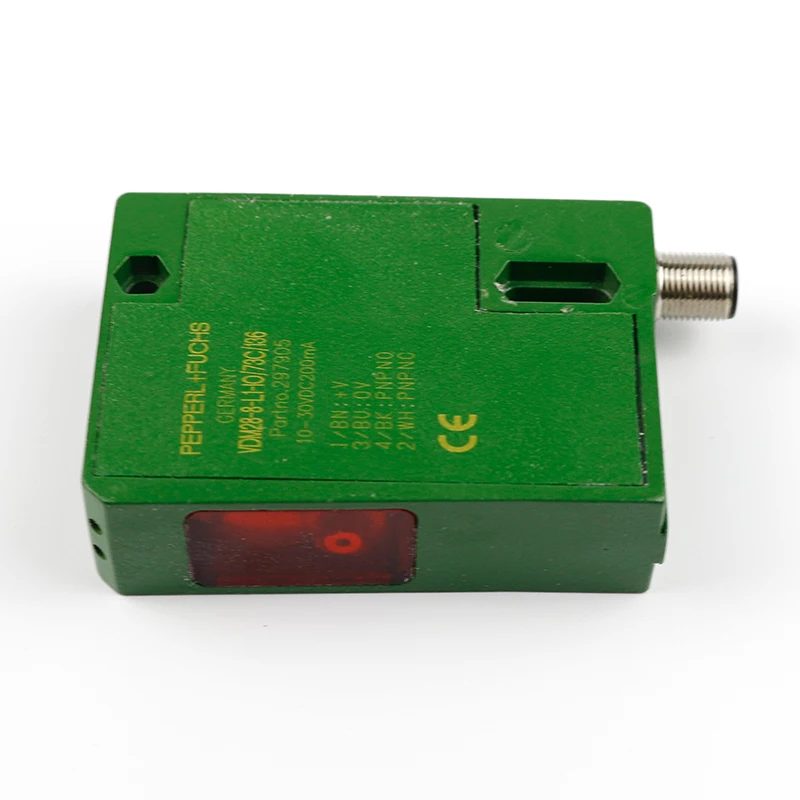

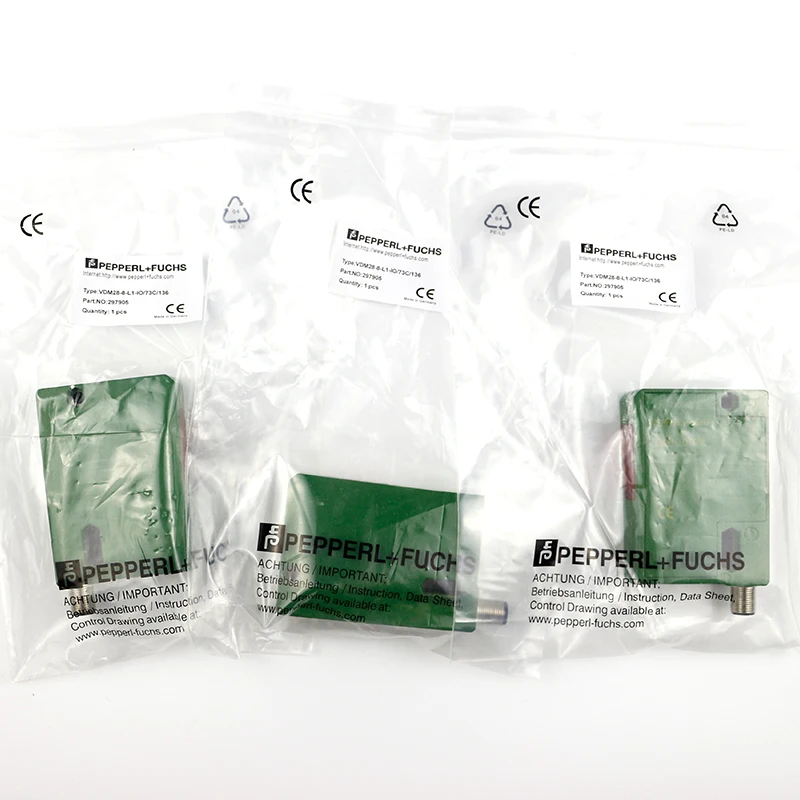

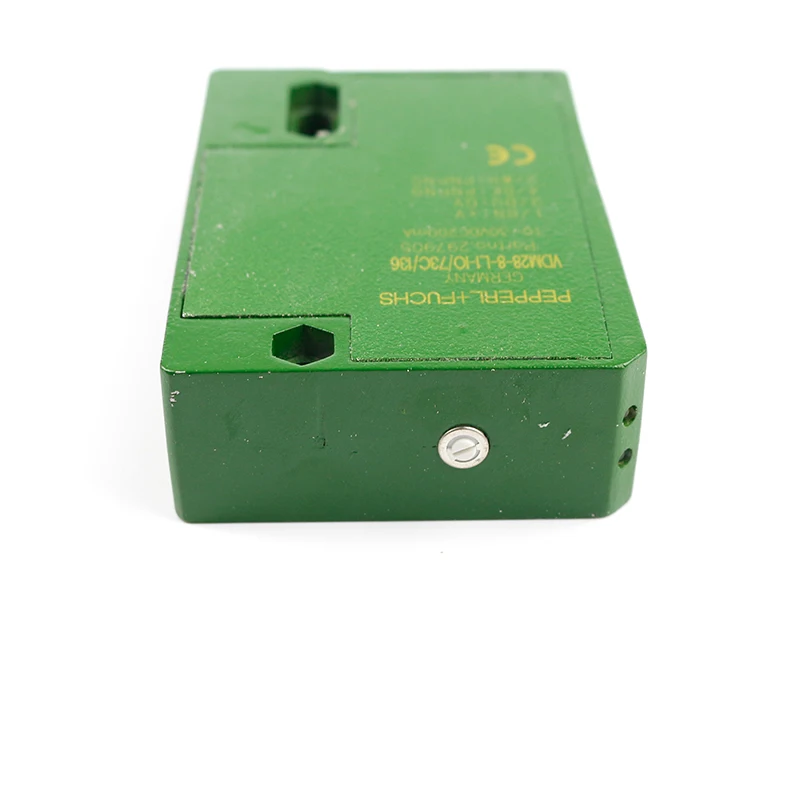

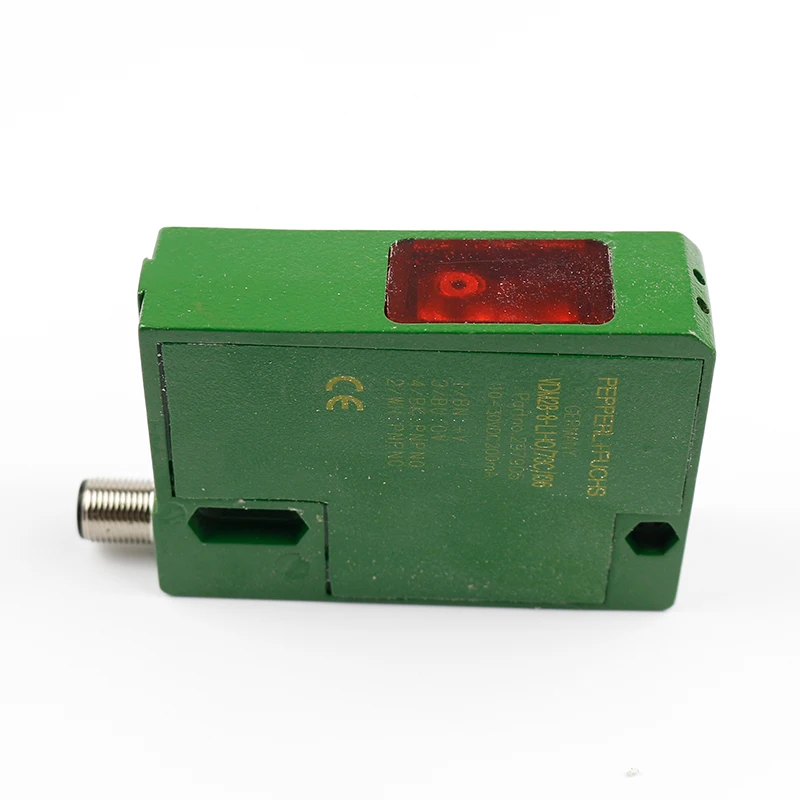

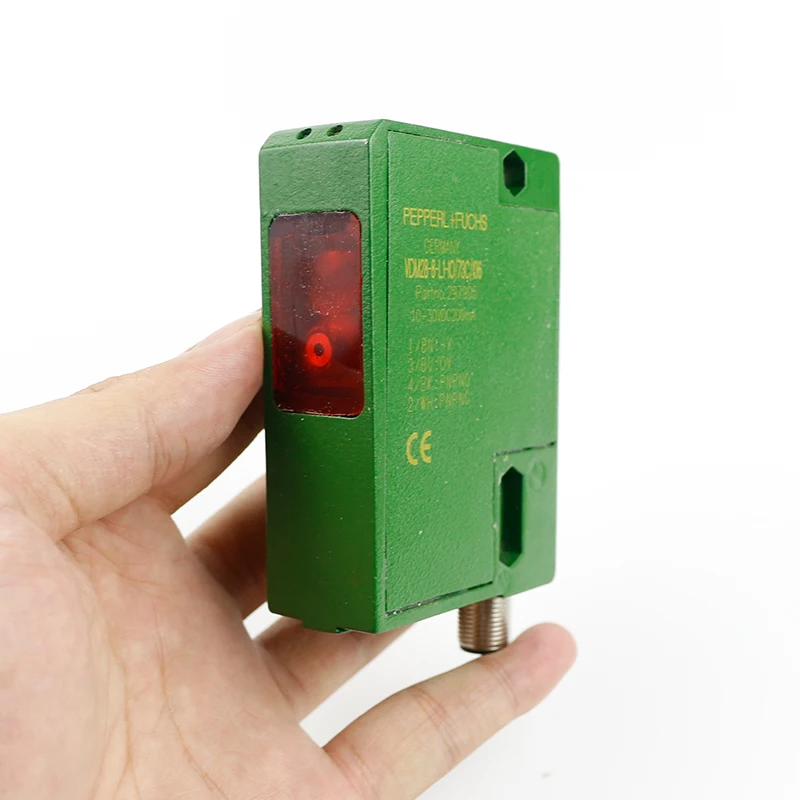

Model: VDM28-8 - L1 - IO / 73 c / 136
Measuring range: 0.2-8m
Light source: laser diode
Light source type: modulated visible red light
Wavelength: 660 nm
Operating voltage: 10-30VDC
Interface type: IO-Link
Signal output: 2 push-pull (4 in 1) output, short circuit protection, reverse polarity protection
Shell size: 25.8*88*54.6mm
Protection class: IP67
Connection: 4-pin M12*1 connector
Material:
Housing: Plastic ABS
Optical face: plastic sheet
Features:
Use objects for distance measurements
Measuring methods PRT (Pulse ranging technique)
The measurement results are accurate, clear and reproducible
A red laser is used as a light emitter
Models with IO-Link interface
Laser level 1, harmless vision
Specification
|
item
|
value
|
|
Model Number
|
VDM28-8-L1-IO/73C/136
|
|
Type
|
Photoelectric Sensor
|
|
Place of Origin
|
Germany
|
|
Usage
|
/
|
|
Theory
|
/
|
|
Output
|
/
|
|
Description
|
ranging photoelectric sensor
|
Products Description
The main function
|
|
|
|
|
As for electronic components, there are usually several problems
|
|||
|
Voltage
|
1. AC, and DC 2.12v 24V 110V 220V 380V
|
|
|
|
|||
|
Current:
|
Ma 1.30ma 2.50ma 3.100ma
|
|
|
|
|||
|
Power algorithm:
|
power (W) = current (a) × voltage (V)
|
|
|
|
|||
|
Output mode:
|
1. Relay output 2. Transistor output
|
|
|
|
|||
|
Action mode:
|
no and NC
|
|
|
|
|||
|
Action mode:
|
1. NPN output low level, 2. PNP output high level
|
|
|
|
|||
