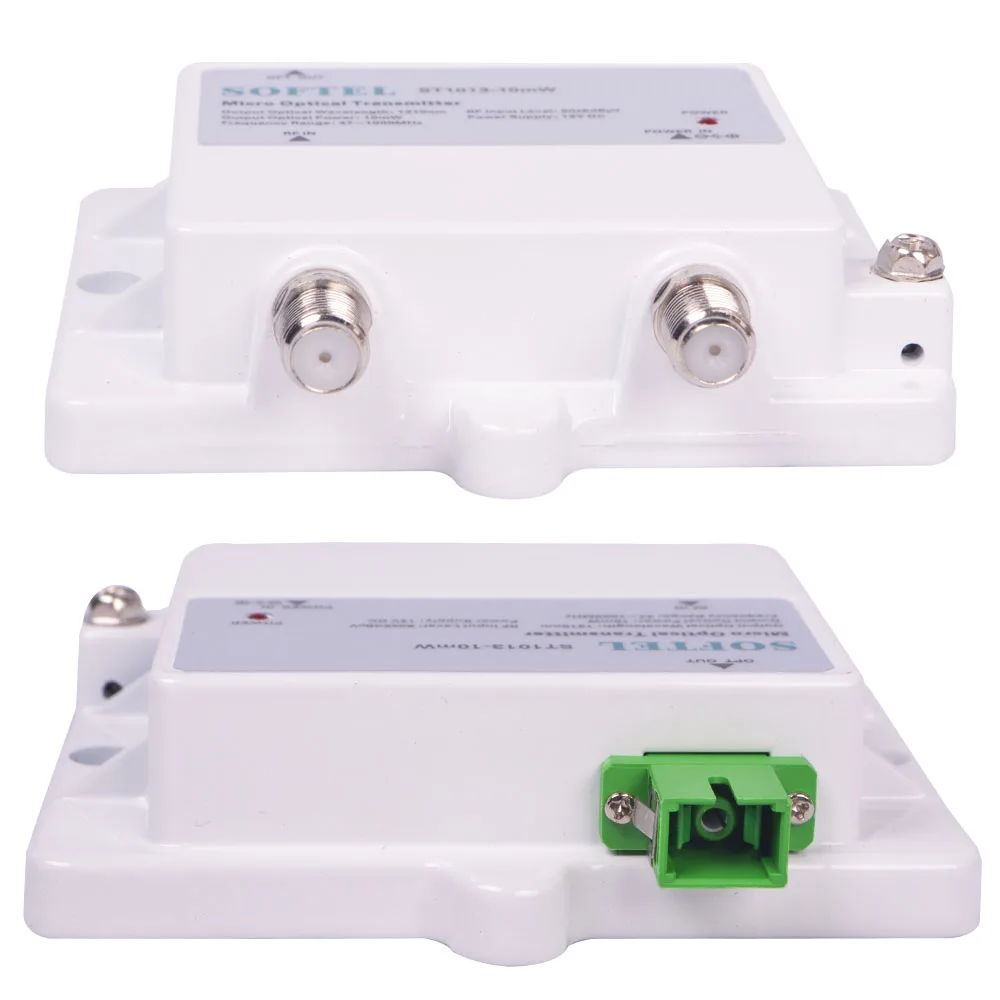

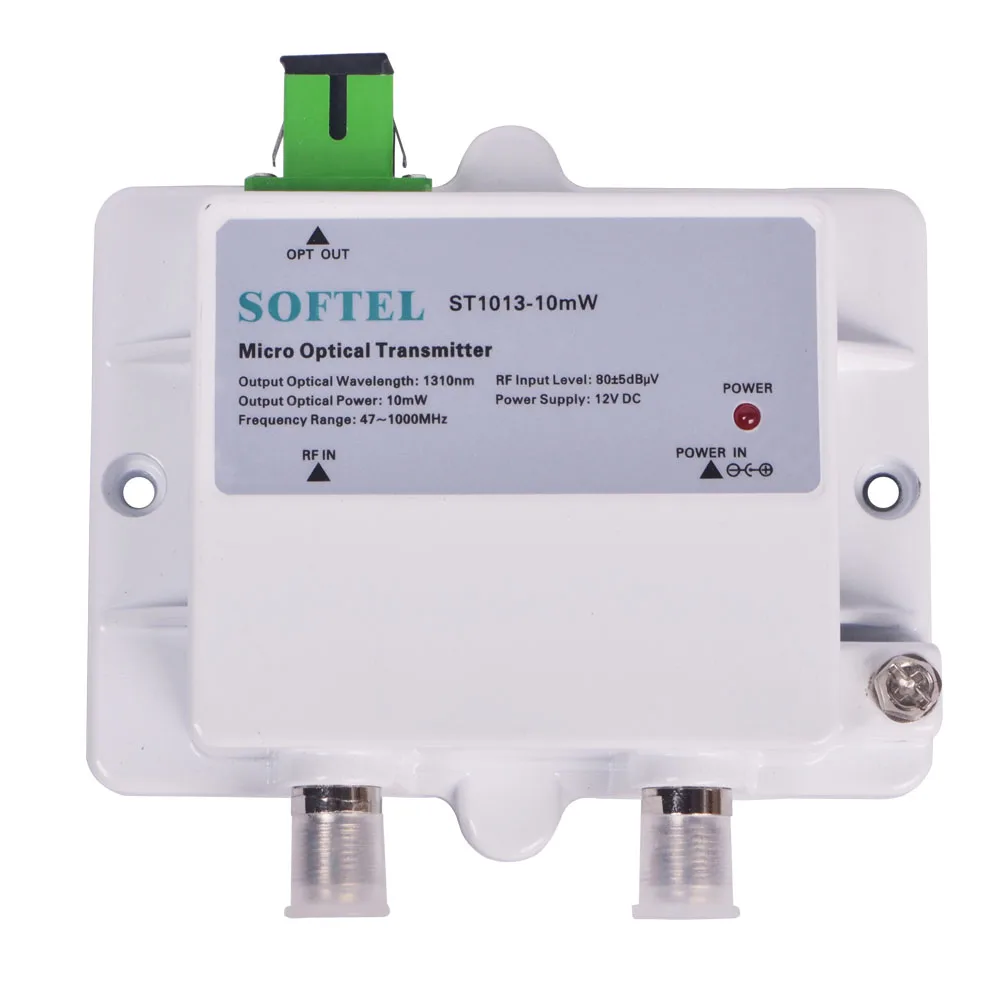

Optical Transmitter 1310nm 10MW Mini TV Transmitter

Characteristic

1. Designed for FTTH(Fiber To The Home)Networks

2. Excellent Linearity and flatness

3. Single-mode fiber high return loss

4. Using GaAs amplifier active devices

5. Ultra low noise technology

6. Using DFB coaxial small package laser

7. Smaller size and easier install

8. Red-LED for power indication

Parameters

Performance			Index	Supplement
Customer interface	RF Connector		F-Female
	optical connector		SC/APC
	power supply		F-Female
Optic feature	output optical wavelength	nm	1310
	Output optical power	mW	10
	Optic fiber type		single mode
	Return loss	dB	≥45
RF feature	Frequency range	MHz	47-1000
	Input level	dBmV	80±5
	Flatness	dB	±0.75
	Return loss	dB	>16
	Input impedance	Ω	75
	C/N	dB	≥52
	CTB	dB	≥63
	CSO	dB	≥60
	CSO	dB	≥60
Other parameter	Size	mm	100×98×28
	Power supply	VDC	12
	Power Consume	W	≤2
