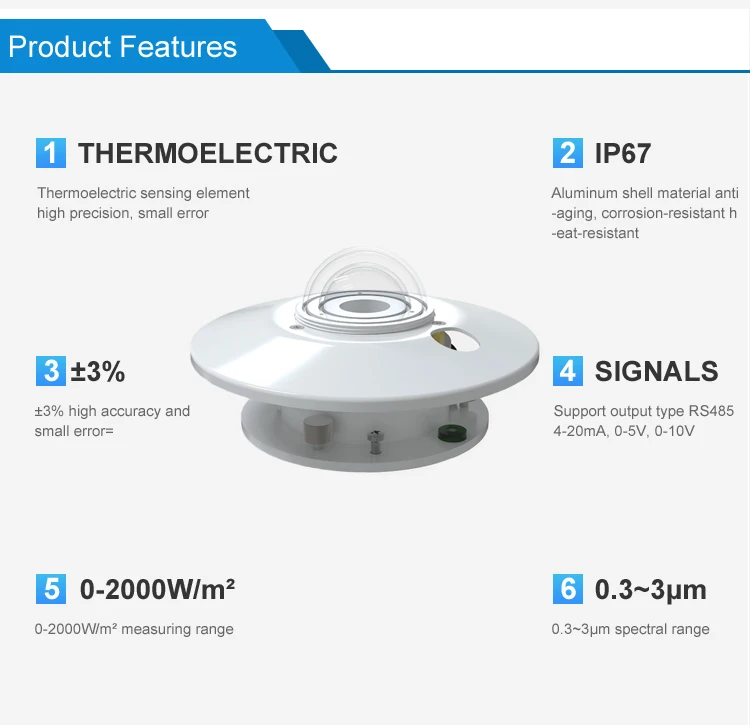

* The sensing element adopts a wire-wound electroplating thermopile, and the sensing surface is a black layer with high absorptivity, which has short response time and small error.
* Using the thermal effect of radiation, it absorbs solar radiation and converts it into thermoelectromotive force, and has a temperature compensation function, which can more accurately measure solar radiation.

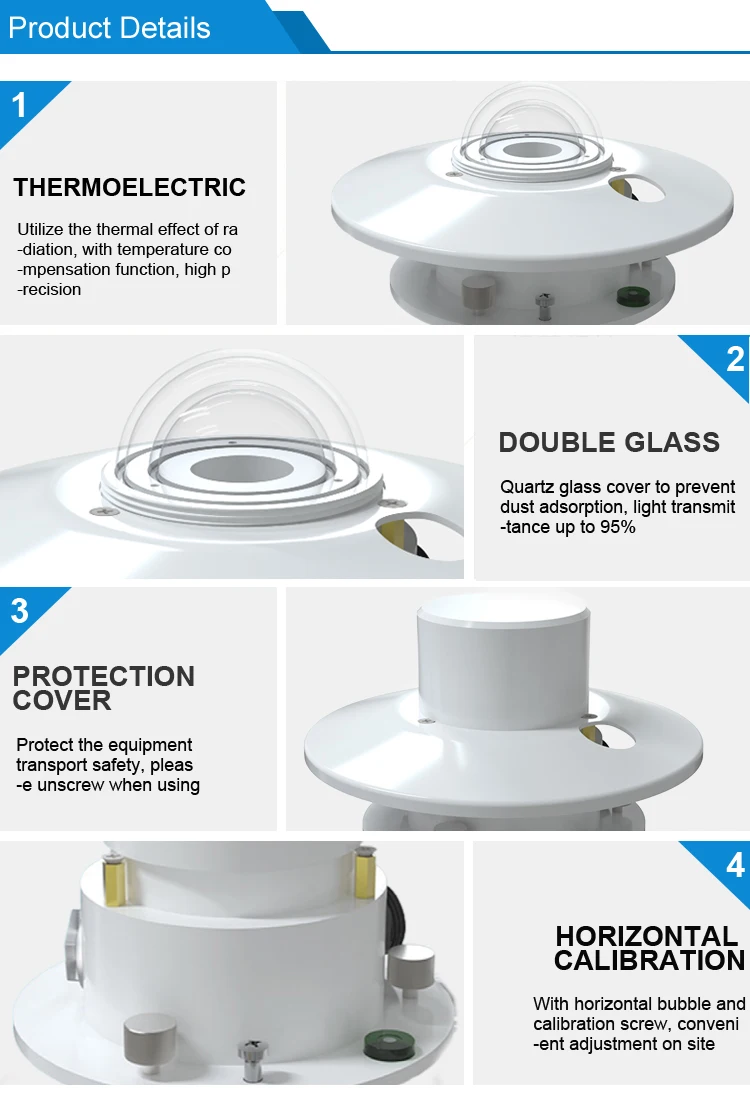

* The upper part of the sensing surface adopts a transparent double-layer glass cover with a light transmittance of 95%, which can not only reduce the inflfluence of air convection on the equipment, but also block the radiation of the cover itself.
* Using the thermal effect of radiation, it absorbs solar radiation and converts it into thermoelectromotive force, and has a temperature compensation function, which can more accurately measure solar radiation.
* The upper part of the sensing surface adopts a transparent double-layer glass cover with a light transmittance of 95%, which can not only reduce the inflfluence of air convection on the equipment, but also block the radiation of the cover itself.
|
Power supply
|
10V～30V DC, or without power supply
|
|
Power consumption
|
485 output: 0.8W
4~20mA/0~5V/0~10V: 1.2W |
|
|
485 (standard Modbus-RTU protocol)
4~20mA current output 0~5V/0~10V voltage output |
|
Working temperature
|
-40℃~60℃
|
|
Working humidity
|
0%~RH
|
|
Sensitivity
|
7～14 μV·W-1·m2
|
|
Internal resistance
|
about 300Ω
|
|
Response time (99%)
|
≤30s
|
|
Non-linear error
|
≤±3%
|
|
Corresponding error of directionality
|
≤±30W/m²
|
|
Temperature response error
|
≤±8% (-40℃～+40℃)
|
|
Corresponding error of tilt
|
≤±5%
|
|
Spectral range
|
0.3~3μm
|
|
Measuring range
|
0-2000W/m²
|
|
Resolution
|
1W/m²
|
|
Accuracy
|
±3%
|
|
Annual stability
|
≤±3%
|
|
Spectral selectivity
|
≤±10%
|
|
Cosine response error
|
≤±5%
|
