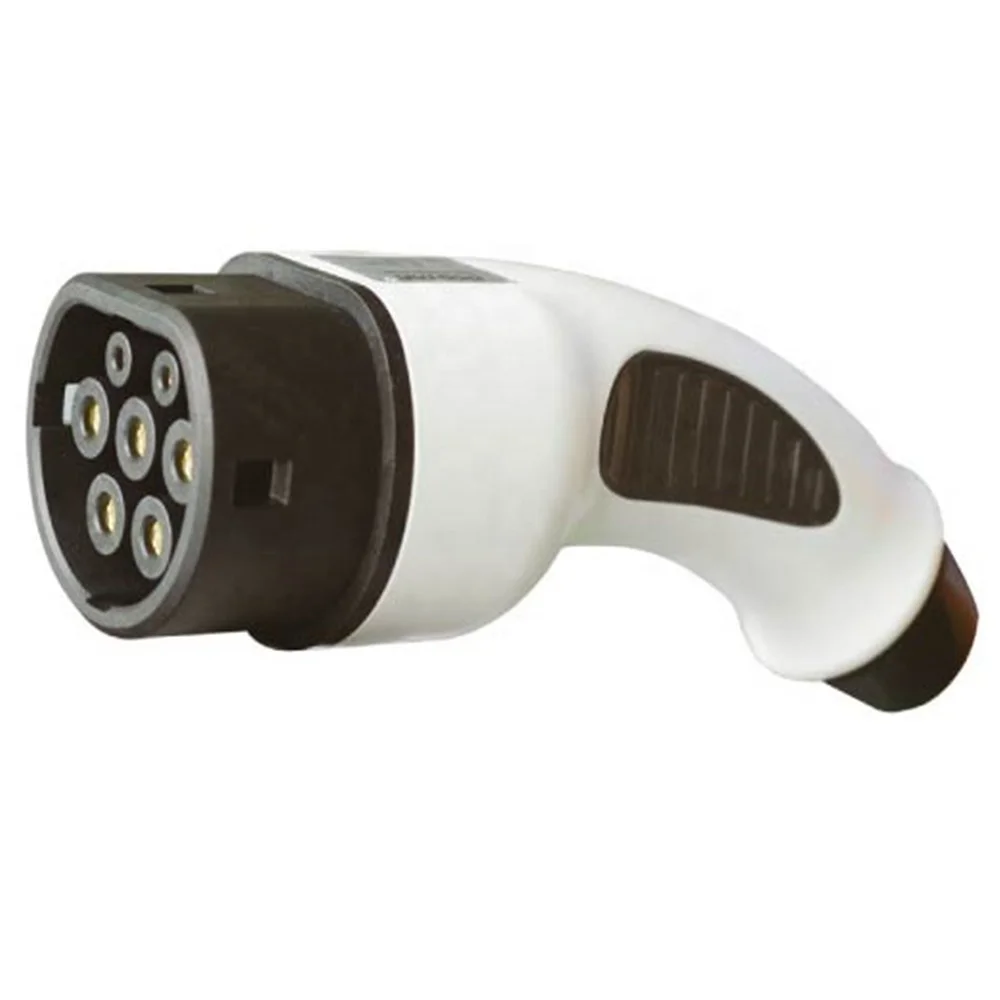

Product Name:Type 2 Female gun 63Amp  EVSE Connector IEC 62196-2 AC EV Charger with 5 Meter Cable  Electric Car Side
Nissan LEAF, Nissan eNV-2000, VW eGolf Chevy Volt, Chevy Bolt, Chevy Spark Toyota Prius Plug-In, Prius Prime,Toyota Rav4 EV Hyundai Ioniq,Kia Soul EV, Mercedes B Class Electric Drive,BMW i3 and i8 Ford Focus Electric, Ford C-Max Energy, Ford Fusion Energy, Fiat 500e ZERO motorcycle , Brammo motorcycle ,Smart Electric Drive, Karma Fisker, Mitsubishi iMiev, Cadillac ELR Porsche Cayenne S-E, Porsche Panamera S-E ,Honda Accord Plug-In Hybrid, Honda Fit EV ,Smart ,Honda  Tesla Model S, Tesla Model X (* need to use with Tesla charging adapter)





Rated Current:
16A/32A
Operating Voltage
AC 250V/AC 480V
Insulation Resisitance
>1000MΩ(DC500V)
Withstand Voltage
2000V
Contact Pin
Copper alloy, Silver plating
Working temperature
-30°C ~+50°C
Flame Retardant Grade
UL94 V-0
Contact Resistance
0.5mΩ Max
Waterproof
IP55
Certificate
CE, TUV Approved
Product Name
IEC 62196-2 Type 2 16A 32A EV Plug AC EV Charger Connector

 Features

1.Conform to the provisions and requirements of   SAE J1772-2010
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance  life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP55 (working condition).



Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,EV Charging Connector
