Product description

Modulating damper actuator for adjusting dampers in technical building installations

• Nominal torque 40Nm

• Nominal voltage AC/DC 24V

• Control modulating DC (0)2...10V

• Position return DC 2...10V

Technical data

·Electrical data

Nominal voltage	AC/DC 24V
Nominal voltage frequency	50/60Hz
Nominal voltage range	AC 19.2...28.8V / DC 19.2...28.8V
Power consumption in operation	4.5W
Power consumption at rest	2W
Power consumption for wire sizing	6.5VA
Sensor element	Cable 1m. 4 x075mm



·Functional data

Torque motor	min.40Nm
Control positioning signal  Y	DC(0)2...10V
Control positioning signal Y note	Typical input impedance 100kΩ
Control operating range	DC2..10V
Position return (measuring voltage U)	DC2...10V
Position return measuring voltage U note	Max. 1mA
Position accuracy	±5%
Direction of rotation motor	Can be selected with switch 0/1
Running direction	Y= OV: At switch position 0(counter-clockwiserotation)/1(clockwise rotation)
Manual override	Gear disengagement with push-button, can be locked
Angle of rotation	MAX.95°
Running time motor	150s/90°
Sound power level motor max.	45dB(A)
Spindle driver	Universal spindle clamp reversible 12.. 26mm
Position indication	Mechanical, pluggable



·Safety

Protection class IEC/EN	lll Safety extra-low voltage
Protection class UL	UL Class 2 Supply
Degree of protection IEC/EN	IP54 in all mounting positions
Degree of protection NEMA/UL	NEMA 2, UL Enclosure Type 2
Rated current voltage motor	0.8kV
Ambient temperature	-30..50℃
Non-operating temperature	-40..80℃
Ambient humidity	95% r.h., non-condensing



·Weight

Weight

Approx. 1. 8kg



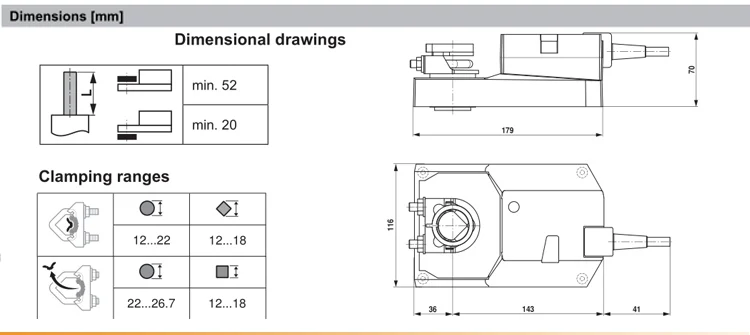

Prouduct show
