Product Details

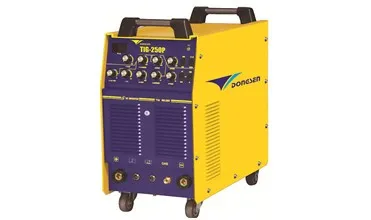

TIG-250P AC/DC

Using the most advanced IGBT or MOSFET inverter technology, simple circuit, small size, light weight, high efficiency and energy saving. Super-compensation of the power gird capacity, anti-supply voltage fluctuations,
the stability of welding current, reliable performance. No-load loss, with the traditional machine than can be saving 50%. Inverter frequency of 30-100KHz, the dynamic response of high-speed, easy arc ignition, arc stability, high strength

Fan-As-Needed™ (F.A.N.™)- reduces noise and dust inside the machine.
Auto-Adaptive Arc Force- minimizes electrode sticking in the puddle without compromising arc stability or increased spatter.
Automatic Hot Start- boosts the current during starting to make striking an arc easier.
Widely used on a variety of materials such as mild steel,carbon steel,alloy steel in the industries of structural s teel,light industrial fabrication,repair and maintenance,ect.


Accessories

Parameter:

ITEM
     TIG-200P AC/DC
    TIG-250P AC/DC
    TIG-315P AC/DC
TIG-400P AC/DC
Rated Input Voltage(V)

     1ph,230±15%

      1ph,230±15%

      1ph,230±15%

 1ph,230±15%
Output
Current(A)

            10-200

             10-250

             10-315

      10-400
Post-Flow(S)
             1-10
               1-10

              1-10

       1-10
Down Slope(S)
             0-10

               0-10

               0-10

        0-10
vale Value Current(%)

           20-80

            20-80

            20-80

         20-80

Dimension(mm)

     600x440x420

     600x440x420

       720x480x670

   720x480x670

Weight(Kg)

              20

                21

                35

         37
