Product Description
|
Motor Type
|
Elevator Door
|
|
Motor ' s Name
|
Synchronous Motor
|
|

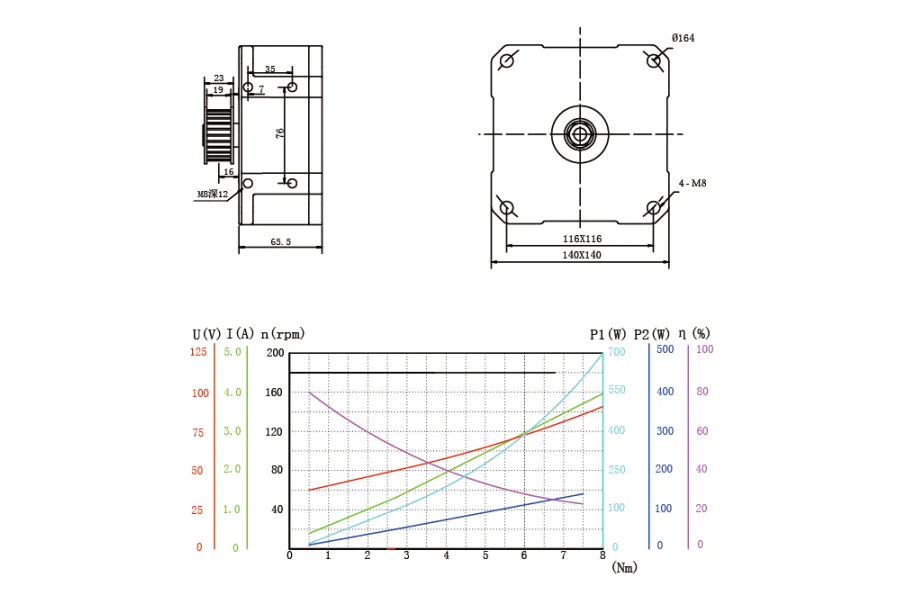

Mounting Dimension
|
140*140 Thickness 65.5
|
|
Matching Controller
|
Panasonic,Monarch,Emerson,Delta, STEP and etc
|
|
Matching synchronizing wheel
|
5M-26 8M-22
|
|
Rated Torque
|
2.7N.m
|
|
Rated Power
|
50W
|
|
Rated Speed
|
180rpm
|
|
Rated Input voltage
|
50V
|
|
Rated Current
|
1.3A
|
|
Rated Frequency
|
24HZ
|
|
Poles
|
16
|
|
Number of encoder lines
|
1024lines
|
|
Line Resistance(20C)
|
17.08
|
|
Line inductance
|
dasle 46mH Qasle 74.5mH
|
|
Back Electromotive Force
|
180rpm 30V
|
|
Working Time
|
S3 40%
|
|
Insulation Class
|
F
|
|
Motor Protection Class
|
IP54
|
|
Operating Condition Temperature
|
-25°~50°
|
|
Relative Humidity
|
90%
|
|
Weight
|
2.9士0.05kg
|
