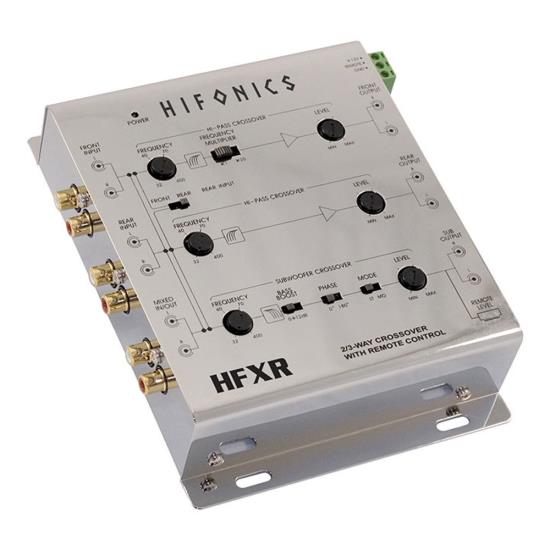

Hifonics HFXR

Hifonics HFXR 3-Way Active Crossover With Remote & 8.5 Volt Preamp Output




  • Signal-to-noise ratio: > 95 dB
  • Frequency response: 10-30,000Hz
  • Total harmonic distortion: > 0.01%
  • Channel separation: > 60dB
  • Output gain ratio: 1:2
  • Dimensions: 6-3/4" x 5-3/4" x 1-3/4"

  • Hifonics HFXR 2 Way/3 Way Active Crossover
  • Wired Bass Remote Included
  • 2 channel or 4 channel X-Over with 8.5 volt line driver
  • Select 2- or 4-channel inputs with input switch
  • Direct sub-in receivers with sub-outs 0 – 12dB bass boost at bass remote
  • Maximum pre-amp output: 8.5v RMS45Hz bass boost w/ quasi-parametric EQ
  • Selectable for mono or stereo woofers
  • 180° phase-shift switch
  • Second order Butterworth front and rear channel high-pass
  • Level adjustments for front, rear and sub channels
  • 2-channel full-range RCA preamp Cascading output
