FEATURES & BENEFITS
1. Global shutter
2. 32-bit high performance CPU,1.5GHz frequency
3. Decoding min barcode density:4mil
4. Support 1D/2D barcode on paper and screen
5. Extremely high sensitivity, quick scanning
6. Motion tolerance up to 60cm/s(Application test)
7. Interface RS232 and USB(HID,COM)
8. Decoding at low and high brightness environment
9. Auto-sensing, Host Mode, Photoelectric trigger
10. Protection level IP64,Metal housing
Product Parameters
|
Reading performance |
Image Sensor |
CMOS |
| Exposure |
Global shutter |
|
| Resolution |
400 thousand 640*480pixels 60fps |
|
| Decoding capacity |
Support paper and screen barcodes |
|
| 2D: PDF417, Micro PDF417,Composite Codes,TLC-39,Data Matrix Maxicode , QR code, Micro QR, Aztec.etc. |
||
| 1D: UPC / EAN with supplementals, Bookland EAN, ISSN ,UCC Coupon Extended Code, Code128, GS1-128, ISBT128,Code39,Code 39 Full ASC II, Trioptic Code 39, Code 32, Code 93Code 11, Matrix 2 of 5, interleaved 2 of 5, Discrete 2 of5, Codabar, MSI, Chinese 2 of 5, GSI DataBar Variants, Korean 3 of 5, ISB T Concat etc. |
||
| Precision |
4mil |
|
| Light Source |
LED(650nm±10nm) |
|
| View Angle |
40.9° (H) x 31.3° (V) |
|
| Scan Angle |
Rotation360°,tilt±65°,skew±65° |
|
| Min Contrast |
25% |
|
| Motion Tolerance |
60cm/s(application test) |
|
| IR Sensing |
Support |
|
| Typical DOF |
45-120mm(5mil code39) 25-190mm(10mil EAN13) 30-160mm(10mil code128) 60-350mm(20mil UPCA) 20-260mm(15mil QR) 30-300mm(20mil QR) Performance may be impacted by bar code quality and environmental conditions |
|
| Mechanical and electrical |
Interface |
RS232(DB9..),USB(HID, COM) |
| Working Voltage |
DC 5V |
|
| Current |
360mA(Max) 220mA(working) |
|

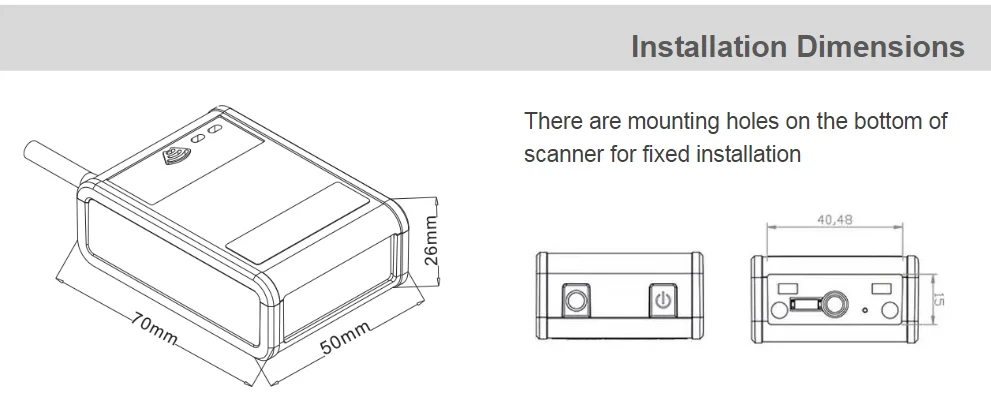

| Dimensions |
70*50*26mm |
|
| Weight |
277g |
|
| Indication |
Buzzer & LED |
|
| Environment Request |
Working Tem |
-20~60℃ |
| Storage Tem |
-40~70℃ |
|
| Humidity |
5%-95%(Non-condensing) |
|
| Light Immunity |
0~100,000Lux |
|
| Drop Test |
1.8M(6ft) |
