Specifications:

Type: Solder Sleeve

Shrink Ratio: 3:1

Quantity: 200PCS

Colour: Red, Blue, White, Yellow

Operating temperature: -55°C ~ 125°C

Minimum temperature for solder to melt: 138°C

Minimium shrink temperature: 80°C

Minimum for solder to fully melt temperature: 180°C

Shrink temperature: ＞160°C

Dielectric strength: 1kv

Features:

√【Safe & Easy to operate】 -

Solder seal wire connectors meets all relevant European standards, no need to crimp, simply position the stripped wires into the solder sleeve and heat uniformly to finish the connection.

√【Waterproof, Insulation and Anti-corrosion】 -

Its dual-walled design (polyolefin tubing outside, hot melt adhesive and solder inside) ensures a perfect insulation and waterproof performance and also prevents wire corrosion even in the humid environments.

√【No Slip Wire Connect】-

The inside solder's hot melt characteristics ensure a strong tensile strength and tear resistance. When heating, the solder melts to strongly hold the wire, never slip out of the connector.

√【Widely Applications】-

Our solder wire connectors are optimal for your marine, vehicle, aircraft, home and even scientific projects, ensuring secure and weatherproof soldering! Comes with a Case with compartments for easy storage and portable use!

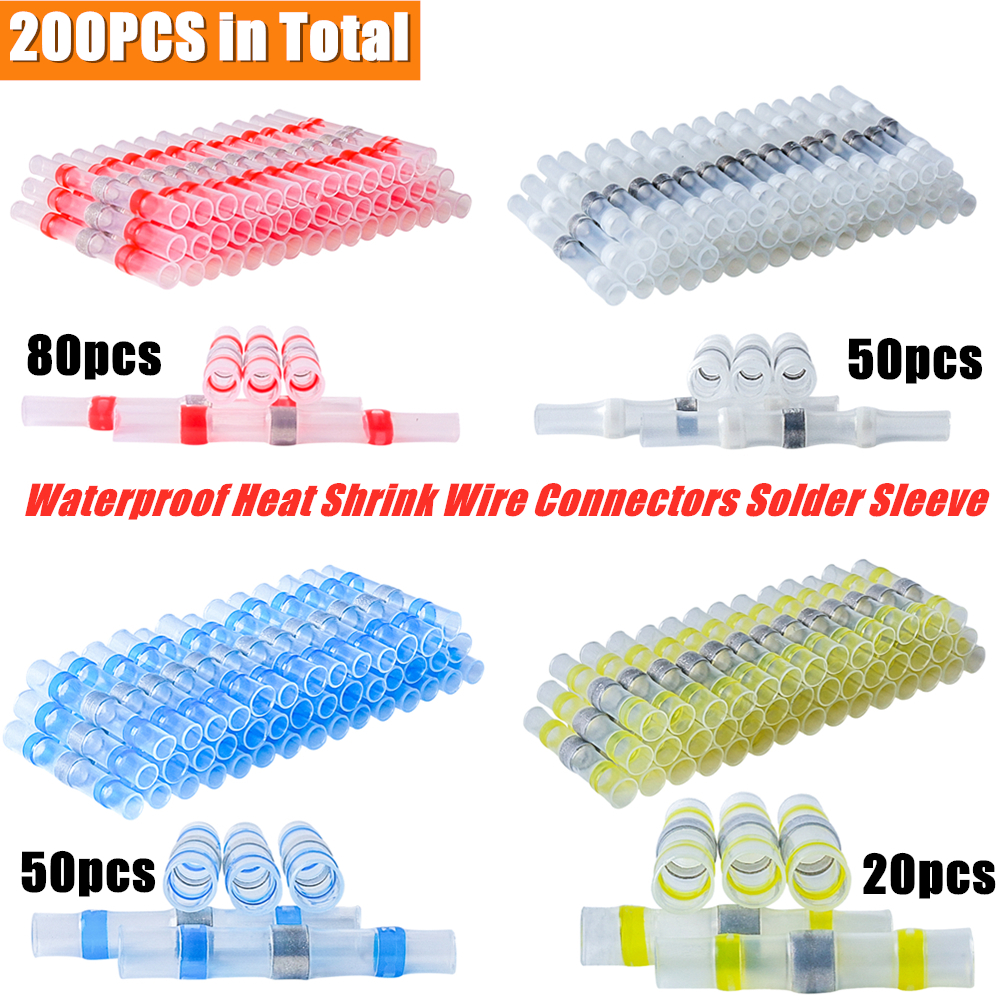

Package Includes: All In 200PCS

50x White: diameter 1.7mm, for cable cross section 0.25 - 0.34mm² (AWG 26-24)

80x Red: diameter 2.7mm, for cable cross section 0.5-1.0 mm² (AWG 22-18)

50x Blue: diameter 4.5mm, for cable cross section 1.5-2.5 mm² (AWG 16-14)

20x Yellow: diameter 6.0mm, for cable cross-section 4.0-6.0 mm² (AWG 12-10)
