Bleed Kit Oil Filler Repair Tools Kit for Seastar Hydraulic Steering Systems Bridge Tube Hose Marine Boat Yacht Accessories

Specification:

Material: Polyurethane, Stainless Steel

Color: Gold Tone

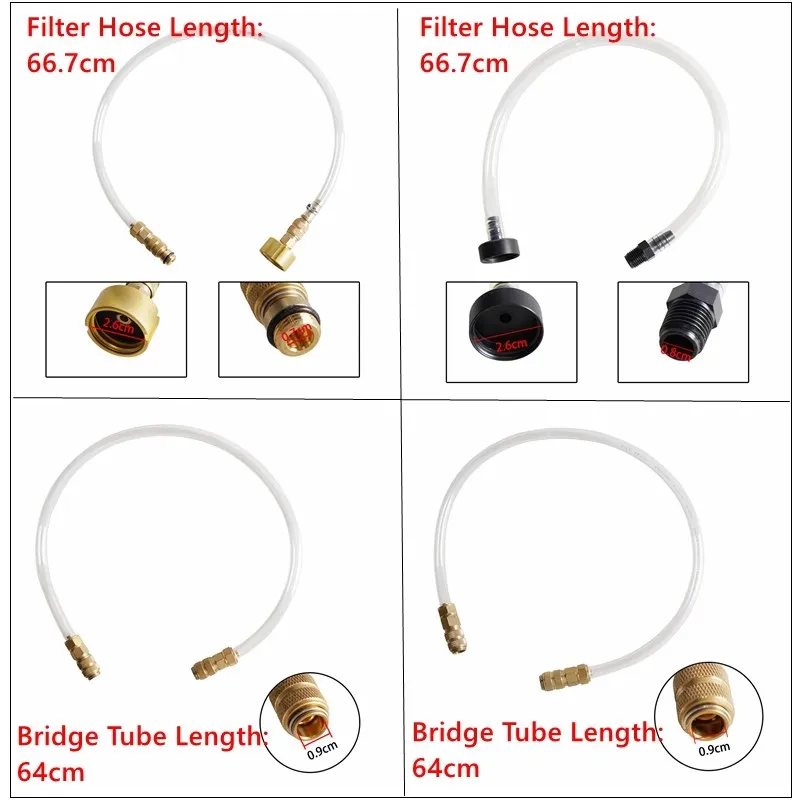

Bridge Tube Inner Dia. :9mm/0.35 inch

Bridge Tube Length: 64cm/25.1 inch

Bridge Tube Outer Dia. : 10mm/0.39 inch

Filler Hose Thread Size: 1/4 NPT

Filler Hose Hole Dia. : 8mm/0.31 inch

Filler Hose Length: 66.7cm/26.2 inch

Filler Hose with Screw Cap Dia.: 26mm/1.02 inch

Filler Hose with Screw Cap Outer Dia. : 12mm/0.47 inch

Fitment:

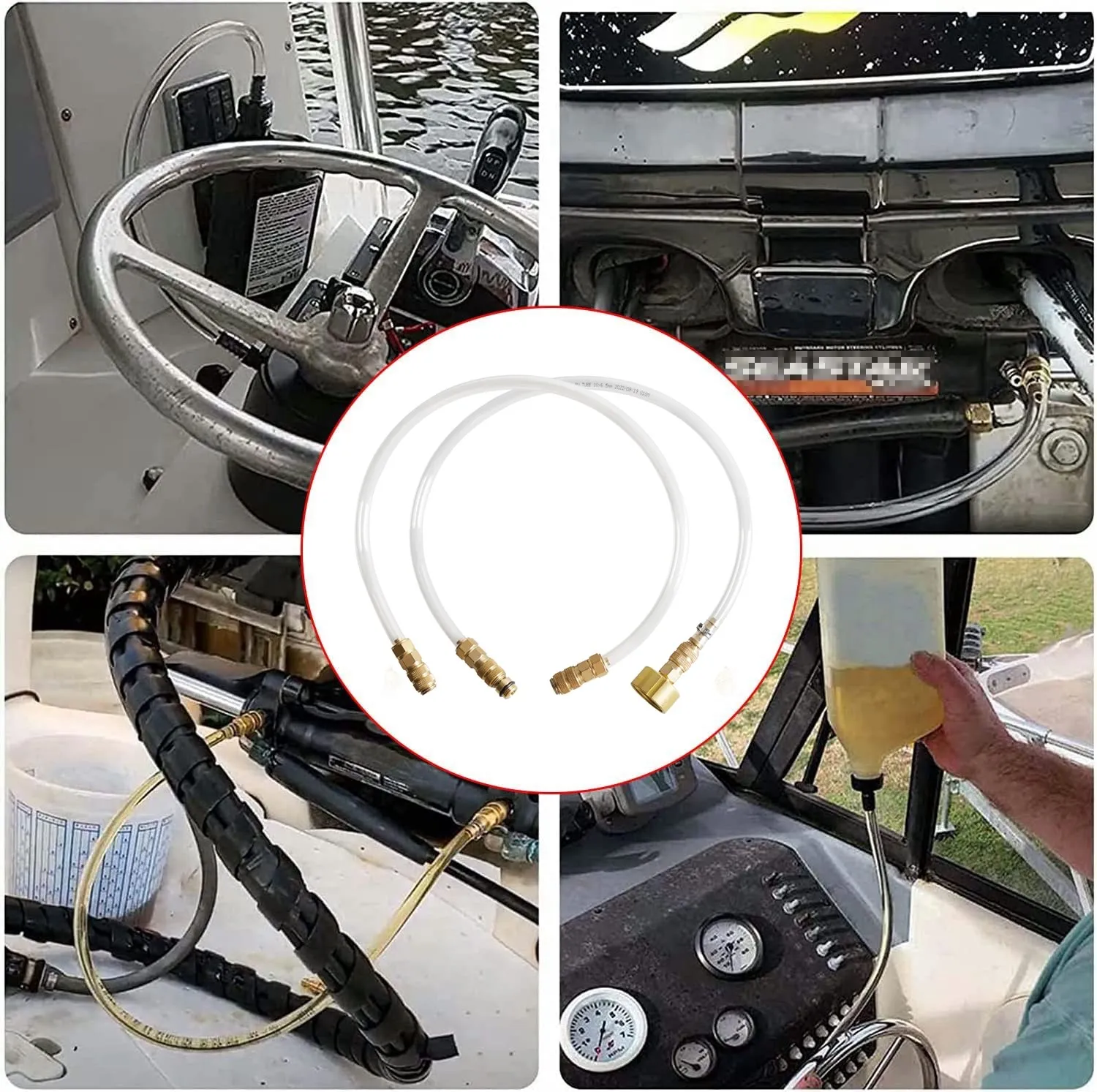

Fit for Seastar inboard, outboard hydraulic steering systems. Used for refilling your boat's steering system fluid.



Basic Instructions:

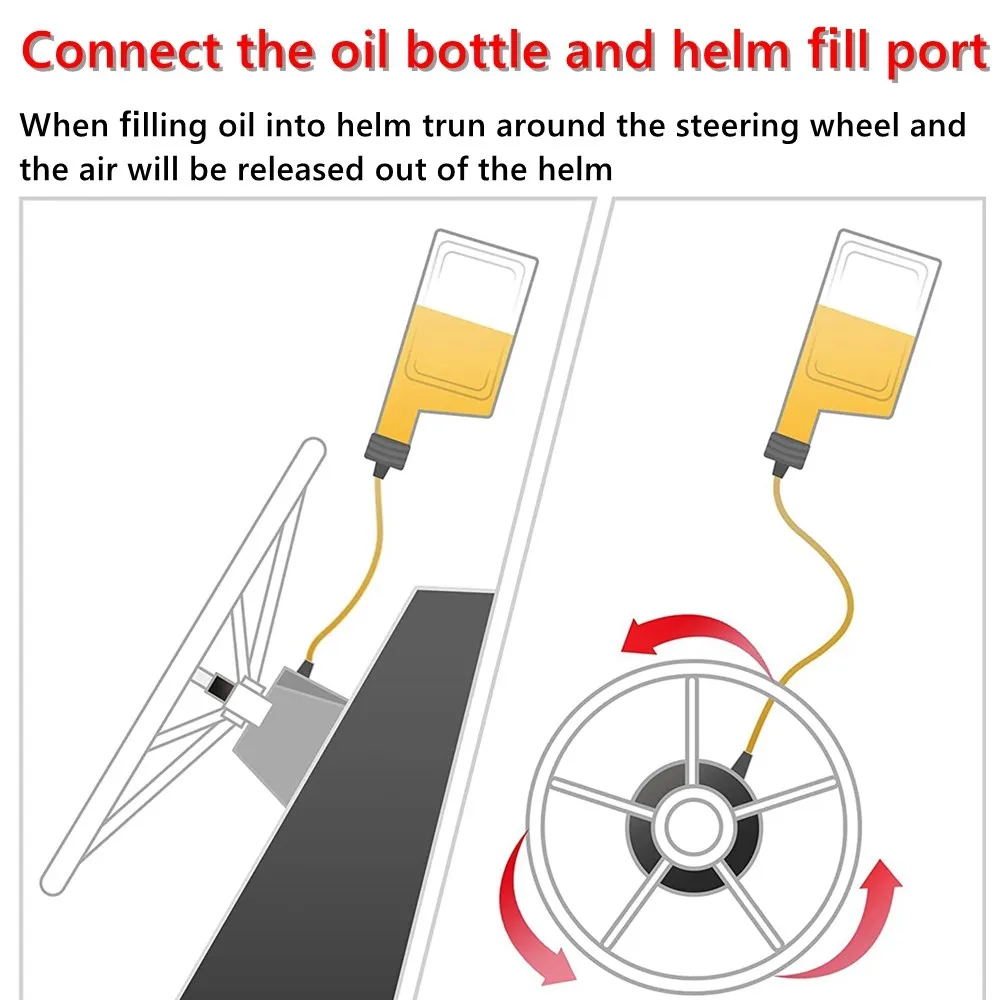

1. Attach bottle to helm reservoir (do not pierce bottle)(do not let bottle run empty).

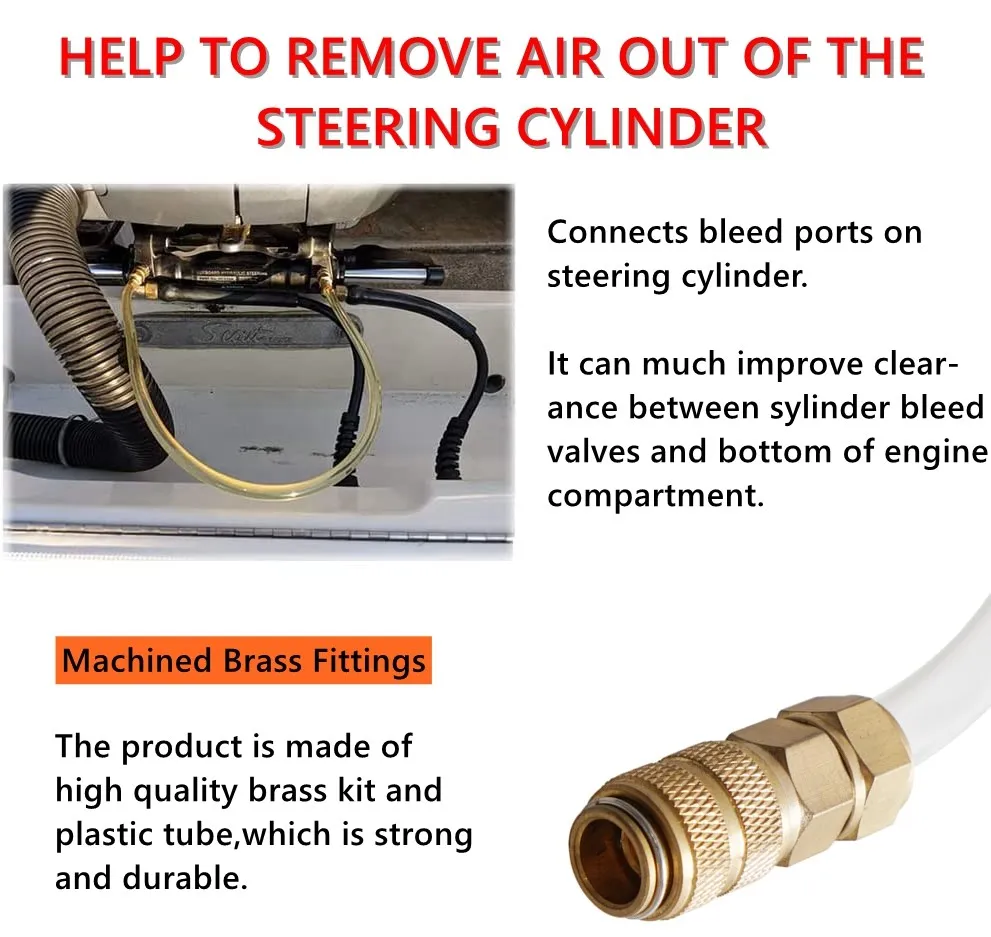

2. Connect bridge tube to fittings on steering cylinder and loosen fittings.

3. Use helm to pump fluid through system by turning the wheel in one direction. Air bubbles will be pushed to the reservoir at the helm.

4. Manually swing the outboard through full articulation to relieve trapped air.

5. Note: Orientating fittings up while pumping fluid with helm will allow air to escape cylinder.

6. Repeat 3-4 times necessary until no air is visible in bridge tube.

7. Tighten fittings before removing bridge tube.



Package Included:（The product is shown in Figure 1）

1 x Bridge Tube

1 x Filler Hose with Screw Cap

All items are Brand New unless stated otherwise on the listing.We sell DIY (Do It Yourself) Items with a few exceptions.
We take no responsibility in teaching you how to install.Professional installation is strongly recommended.

Note:
1. (IMPORTANT) No Instructions Included. Professional Installation Is Highly Recommended！
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
