PRODUCT INFORMATION

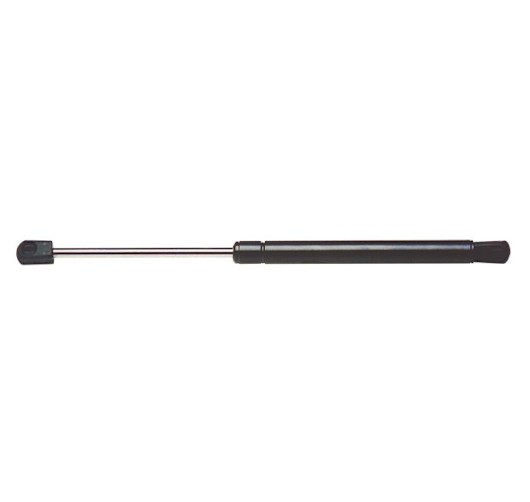

STRONG ARM LIFT SUPPORT

The StrongArm lift support is made from a chromium-plated hardened steel rod and glossy finish heavy gauge steel body. It is designed with self-cleaning orifice that keeps the piston area free of contaminants, reduces clogging and prevents lock up.

• Features a sealing system that uses a Triple-Lobe rubber seal and rubber O-ring piston seal to withstand high pressure, vibration, side-loading and misalignment
• Nitrogen gas charge up to 2,500 PSI does not affect any of the internal components
• Patented temperature compensation module valve allows consistent operation even in extreme weather conditions
• Made from top quality steel components
• Gas-charged lift support

Engineered and designed in the USA by AVM Industries Inc., StrongArm is a top supplier of high-quality gas-charged lift supports in the automotive and aftermarket industries.

Type: Hatch
Extended Length: 19.65 in. Extended Length
Anticipated Ship Out Time: 3-4 business days
Quantity Sold: Sold Individually
Product Fit: Direct Fit
Recommended Use: OE Replacement
Notes: 7.5 in. Stroke Length; 127 lb Max. Force; 22 mm Cylinder OD; 8 mm Inner Shaft Dia.; 10 mm Nylon Ball Socket End 1 Type; 16 Deg. Nylon Angled Ball Socket End 2 Type; Rubber Teflon Material; Steel Outer Cylinder Material; No Internal Rebound Spring
Compressed Length: 12.15 in. Compressed Length
Interchange Part Number: RD61290005
Prop 65 Warning: WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Location: Left or Right
