100% brand new & high quality.

1. For Car/Trucks/Caravans/Buses

2. It is quite important for us to install a camera at the back of the car,

especially for the newbie drivers, this waterproof wide-angle rear view camera allows you to watch widely.

3. It is a perfect solution to get rid of poor visibility on your car or any vehicle that has no rear-view

4. Low power comsumption

5. Adjustable shade to prevent glare from sun

6. Adjustable camera,easy to mount

7. Made of high quality and durable material

8. High-definition and wide viewing angles

9. Support color CMOS image

10. Support NTSC TV system

11. With good waterproof function

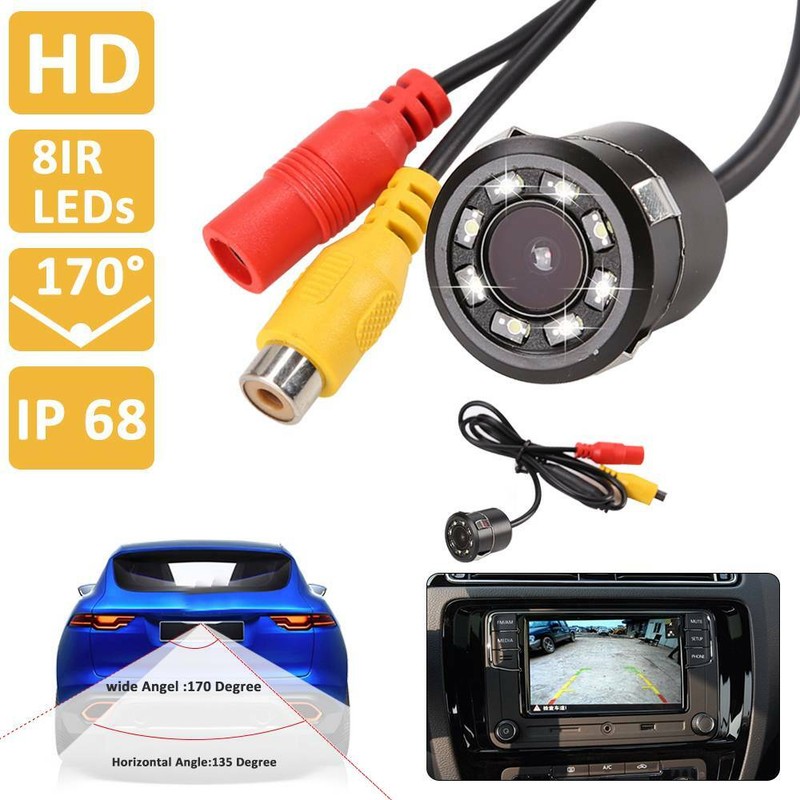

12. With its elegant and contemporary design, this camera is very popular

13. When the car back up ,the Image will show Reverse leading line

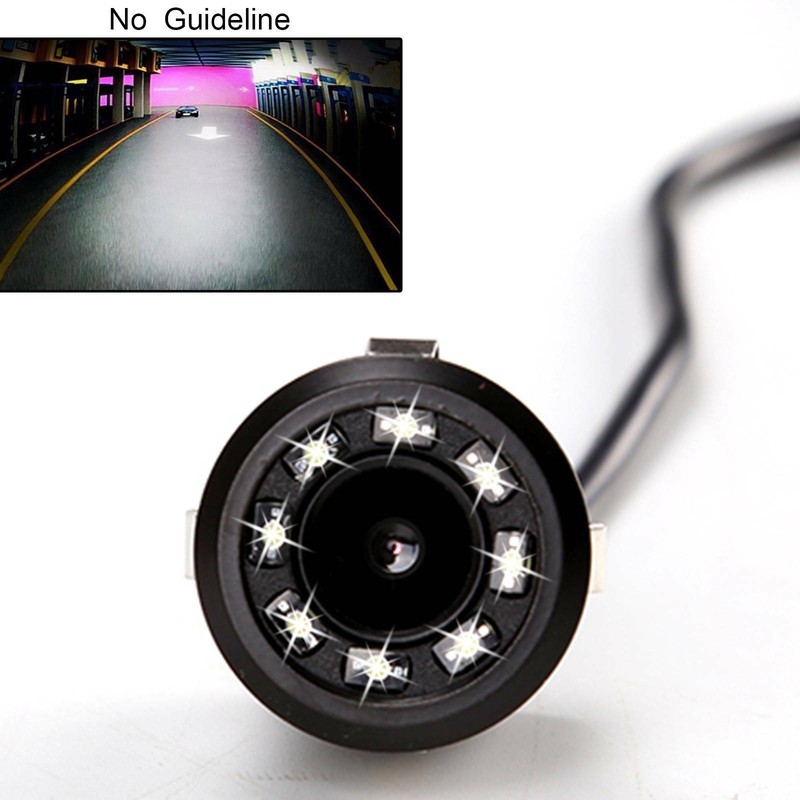

14. With 8 LED around the camera



The product has the filter which work as the same as the product with IR function.



Reversing Camera Type:Black & White Camera Kits

Camera Connection Type:Wired

Compatible Vehicle Make:Universal

Features: Distance Lines, Night Vision, Waterproof

Reversing Camera Sub-Type:Nightvision, Waterproof

Device Type:Car Rear View Reverse Camera

Model:car backup camera

Type:Rear View Camera Kit

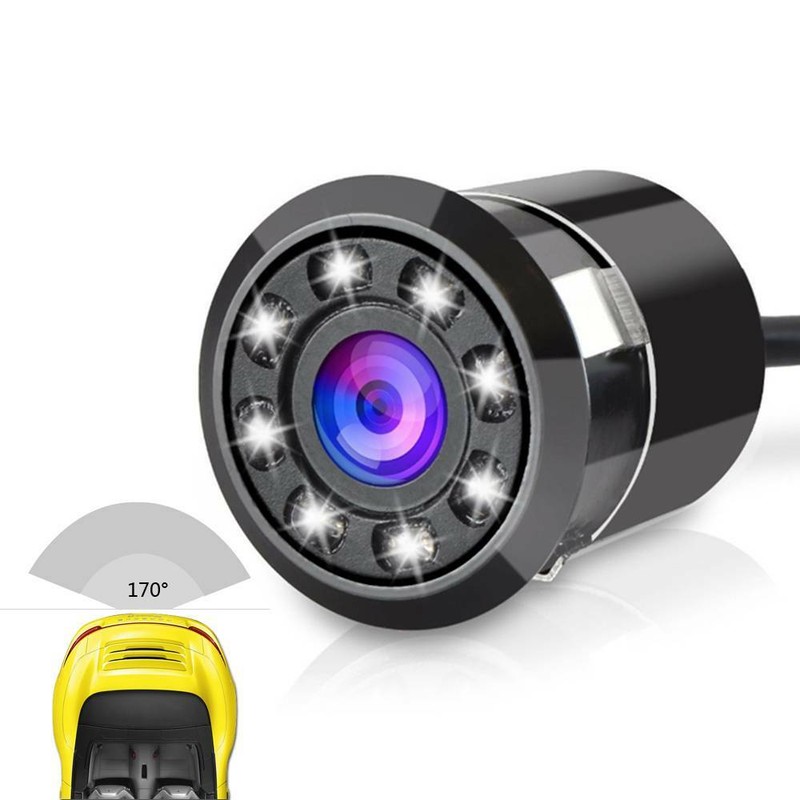

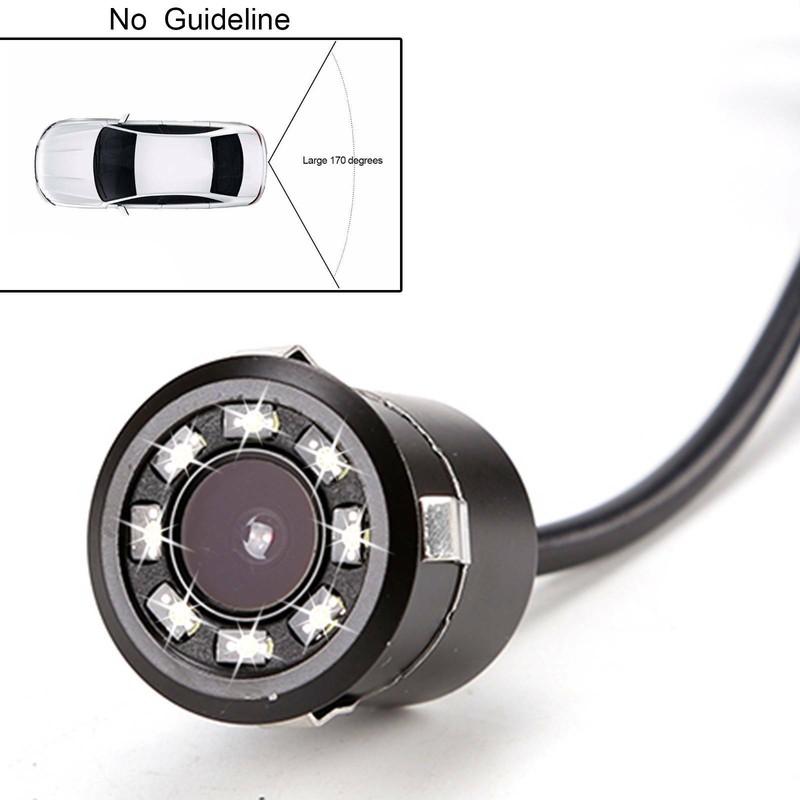

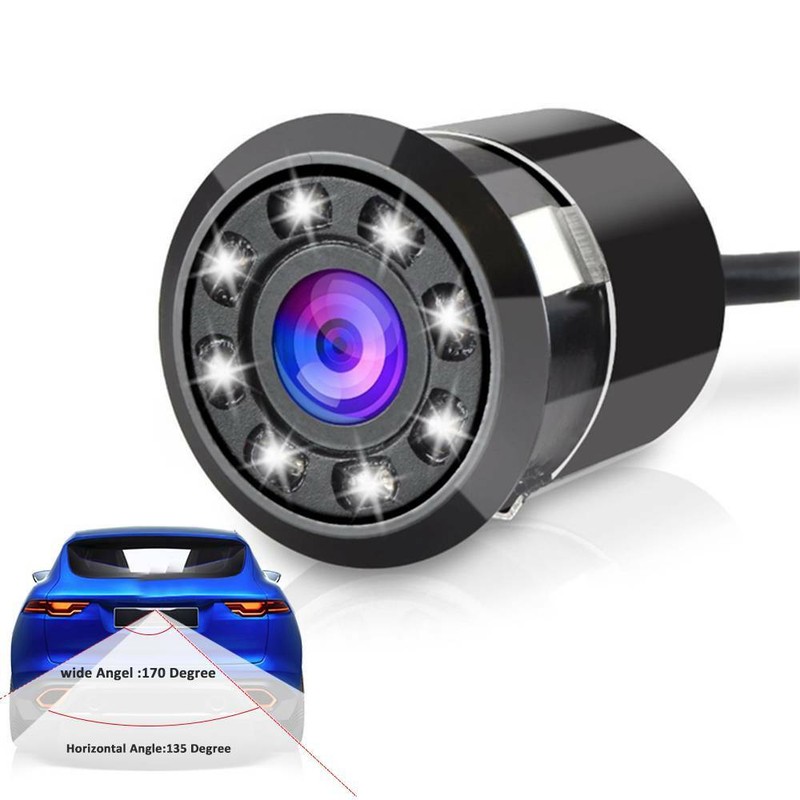

Lens Angle:170 degrees

Sensor: PC1030D

Pixel: 782X582

Resolution: 480TV lines

Minimum illumination: 0.51LUX

Lens: 1.3mm / 0.05 inch

Format: NTSC

Video output: RCA interfaces, 1.0Vp-p, 75ω

Operating temperature: -20 °C to 60 °C

Power Source: DC: 9V-14V

Current: DC12V> = 100mA

Night vision range:1-5m / 39.37 in-196.85 in

Special Features: waterproof mirror \ Earthquake

Waterproof grade: IP66-68

Video Cable Length:6m / 236.22 inch

Power cord length:1.5m / 59.06 inch

Camera Size: D*L=21*22mm

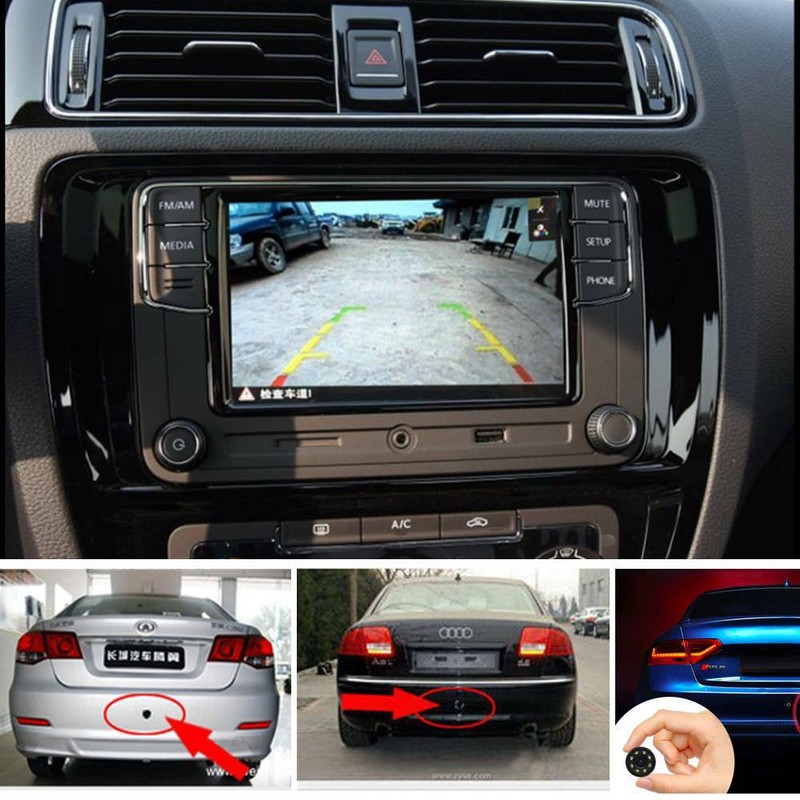

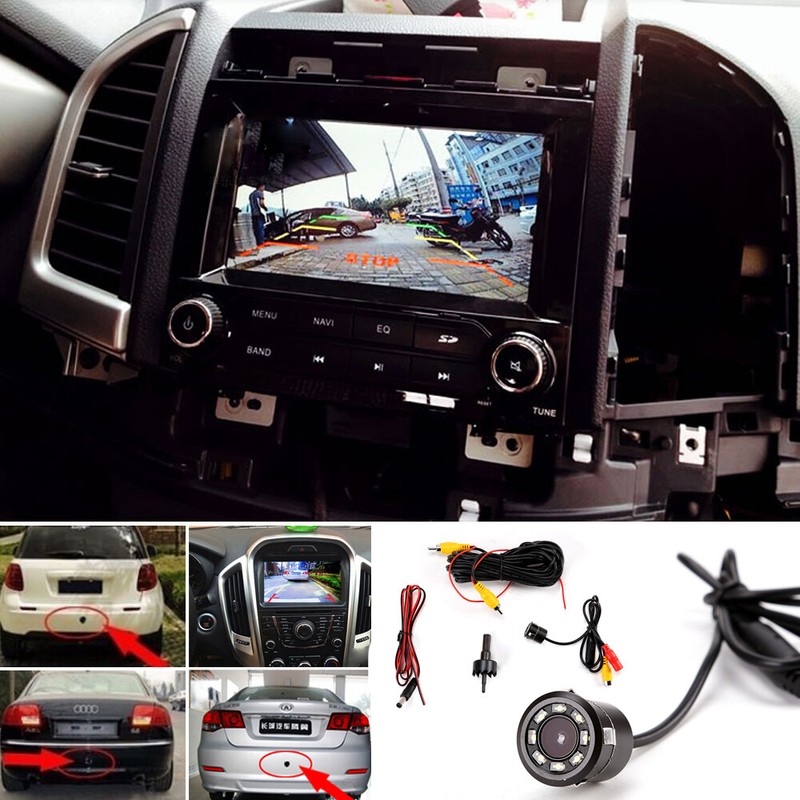

1. Mount the camera to your car's license plate area/back window, or any other suitable place.

2. Adjust the lens of the camera to its best position.

3. Connect short red and black cable 12V to reversing light power system

4. Connect long cable 5m reversing camera with monitor

5. Connect the video output of the camera to the monitor in your vehicle. (yellow cable)

6. Please take care of the sealing to prevent water leakage when installation.

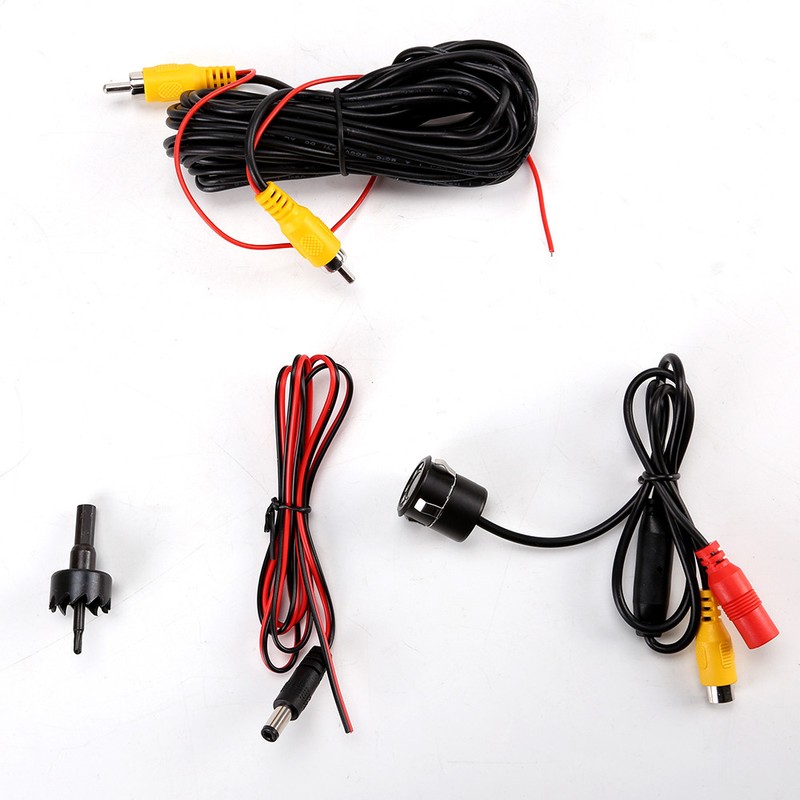

1 x Car Rear View Reverse Camera

1 x Power Cable

1 x User Manual

1 x RCA Video Cable

1 x Hole cutter
