Description
BRASS FLAT WASHERS M3 M4 M5 M6 M8 M10 M12 M16 FORM A OR B
Solid brass flat washers
Can be used with all Metric screws and bolts.
Please select your requirements from the drop down lists above
FORM A = Thick type
FORM B = Thin type
DIMENSION A = INTERNAL
DIMENSION B = EXTERNAL
DIMENSION C = THICKNESS
Solid brass flat washers
Can be used with all Metric screws and bolts.
Please select your requirements from the drop down lists above
FORM A = Thick type
FORM B = Thin type
DIMENSION A = INTERNAL
DIMENSION B = EXTERNAL
DIMENSION C = THICKNESS
| A | B | C |
| M6 (6.4mm FORM B | 12.5mm | 1.5mm |
| M8 (8.4mm FROM B | 17mm | 1.0mm |
| M10 (10.5mm FORM B | 21mm | 1.25mm |
| M12 (13mm FORM B | 24mm | 1.6mm |
| M16 (17mm FORM B | 30mm | 2.0mm |
| A | B | C |
| M2.5 (2.8mm FORM A | 6mm | 0.5mm |
| M3 (3.5mm FORM A) | 7mm | 0.5mm |
| M3.5 (3.8mm FORM A | 7mm | 0.5mm |
| M4 (4.5mm FORM A | 9mm | 0.8mm |
| M5 5.5mm FORM A | 10mm | 1.0mm |
| M6 6.5mm FORM A | 12mm | 1.6mm |
| M8 8.5mm FORM A | 16mm | 1.6mm |
| M10 11mm FORM A | 20mm | 2mm |
| M12 13mm FORM A | 24mm | 2.5mm |
| M16 17mm FORM A | 30mm | 3mm |
All our items are delivered by FREE 1st CLASS UK P&P*
GET IT FAST - orders placed before 2pm are dispatched same day (Mon-Fri).

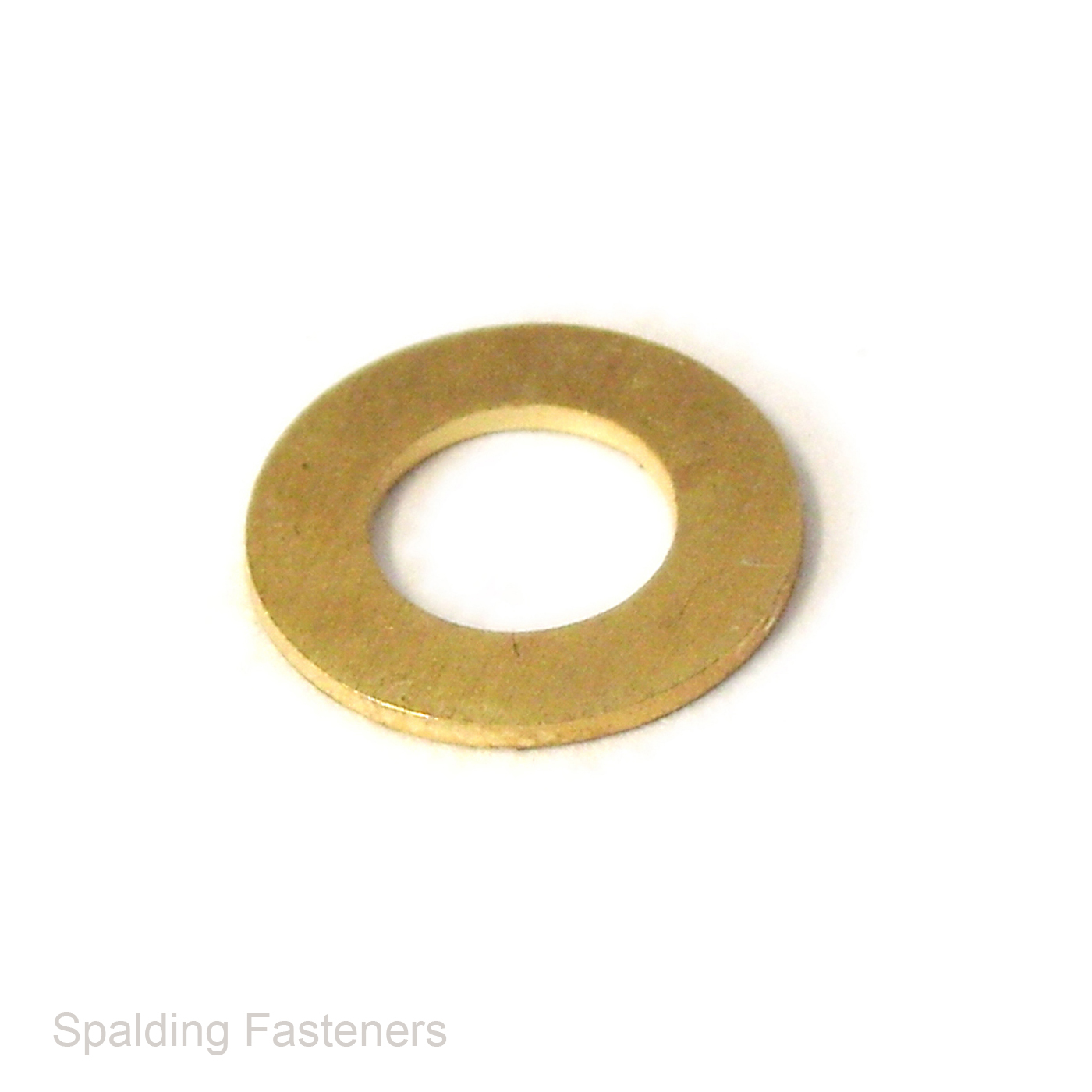

Photograph is for illustration only, these are not mixed packs.
