Since the couplant is liquid, Shipping Policy : Liquid not Included During the Shipping. It's suggest you use silica instead.

This type TUF-2000H comes with Clamp-on Standard Small Transducer TS-2 (size: 45*25*28mm) for Pipe Diameter DN25~100mm, Temperature : -30~90℃



Feature:

• High Accuracy measuring: Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Non-intrusive measuring: Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
• Built-in data logger: Built-in 24K data logger, store over 2000 lines measuring data



Specifications:

Main unit

• Principle: transit-time ultrasonic flowmeter
• Accuracy: Accuracy :over 1%-2%; Repeatability: over 0.2%

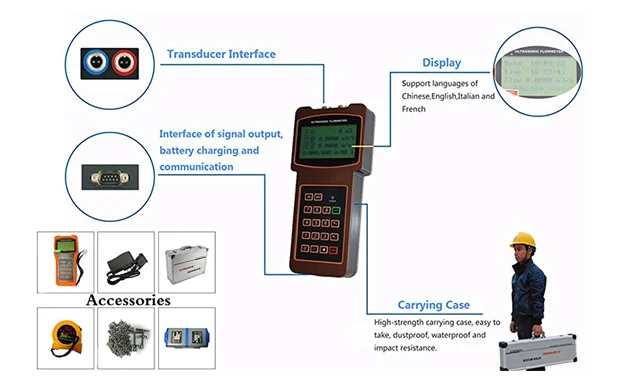

• Display: 4 line x 16 character LCD with backlight
• Dimension: 200*93*33cm
• Weight: 390g
• Operation: Support 16 key light touch keyboard and the Simulation keyboard software
• Data interface: Insulate RS232 serial interface, upgrade the flew meter software by computer, support the MODBUS, etc.
• Signal Output:1 way OCT output

Special Cable:

• Twisted-pair cable, ;Select the RS232 communication.; Generally, the standard is 5m*2, optional 10m*2

Pipe Condition:

• Pipe Material: Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
• Pipe Diameter: DN25~100mm
• Straight length pipe: Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.

Measuring Medium:

• Type of Liquid: Water ; Ultra-pure liquids; Solvents and other liquids
• Temperature: Standard Transducer: -30--90℃
• Turbidity: under 10000ppm and less bubble
• Flow rate: 0--±10m/s
• Flow Direction: Measuring two (plus-minis) direction of flow rate
