Document Title: Brown and Sharpe 618 Micromaster Parts Manual Exploded View Version

Number Of Pages: 50 Approximately
Condition Of Original: Very Good
Scan Type: Color and Augmented Grayscale Scan
Scan Quality: Very Good

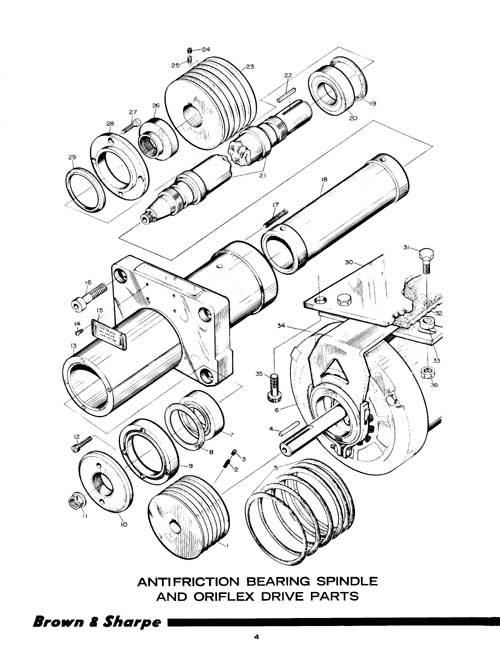

Description: This manual from 1968 covers Parts for the Brown & Sharpe Model 618 Micromaster surface grinders. This is the later version parts manual that has exploded views of the machine components rather than the photographic layout of the parts, so you can tell how things go together, not just ID parts. This manual covers the Oriflex, Plain, and Direct Drive spindles separately. It also includes an electrical panel layout sheet (though is stops short of giving you a schematic), and a lubrication system schematic. It covers fine adjusting feeds, rapid vertical positioning and power downfeed arrangements, as well as radius and angle truing attachment and over the wheel dresser, high speed grinding attachment, and index centers. Excellent quality of the original provides a cleaned up version entirely devoid of fingerprints or grease stains. Get a fresh copy!
