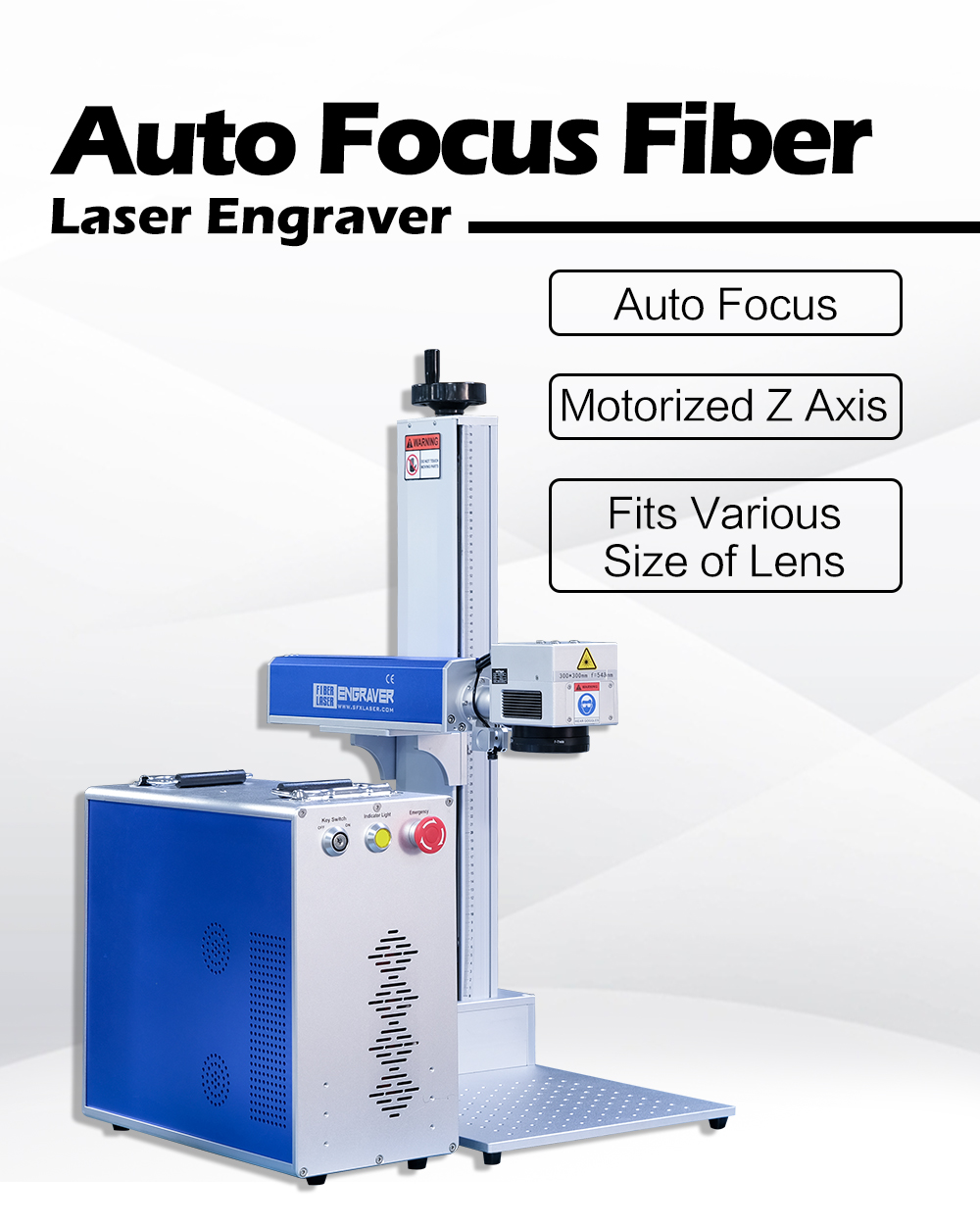

JPT 50W Fiber Laser Marking Machine Engraver Auto Focus Motorized Z-Axis with 175*175mm Lens

Advantages

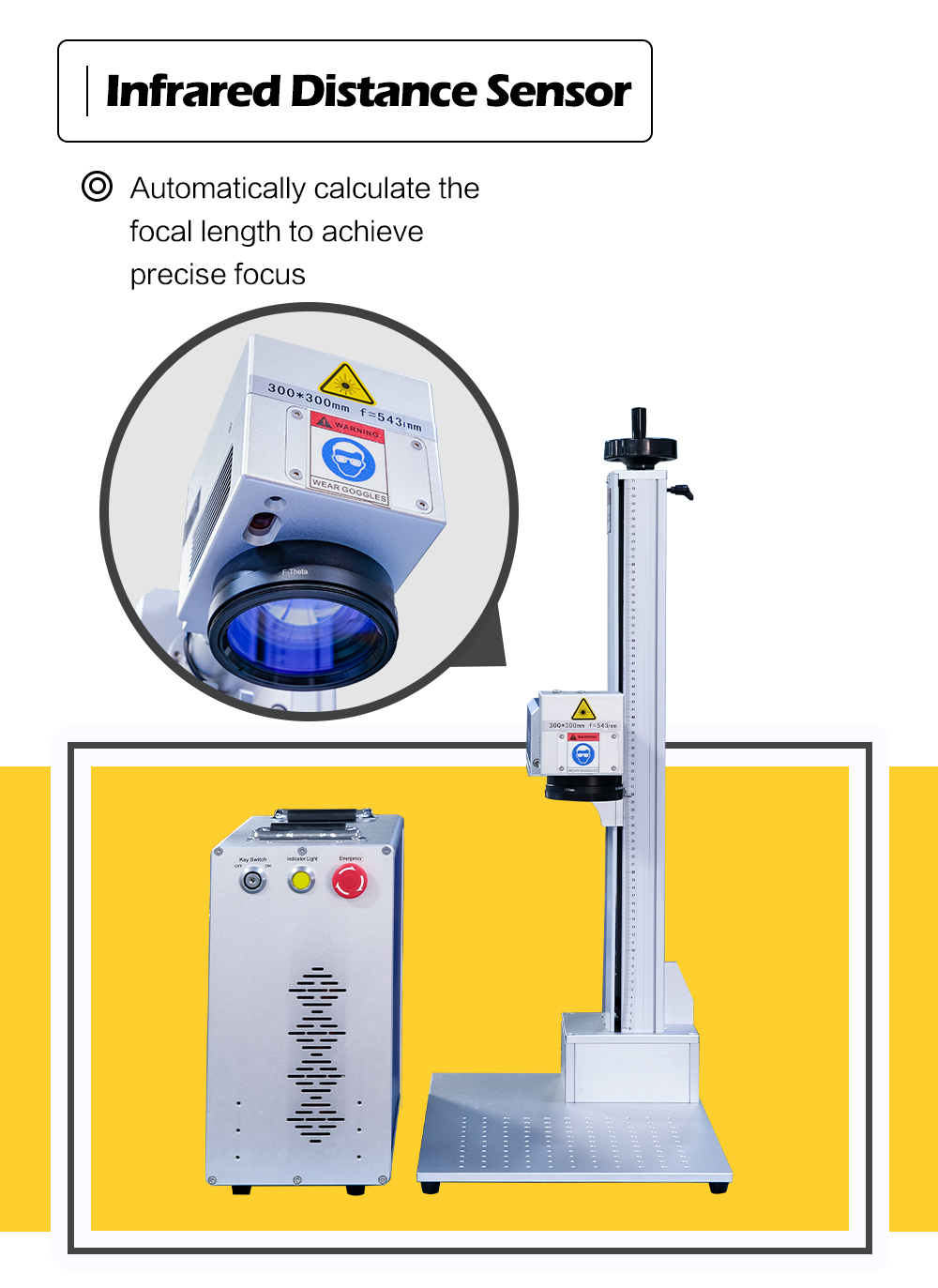

1. Auto Focus system with a infrared distance sensor, it can automatically calculate the focal length to achieve precise focus.

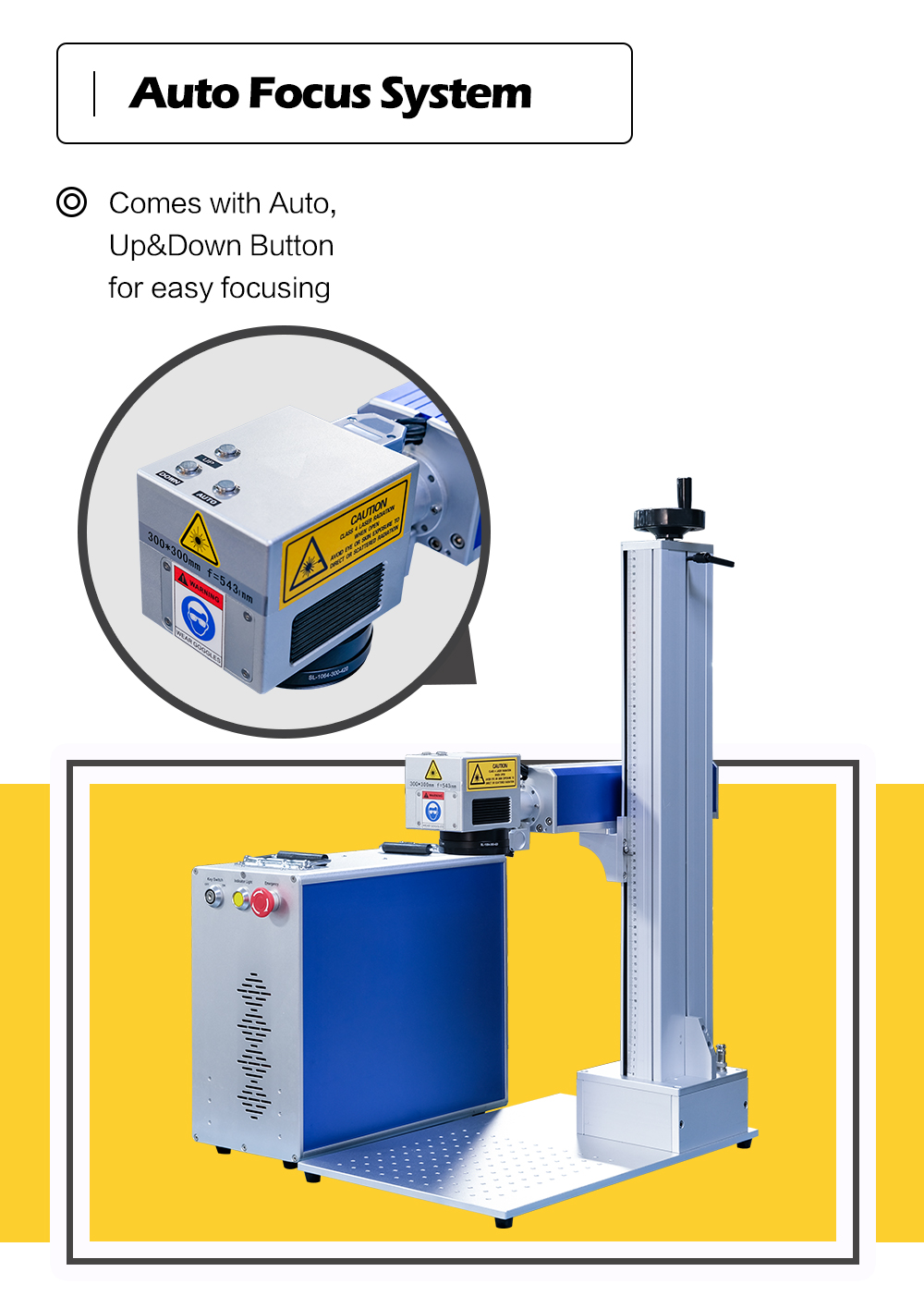

2. Motorized Z Axis with the electric lifting system. Up& Down control just by button, it will be easy and fast for focusing.

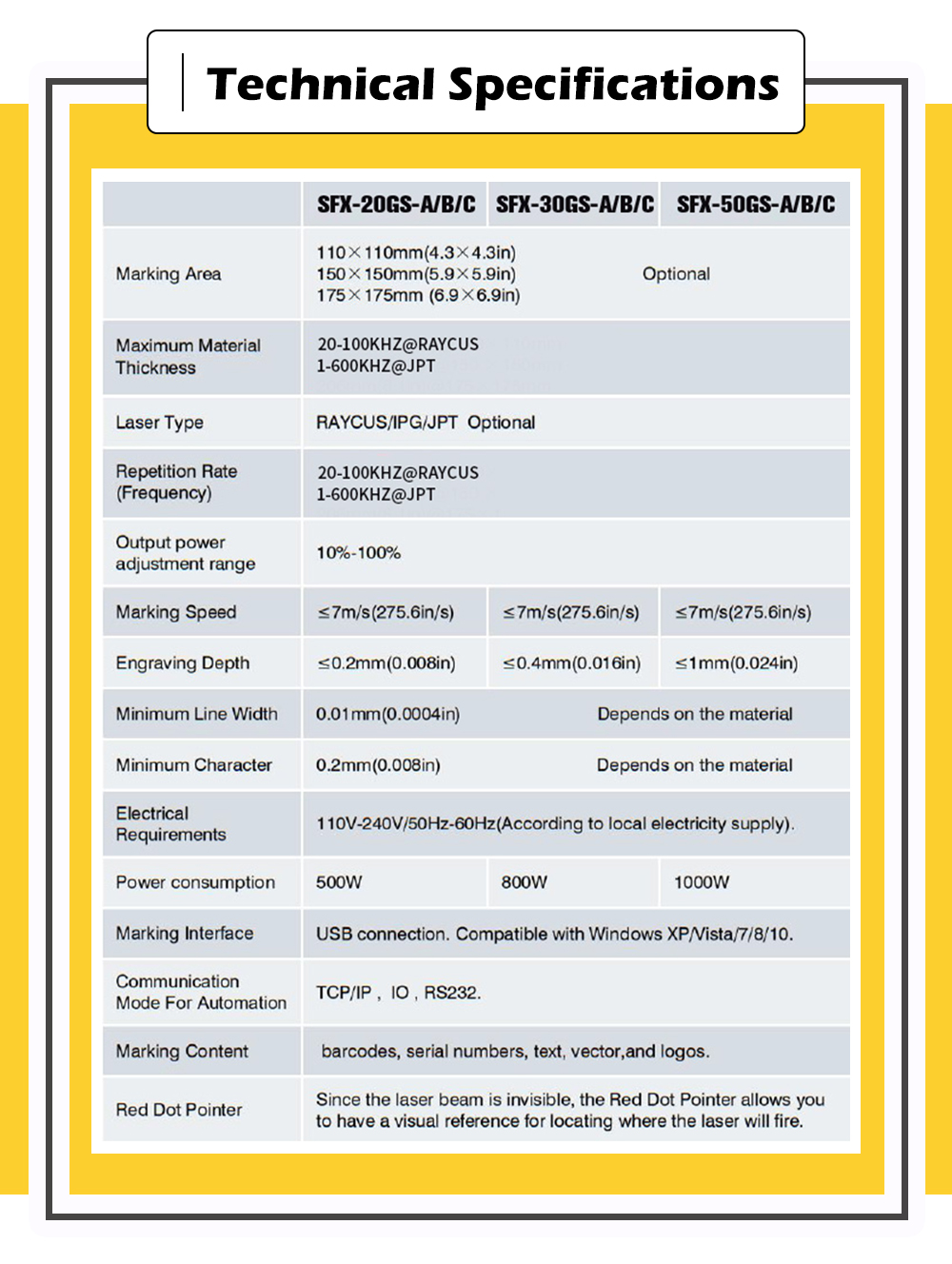

Parameter

Model: SFX-50GS

Laser Type: JPT LP+ Fiber Laser

Marking Area: 175×175mm (110×110mm/150×150mm/175×175mm, optional)

Maximum Material Thickness: 206mm (8.1in)

Repetition Rate(Frequency): 1-600kHz

Pulse Duration: 200ns

Output Power Adjustment Range: 10%-100%

Marking Speed: ≤7m/s (275.6in/s)

Engraving Depth: ≤1mm (0.024in)

Minimum Line Width: 0.01mm (0.0004in) Depends on the material.

Minimum Character: 0.2mm (0.008in) Depends on the material.

Electrical Requirements: 110V-240V/50Hz-60Hz According to local electricity supply.

Power Consumption: 1000W

Marking Interface: USB connection. Compatible with Windows XP/Vista/7/8/10.

Communication Mode For Automation: TCP/IP, IO, RS232.

Marking Content: Bar code, serial numbers, text, vector and logos.

Red Dot pointer: Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

Warranty: Two years.
