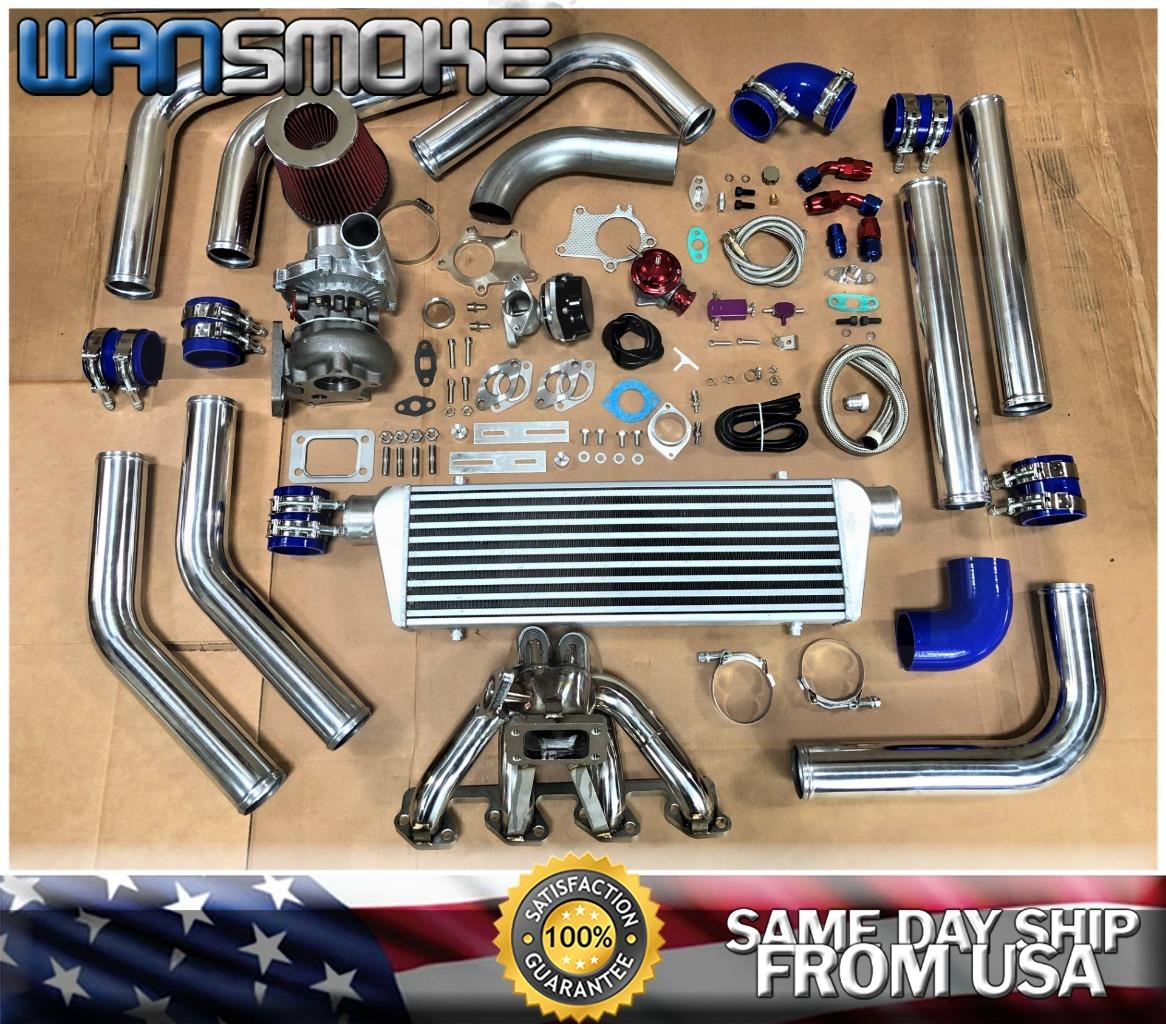

79-93 Mustang 2.3L Thunderbird Ranger T3T4 .63 Turbo Kit Manifold Intercooler BLUE




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

WANSMOKE has the best products with the best prices. We believe in Safety and Standards in both machining and manufacturing. Unlike our competitors who offer you low prices for inferior products, we build products that lift and level your vehicle without compromise. Cutting corners is awesome when driving your car but not when manufacturing, buy right, choose Supreme.

1979-1993 Ford Mustang
1974-1978 Ford Mustang II
1983-1988 Ford Thunderbird

1983-1997 Ford Ranger L4
1998-2001 Ford Ranger 2.5L
1983-1986 Ford LTD
1984-1993 Ford Tempo

1978-1983 Ford Fairmont
1978-1982 Ford Courier
1981-1982 Ford Granada
1974-1980 Ford Pinto

Fits vehicles running with 2.3L Sohc 4 Cylinder Engines

Includes - T3/T4 Turbocharger
Includes - Turbo Manifold
Includes - Front Mount Intercooler
Includes - Intercooler Mounting Kit
Includes - Piping Kit
Includes - Silicone Coupler
Includes - T-Bolt Clamp
Includes - Air Intake Filter
Includes - Blow off Valve
Includes - BOV adapter Flange
Includes - External Wastegate
Includes - Steel Down Tube Tube
Includes - Manual Boost Controller
Includes - Oil Feed Line
Includes - Oil Restrictor Adapter
Includes - Oil Return Drain Line
Includes - Oil Pan Drain Plug Adapter
Includes - T3 4 Bolt Gasket
Includes - T3 5 Bolt Flange + Gasket

T3/T4 TURBOCHARGER
100% Brand New T3/T4 Hybrid Turbocharger! High Quality Guaranteed! cast housing with durable steel. Capable of boosting horse power up To 350+ BHP, standard 4 bolt exhaust flange, Capable of 8 PSI or 15-25 PSI output at peak power. CNC machined flanges. Internal wastegate setting: 8 PSI. High quality t04e with a forged turbine propeller wheel!

Turbo Specification:
- Standard 5 bolt T3 Down Tube Flange.
- 5 Bolt Standard Hot Side.
- Standard T3/T4 Flange.
- Oil Inlet - 1/8 NPT Oil Inlet.
- Bearing Type - Journal Bearing.
- Wet Floating Bearings.
- Cooling Type: Oil Cooled.

Compressor Specs:
- 3" Compressor Inlet.
- 2.07" Inducer.
- 2.36" Major.
- 2" Compressor Outlet .
- T04B/T4 Type Compressor Housing.
- Compressor .50 A.R.
- Compressor .57 Trim.
- 8 Blade Type T4 Compressor Wheel.

Turbine Size:
- T3 Type 4 Bolt Turbine flange.
- 5 bolt Exhaust flange.
- Turbine .63 A.R.
- 2.48" Minor and 2.89" Major Propellar.
- T3 Turbine Housing.
- 2.274" Outlet

TURBO MANIFOLD
1. Standard T3/ T4 (T03/ T04) Turbo Flange Configuration Outlet.
2. Included Wastegate Flange for 35mm/38mm external WG.
3. Increase Engine Intercooler Output and Efficiency.
4. Made of High Quality Stainless Steel Material for Strength and Durability.

INTERCOOLER:
1. 6061 Light Weight Billet Aluminum Construction.
2. Tube & Fin Light Weight Design.
3. Construction: Machine Cut and Stamped Hand Welded.
4. Working Pressure: 5~50PSI.
5. Pressure Drop:2~5psi@35psi;0.2~0.5psi@15psi.
6. Hot Air Temperature: 32°F~302°F (0°C~150°C)
7. Compress Air Flow Rate: < 350 Cubic Feet/Min Rated to 500 Max HP.
8. Overall Size - 27" x 7" x 2.5"
9. Core Size - 21" x 6.5" x 2.5"
10. In/Outlet - 2.5" OD / 2.25" ID

PIPING:
1. Made of High quality T-6061 LIGHTWEIGHT Aluminum Piping.
2. Powder-Coated Surface Finish.
3. 2.5" Piping Diameter.
4. 2.0mm Pipe Thickness.
5. Increase 65% Air Flow comparing with other Standard Piping.

SILICONE COUPLER:
1. Made of high quality silicone material
2. Thickness of wall:5 mm, 4 ply reinforced
3. Working Pressure: 0.3 Mpa (43.5 PSI) to 0.9 Mpa (130.5 PSI)
4. Bursting Pressure: 2 Mpa
5. Working Temperature: -76°F (-60°C ) to +500°F (+260°C)
6. Size tolerance:+/-0.5 mm

T-BOLT CLAMP:
1. Made of High quality 301 SS Stainless Steel Clamp
2. Stainless steel construction resists corrosion
3. Provide uniform sealing pressure for a positive
4. Polished finish increases engine bay aesthetics

AIR FILTER:
1. Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.
2. Improves Up to 95% Filtration Efficiency.
3. Designed to increase horsepower and acceleration.
4. Width: 6" Inlet: 3.0" Overall Tall: 3.5" Mesh Tall: 2.5"

BLOW OFF VALVE:
1. Aggressive JDM racing discharge sound.
2. 8 Discharge ports that draw in surrounding air and release a unique discharge sound.
3. 40mm hard-anodized valve for increased airflow.
4. Dual spring system promoted response and allows for high boost pressures.
5. Support up to 30 PSI boost pressure.

OIL LINE:
1. OIL DRAIN FEED LINE.
2. 10AN Fittings.
3. Inner Diameter: 0.50"
4. Length: 17.00"
5. CNC Machined Turbo Adapter Plate.
6. Weldable 10AN Oil Pan Fitting Included.
7. Inner Diameter: 0.25"
8. Length: 36.00"
9. 1/8 NPT Fittings Natural Polish Finish.
10. CNC Machined Turbo Adapter Plate.
11. Brass Fitting Block Fitting and Port Cover Included

BOOST CONTROLLER:
1. Allows to adjust PSI ratings without changing the wastegate springs as well as replacing the wastegate springs.
2. High Performance Manual Boost Control From 0~30 psi Capacity.
3. CNC Machined Light Weight and Resistant to Rust.
4. Hose clamp and all necessary hardware for complete installation.
5. 1-30 PSI Adjustable.

WASTEGATE:
1. High strength Alloy aluminum body with steel head.
2. Comes with 7 psi spring installed.
3. Protect the turbo system from over boosting.
4. Complete install kit included .

GASKET FLANGE ADAPTER:
1. High Quality Cast Raw Steel
2. 4 & 5 bolt for T3 Turbo
3. Single Entry T3 Turbo Flange
4. 12mm(almost 1/2") Thick
5. Bolt Diameter: M10 Thru Holes
6. Holes, Holes Are Drilled Through, Not Threaded.
7. Fits all T3 and T3/T4 hybrid turbos with 4 & 5 bolt standard size inlet

EXHAUST Down Tube TUBE:
2.5" t3/t4 steel TIG welded Down Tube. Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. This provides a simple starter solution for connecting your turbo's exhaust to your existing exhaust system. The pictured metal composite Flange is included!

ATTENTION:
1. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. NO installation instruction included unless otherwise specified. If item is questionable please consult your local professional/mechanic before making purchase.
2. Color may randomly selected depend on hand or inventory.
3. NO instructions included. modification might required for complete installation.
4. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded.
5. Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
6. The piping that comes with this kit is universal, and will have to be modified to fit most applications
7. Don't hesitate to contact us if item stuck, unknown or fault installation !!
