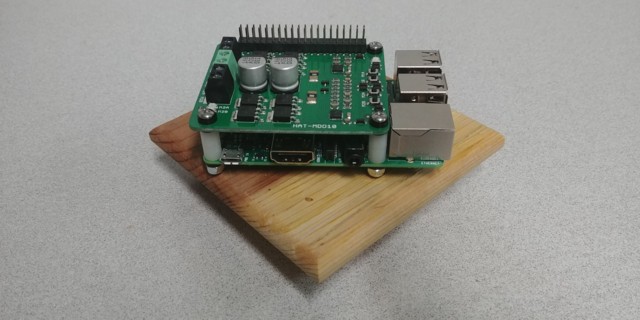

HAT-MDD10 is designed to drive two high current brushed DC motors up to 10A continuously by using Raspberry Pi as the controller. It offers signed-magnitude PWM control of direction and speed.

Features:

• Bi-directional control for two brushed DC motor.
• Support motor voltage ranges from 6VDC to 24VDC.
• On board test button for manual control of motor.
• Every channel output built with LED indicator.
• Maximum current up to 10A continuous (without heatsink at 25℃) and 30A peak (10 second).
• Current limiting at 30A.
• Raspberry Pi compatible connector.
• Solid state components provide faster response time.
• Fully NMOS H-Bridge for better efficiency and no heat sink is required.
• Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency from Raspberry Pi).
• Support sign-magnitude PWM operation.
• Support TTL PWM from microcontroller, not PWM from RC receiver.
• Dimensions:  67.5mm x 59mm
