Feature:
Support the highest input resolution up 3840 x 2160 at 60Hz.
Support the highest output resolution up 1920 x 1080 at 60Hz.
Support 8/10/12 bit color depth.
When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution).

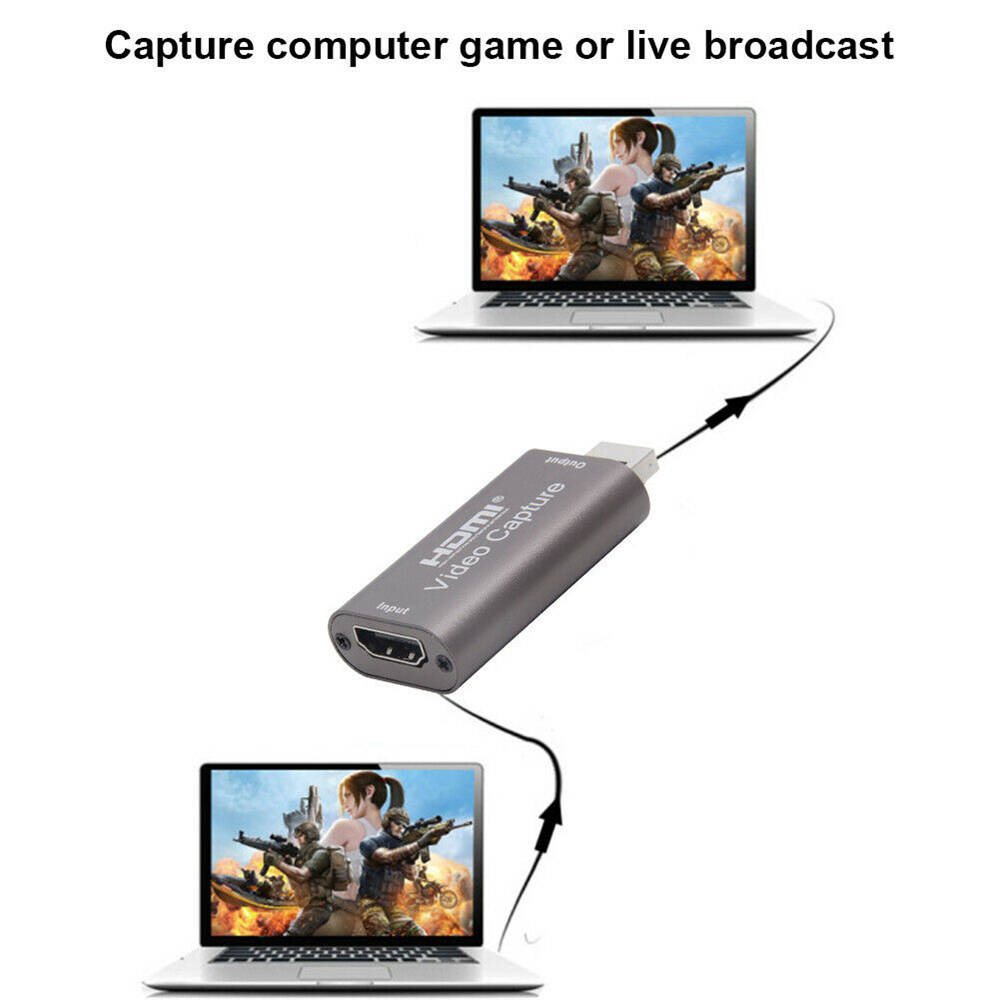

Support most acquisition software, such as For VLC, For OBS, For Amcap, etc.
Supports for Windows, For Android and For MacOS.
Conforms to the USB video UVC specification.
Conforms to the USB audio UAC specification.
No need for external power supply, small size and easy to carry.
Specification:
USB Type: USB 3.0
Color: Coffee
HDMI Input Resolution: Maximum 3840 x 2160 at 60Hz
Video Input Format: 8/10/12 Bit Color Depth
Video Output Mode: YUV, JPEG
Video Output Resolution: Maximum 1920 x 1080 at 60Hz
Support Audio Format: LPCM
Input Transmission Length: ≤15m, AWG26 HDMI Standard Cable
Maximum Working Current: DC 0.4A/5V
Operating Temperature Range: (-10 - +55℃)

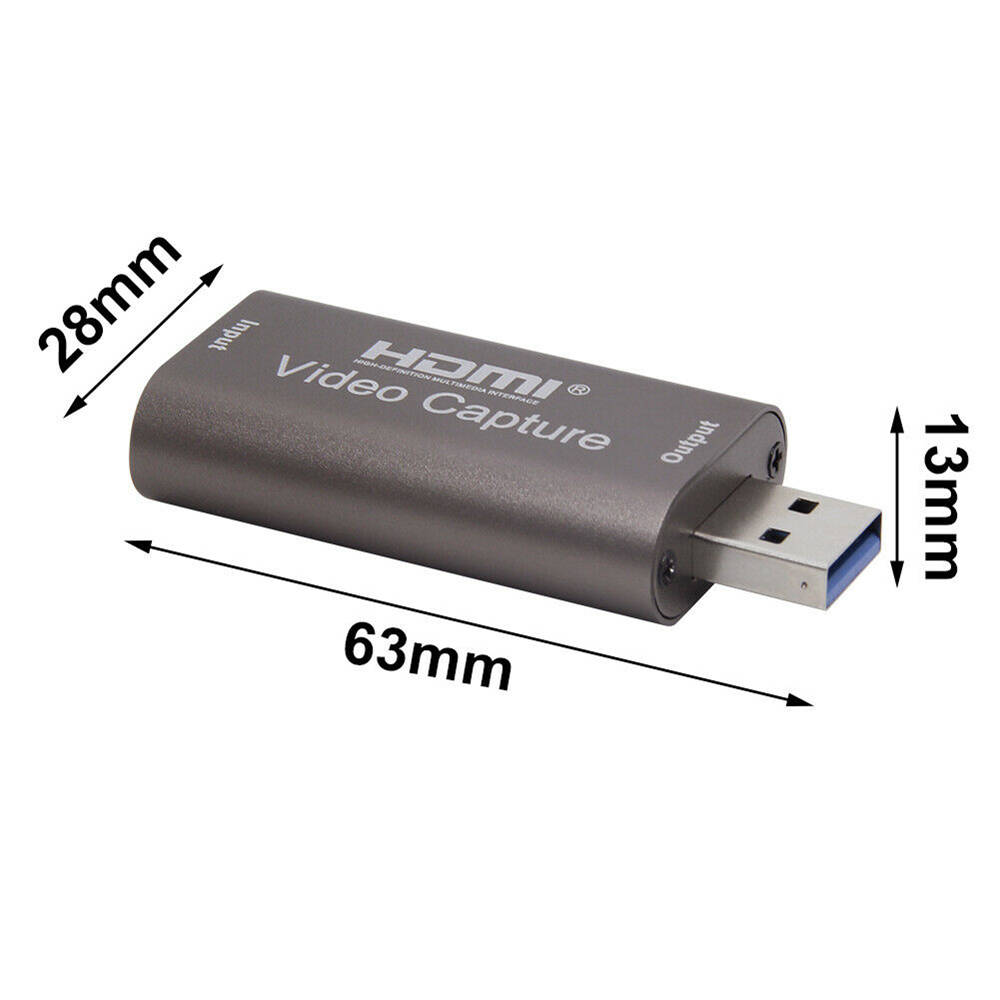

Product Size: 64 X 28 X 13mm/2.52 X 1.1 X 0.51"
Note:
Please allow 1-3mm size errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
