Dial Tension Meter Tester Single Pointer Tensiometer Gram Force Gauge with 100g



Function:



Tensiometer is suitable for relay tip pressure, electronic switch, microswitch, valve, spring pull pressure, dial measure equipment principal axis pressure, dial system equipment tip and the gag bit mechanical pressure, tape recorder buffer mechanism pressure, and other precise pressures, pulling force test.



Characteristics:

1. Easy to operate



2. Exquisite outline



3. When test, use the needle move the object from static state to the position needed. The tension gauge test not only along clockwise, but also along the anti-clockwise.



4. The needle must always plumb to the push-pull force direction.



5. Tension gauge set off single needle and dual needle. When the dual needle tension gauge gets the highest value, the needle hold still, convenient user to read

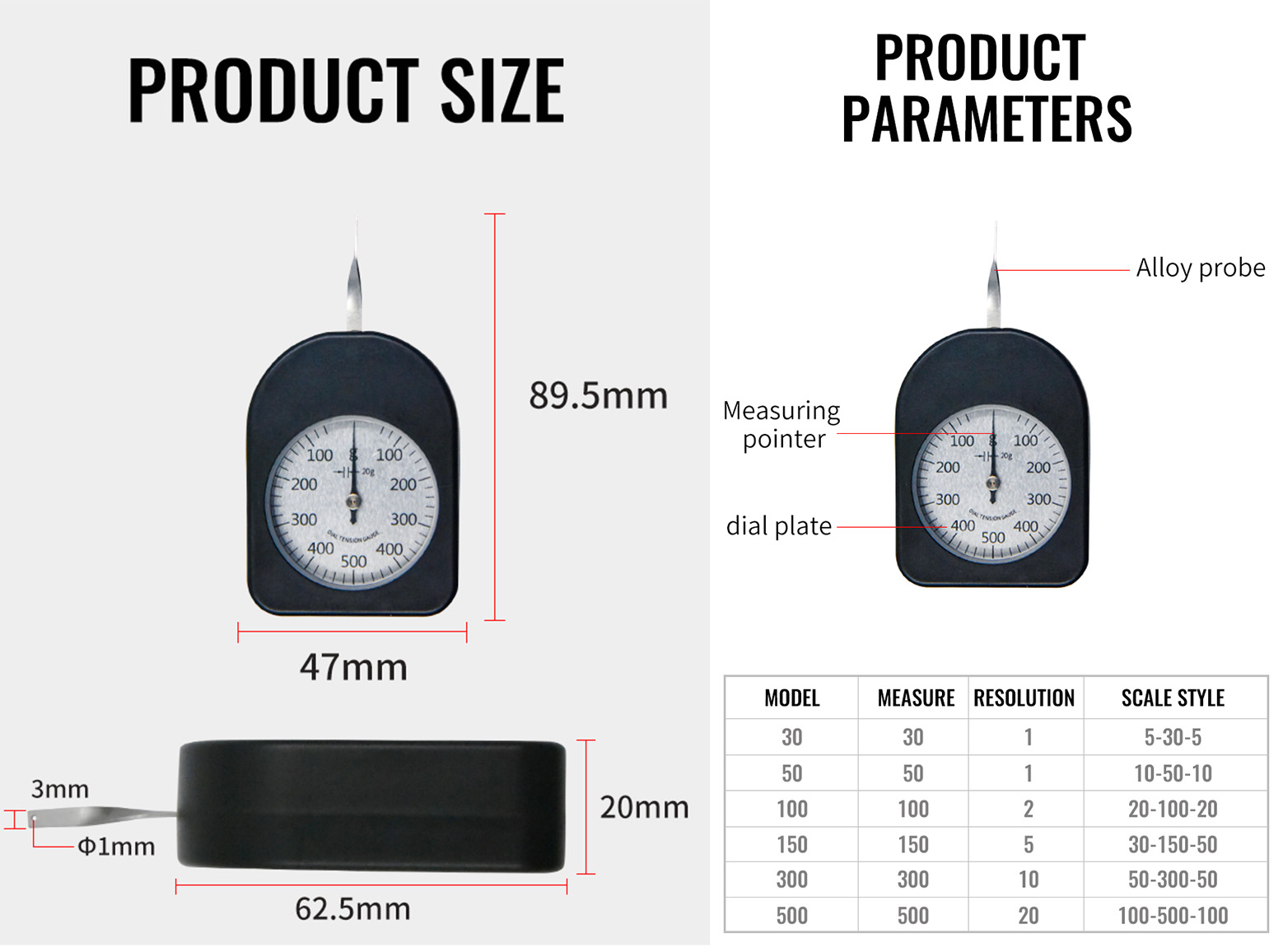

Specifications:



Model specifications

ATG-5

ATG-10

ATG-30

ATG-50

ATG-100

ATG-150

ATG-300

DTA-500

Maximum measured value

5g

10g

30g

50g

100g

150g

300g

500g

Index value

0.2g

0.5g

1g

2g

5g

5g

10g

20g

Tick ​​style

1-5-1

2-10-2

6-30-6

10-50-10

20-100-20

30-150-30

60-300-60

100-500-100
