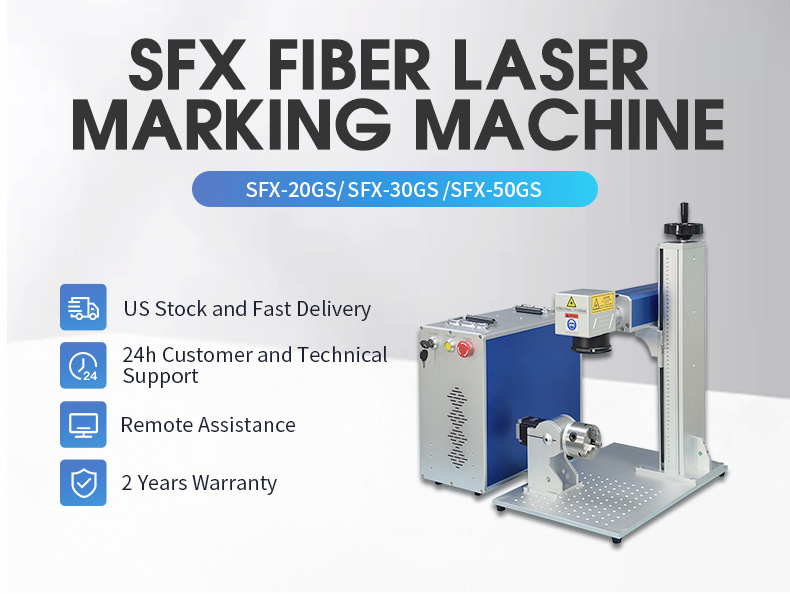

JPT 30W Fiber Laser Marking Machine Fiber Laser Engraver with 150×150mm Lens

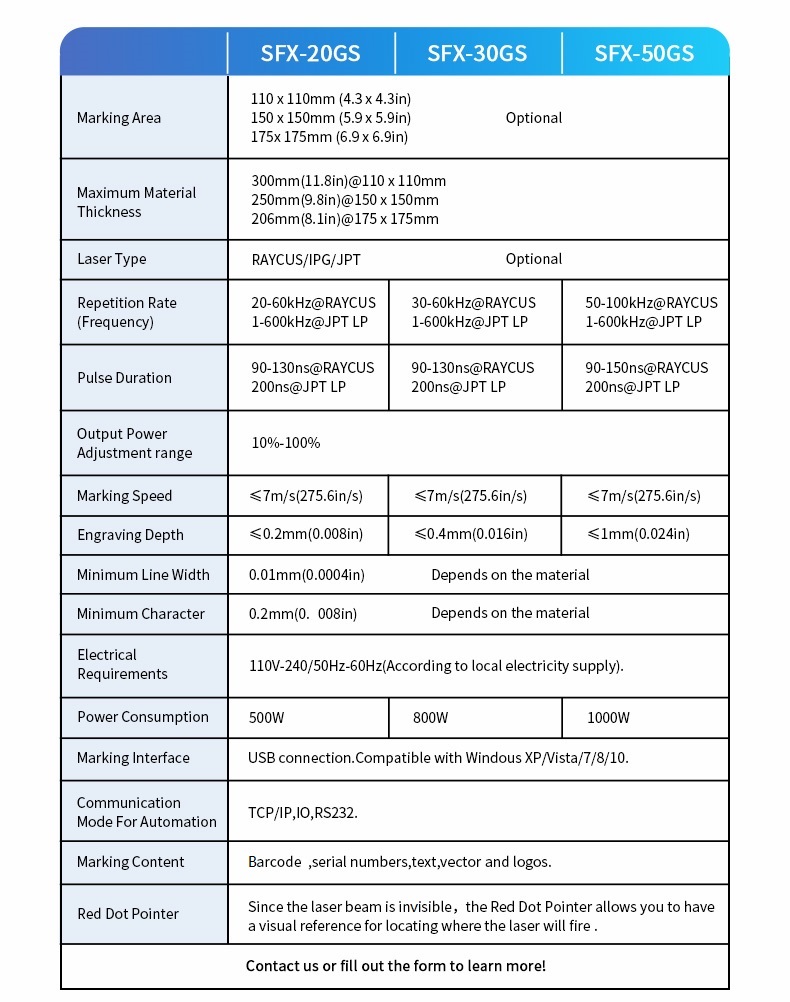

Parameter

Model: SFX-30GS

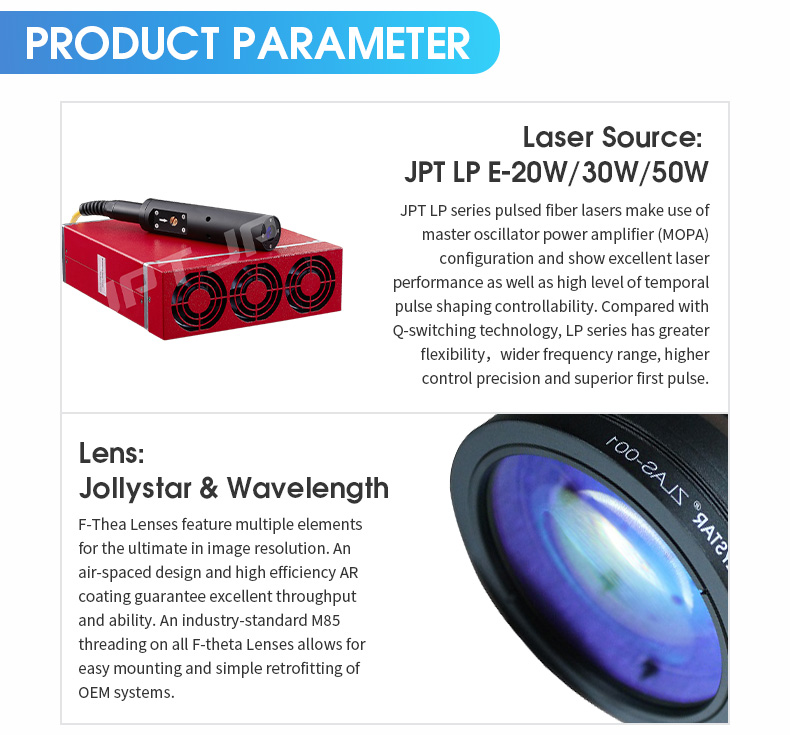

Laser Type: JPT LP+ Fiber Laser

Marking Area: 150×150mm (5.9×5.9in)

Maximum Material Thickness: 250mm (9.8in)

Repetition Rate(Frequency): 1-600kHz

Pulse Duration: 200ns

Output Power Adjustment Range: 10%-100%

Marking Speed: ≤7m/s (275.6in/s)

Engraving Depth: ≤0.4mm (0.016in)

Minimum Line Width: 0.01mm (0.0004in) Depends on the material.

Minimum Character: 0.2mm (0.008in) Depends on the material.

Electrical Requirements: 110V-240V/50Hz-60Hz According to local electricity supply.

Power Consumption: 800W

Marking Interface: USB connection. Compatible with Windows XP/Vista/7/8/10.

Communication Mode For Automation: TCP/IP, IO, RS232.

Marking Content: Bar code, serial numbers, text, vector and logos.

Red Dot pointer: Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

Warranty: Two years.
