HDR-15-24

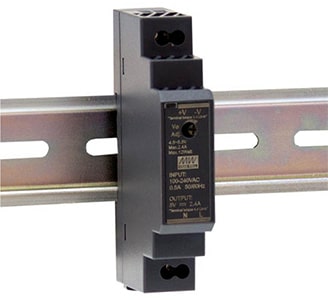

Meanwell HDR-15-24
Ultra Slim DIN Rail Power Supply


inc. VAT & Next Working Day Delivery*
Info

Ultra-slim DIN rail PSU. 24VDC output, 0.63A rated current output, 15.2W rated power output.


Features


  • Ultra-slim design with 17.5mm (1SU) width
    •
  • Universal input 85-264 VAC (277VAC operational)
    •
  • No load power consumption < 0.3W
    •
  • Isolation class II
    •
  • Pass LPS (limited power source)
    •
  • DC output voltage adjustable
    •
  • Protections: Short circuit / Overload / Over voltage
    •
  • Cooling by free air convection (working temperature -30°C to +70°C)
    •
  • DIN rail TS-35/7.5 or 15 mountable
    •
  • Over voltage category III
    •
  • LED indicator for power on
    •
  • 3 years warranty

Need technical help? Not sure if this will be compatible? Please give us a call.

*Next working day delivery on orders processed by 2.30 PM GMT
*VAT invoices are available


Related Products

HDR-15-12
HDR-15-12
DIN Rail Power Supply
HDR-30-12
HDR-30-12
DIN Rail Power Supply
HDR-30-24
HDR-30-24
DIN Rail Power Supply
HDR-60-12
HDR-60-12
DIN Rail Power Supply
HDR-60-24
HDR-60-24
DIN Rail Power Supply
HDR-100-12
HDR-100-12
DIN Rail Power Supply
HDR-100-24
HDR-100-24
DIN Rail Power Supply
HDR-150-12
HDR-150-12
DIN Rail Power Supply
HDR-150-24
HDR-150-24
DIN Rail Power Supply
HDR-15-12
HDR-15-12
DIN Rail Power Supply


Specs

DC Voltage 24V
Rated Current 0.63A
Current Range 0 ~ 0.63A
Rated Power 15.2W
Ripple & Noise (max.)* 150mVp-p
Voltage Adj. Range 21.6 ~ 29V
Voltage Tolerance** ±1.0%
Line Reguglation ±1.0%
Load Regulation ±1.0%
Setup, Rise Time 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load
Hold Up Time 30ms/230VAC 12ms/115VAC at full load
Volatage Range 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
Frequency Range 47 ~ 63Hz
Efficiency (Typ.) 86%
AC Current (Typ.) 0.5A/115VAC 0.25A/230VAC
Inrush Current (Typ.) Cold Start 25A/115VAC 45A/230VAC
Overload 110 ~ 145% rated output power
Over Voltage 30 ~ 36V
Working Temp. -30 ~ +70°C
Working Humidity 10 ~ 95% RH non-condensing
Dimensions 17.5 x 90 x 54.5mm (W*H*D)

* Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.

** Tolerance : includes set up tolerance, line regulation and load regulation.
