Product Type: Solenoid |
Replaces: 053400-7130 |
  • Volts: 12 |
  • Duty Cycle: Intermittent |
  • Terminals: 4 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

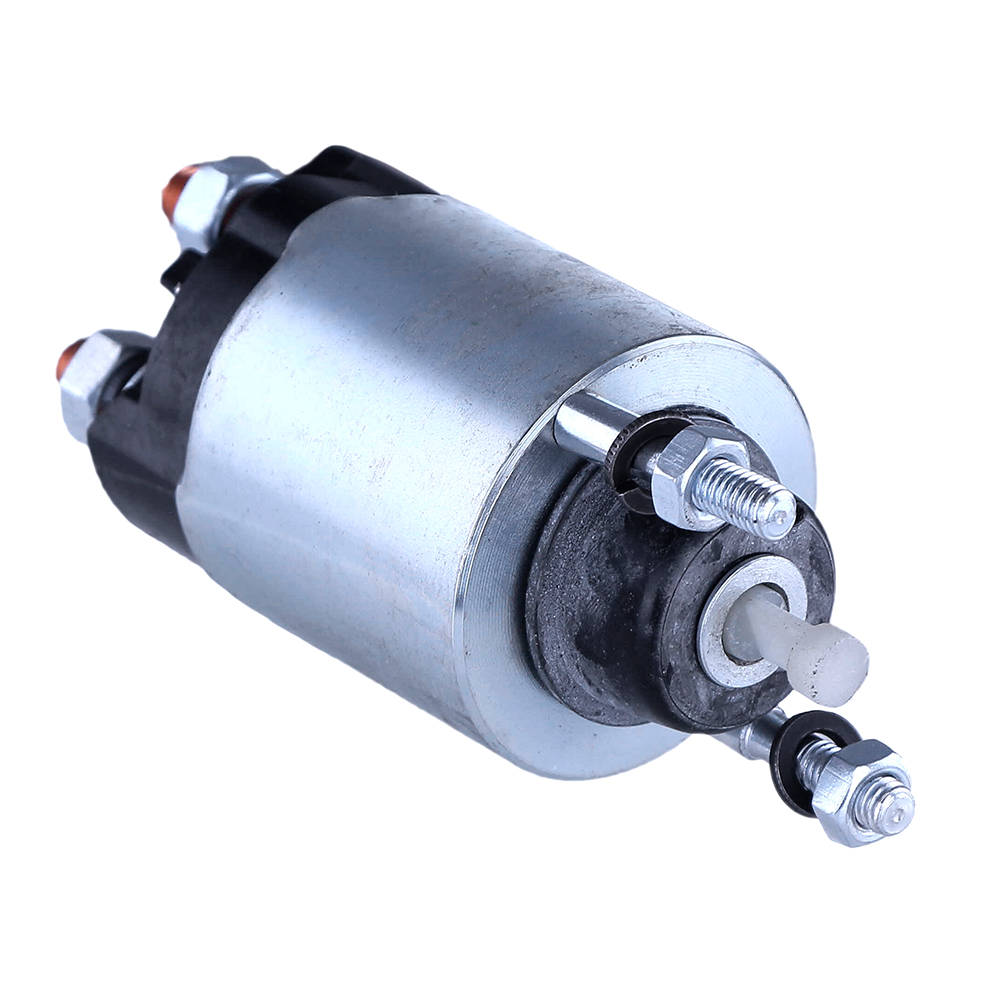

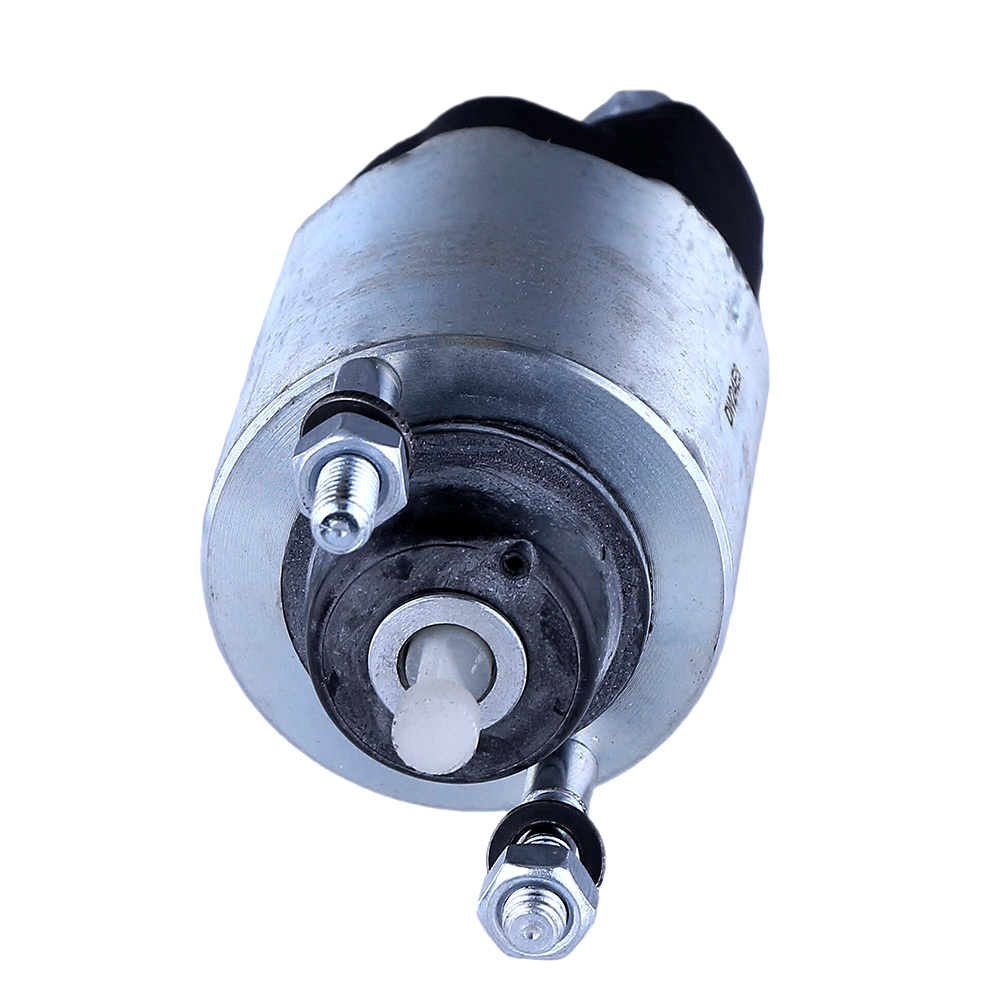

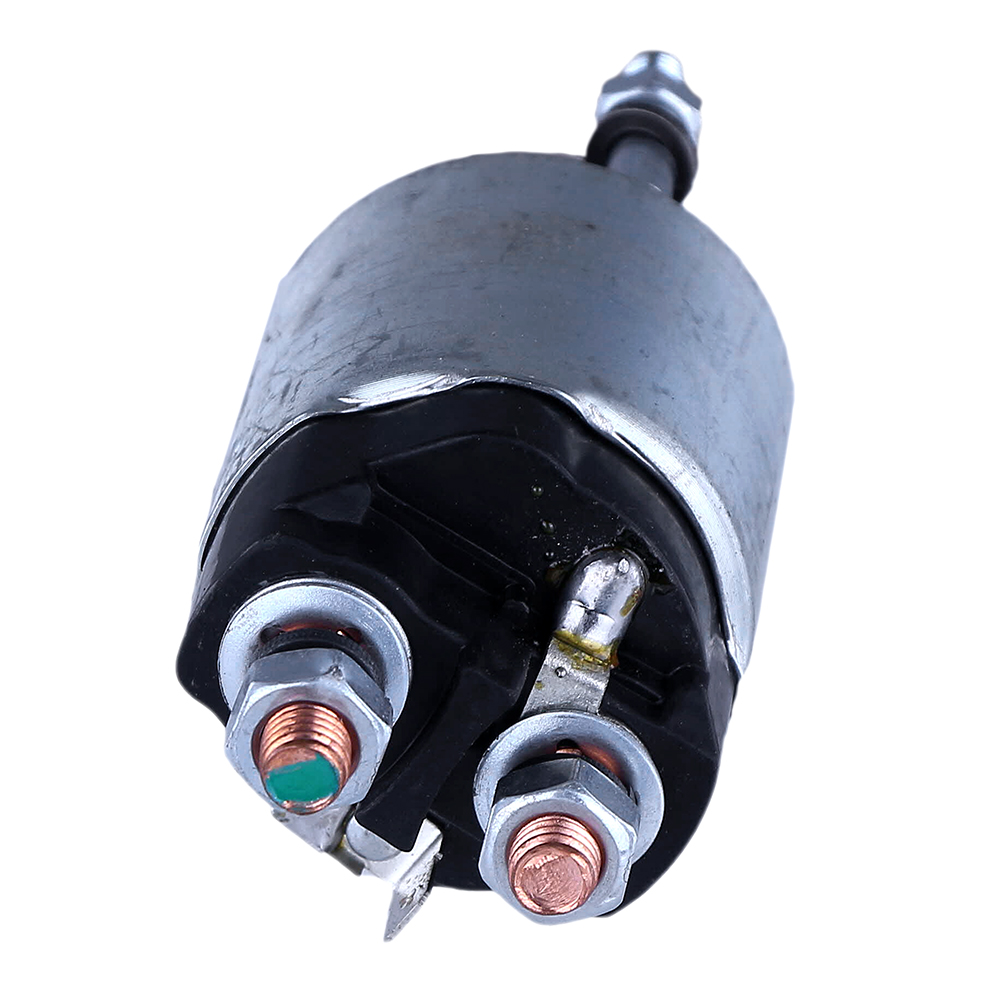

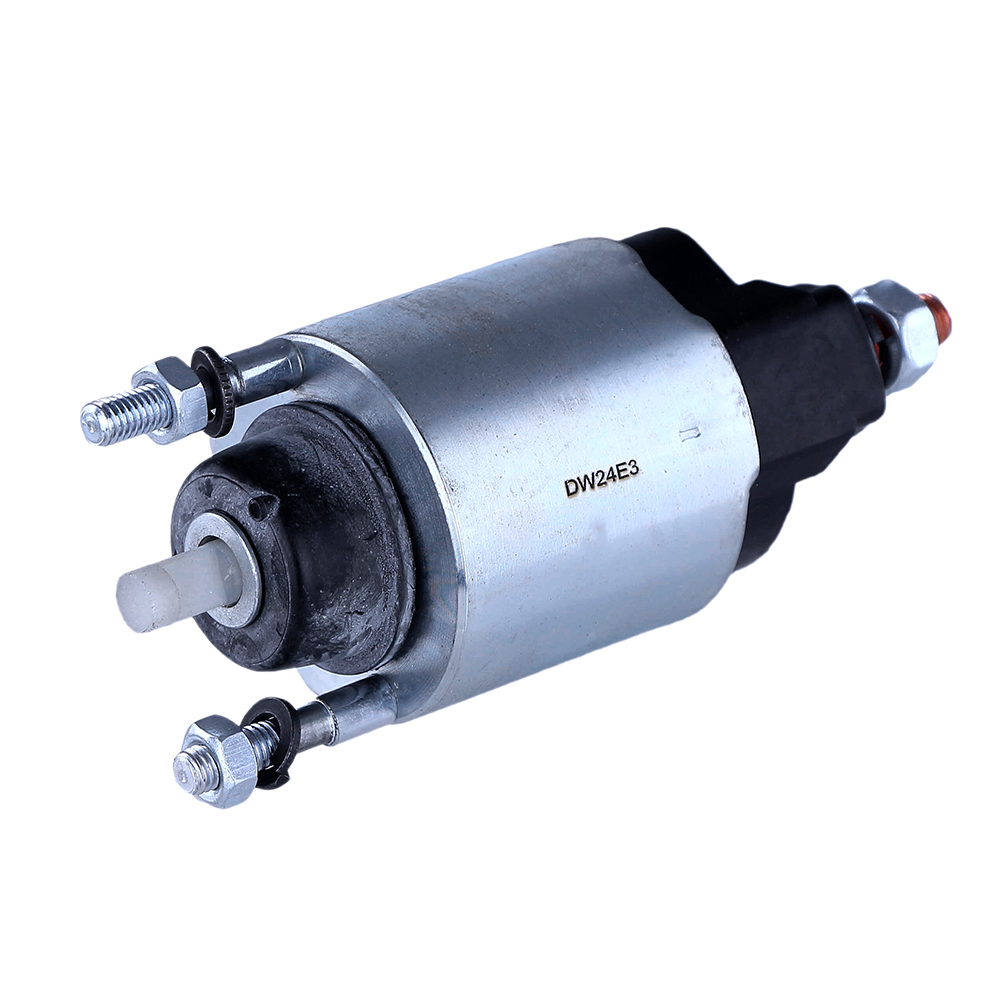

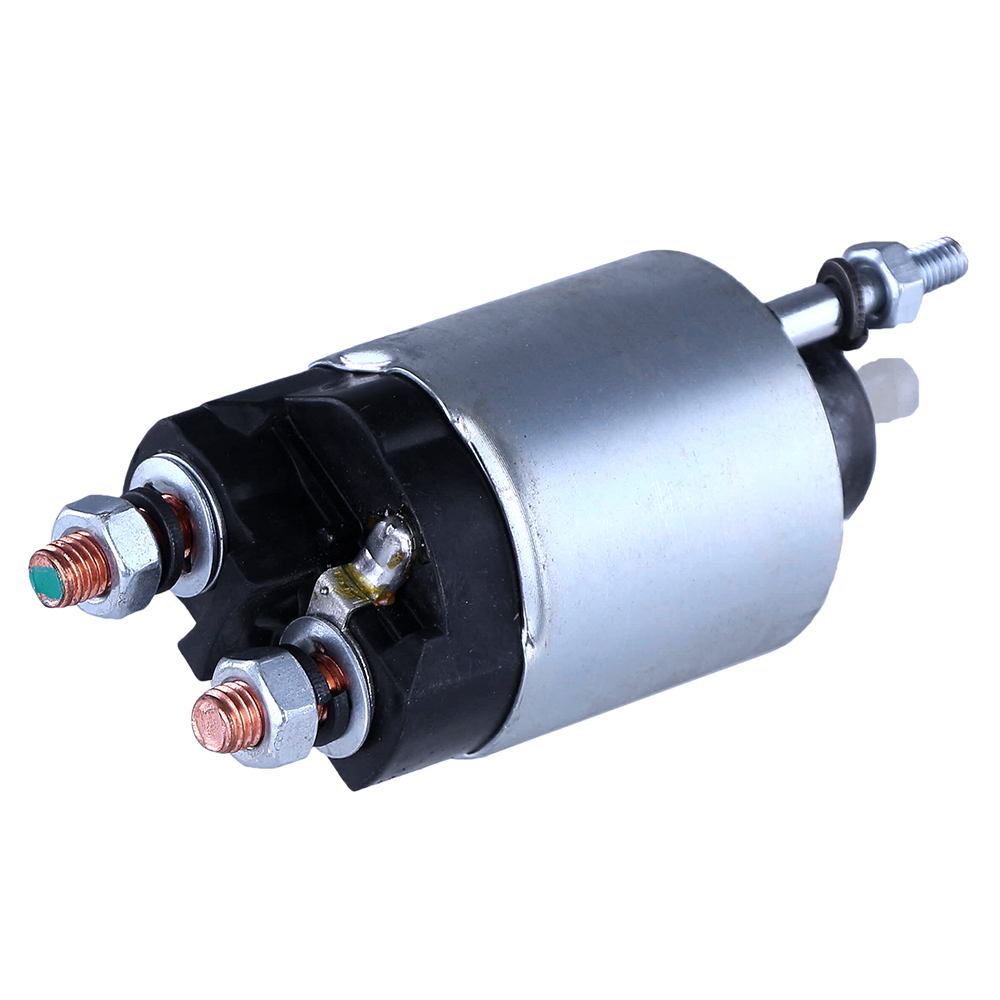

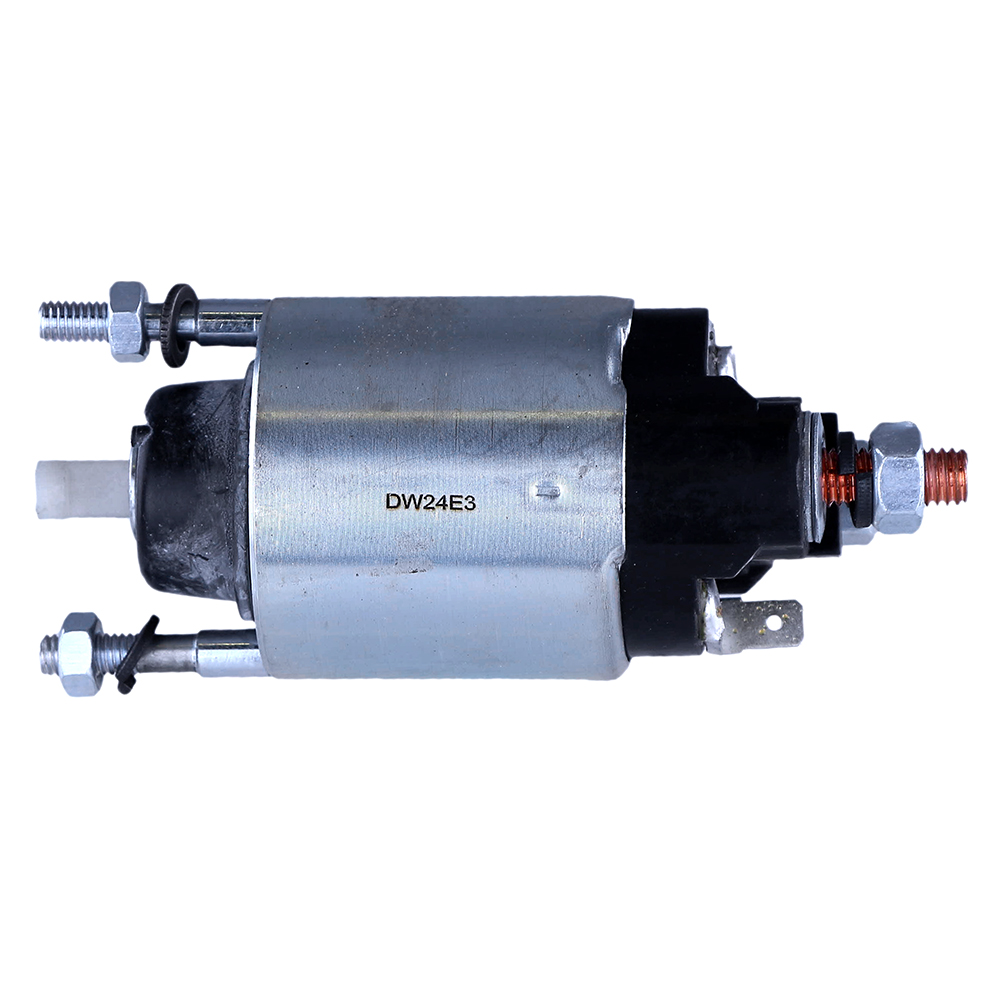

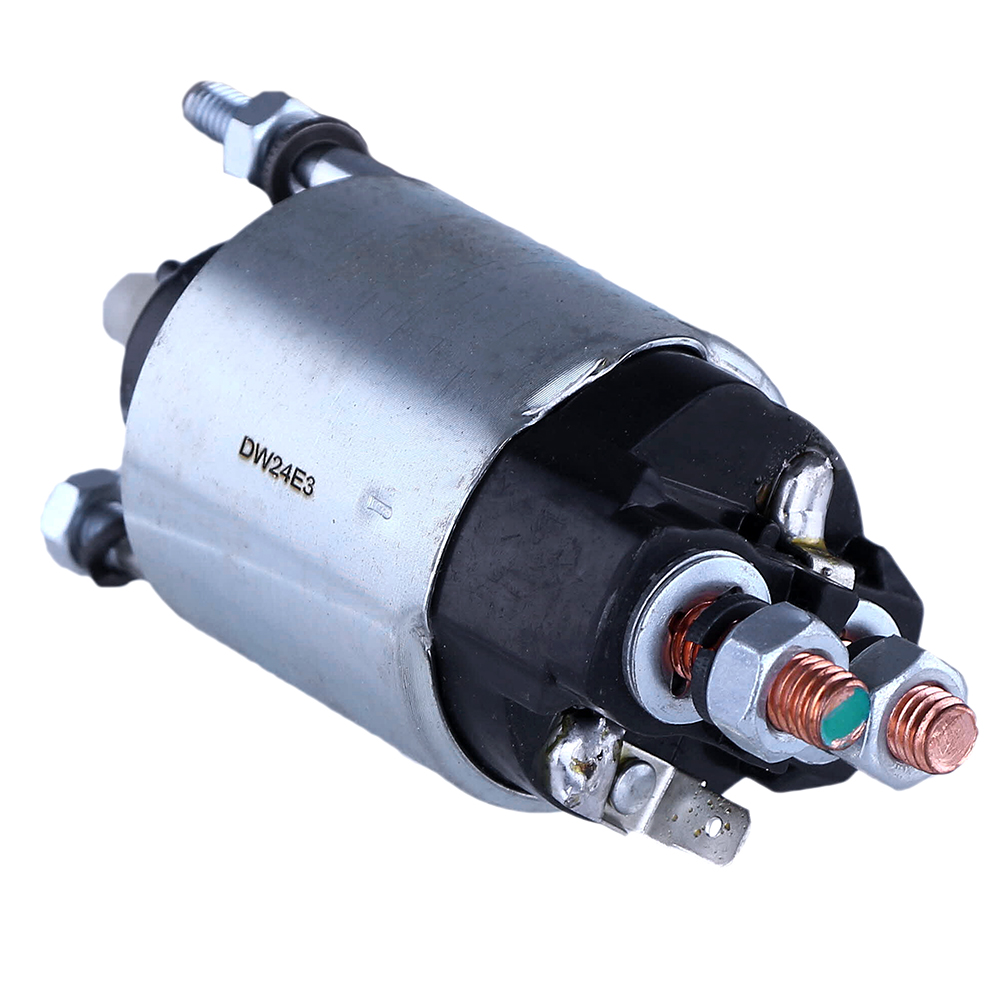

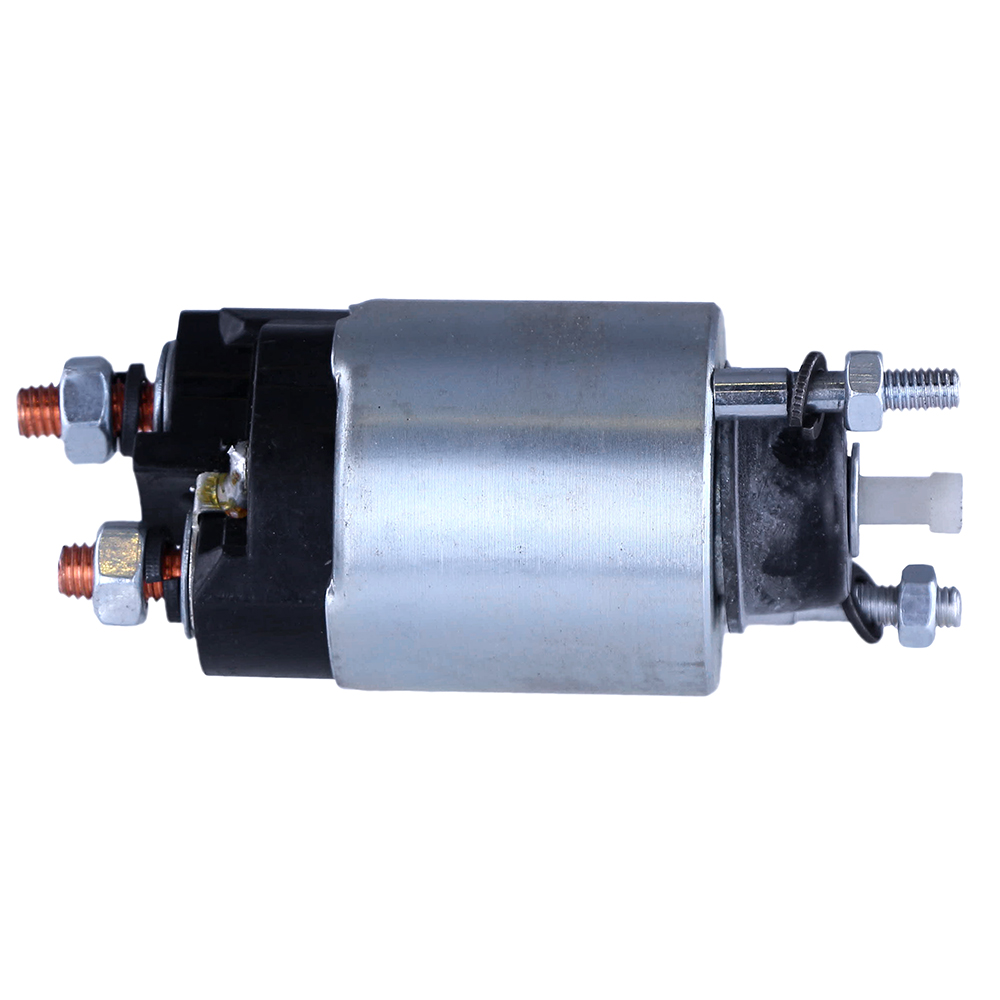

New Starter Solenoid Fits John Deere Kohler Kubota Tractor 21163-2120 21163-7002

Replaces Part Numbers & Specifications

DELCO: 94361908 94455179 96060321
HONDA: 31204-679-014
ISUZU: 8-94361-9080 8-94455-1790
NIPPONDENSO: 053400-7130 053400-7800 053400-8780
NISSAN: 23343-KA040
SUZUKI: 31220-51A10 31220-52A20
TOYOTA: 28150-10020 28150-11710 28150-11771 28150-87208

ITEM DESCRIPTION: SOLENOID
UNIT TYPE: DENSO
VOLTAGE: 12
TERMINAL COUNT: 4
DUTY CYCLE: INTERMITTENT
NOTES: M6-1.0 THREADED MOUNTING STUDS-42.3 MM APART ON CENTER, 24.9 MM PLUNGER DIAMETER, 50 MM CASE DIAMETER, 2.5 MM FLAT SPOOL ON PLUNGER FOR ENGAGING SHIFT LEVER, OPTIONAL 6.3 MM BLADE TERMINAL FOR R-TERMINAL
WEIGHT: 2 LBS

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



THIS SOLENOID WORKS ON THESE ORIGINAL STARTER MOTOR PART NUMBERS:
AC DELCO 323-541, 336-1524, 336-1555
BOMBARDIER DAW26844
BOSCH REMAN SR3254X, SR3255X, SR380X, SR395X, SR399X, SR4401X, SR4502X
DENSO FIRST TIME FIT 280-0126, 280-0153, 280-0266, 280-0294
GENERAL MOTORS 94141664, 94338799, 94439315, 94449782, 94480791, 96060305, 96062790
ISHIKAWAJIMA 18508-6440
ISUZU 2911230020, 8941416640, 8941416642, 8941416643, 8944393150, 8944393151, 8944497820, 8944807910
JOHN DEERE AM102567, AM104559, AM107206, AM107631, AM108390, AM109408, AM124993, AM127877,
AM131296, AM132303, AM133636, AW26844, MIA10971
KAWASAKI 21163-2070, 21163-2073, 21163-2073A, 21163-2089, 21163-2101, 21163-2109, 21163-2114, 21163-2118,
21163-2120, 21163-7002, 21163-7014
KOHLER 12-098-03, 24-098-01, 24-098-01S, 52-098-08
KUBOTA 12106-63010, 12106-63011, 12181-63011, 12498-63010, 1G023-63010, 1G023-63011, 67980-31151,
E7195-63010, K3511-81410, K3511-81411
ND REMAN 9712809-853, 9722809-540
NEW HOLLAND K0H2409801, TR95D9966
NIPPONDENSO 128000-1310, 128000-1311, 128000-2860, 128000-2861, 128000-2862, 128000-2890, 128000-4020, 128000-4270, 128000-4520, 128000-4670, 128000-4671, 128000-4870, 128000-5680, 128000-5682,128000-6210, 128000-6211, 128000-6212, 128000-6720, 128000-6721, 128000-7050, 128000-4800, 128000-7480, 128000-7740, 128000-8530, 128000-8531, 128000-8540, 128000-8890, 128000-8891,128000-9360, 128000-9980, 228000-2210, 228000-2211, 228000-2640, 228000-3520, 228000-5400,228000-5480, 228000-5910, 228000-5911, 228000-7480, 228000-7990, 228000-9180, 228000-9181, 228000-9182,
SUZUKI 31100-60B50, 31100-60B51, 31100-82610, 31100-82611, 31100-82612, 31100-826A1
TOYOTA 28100-11010, 28100-11020, 28100-13080, 28100-16070, 28100-16071, 28100-35110
UNIPOINT STR-3083, STR-8263, STR-8265, STR-8267
VALEO SHORT VS404, VS413
