Product Type: Starter |
Replaces: 17630B4 |
  • Starter Type: OSGR |
  • Volts: 12 |
  • Teeth On Drive: 10 |
  • Rotation: Clockwise |
  • Kw: 2.7 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

Starter 1998-2008 Bobcat 3440 3640 4440 4640 Perkins Denso 128000-4084

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Denso: 128000-4080 / 1280004080
• Denso: 128000-4081 / 1280004081
• Denso: 128000-4082 / 1280004082
• Denso: 128000-4083 / 1280004083
• Denso: 128000-4084 / 1280004084
• Denso: 228000-3600 / 2280003600
• Denso: 228000-3601 / 2280003601
• Denso: 428000-2160 / 4280002160
• Caterpillar: 143-0536 / 1430536 / 3E0079 / 7C2264 / 8T8619
• John Deere: RE40092 / RE54090 / RE59595 / TY24437 / TY25972
• Bobcat: 6665324
• Clark: C07889
• Daewoo: D160591

SPECIFICATIONS:
• Voltage: 12V
• Type: OSGR (Offset Gear Reduction)
• Rotation: CW (Clockwise)
• Power: 2.5kW / 3.35HP
• Tooth Count: 10
• Gear OD: 40.3mm / 1.587"
• Mounting: (3) 11.7mm ID Unthreaded Ears
• Weight: 21.245 lbs / 9.66 kg
• Condition: New

APPLICATION:
• Caterpillar R70/R80 Lift Trucks Perkins 4-248 (1989-2003)
• Caterpillar V60F/V80F Perkins 4-248 (1991)
• Bobcat 653/751/853/873 Skid Steers Perkins Diesel (1990-2005)
• Bobcat/Spra-Coupe 3440/3640/4440/4640 Perkins (1998-2008)
• Hyster H-70-110XL/S-70-120XL Perkins 1004.4 (1996-2006)
• Yale GDP135/GDP155 Perkins 1004.4 (1998-2006)
• John Deere 4039/4045/4219/4239/4276/6329 Industrial Engines

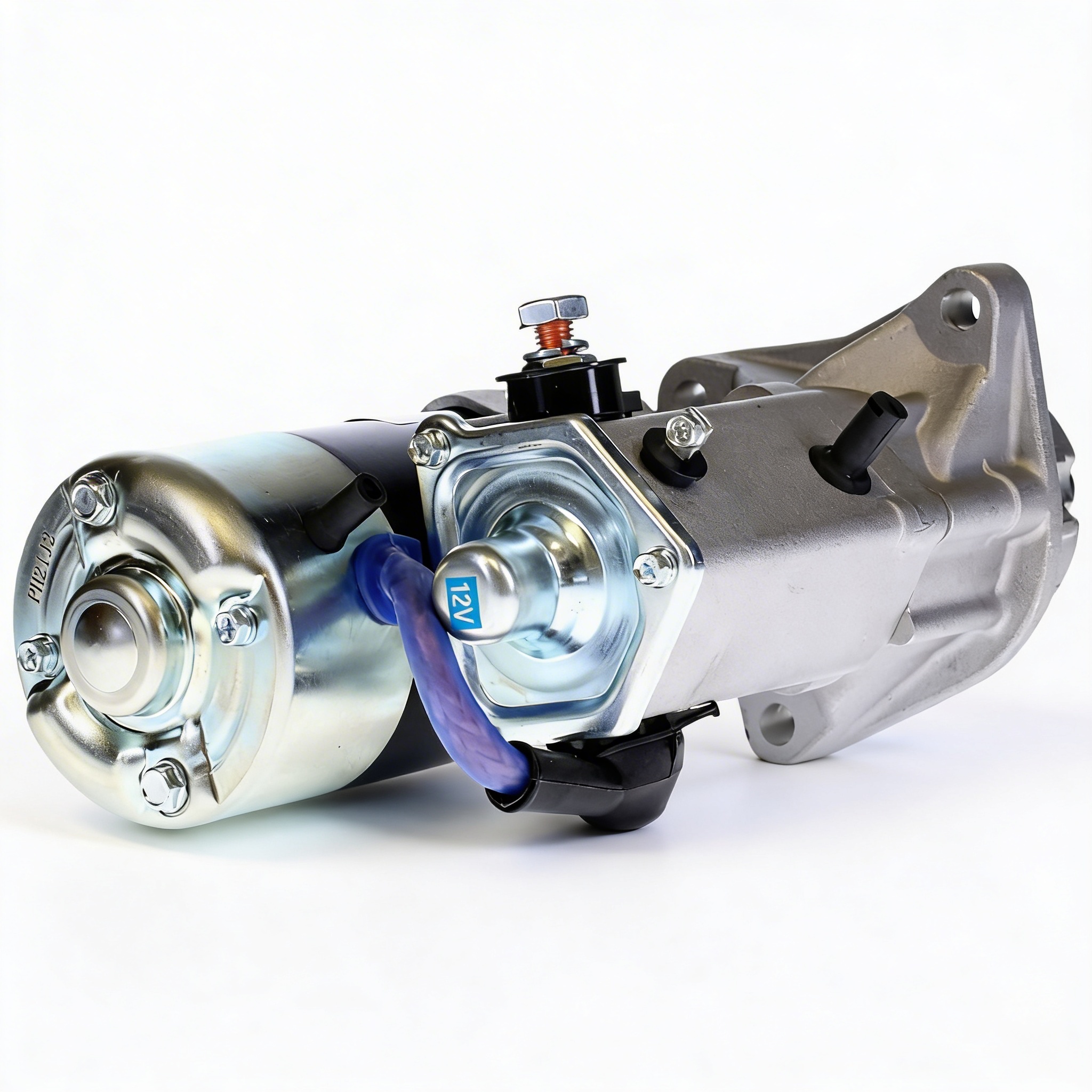

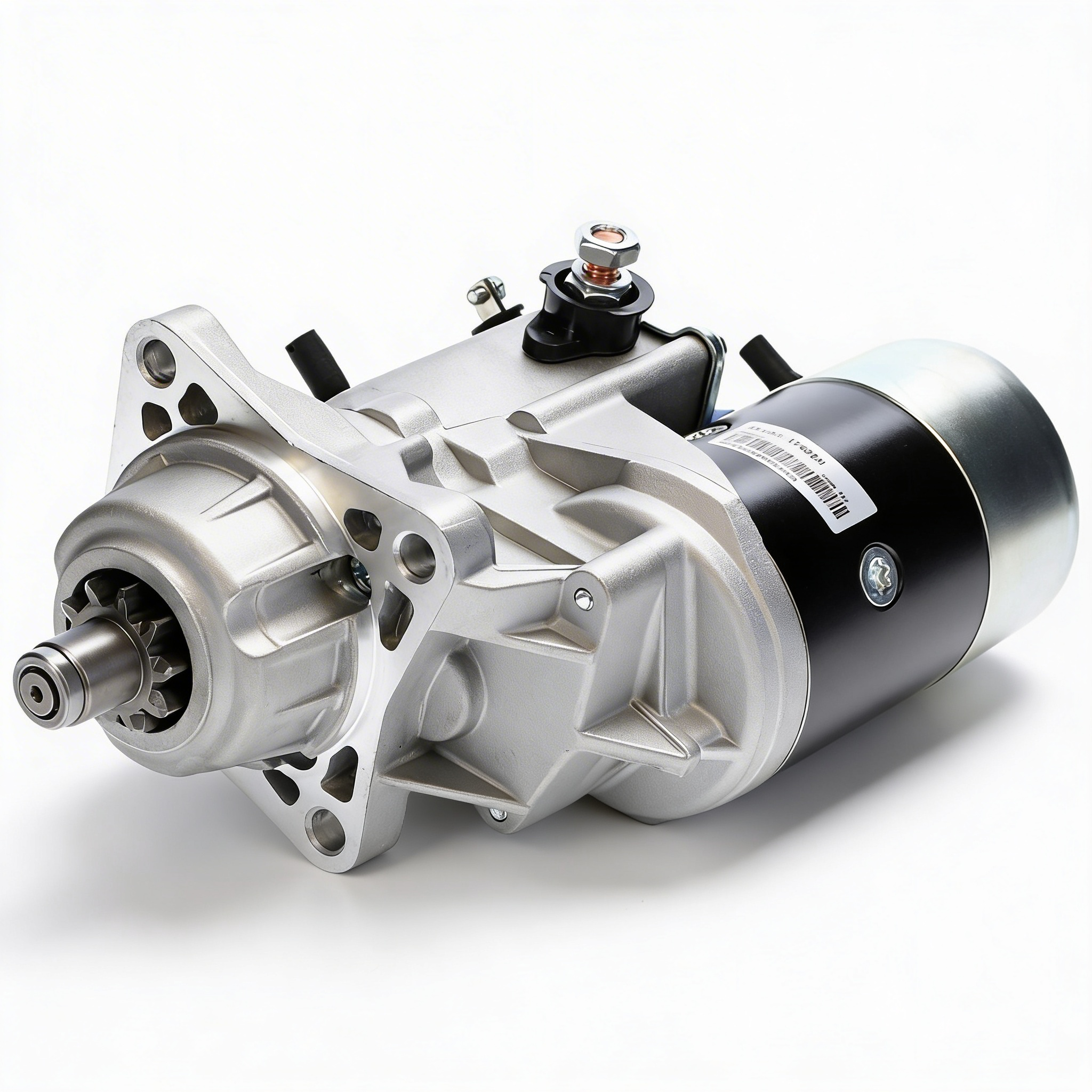

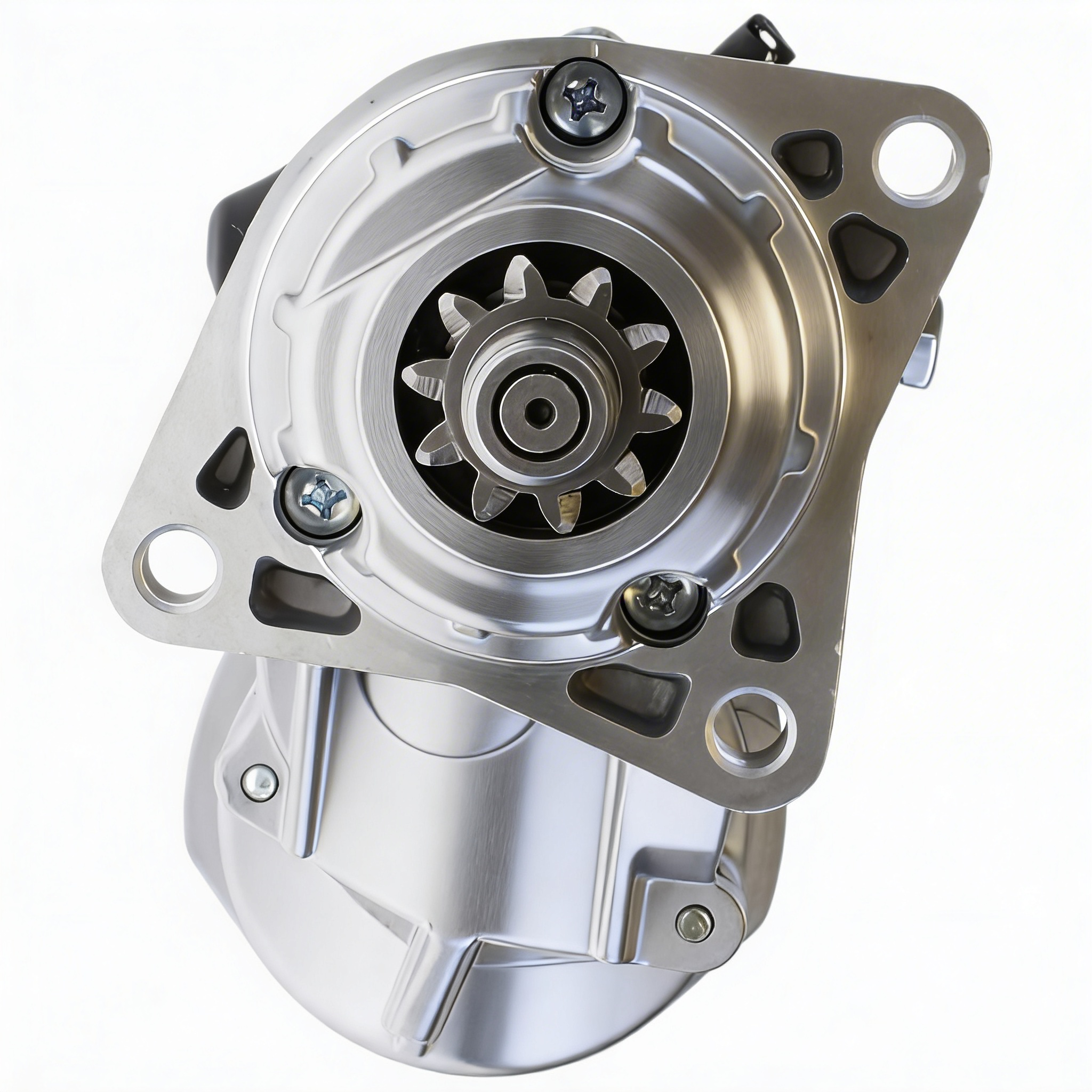

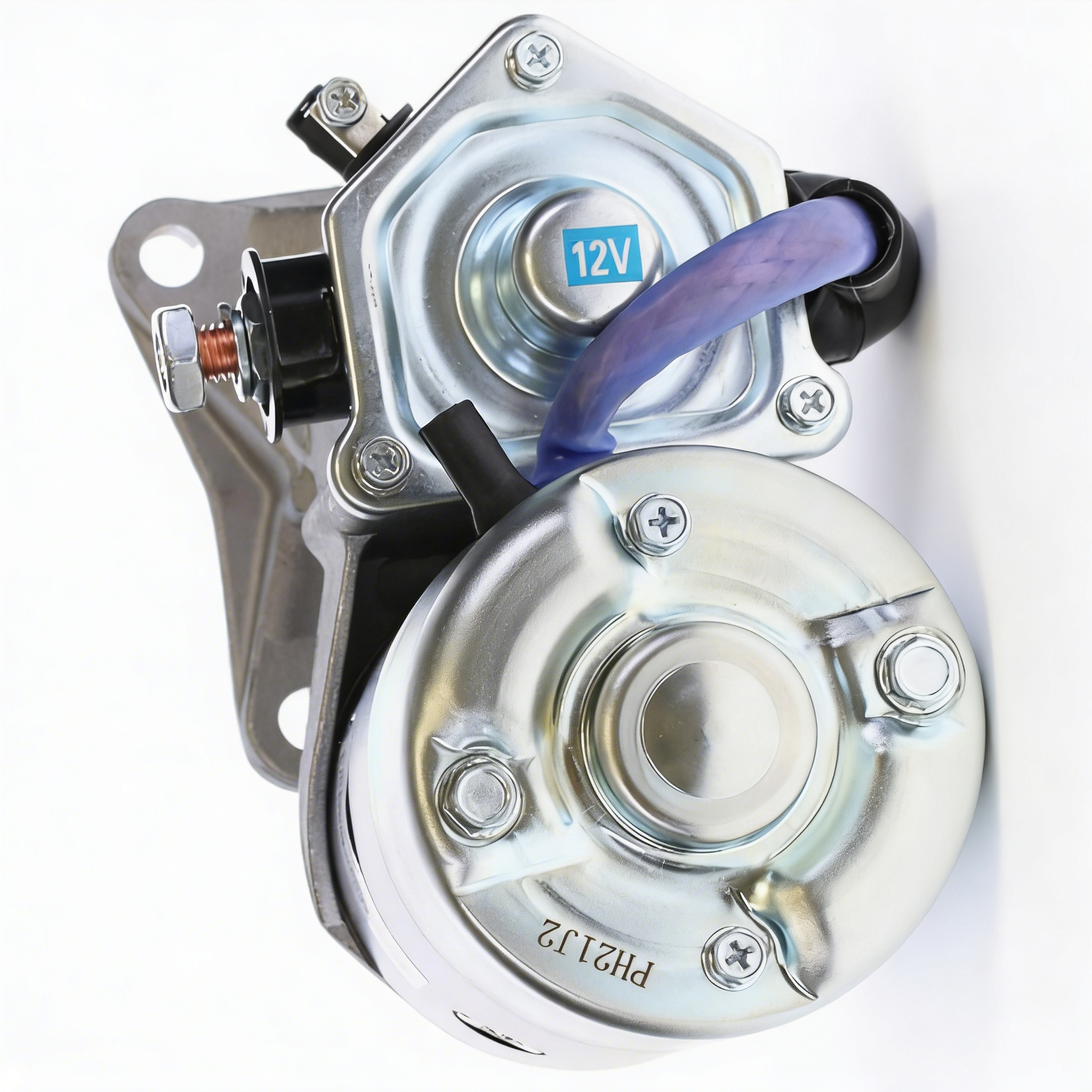

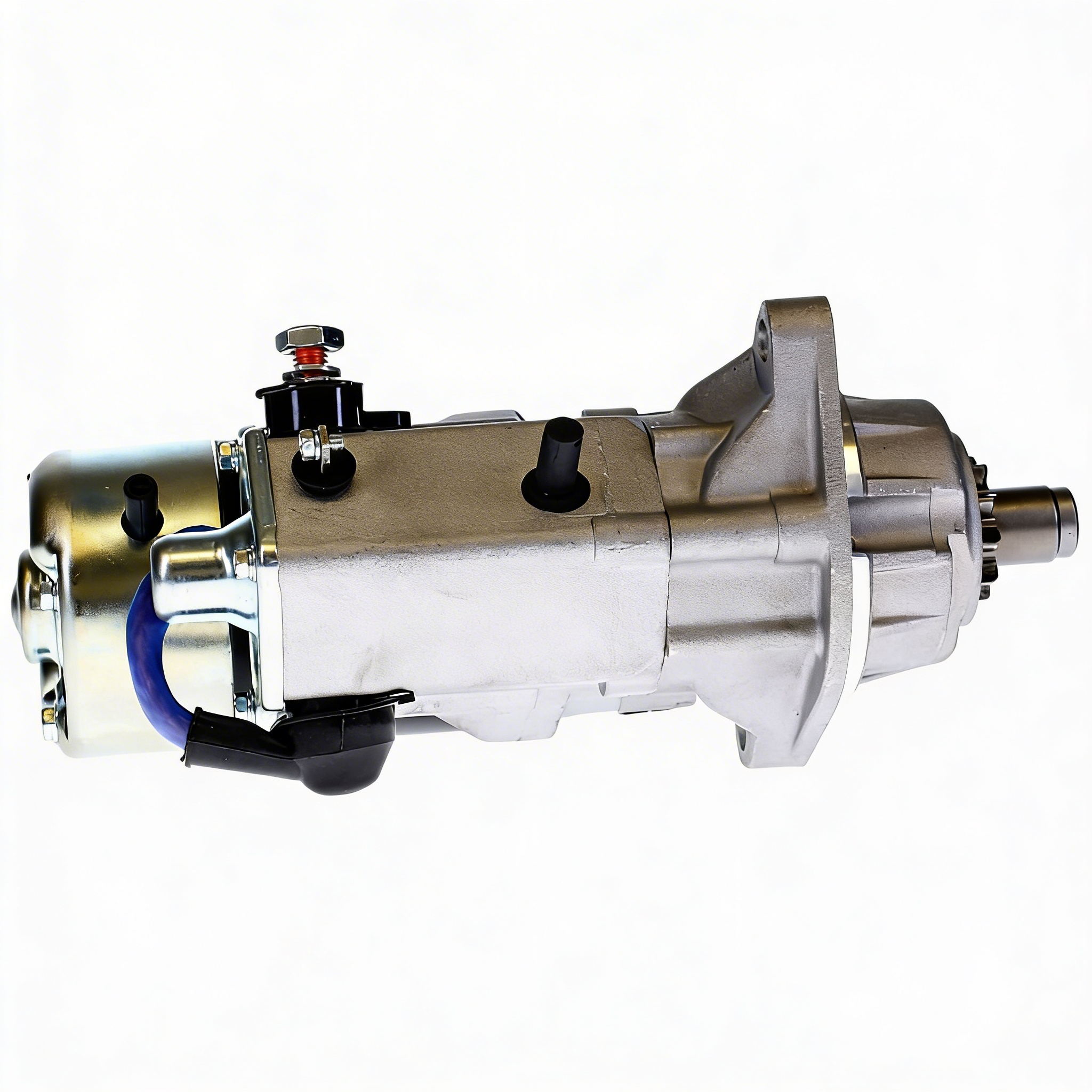

12V Denso OSGR Starter - Caterpillar Bobcat Hyster Yale Perkins Diesel
Brand new Denso OSGR starter motor for Caterpillar, Bobcat, Hyster, Yale, and Spra-Coupe equipment with Perkins 4-248 and 1004.4 diesel engines. Also fits John Deere 4039, 4045, and other industrial diesel engines. 12V clockwise rotation, 2.5kW output, 10 tooth pinion gear with 40.3mm OD. Three 11.7mm unthreaded mounting ears. Replaces Denso 128000-4080 through 128000-4084, 228000-3600, 228000-3601, 428000-2160, Caterpillar 143-0536, 7C2264, 8T8619, John Deere RE40092, TY24437, Bobcat 6665324, Clark C07889, and Daewoo D160591.

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



CATERPILLAR LIFT TRUCKS:
• R70 Perkins 4-248 Diesel (1989-2003)
• R704RW (1989-2003)
• R80 Perkins 4-248 Diesel (1989-2003)
• V60F Perkins 4-248 Diesel (1991)
• V80F Perkins 4-248 Diesel (1991)

BOBCAT SKID STEER LOADERS:
• 653 Perkins Diesel (1995-2005)
• 751/751C Perkins Diesel (1995-1997)
• 853 Perkins Diesel (1990-1994)
• 853C Perkins Diesel (1994-1999)
• 853H Perkins Diesel (1991-1994)
• 853HC Perkins Diesel (1994-1996)
• 873C Perkins Diesel (1995-1997)
• 873F Perkins Diesel (1997-1999)
• 873G Perkins Diesel (1999-2002)

BOBCAT / SPRA-COUPE SPRAYERS:
• 3440/3640/4440/4640 Perkins Diesel (1998-2008)

HYSTER LIFT TRUCKS:
• H-70-110XL Perkins 1004.4 Diesel (1996-2006)
• S-70-120XL Perkins 1004.4 Diesel (1996-2006)

YALE LIFT TRUCKS:
• GDP135 Perkins 1004.4 Diesel (1998-2006)
• GDP155 Perkins 1004.4 Diesel (1998-2006)

JOHN DEERE INDUSTRIAL ENGINES:
• 4039/4039DFM Diesel
• 4045/4045DFM50/4045DFM70/4045TFM Diesel
• 4219DF/4239D/4239T Diesel
• 4276D/4276T Diesel
• 6329D Diesel

NOTE: Verify OEM part number before ordering to ensure proper fitment.
