Manifold Gauge w/ High Pressure Hose Set for R410A R22 R134a R404A etc Multi-Refrigerants  HVAC Diagnosis Charging Recovery Field Service Tool







You are Looking at a

R410A R22 R134a R404a Multi-Refrigerants Manifold Gauge Set w/5ft High Pressure Hoses AC HVAC Field Service Tool for Charging Recovery Diagnosis
with 5-ft, 3-colored High Pressure Refrigeration Hoses.

Buy it now for only $67.77 59.77, fast Priority Mail shipping in the USA, more information available at https://www.viot.store

    FEATURES:

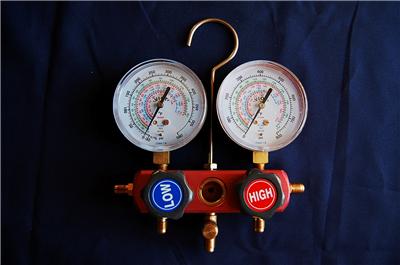

  1. R410A Manifold:
    • Large 3 1/8" diameter easy-to-read, dual gauges,
    • mounted on anodized Aluminum alloy Block body(light weight, stronger than brass)
    • Large sight viewing glass
    • Flutter free shock resistant gauges.
    • Diaphragm valves with swivel seals for more positive seal and less wear
    • Large easy-to-grab hand-knobs
    • One full turn positively open/close valves
    • Extra large port holes/less restriction, for falter recovery or charging.
    • Pressure in PSIG
    • Temperature in F for R410A, R22, R134a, R404a
    • This is a new model: the hose anchors on the manifold body are 1/4"
    • a Schroeder valve on the service line
    • a heavy duty hook for hanging the gauges
  2. 3 Color Coded High Pressure Hoses
    • 60 inch in length each
    • 4000 PSI burst pressure
    • 800 PSI working pressure
    • 1/4" female SAE brass fitting to the gauge block
    • Note: another model available with 5/16" hose fittings on red and blue hoses at the service side,
    • 45 degree angle on the service port site for easier access
    • Teflon O-ring washer provide the best seal and the most durability)
  3. Note: some R410a systems come with 5/16 ports, in this case, you will need one of this adapters modeled: CV23p, or CV23Set, or CV23bp.
  4. Note: for serving on car or boat AC R134a systems, a pair of couplers is needed, use model QCP or QCPL with 1/4 connectors.
