Item Description
Product Features

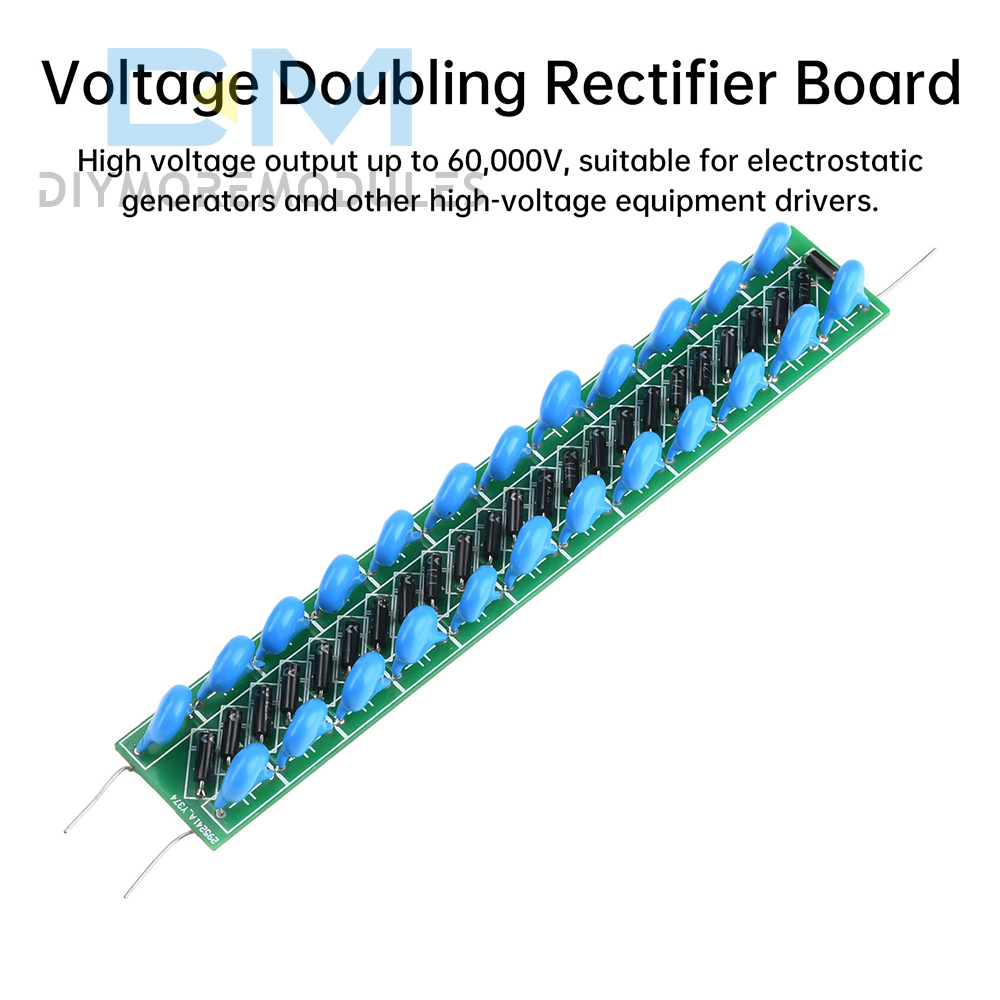

1. High voltage output up to 60000V, suitable for driving various high-voltage equipment such as electrostatic generators

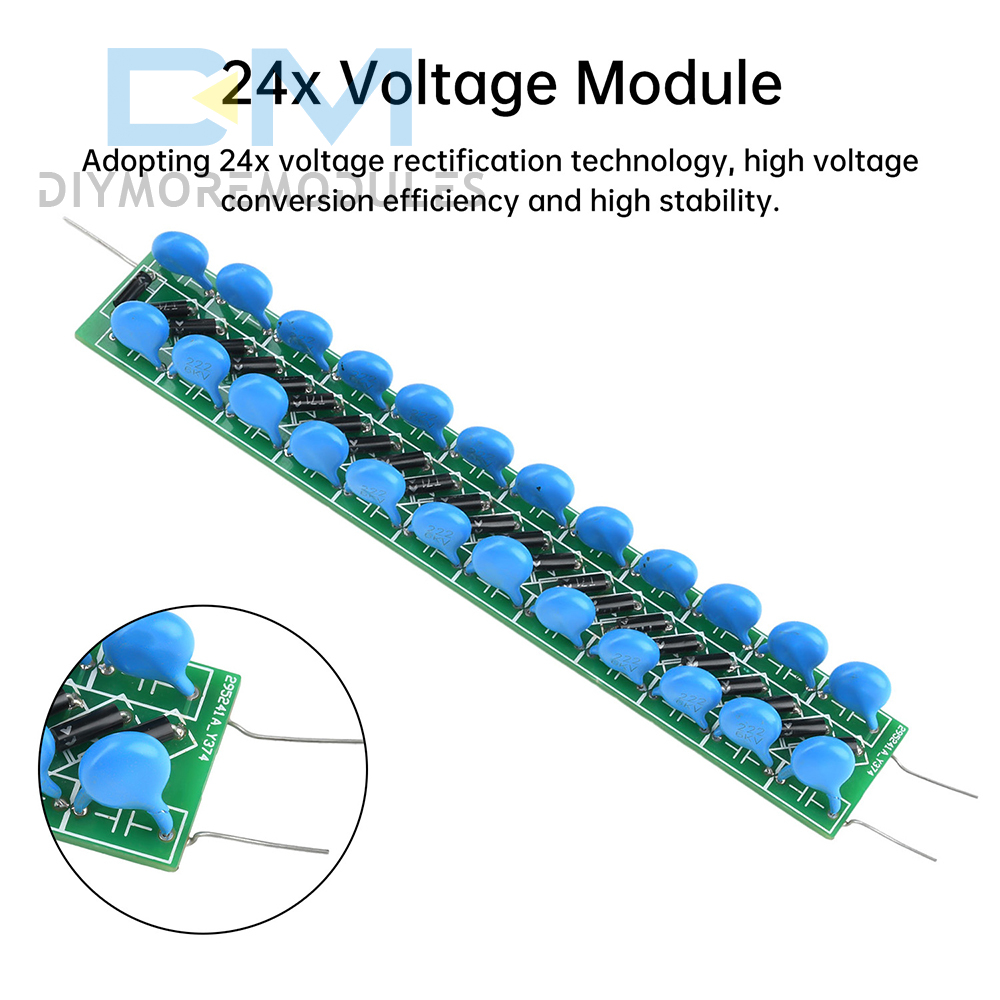

2. Adopting 24 times voltage rectification technology, the voltage conversion efficiency is high and the stability is strong
3. Compact structure, modular design, easy to integrate installation and maintenance
4. Supports multiple input voltage ranges, strong adaptability, and wide applications

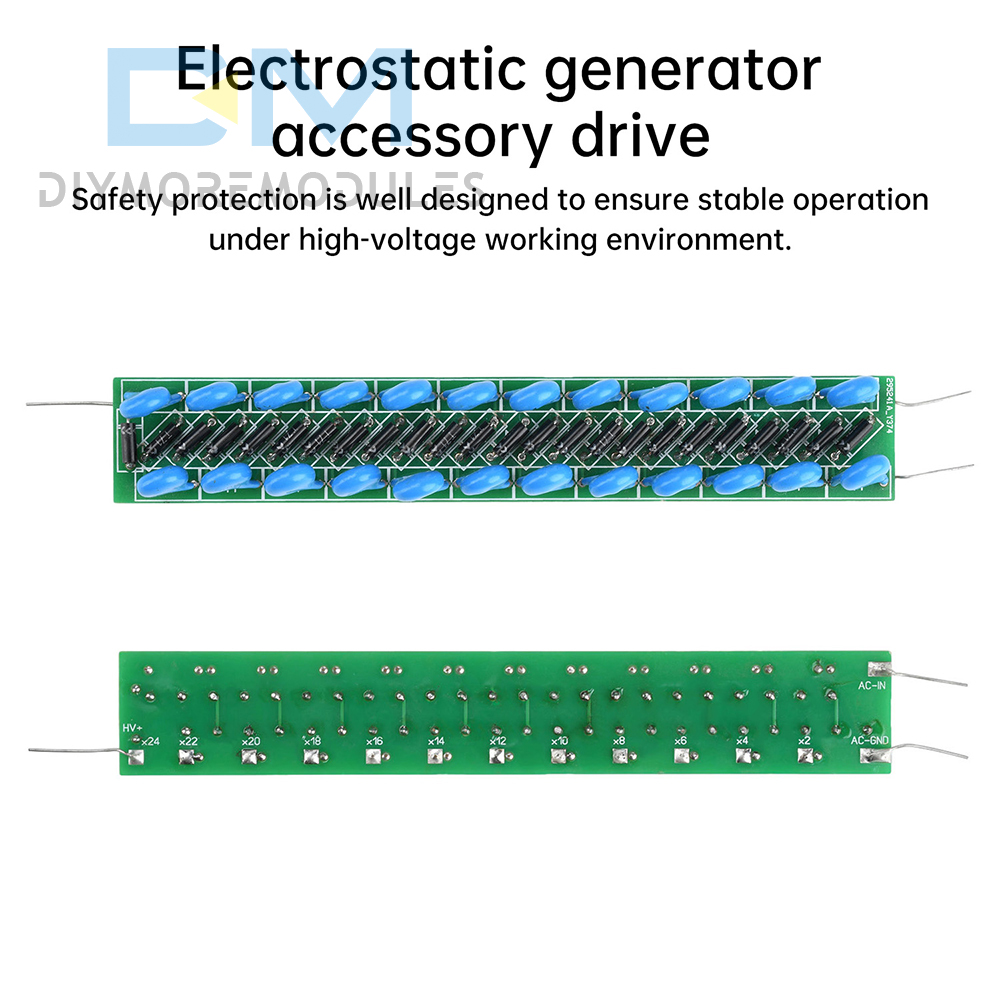

5. Complete safety protection design to ensure stable operation in high-pressure working environment
1. High voltage output up to 60000V, suitable for driving various high-voltage equipment such as electrostatic generators
2. Adopting 24 times voltage rectification technology, the voltage conversion efficiency is high and the stability is strong
3. Compact structure, modular design, easy to integrate installation and maintenance
4. Supports multiple input voltage ranges, strong adaptability, and wide applications
5. Complete safety protection design to ensure stable operation in high-pressure working environment

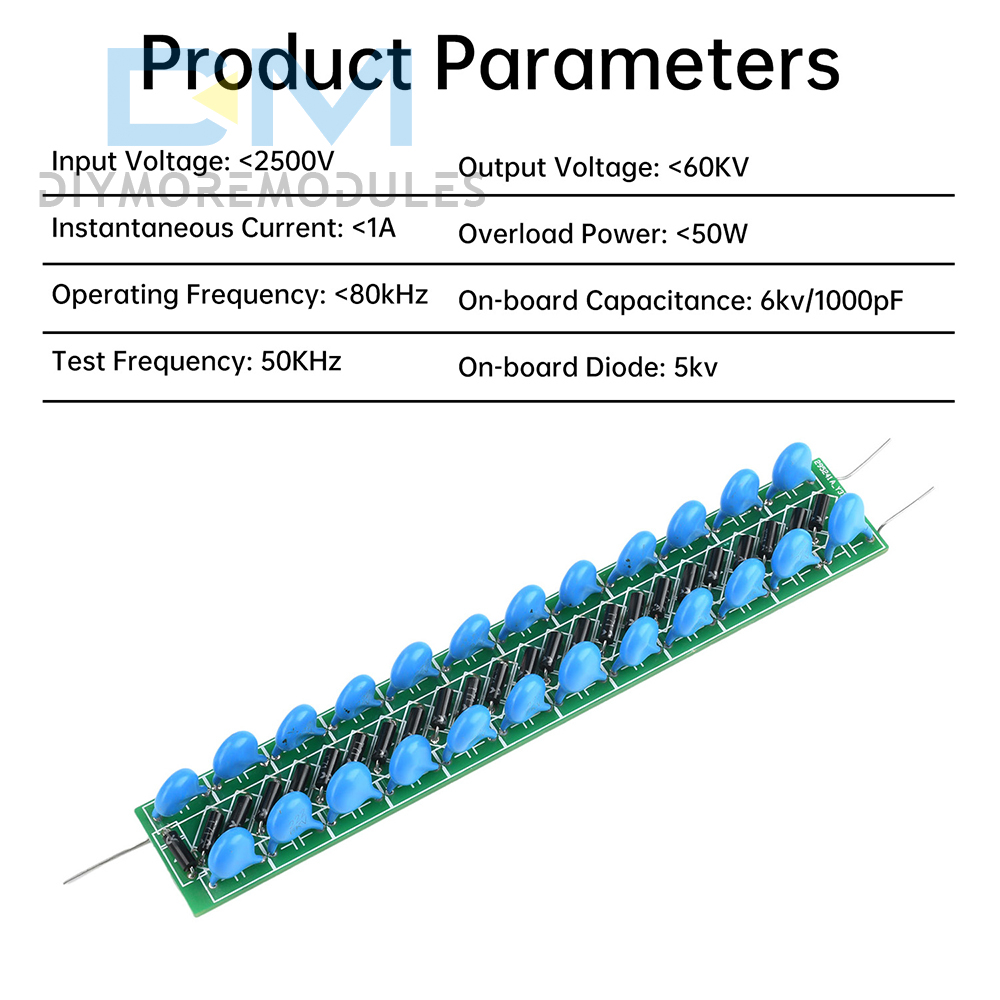

Product parameters:
Input voltage:<2500V
Instantaneous current:<1A
Operating frequency:<80kHz
Test frequency: 50KHz
Output voltage:<60KV
Overload power:<50W

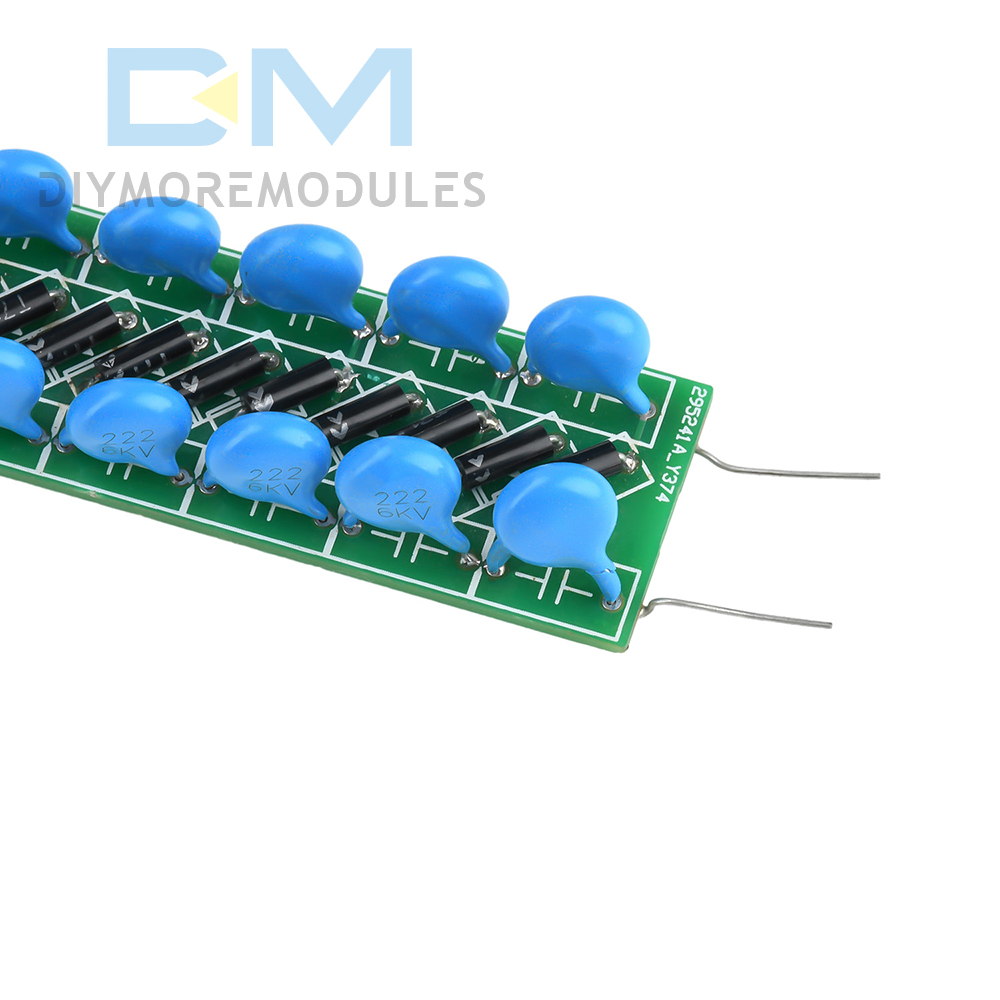

Onboard capacitance: 6kv/1000pF
Onboard diode: 5kV
Input voltage:<2500V
Instantaneous current:<1A
Operating frequency:<80kHz
Test frequency: 50KHz
Output voltage:<60KV
Overload power:<50W
Onboard capacitance: 6kv/1000pF
Onboard diode: 5kV
reminder:

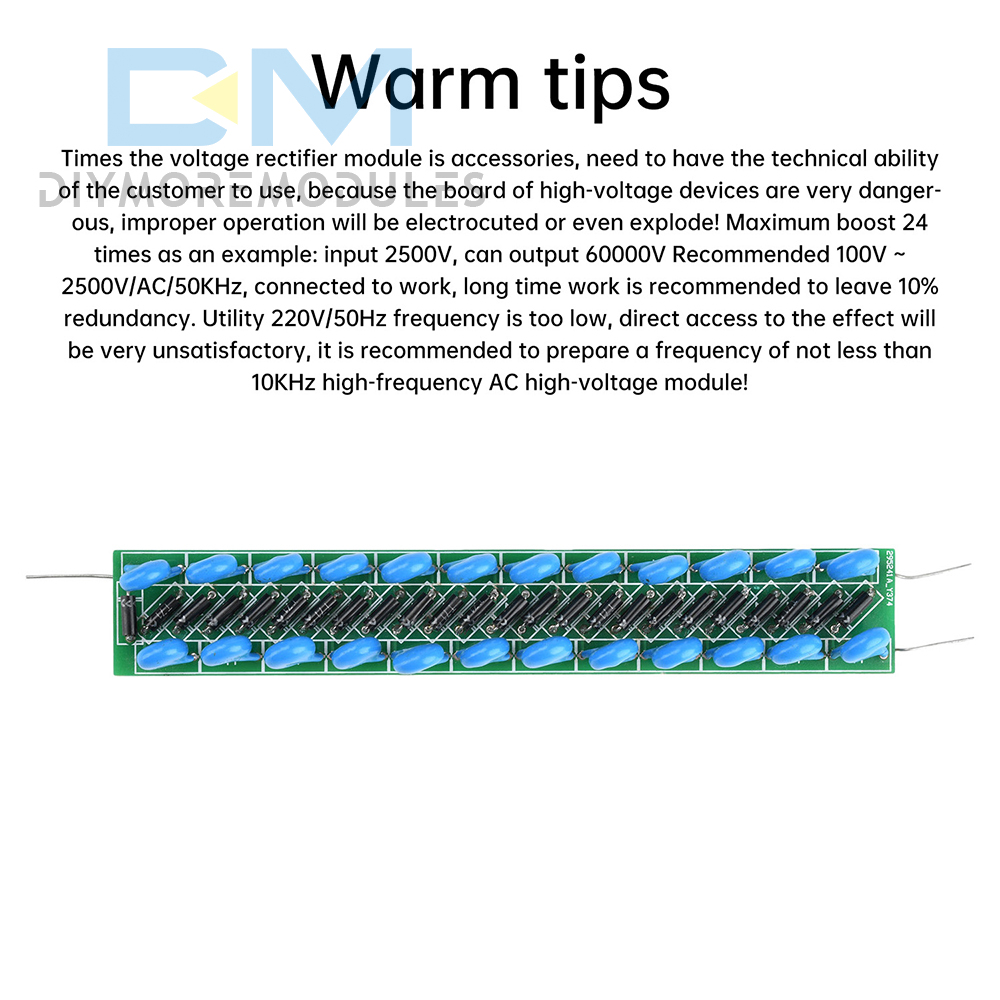

The voltage doubling rectifier module is an accessory that requires customers with technical capabilities to use, as the high-voltage components on the board are very dangerous. Improper operation can cause electric shock or even explosion!
The maximum boost is 24 times. For example, if the input is 2500V, it can output 60000V
Suggest 100V~2500V/AC/50KHz, connect it and it can work. It is recommended to leave 10% redundancy for long-term operation. The frequency of the mains 220V/50Hz is too low, and the direct connection effect will be very unsatisfactory. It is recommended to prepare another high-frequency AC high-voltage module with a frequency not lower than 10KHz
The voltage doubling rectifier module is an accessory that requires customers with technical capabilities to use, as the high-voltage components on the board are very dangerous. Improper operation can cause electric shock or even explosion!
The maximum boost is 24 times. For example, if the input is 2500V, it can output 60000V
Suggest 100V~2500V/AC/50KHz, connect it and it can work. It is recommended to leave 10% redundancy for long-term operation. The frequency of the mains 220V/50Hz is too low, and the direct connection effect will be very unsatisfactory. It is recommended to prepare another high-frequency AC high-voltage module with a frequency not lower than 10KHz
Package Included
Voltage doubling module * 1
Voltage doubling module * 1
