JILONG (Established in 1993, with a development history of 33 years)

——Why choose JILONG KL-6300 OTDR ?

It has 19 remarkable advantages, which together constitute its unparalleled competitiveness

1. Rich wavelengths and ultra-high dynamic range(45dB) for you to choose

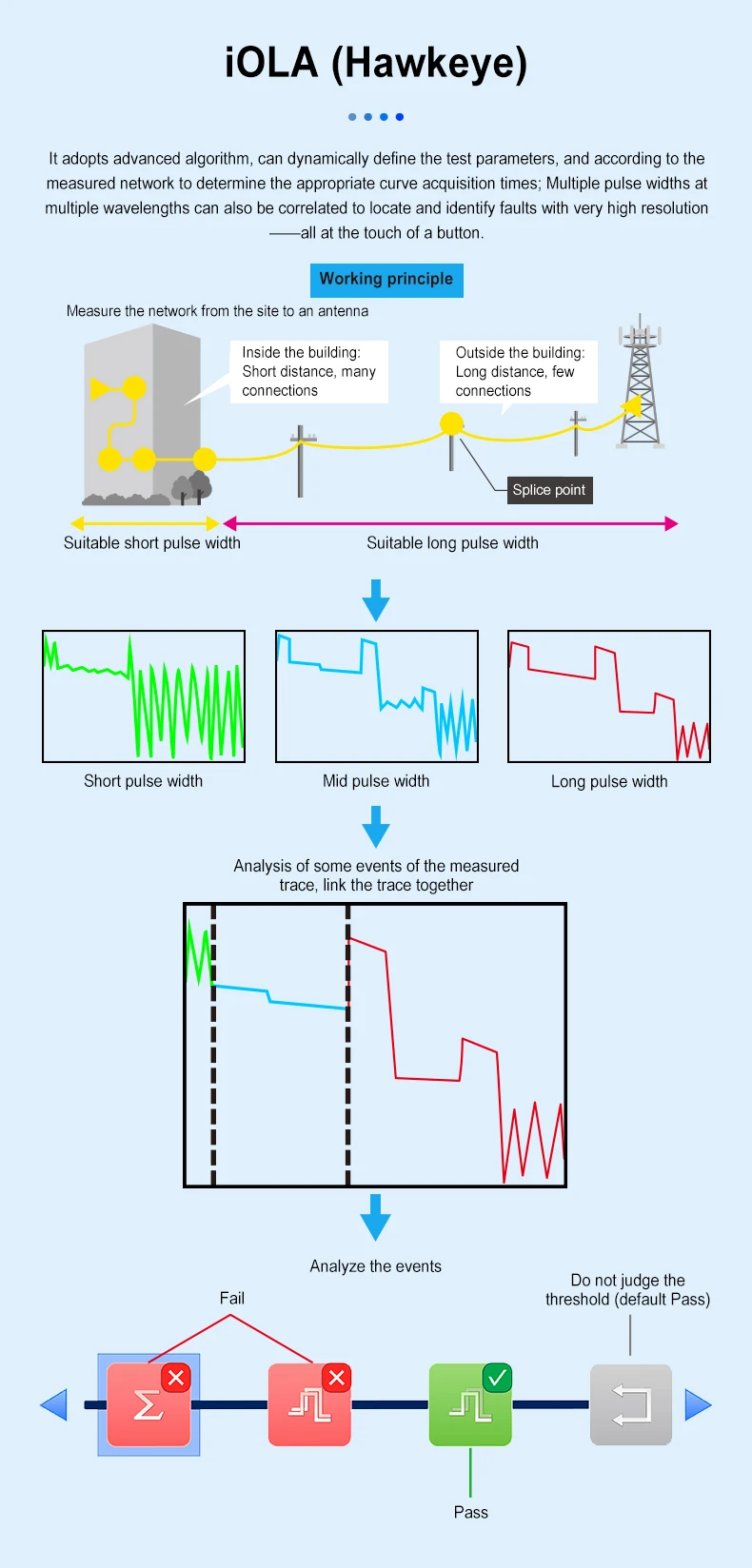

2. iOLA, one-click Intelligent testing of passive PON networks

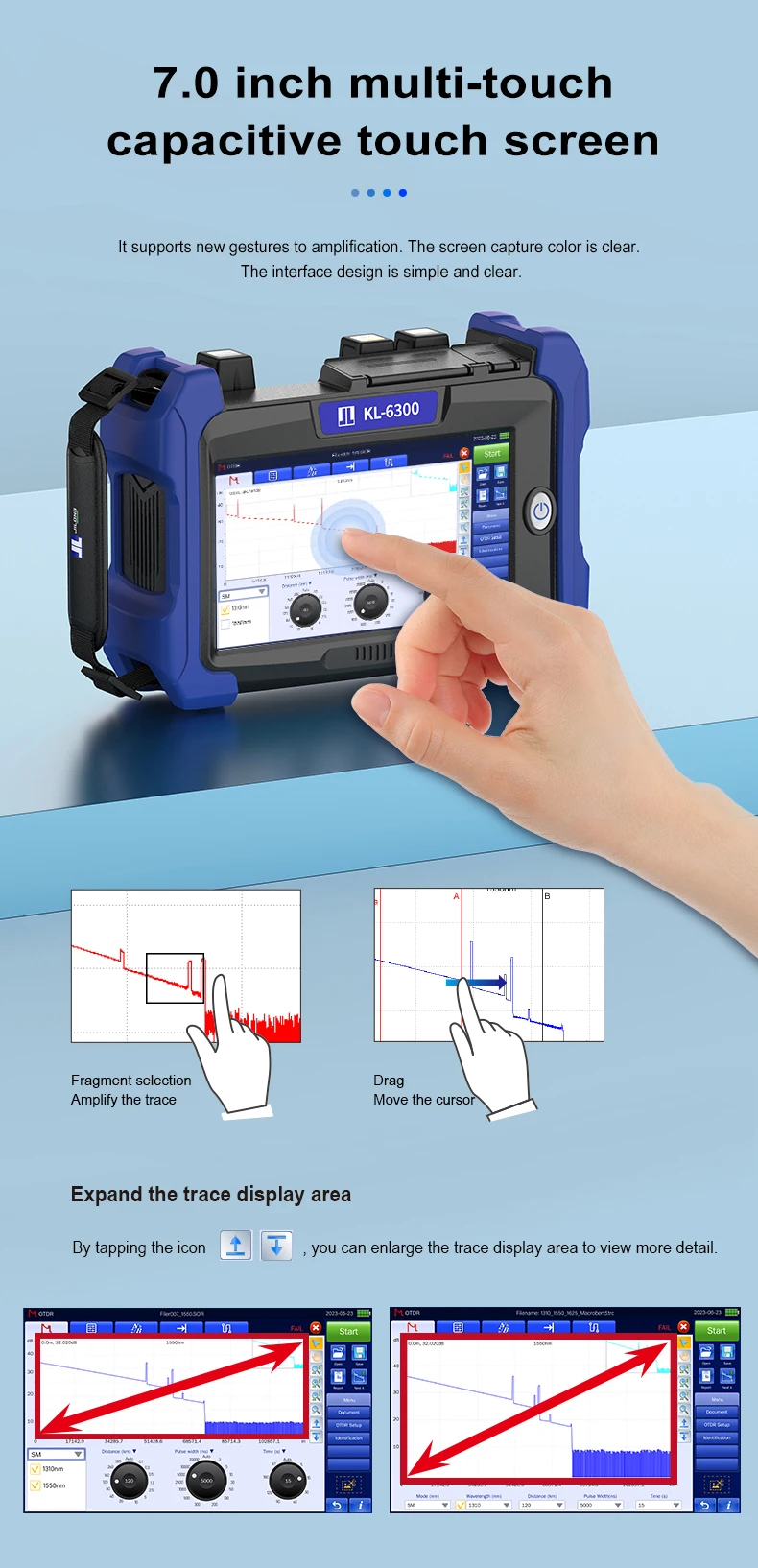

3. With 7-inch color LCD touch screen

4. Languages(8): English, Español, Chinese, Português, Français, Русский，ภาษาไทยย，한국어

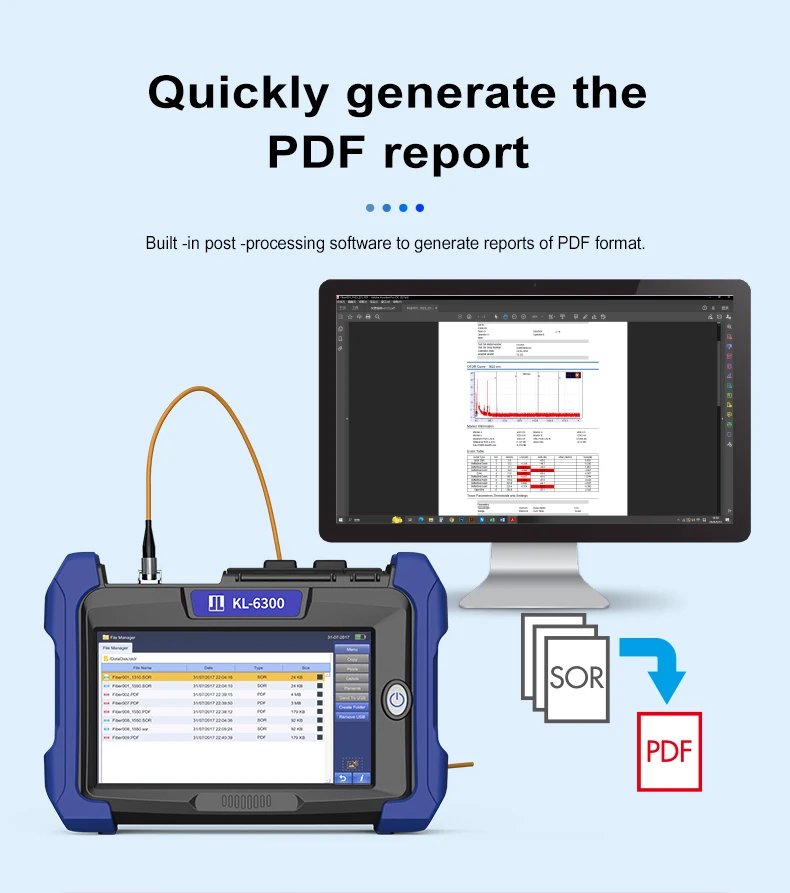

5. Generate PDF reports quickly

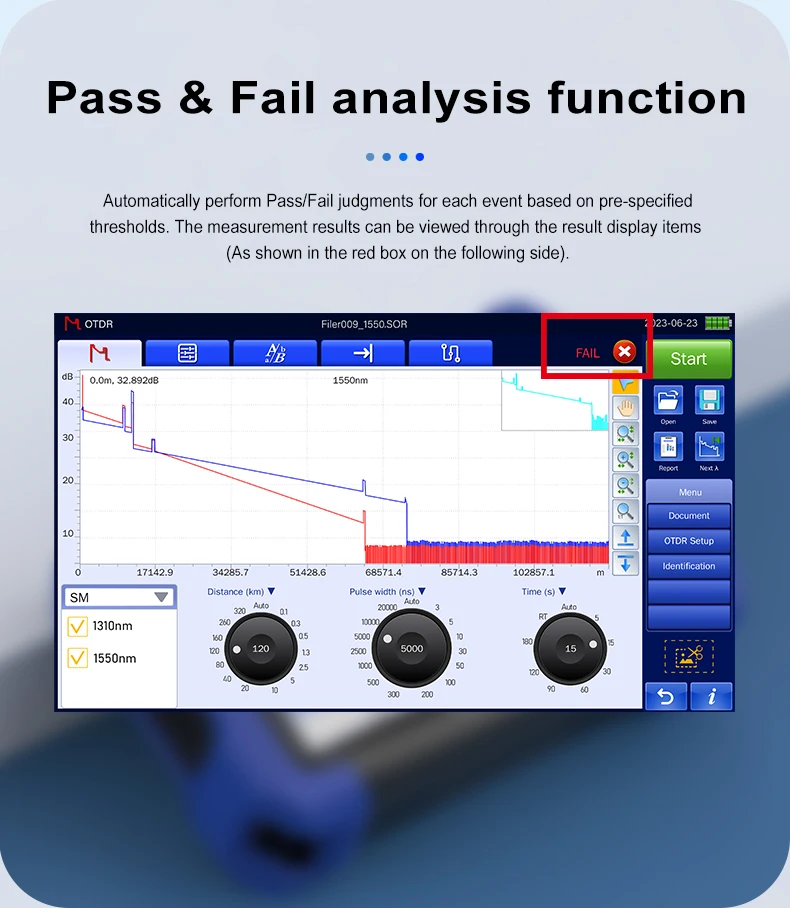

6. Intelligent link diagram, support pass & fail judgment

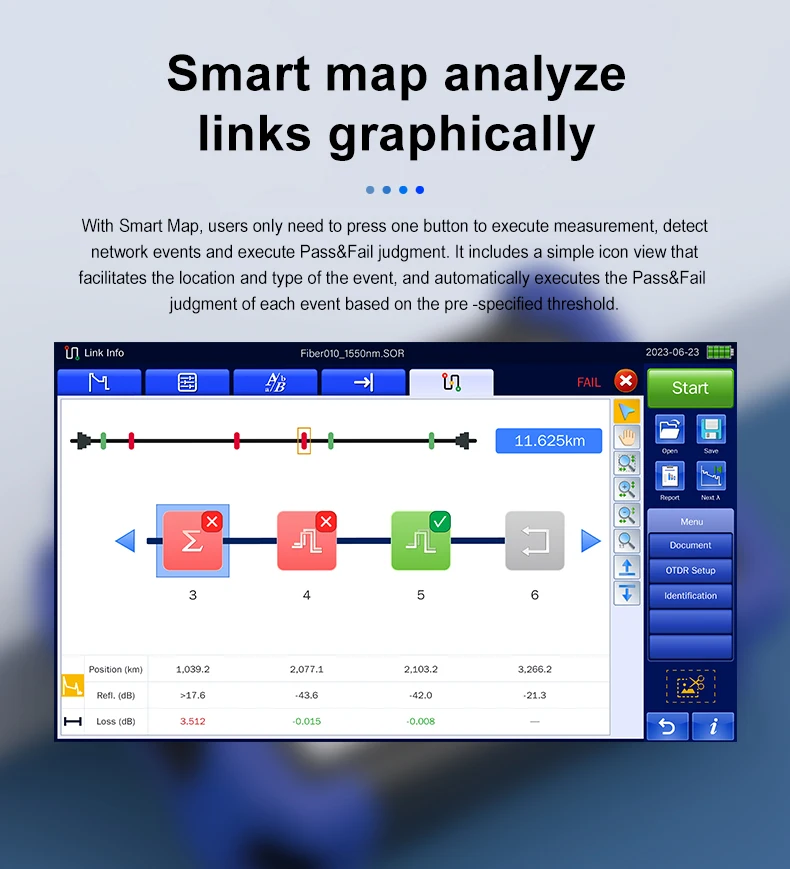

7. Smart map to analyze links graphically

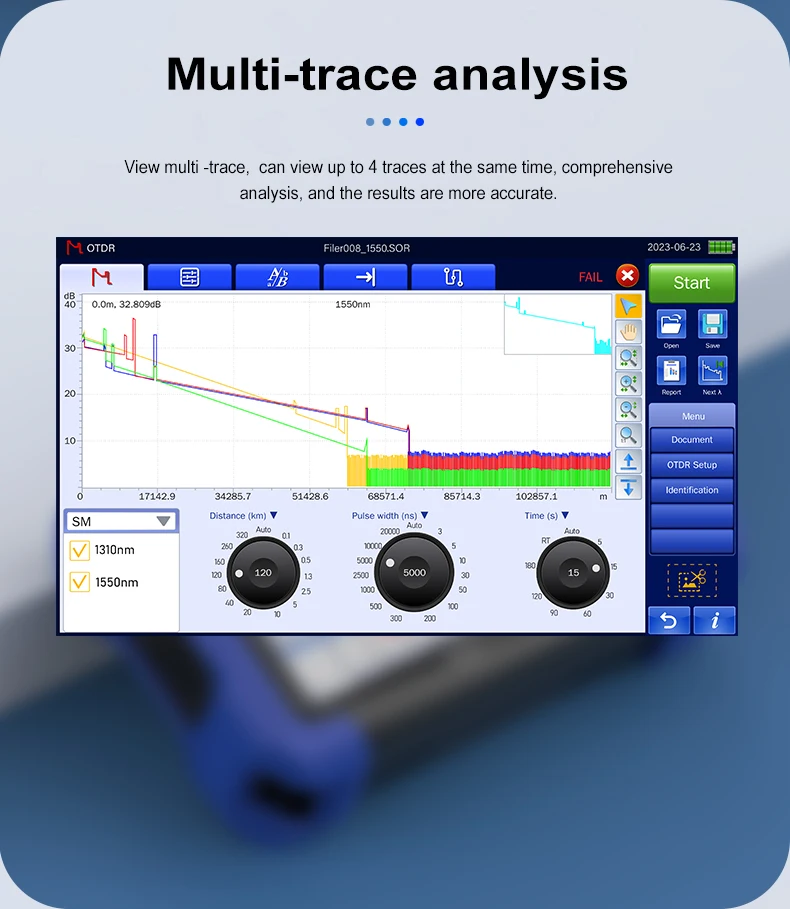

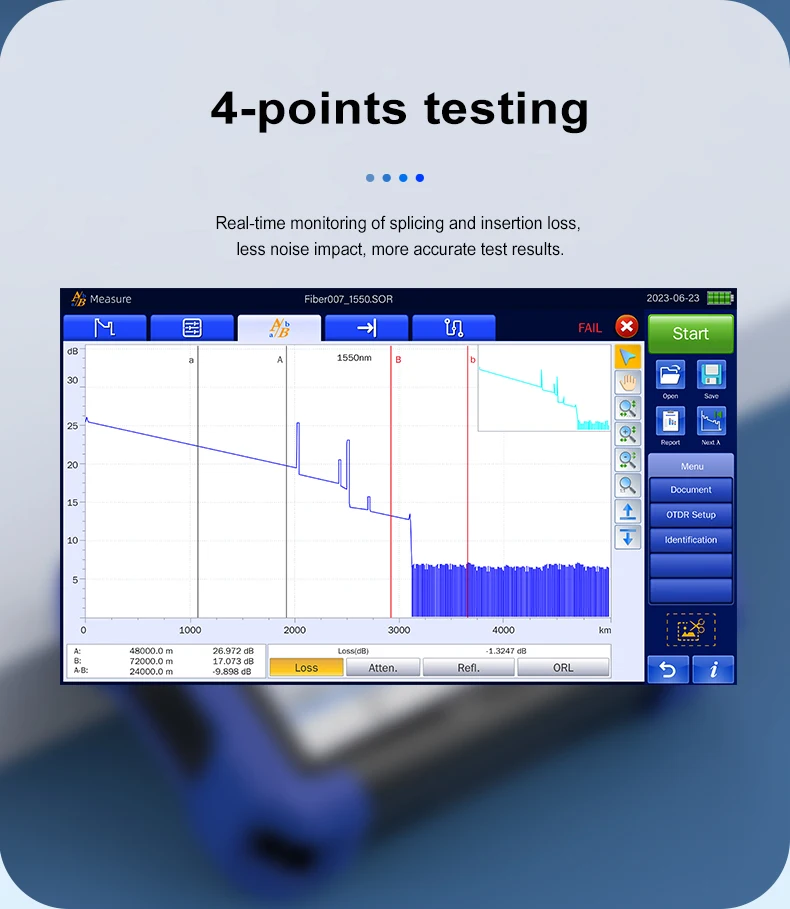

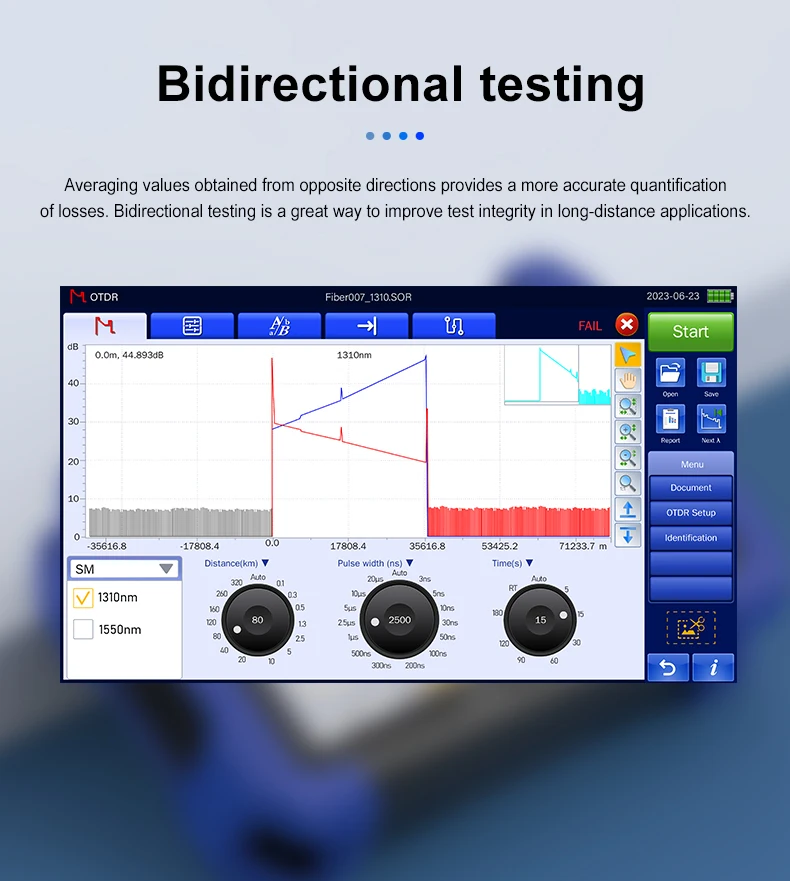

8. Advanced curve analysis: multi curve analysis, bidirectional testing, 4-point testing

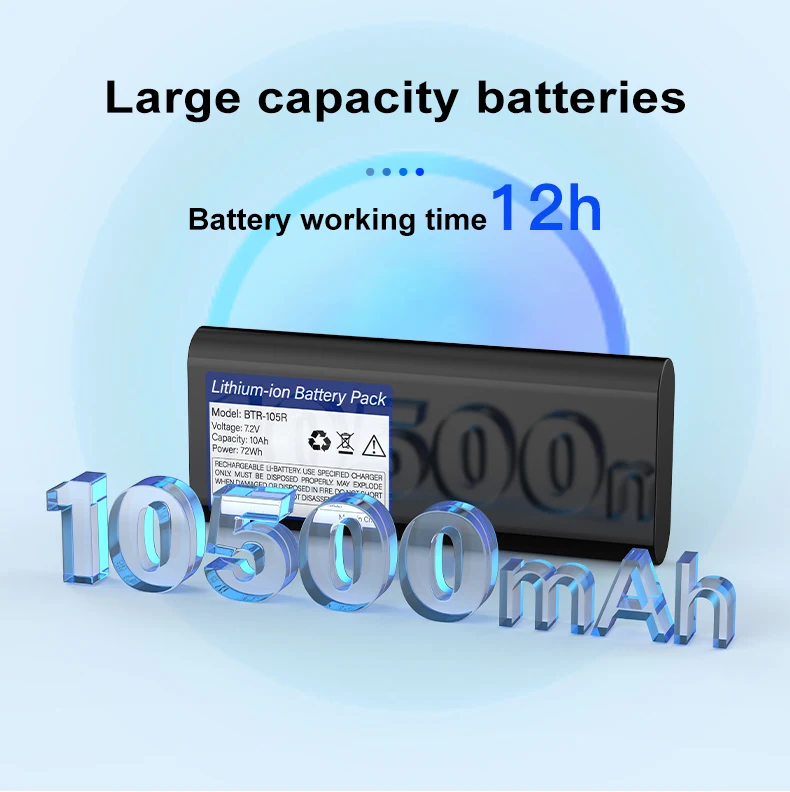

9. Gig battery capacity: 10500mah 12 hours/per charge

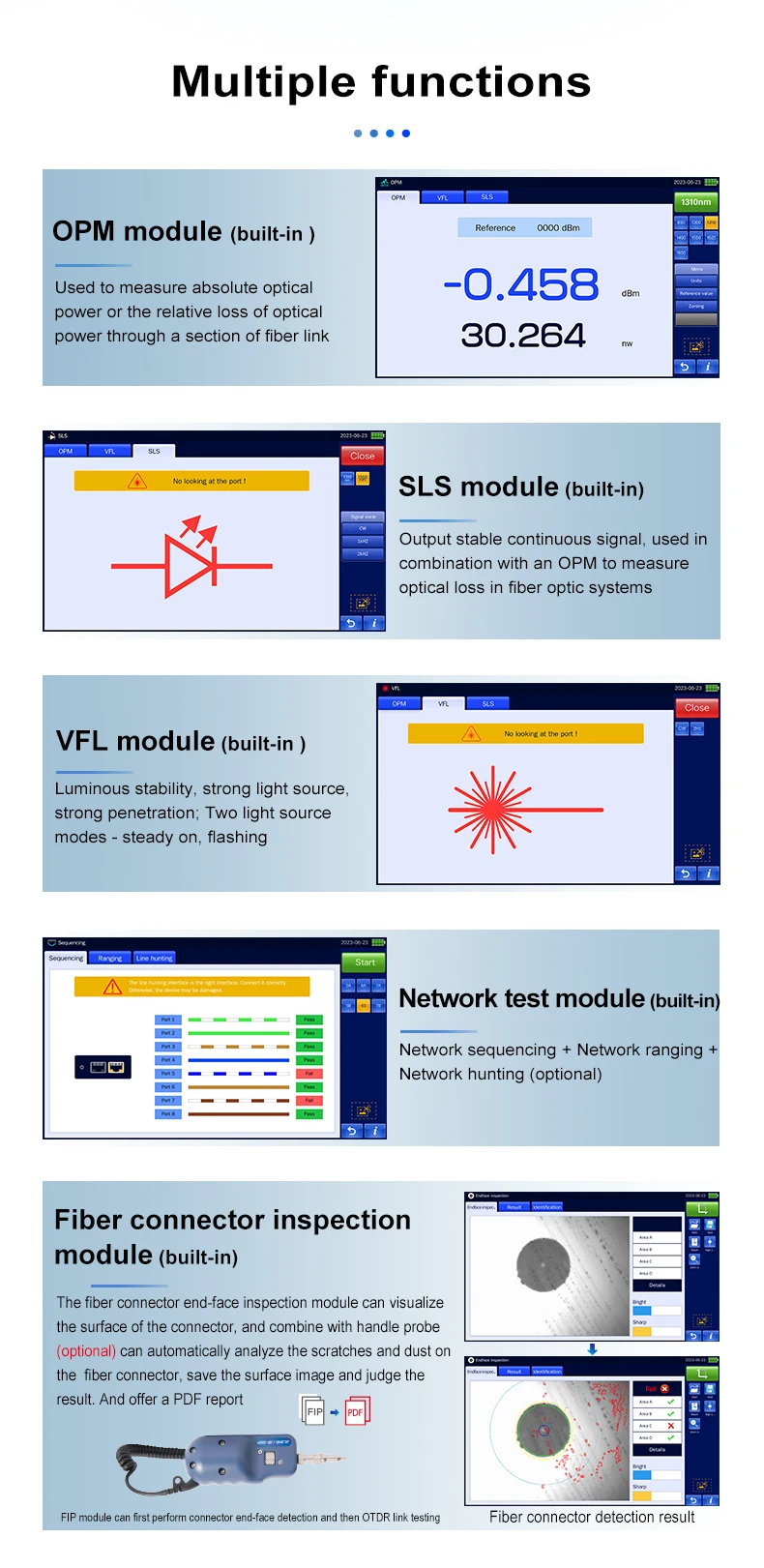

10. OPM (800-1650nm) ;

11. SLS (SM:1310/1550nm or MM 850/1300nm)

12. VFL (650 ±10nm) ;

13. RJ45 ( cat5 cat6) ;

14. FIP : build-in fiber inspectin module. Inspectin probe (optional)

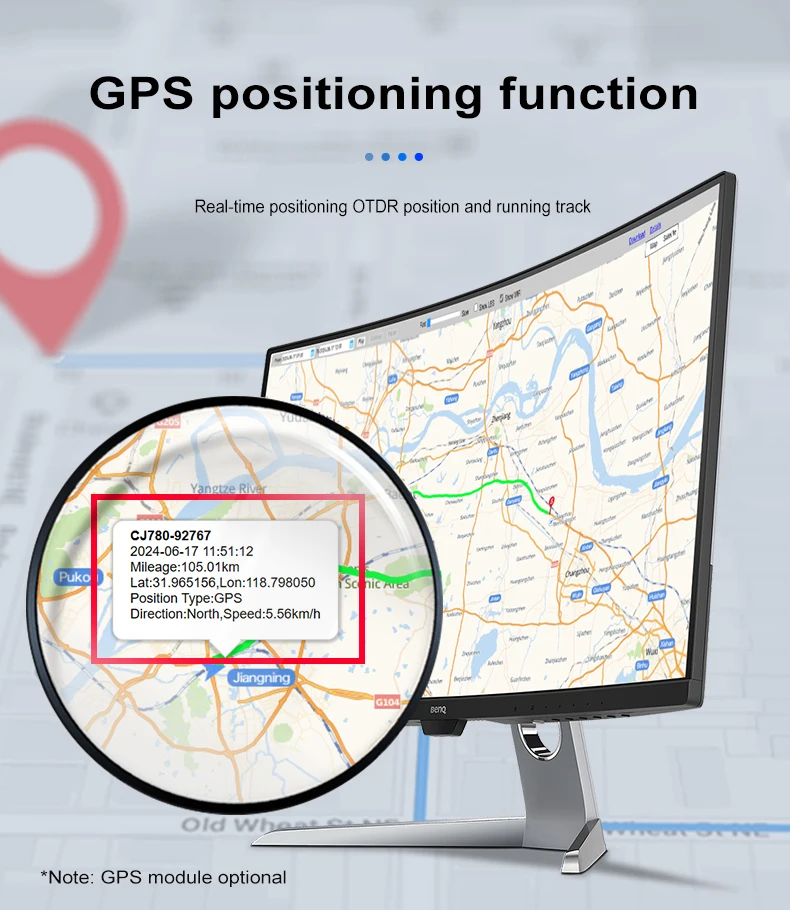

15. GPS (Support online location measurement (optional)

16. Wi-Fi remote control (optional)

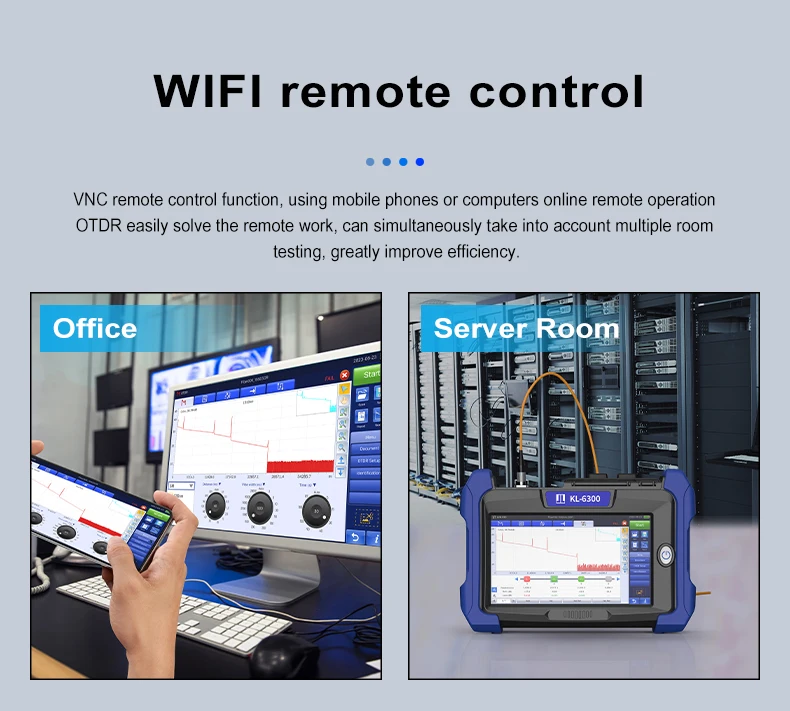

17. VNC remote control function, using mobile phones or computers online remote operation.

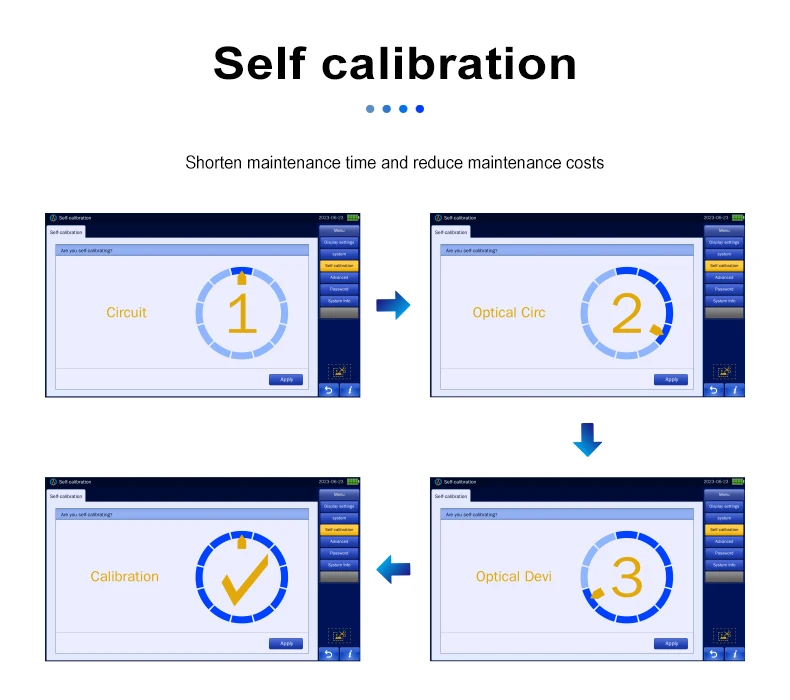

18. Support Self-calibration

19. Rental function.The machine can set a password, users can obtain access to OTDR at the agreed time

20. Rental function. The machine can set a password, users can obtain access to OTDR at the agreed time

Attention:

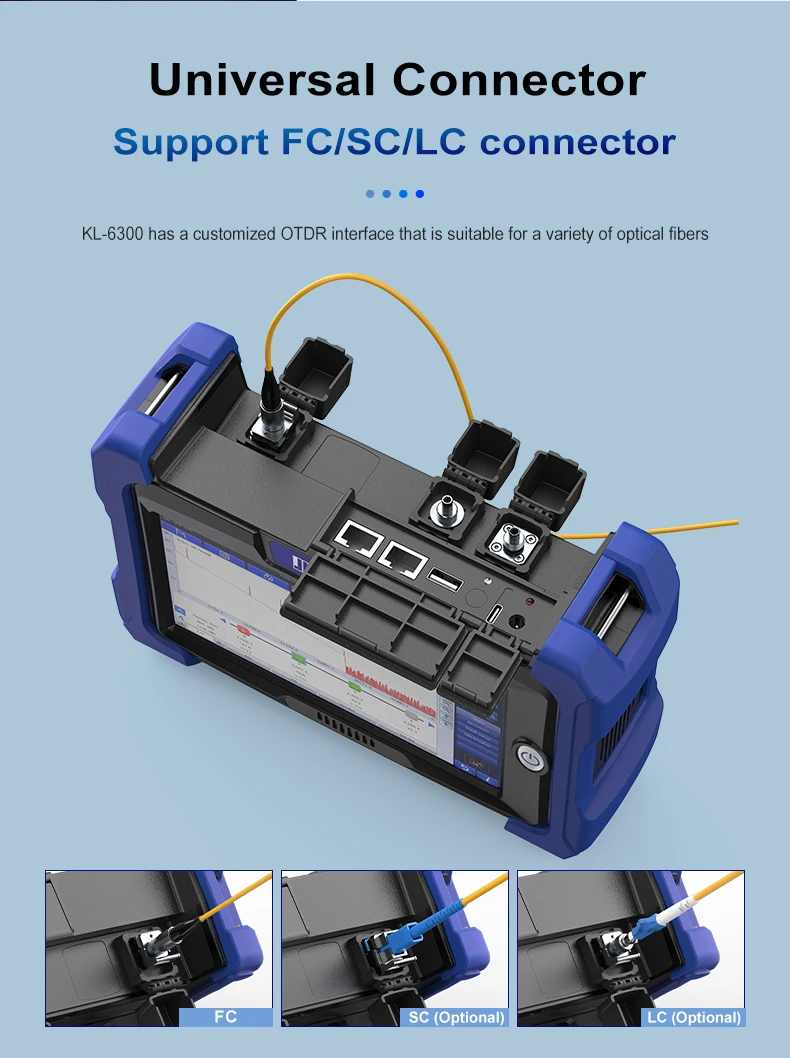

The OTDR standard packing is FC/UPC connector

We also support SC/UPC. LC/UPC or customize APC connector.

Please contact the US, we can do as your request.

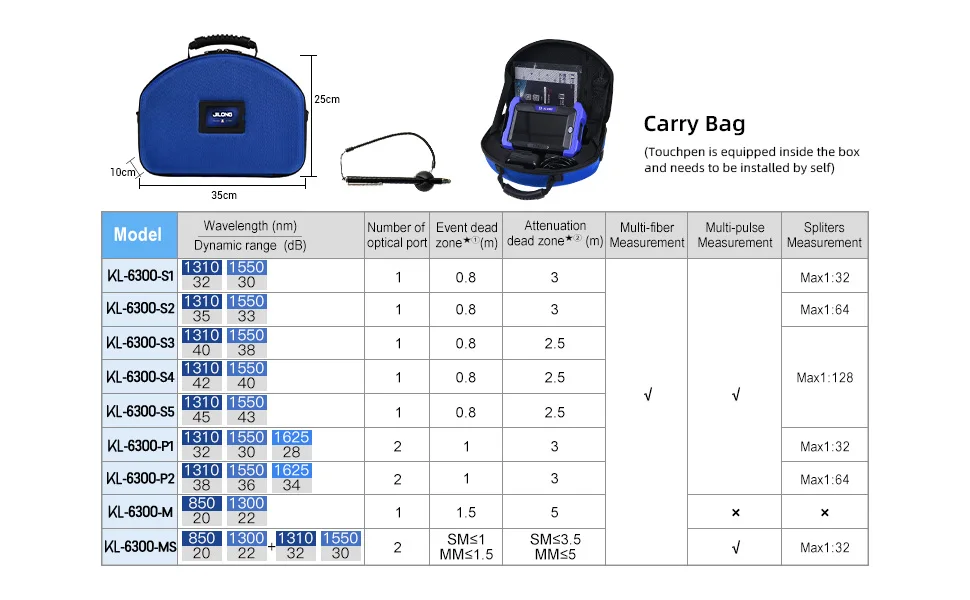

Model	KL-6300-S1	KL-6300-S2	KL-6300-S3	KL-6300-S4	KL-6300-S5	KL-6300-P1	KL-6300-P2	KL-6300-M	KL-6300-MS
Wavelength (nm)	1310/1550	1310/1550	1310/1550	1310/1550	1310/1550	PON 1310/1550/1625 (built-in filter)		850/1300	850/1300+1310/1550


Dynamic range(dB)	32/30	35/33	40/38	42/40	45/43	32/30/28	38/36/34	20/22	20/22 32/30
Spliters Measurement	Max. 1:32	Max. 1:64	Max. 1:128			Max. 1:32	Max. 1:64	x	Max. 1:32
Event dead zone*1(m)	0.8	0.8	0.8	0.8	0.8	1	1	1.5	SM≤1；MM≤1.5
Attenuation dead zone*2(m)	3	3	2.5	2.5	2.5	3	3	5	SM≤3.5；MM≤5
Multi-fiber Measurement
Multi-pulse Measurement	√							x	√
Applicable fiber	SM (ITU-T G.652)
Distance range (km)	0.5,1,2,5,10,20,35,50,75,100,150,200,400
Pulse width (ns)	3,5,10,20,50,100,200,500,1000,2000,10000,20000
Loss measurement accuracy	±0.03 dB/dB
Return loss measurement accuracy	±2 dB

Optical Power Meter Module (Built-in)		Available
OPM	Wavelength setting	800 ~ 1650nm
	Power range	-70 ~ +6dBm
	Measure accuracy	＜（±0.2dB or ±5%）
	Display resolution	0.01dB
	Optical input port	2.5mm Universal Ferrule for FC,SC,ST/UPC
Stabilized Light Source Module (Built-in)		Available
SLS	Wavelength (nm)	1310/1550
	Output power	≥-10dBm
	Modulation mode	CW, 270 Hz, 1 kHz, 2 kHz
	Laser class	Class 1M or Class 1
	Optical input port	OTDR port
Visual Fault Locator Module (Built-in)		Available
VFL	Wavelength (nm)	650
	Output power	10mW
	Modulation mode	CW, CHOP (Approx. 2 Hz)
	Laser class	Class 3R
	Optical input port	2.5 mm Universal ferrule type for FC,SC,ST
Fiber Inspection Probe (Built-in)		Optional
FIP	Pass / Fail	√
	Magnification	800X
	Resolution(um)	≥1.0
	Electrical interface	USB2.0
	Optical Connector	FC/UPC,SC/UPC,ST/UPC
	Sensor	1/3 inch
RJ45 Networks Test (Built-in)		Available
RJ45	Wavelength (nm)	CAT5, CAT6
	Distance of Cable Collationl:	300m
	Distance of emitting signal:	300m
GPS Module		Optional
GPS	Location accuracy	< 50m
	Real-time Monitoring	support
WIFI Module		Available
WIFI	Data transmission	√
	Remote Control	√
General Specifications
Link Map		Available
Pass/Fail judgment		Available
Distance unit		m, km, mile, kf
PC Analysis Software		Available
Languages		English, Español, Chinese, Português, Français, Русский，ภาษาไทย，한국어
Optical connector		FC/UPC (SC/UPC,ST/UPC,LC/UP is Optional)
Display		7-inch touch screen (Resolution: 1024 × 600)
Electrical interface		Charge port × 1, USB 2.0 × 1,RJ45 × 2
Operating temperature		-10 ~ 50˚C (0 ~ 40°C when AC adapter is being used. 0 to 35˚C when battery is be charged)
Storage temperature		-20 to 60˚C
Altitude		4000 m
Humidity		0 to 90% RH (20 to 90% with 739874 AC adapter, non-condensing)
Power requirements		100 to 240VAC, 50/60Hz (AC adapter)
Battery		7.4V,10500mAh,≥77Wh
LED Lightillumination		≥15000mcd
Operating time*3		12 hours
Data storage		Internal storage:≥10000 waveforms, External storage: USB memory
Dimensions		Approx. 232 mm (W) × 161 mm (H) × 70 mm (D)
Weight		Approx. 1.6 kg (including internal battery and protectors, excluding OTDR unit and options)
