CHANDOX Chuck SE-02/SE-03/SE-04/SE-05/SE-06 Super Thin Chucks/Manual Chuck/Detection and Measurement 3-jaw Chuck

Features:
1. By the compactness comes from “ Light, Thin, Short, Small” designing concept; the chucks are most fitting to hold work pieces for measuring.
2. Just rotate the chuck knob directly for gripping and loosening, A handle is not necessary to be used.
3. Chuck body is made of very durable steel.
4. Jaws can be reversibly used; gripping of various sizes becomes much convenient.
5. 2" chucks can even grip up to the smallest size of 0.8mm.

Specifications:

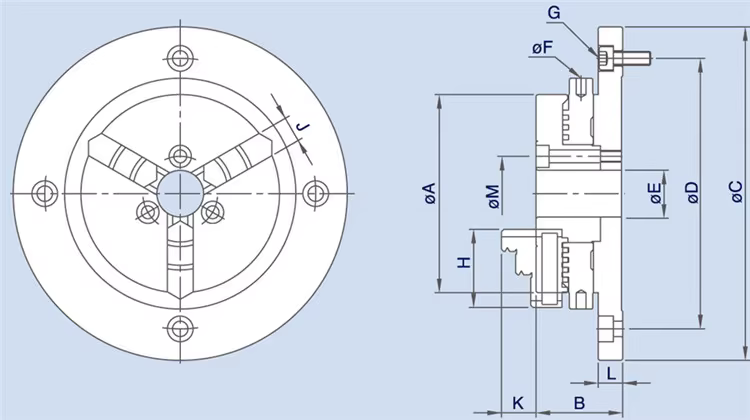

MODEL / SPEC	A	C	E	F	G	H	J	K	L	M	Weight(kg)
SE-02	63	118	16	4	4-M5x0.8P	27	8	13	8	26	1.2
SE-03	85	143	20	4	4-M6x1P	35	11	15	10.5	32	2.9
SE-04	110	168	26	5	4-M6x1P	42	14	19	10	40	4.3
SE-05	130	202	32	6	4-M8x1.25P	50	16	21	11.5	49	6.2
SE-06	160	248	50	8	4-M10x1.5P	65	19	26	15	70	11.1

MODEL / SPEC	Max.Gripping Diameter
MODEL / SPEC	O.D.Clamping(mm)	L.D.Clamping(mm)
SE-02	φ0.85~φ63	φ23~φ58
SE-03	φ1~φ81	φ31~φ70
SE-04	φ1~φ100	φ36~φ90
SE-05	φ1.5~φ116	φ43~φ106
SE-06	φ1.55~φ160	φ52~φ148

Package includes:
1 x SE-05 Super Thin Chuck

Note:
Import duties and taxes are NOT included in the item price or shipping cost, buyer is responsible for it.
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
Please allow slight manual measurement deviation for the data.
