1.Softwares need install on Win7 system. It's more stable for installing software on Win7 64bit.These three softwares can not install on same laptop. You need install on different laptop individually. Diagbox software include lexia and PP2000. Your laptop system requires at least Intel Celeron/Pentium III 400 MHz,128 MB RAM,50MB free HDD space and USB 1.1 port (USB 2.0 recommended)

2. Before install the software, please remember to shut down your anti-virus software. And then disconnect the internet. If you do not know how to install it, please watch our CD video first.

3. Diagbox Update Attention: please cut the file "C:AWRoot\bin\fi\APPDIAG.SYS" out before update, and then click update package! after complete update please paste the cut file back into the previous folder. which can avoid activating problem.

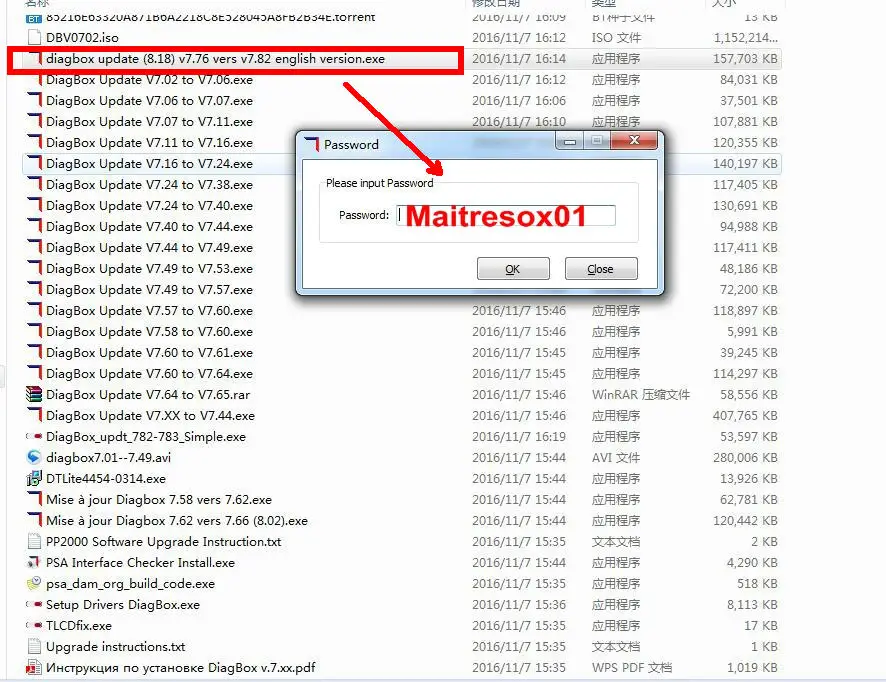

Diagbox Software Update Password:

Diagbox V7.XX to V7.76: scary01

Diagbox V7.76 to V7.82: Maitresox01

Diagbox V7.82 to V7.83: Very Simple!

4. For programming, diagbox support basic programming, but some programming like car alarm system need account username and password, we don't supply& haven't username and password, only for citr-oen and peu-geot center repair shop has username and password, please note it.

Diagbox V9.68: For Compatible Cars Untill 2020

Diagbox V8.55: For Compatible Cars Untill 2017

Diagbox V7.83: For Compatible Cars Untill 2016

Lexia-3 Interface works with both for Citroen and for Peugeot.

1.Lexia-3 PP2000 can work formost for Citroen and for Peugeot cars from 1995,not all

2. It supports read identification, read fault codes, clear fault codes, auto-scan etc. New version supports for Peugeot 307

For Ci-troen :

C-Zero/ C1/ C2/ C3/ C3 PICASSO/ DS3/ C-ELYSEE/ C4/ C4 CACTUS/ C4 PICASSO/ DS4/ DS 5LS/

C5/ DS5 /C6 / C8/ C-CROSSER/ C4 AIRCROSS/ NEMO/ BERLINGO/ JUMPY/ JUMPER/ AX/ SAXO/

BX/ ZX/ XSARA/ XANTIA/ XM/ EVASION/ C15/ FUKANGFUKANG 988/ ELYSEE/ C-ELYSEE(R3)/ C-

TRIOMPHE/ C-QUATRE

For P-eugeot:

iON/ 107/ 108 /206 207/ 207+/ 280/ 301/ HOGGAR/ 307/ 308/ RCZ/ 407/ 408/ 508/ 607/ 807/

1007/ 2008/ 3008/ 4007/ 4008/ 5008/ BIPPER/ PARTNER/ EXPERT/ 106/ 205/ 306/ 309/ 405/

406/ 605/ 806

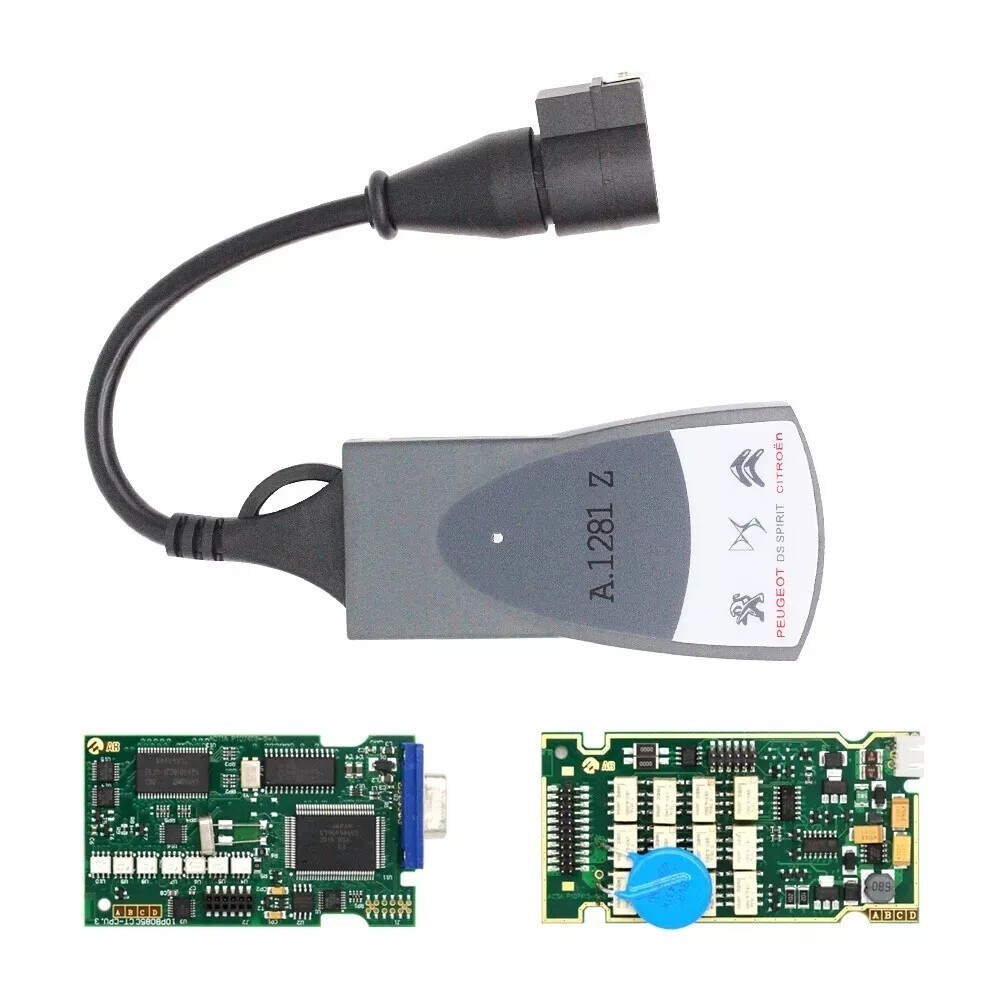

Lexia-3 PP2000 Diagnostic Tool Description:

1. It is compatible with Citroen cars including: C1, C2, C3, C4, C6, C8, C-CROSSER, NEMO, BERLINGO, JUMPY, JUMPER, AX, SAXO, BX and so on.

2. It is compatible with most Peugeot cars from 1995.

3. Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

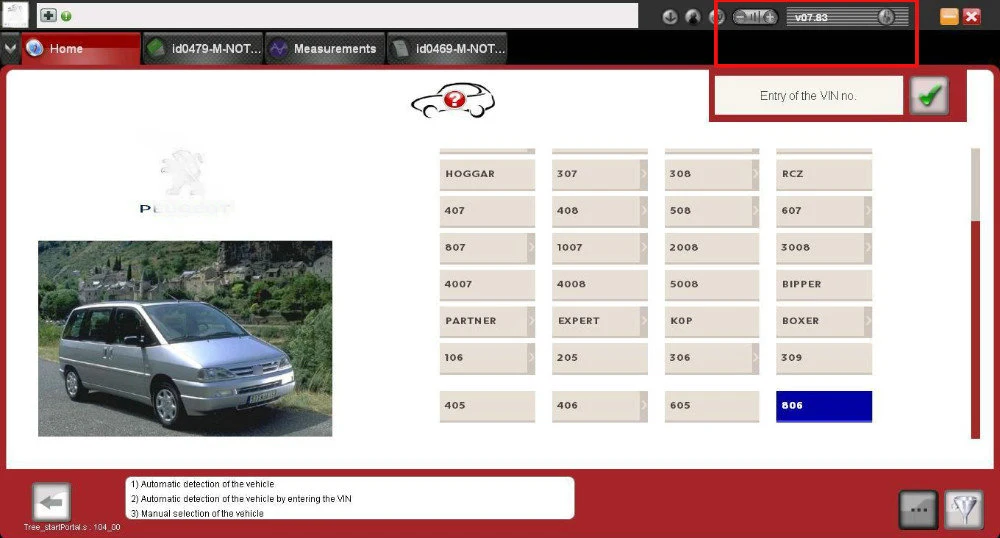

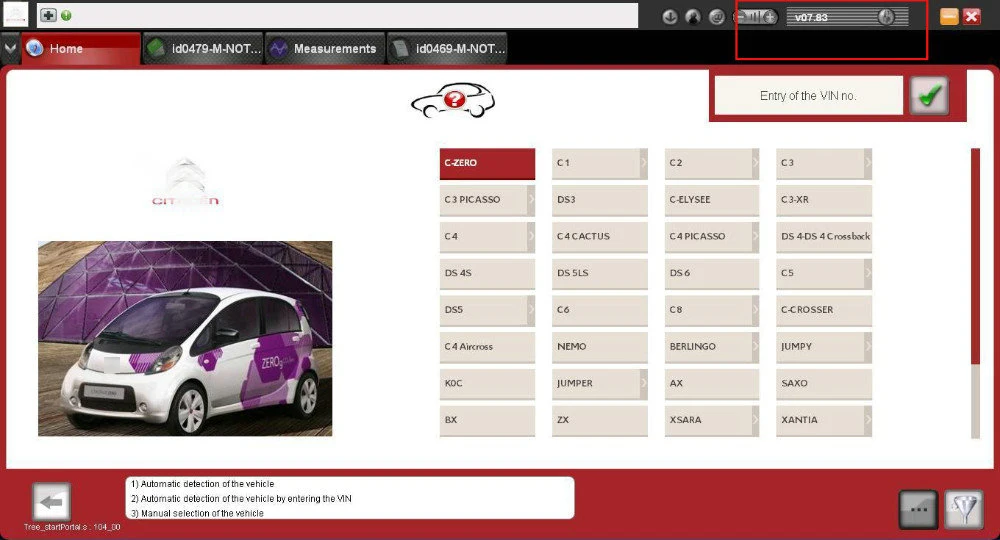

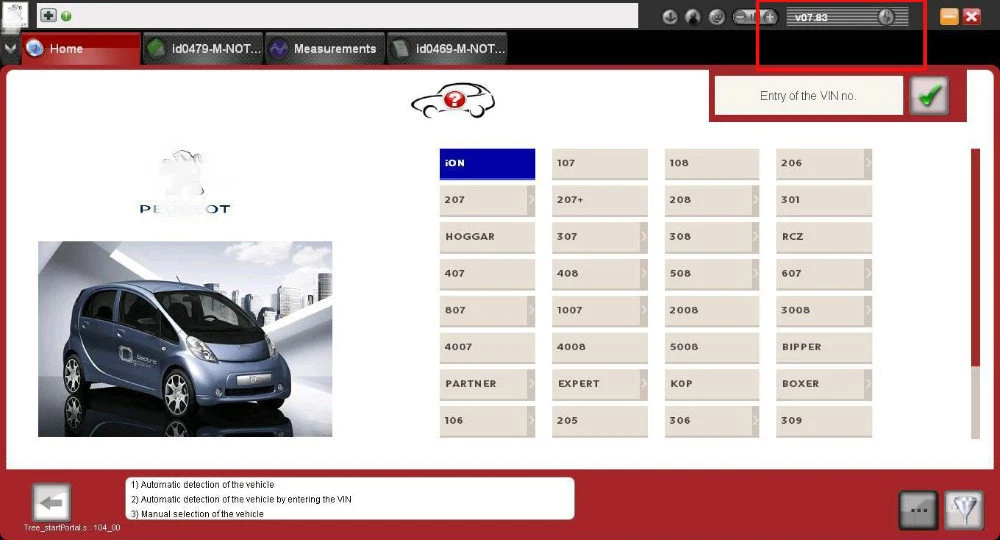

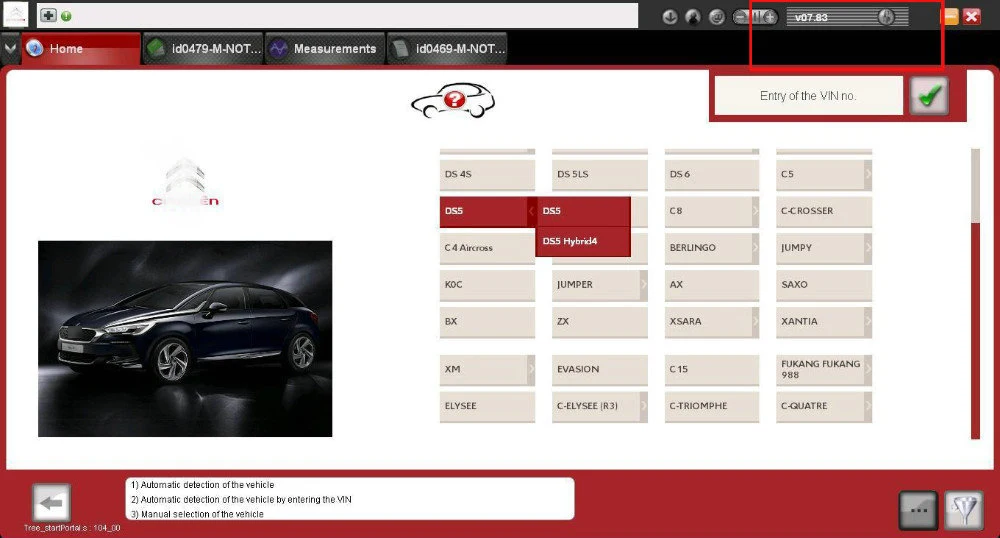

Software Display:

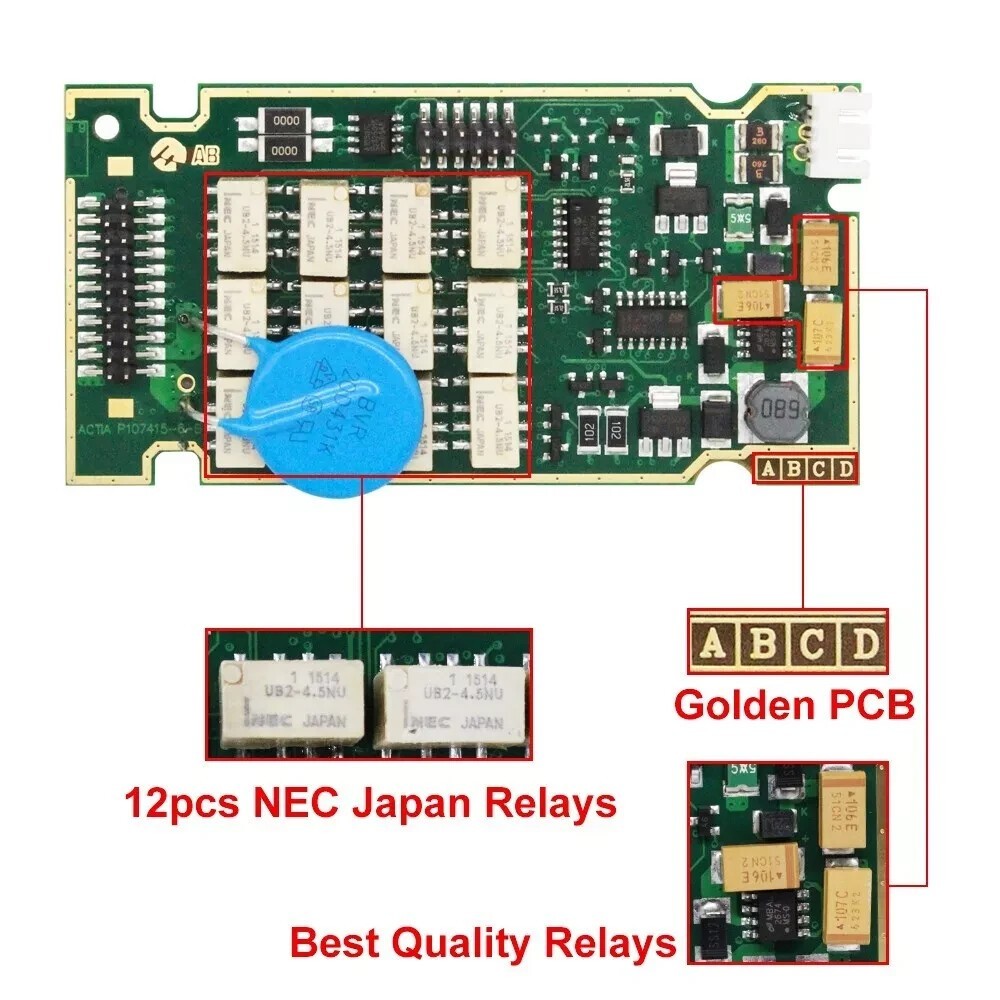

Top 7 Reasons to Get Lexia3 XS Evolution with Original Chip:

1. Update: By CD

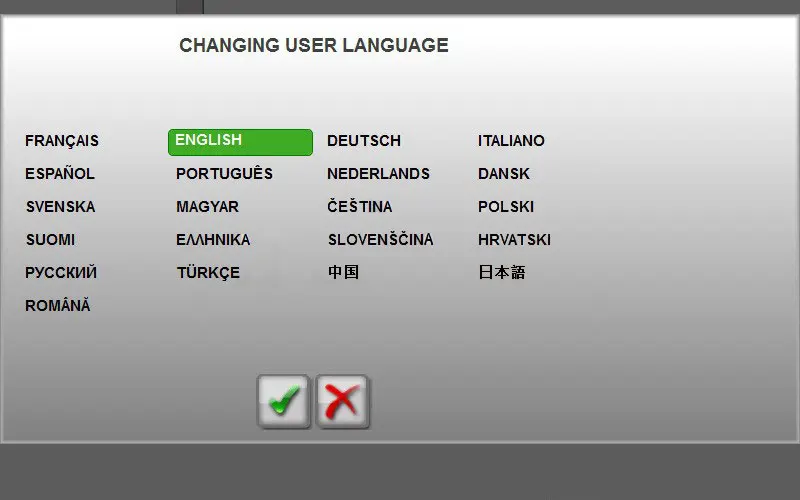

2. Support Multi-Language:English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

3. It works for both for Citroen and for Peugeot. Now support for Peugeot 307!

4. Version:Lexia3 V48, PP2000 V25, Diagbox V9.91

LEXIA-3/PP2000 Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read Identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read Fault Codes

Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").

Program supports report printing or copy to clipboard.

3. Clear Fault Codes

this function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values

Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

FAQ:

Q1.Is there any new car models which new lexia-3 software can do?

A1: Yes, the Lexia-3 For Citroen/Peugeot Diagnostic PP2000 adds some new cars as follows:

For Peugeout Bipper

For Peugeout Boxer III

For Peugeout Boxer III minibus

For Citroen Nemo

For Citroen Jumper III

For Citroen Jumper III minibus

Q2: Does Lexia test the tire pressure?

A2: If your car has Tire pressure control unit, lexia-3 can test the tire pressure.

Q3: Does Lexia-3 work for Peugeot 308?

A3: Yes, it does, but which year of your for Peugeot 308? Lexia-3 PP2000 works for Peugeot 308 from 1996 to 2008.

Q4: I have installed it on windows 7 system, but it cannot work, what is the problem?

A4: It can only be installed on XP system; you need to change another computer with XP system.

Q5: Is PP2000 compatible for Peugeot 307 HDI?

A5: PP2000 work for Peugeot 307, but it is not compatible with Hybrid Diesel,For Peugeot only with the gasoline car.

Q6: Can Lexia-3 PP2000 (item NO. SP08-C) work for Peugeot 407 2005, after installthe NEW DPF, can I reset DPF counter? After Eolys is full,can I reset Eolys counter?

A6: PP2000 supports for Peugeot 407 2005, but the DPF and Eolys are truck or dieselcar systems, we haven't tested it.

Q7: Would you please store the software lexia3 pp2000 and diagbox V9.68 in one CD?

A7: No, they are not allowed to store in one CD, they have to be stored them in twodifferent CD, otherwise the software installation will get errors.
