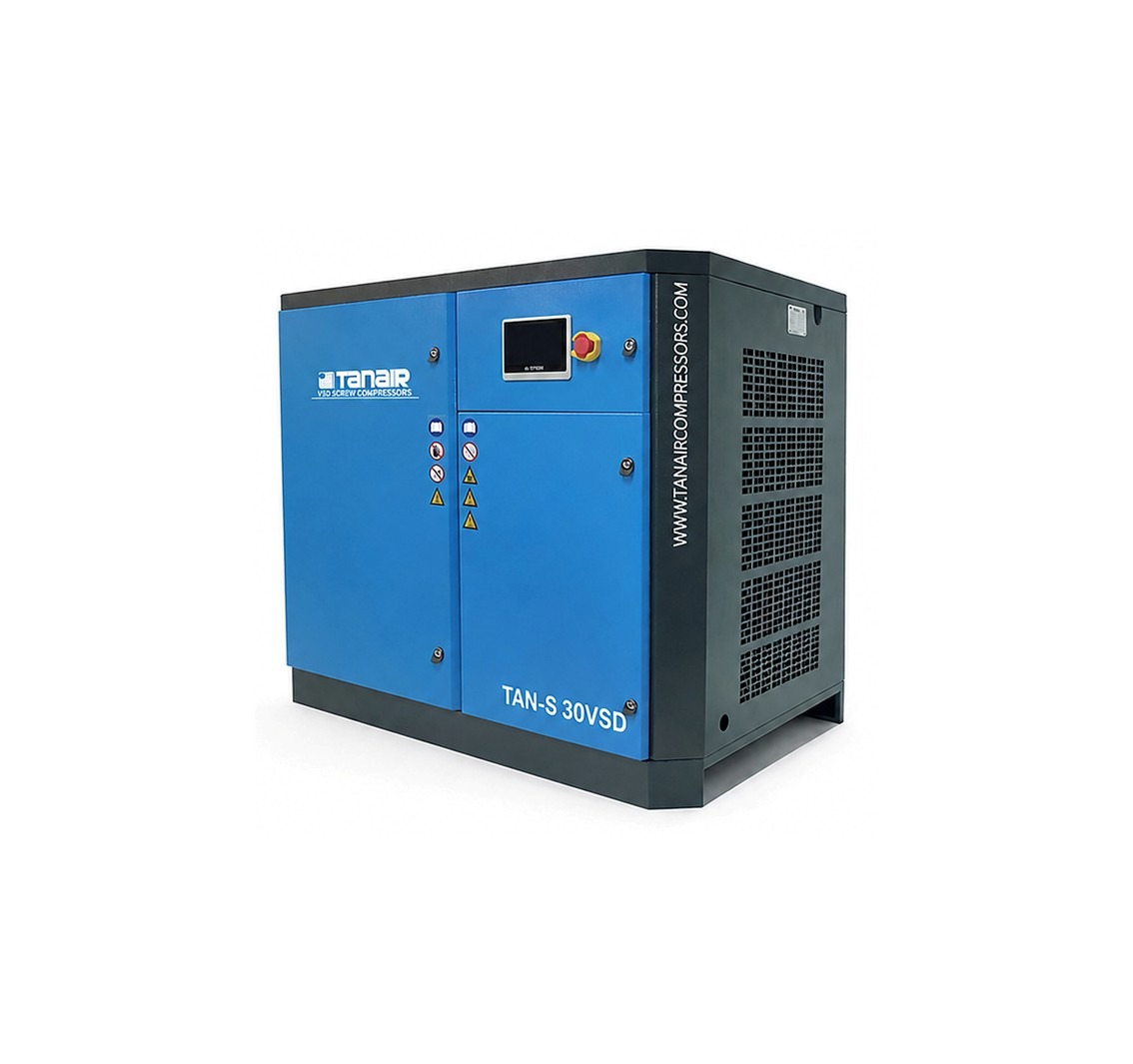

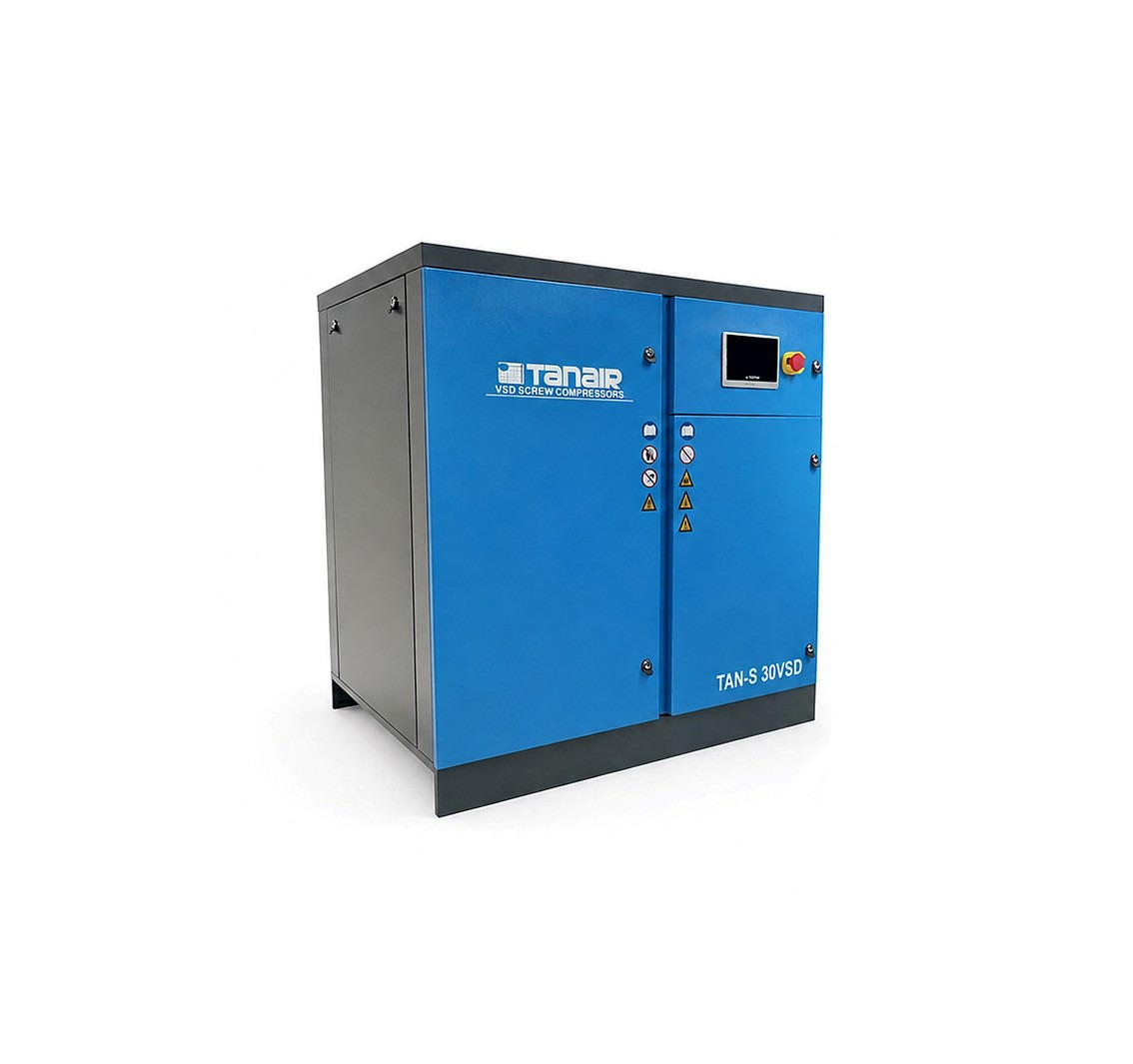

30kW VSD Air Compressor – 159 CFM Industrial Screw Compressor UK (10 Bar)

SKU: TAN-S-30VSD
Brand: Tanair Compressors

Product Overview

The 30kW VSD Air Compressor – 159 CFM Industrial Screw Compressor UK (10 Bar) is a permanent-magnet variable-speed oil-injected rotary screw compressor designed for three-phase industrial compressed-air systems where demand changes during the working day. Its variable-speed control adjusts compressor output to suit air demand, helping reduce unnecessary full-output or unloaded running while supporting stable system pressure.

This model delivers 159 CFM (4.5 m³/min) at up to 10 bar from a 415V / 50Hz / three-phase supply. It is air cooled, uses an IP55 motor and is built with a Baosi air end. The compressor is supplied as a standalone machine for integration with a correctly sized receiver, refrigerated dryer, filtration and condensate-management system.

Variable Speed Control and Intelligent Operation

• Permanent-magnet variable-speed control allows compressor output to respond to changing air demand
• Demand-matched operation can reduce unnecessary power consumption where compressed-air demand fluctuates
• Stable pressure control supports production equipment and pneumatic processes with changing air requirements
• Controlled starting and speed adjustment reduces repeated full-output cycling compared with simple fixed-speed operation
• Integrated compressor control manages operation as part of the VSD package

Motor, Air End and Cooling

• 30kW / 40HP motor rating
• Permanent-magnet VSD motor technology for demand-matched operation
• Baosi screw air end
• IP55 motor protection for industrial environments
• Air-cooled design for straightforward industrial installation
• Oil-injected rotary screw compression for sustained industrial compressed-air duty

Key Features and Benefits

• 159 CFM (4.5 m³/min) at 10 bar
• 415V / 50Hz / three-phase electrical supply
• Variable-speed output to suit changing compressed-air demand
• Standalone configuration allows the receiver and air-treatment package to be selected around the actual site requirement
• Suitable for systems where air demand varies across shifts, processes or production areas
• Supported by Tanair compressed-air sizing, installation, servicing and aftermarket support

Technical Specification

Best For

This model is particularly well suited to manufacturing sites, CNC clusters, fabrication facilities and production areas with substantial variable air demand where the compressor needs to respond efficiently to changing air demand.

System Selection and Installation

Confirm the required pressure at the point of use and calculate the combined free-air demand of all tools and processes that may operate together. Allow for leakage, future growth and pressure losses through pipework, dryers and filters. Receiver capacity and air treatment should be sized for the actual duty cycle and required air-quality standard.

Installation should be completed by competent personnel with suitable ventilation, electrical protection, isolation, service access, pipework and condensate drainage.

Servicing, Energy Saving and Support

For planned maintenance, service-kit and component selection should be confirmed against the exact compressor model before ordering. Tanair can also help specify the correct receiver, dryer, filtration and condensate-management equipment for a complete compressed-air system.

Use the Tanair ROI calculator to compare potential running costs, browse the Tanair VSD range , or contact the Tanair team for system-sizing advice.
