Description:

*DOUBLE ACTING

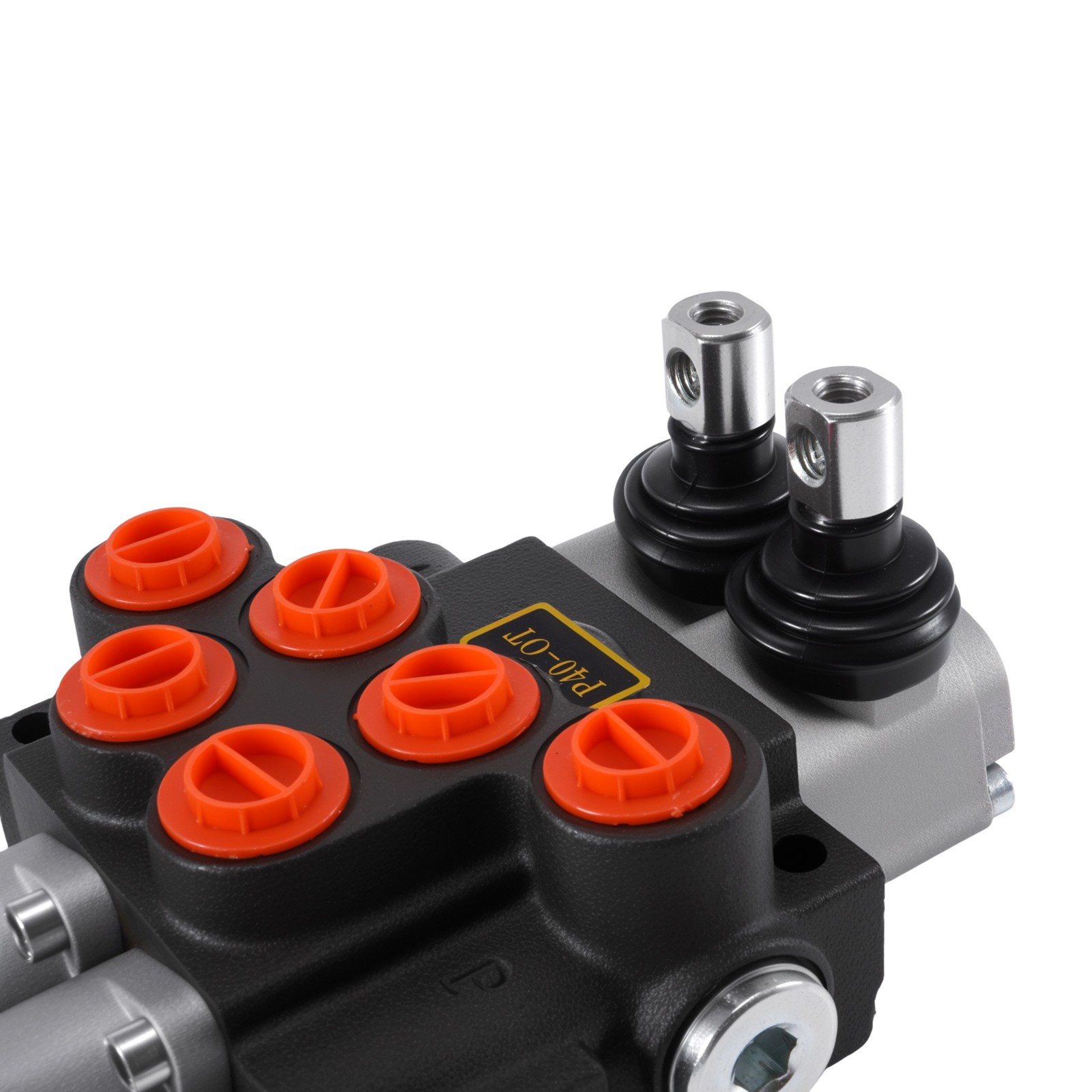

Our hydraulic control valve is made for operating double-acting cylinders.

*DURABLE QUALITY

This hydraulic directional control valve comes with 2 spools and #8 BSPP O-ring in/out ports, with cast iron construction for long-time

use.

*HIGH PERFORMANCE

This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

*SPRING RETURN

All spool valves come with spring return, which can return to the neutral position.

*WIDELY USED

This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Specifications：
Model: Hydraulic Control Valve
Max operating pressure: 3600psi
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open

A, B ports: 3/8" BSPP

P, T, N port: 1/2" BSPP

Key Features:

Solid Construction

Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.

High Performance

The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

Spring Return

All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

Inner Check/Relief Valve

The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.

Multiple Control Ways

We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.

Wide Application

The compact design is suitable for the use in small tractors, tractors loaders, log splitters,for klift environment vehicles, light loading machines, etc.

​

Installation notes:

• Professional installation recommended

• Ensure hydraulic fluid is clean before connection

Package Included:

1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool
