Introduce：
Name: Power Transformer
Model: EI
Rated power: 2W 3W 5W
Input voltage: AC 220V/50Hz
Single voltage output: 6V 9V 12V 15V 24V
Frequency characteristics: low frequency
Core shape: EI type
Moisture proof method: open type
Cooling method: natural cooling
Cooling form: liquid/oil immersed
Structural form: Isolation transformer
Coil material: all copper enameled wire
Bipolar linearity: red line primary input, blue line secondary output
Input line length: 130mm
Output line length: 130mm
Rated power: 2W

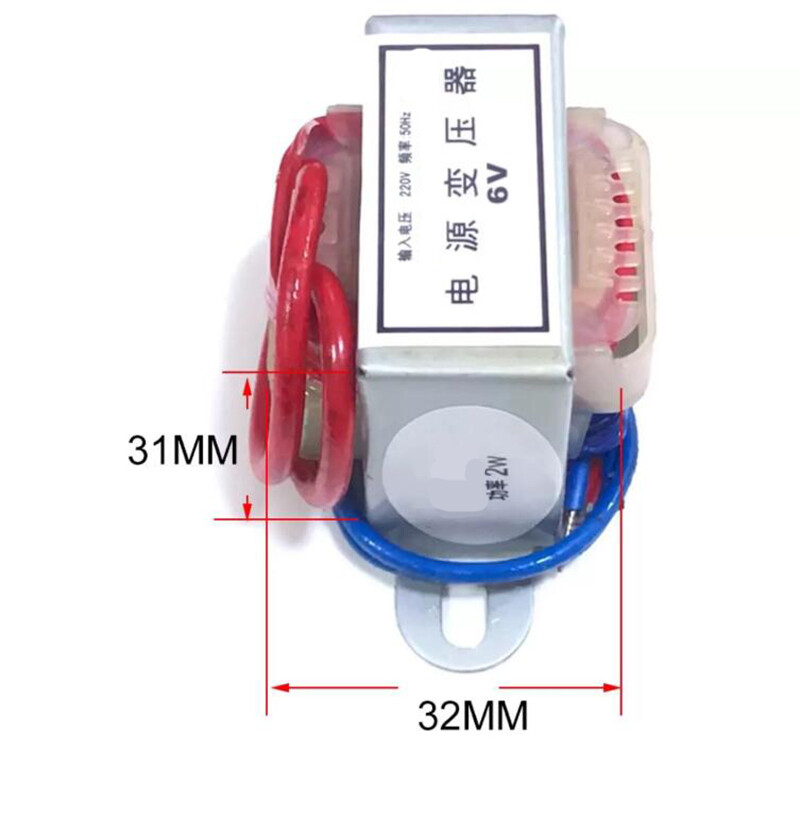

Dimensions: Length 37mm * Width 18mm * Height 31mm (with iron bridge dimensions)
Coil width: 32mm

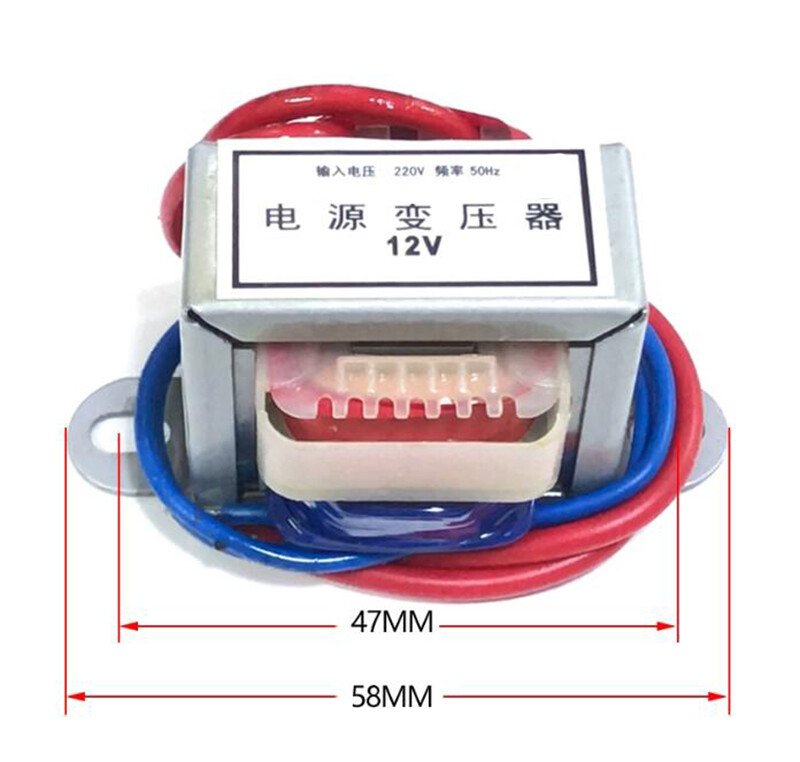

Foot distance: 58mm
Hole spacing: 47mm
Rated power: 3W
Dimensions: Length 43mm * Width 19mm * Height 36mm (with iron bridge dimensions)
Coil width: 38mm
Foot distance: 64mm
Hole spacing: 53mm
Rated power: 5W
Dimensions: Length 43mm * Width 23mm* Height 36mm (with iron bridge dimensions)
Coil width: 41mm
Foot distance: 67mm
Hole spacing: 56mm
The rated voltage of a transformer is made according to the load voltage. When measured under no-load, the voltage will show a 10% increase, which is a normal phenomenon. After being loaded, the voltage will drop to the rated voltage.
Features:
Made of high-quality materials, including high-quality silicon steel sheets and imported full production materials.
Copper enameled wire, nylon flame-retardant rubber core, flame-retardant Mara tape, high-temperature resistant lead wire, all speaker transformers are treated with vacuum impregnation and insulation paint.
