Description：
Function: Firewall
Wireless network supports frequencies of 2.4GHz and 5.8GHz
Wireless transmission standard: WIFI 7
Scope of application: Indoor
Type: 5G SIM card
Antenna: Built in antenna
5G wireless transmission rate: 11.7 gigabits per second
2.4G wireless transmission rate: 11.7 gigabits per second
Maximum network data transmission rate: 11.7 gigabits per second
Does WPS support: Yes
Does WDS support: Not supported
Wired transmission rate: 11.7 gigabits per second
Number of fixed LAN interfaces: 2
Fixed number of wide area network interfaces: 1
Does it have cat function: Yes
Encryption type: Wireless Security System 2
Private model: None
Network standards and protocols: WIFI 7
Product status: New
Origin: Guangdong, China
Software customization: Wi Fi renaming
Brand: HW

360 ° high gain antenna with up to 14dBi
5GE port

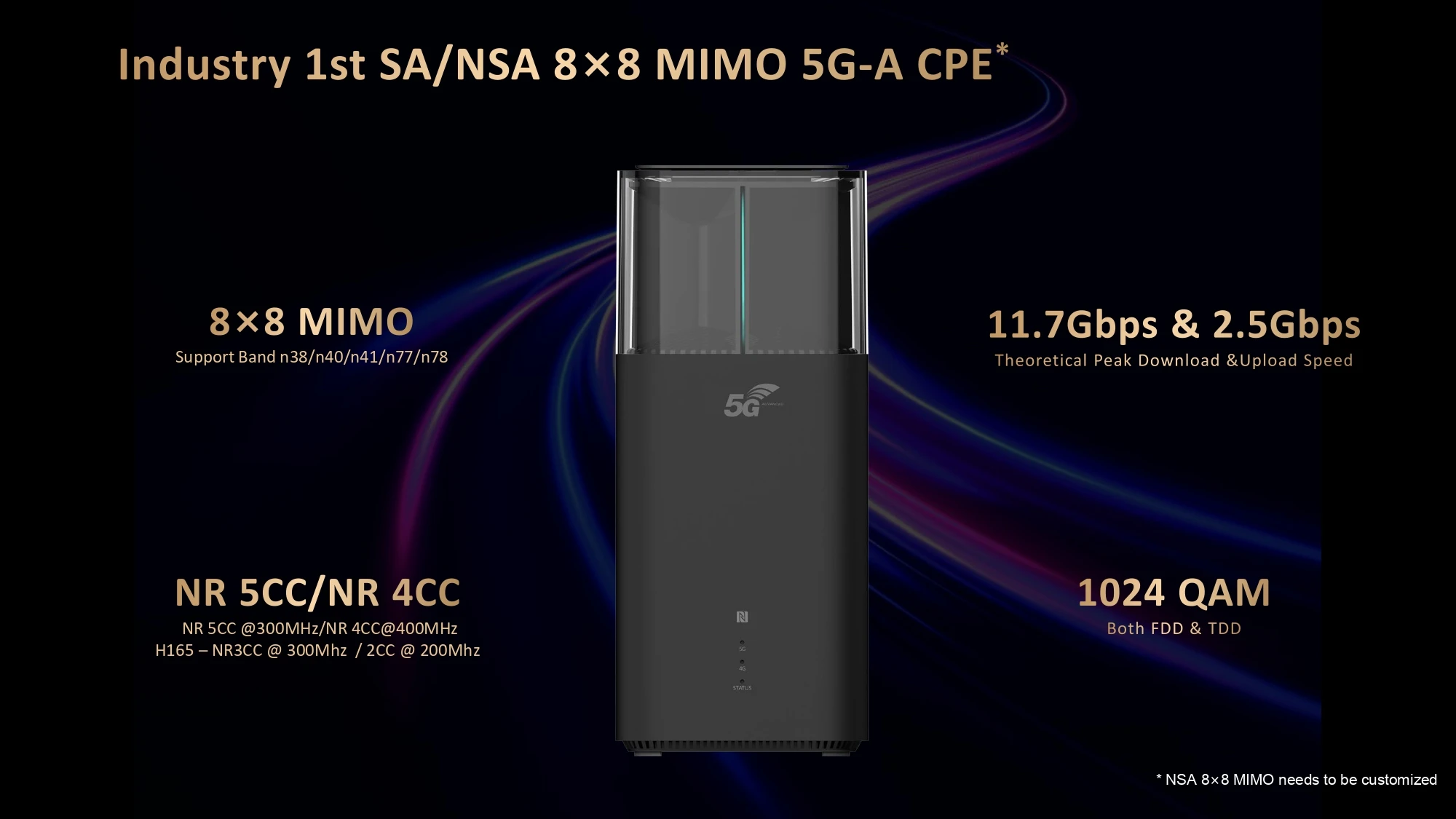

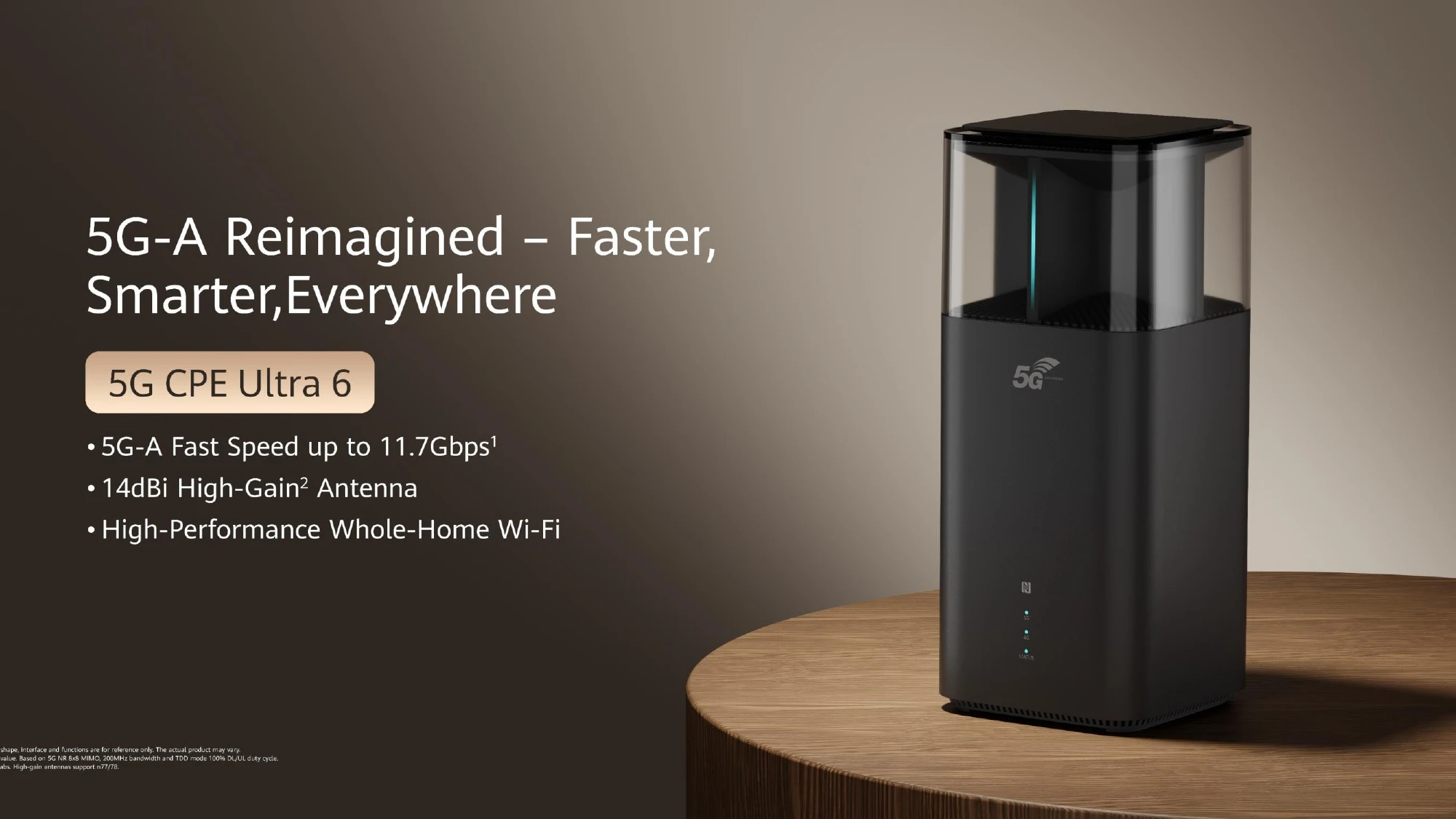

5G-A speed, up to 11.7Gbps (DL)/2.5GBp (UL)
360 ° high gain antenna with up to 14dBi

High performance Wi Fi
1 5GE port, unleashing the full potential of the network
WiFi 7， Triple frequency (2.4GHz+5GHz-L+5GHz-H)
Maximum number of users: 192

Working frequency band:

5G：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n77/n78/n79/n80/n81/n82/n83/n84
LTE：B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43/B71

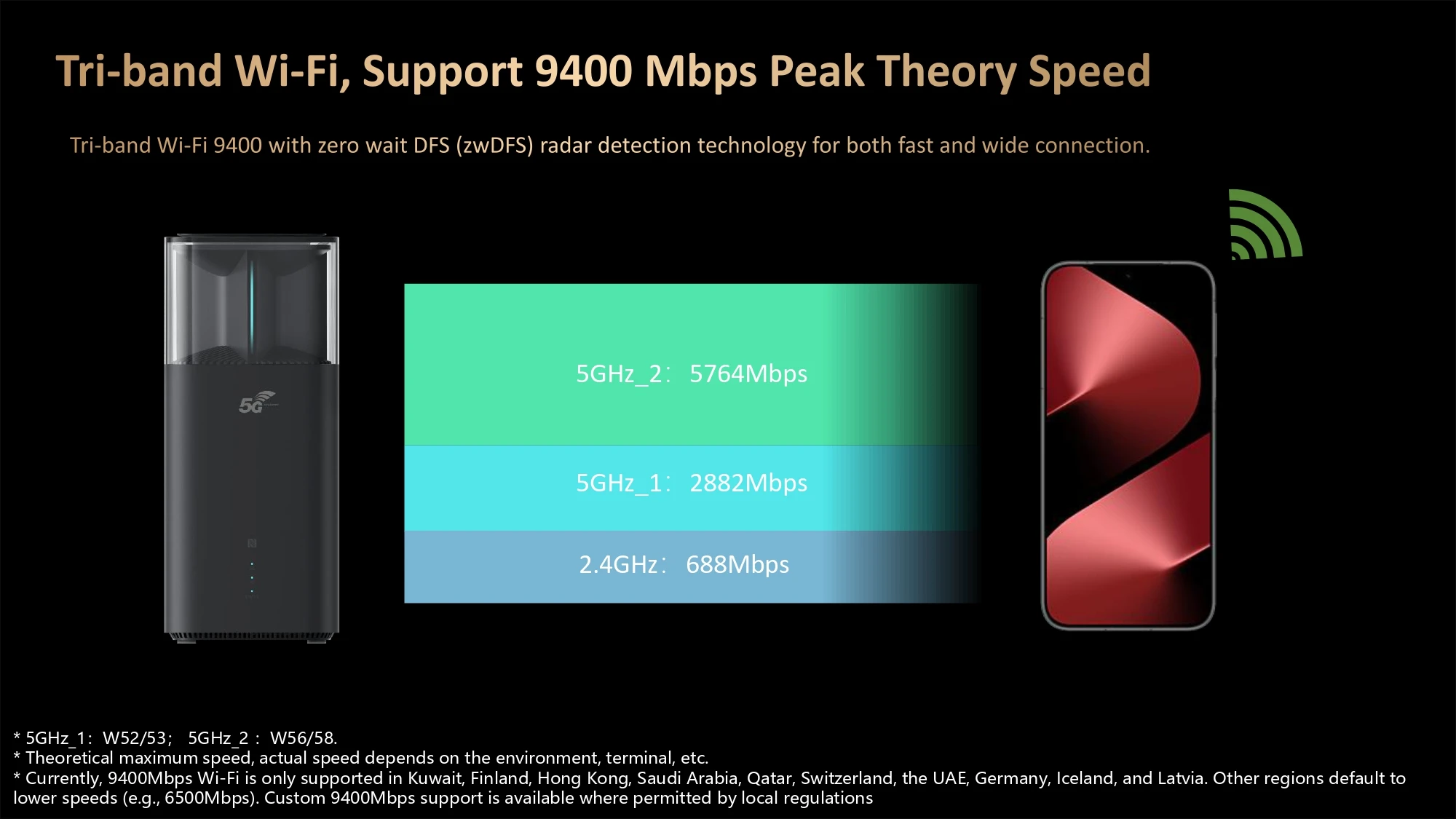

Wireless network: 802.11 b/g/n/a/ac/ax/be. 2.4GHz

Wi Fi up to 688 Mbps, 5GHz-1
Wi Fi up to 2882 Mbps, 5GHz-2 Wi Fi up to 5764 Mbps.

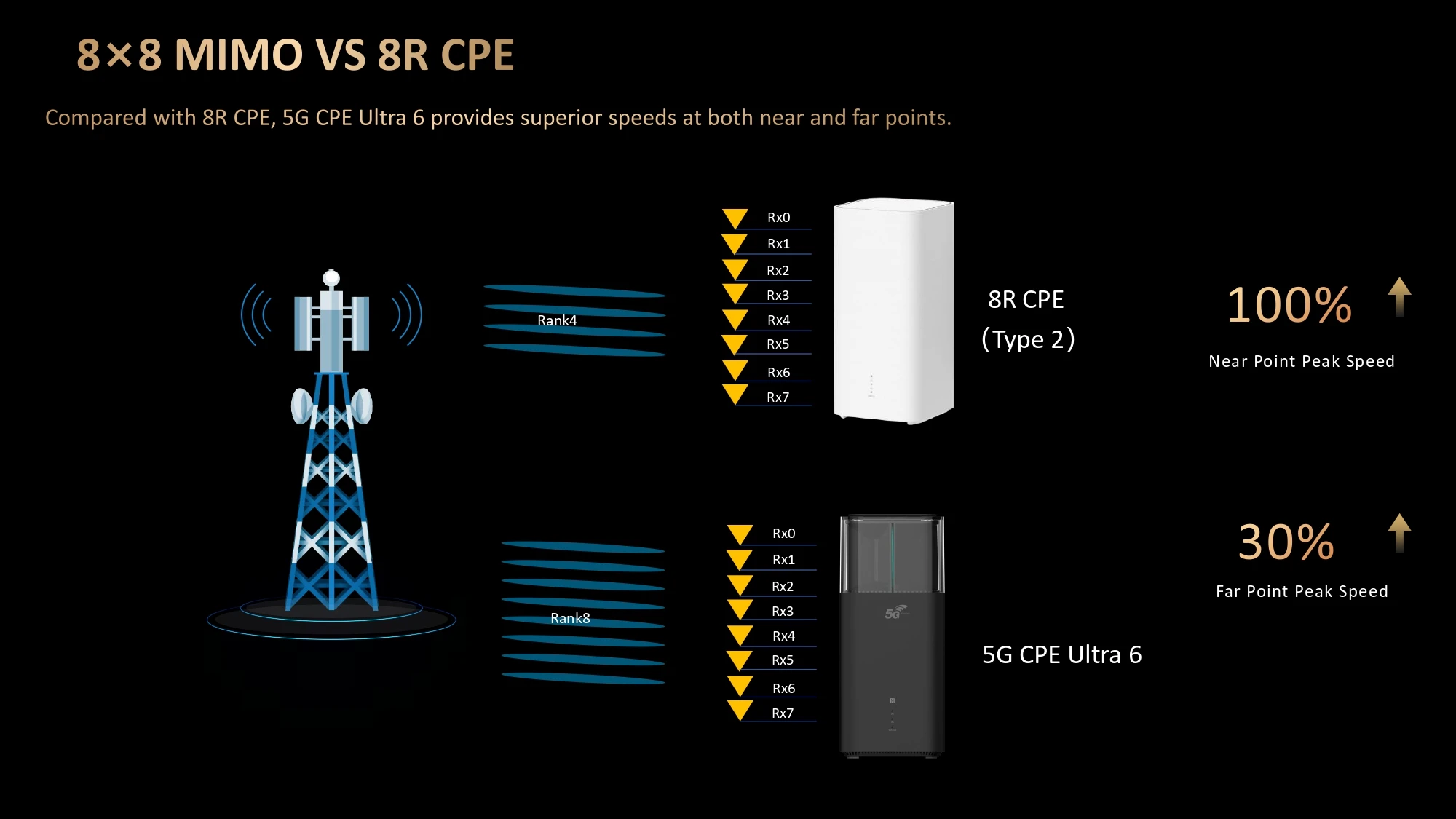

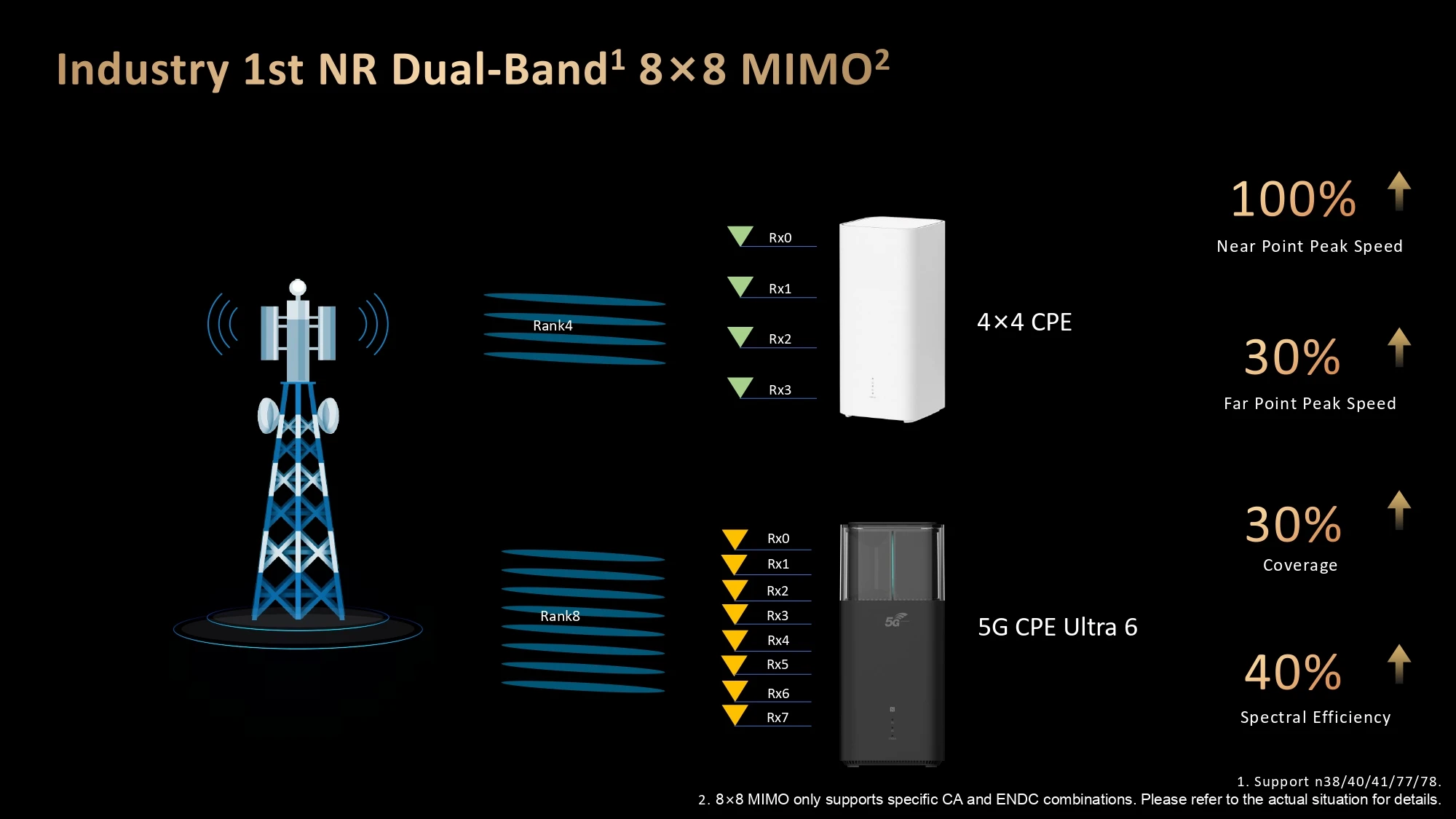

5G NR 11.7Gbps/2.5G (@ 200MHz+8x8MIM0 or 4CC 400MHz 4x4MIM0, full time slot theoretical rate) 5G NR 9.36Gbps/500Mbps (2CC200MHz 8x8MIM0 or 4CC ratio)

4G frequency band
B1/3/5/7/8/20/28/32/38/40/41/42/43/71 MIMO 4*4:B1/3/7/28/32/38/40/41/42 /43 2*2:B5/8/20/71

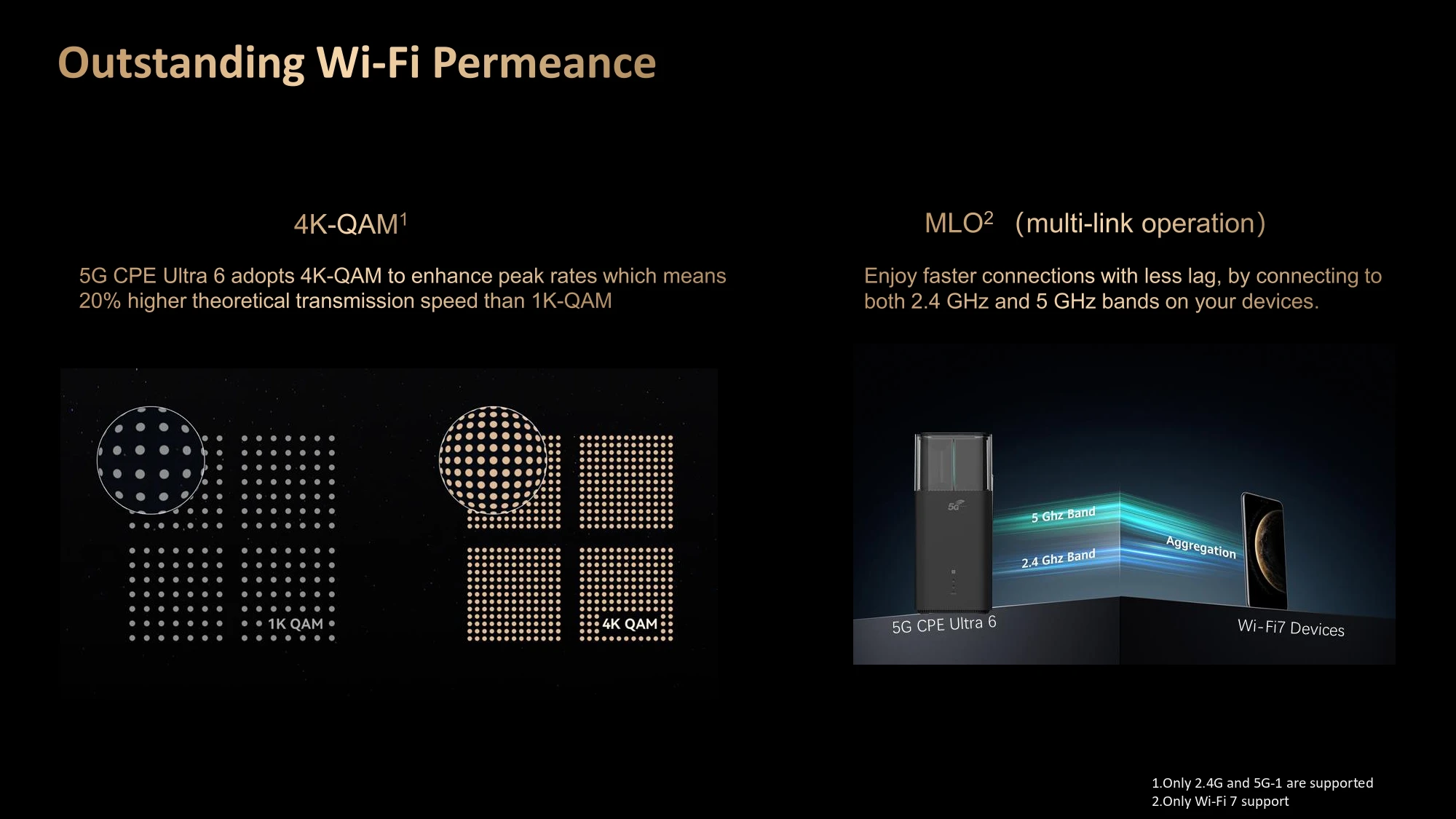

Wi Fi protocol
WiFi7 2 * 2+WiFi6 4 * 4 9400 units
WiFi7， Triple frequency (2.4GHz+5GHz-L+5GHz-H)

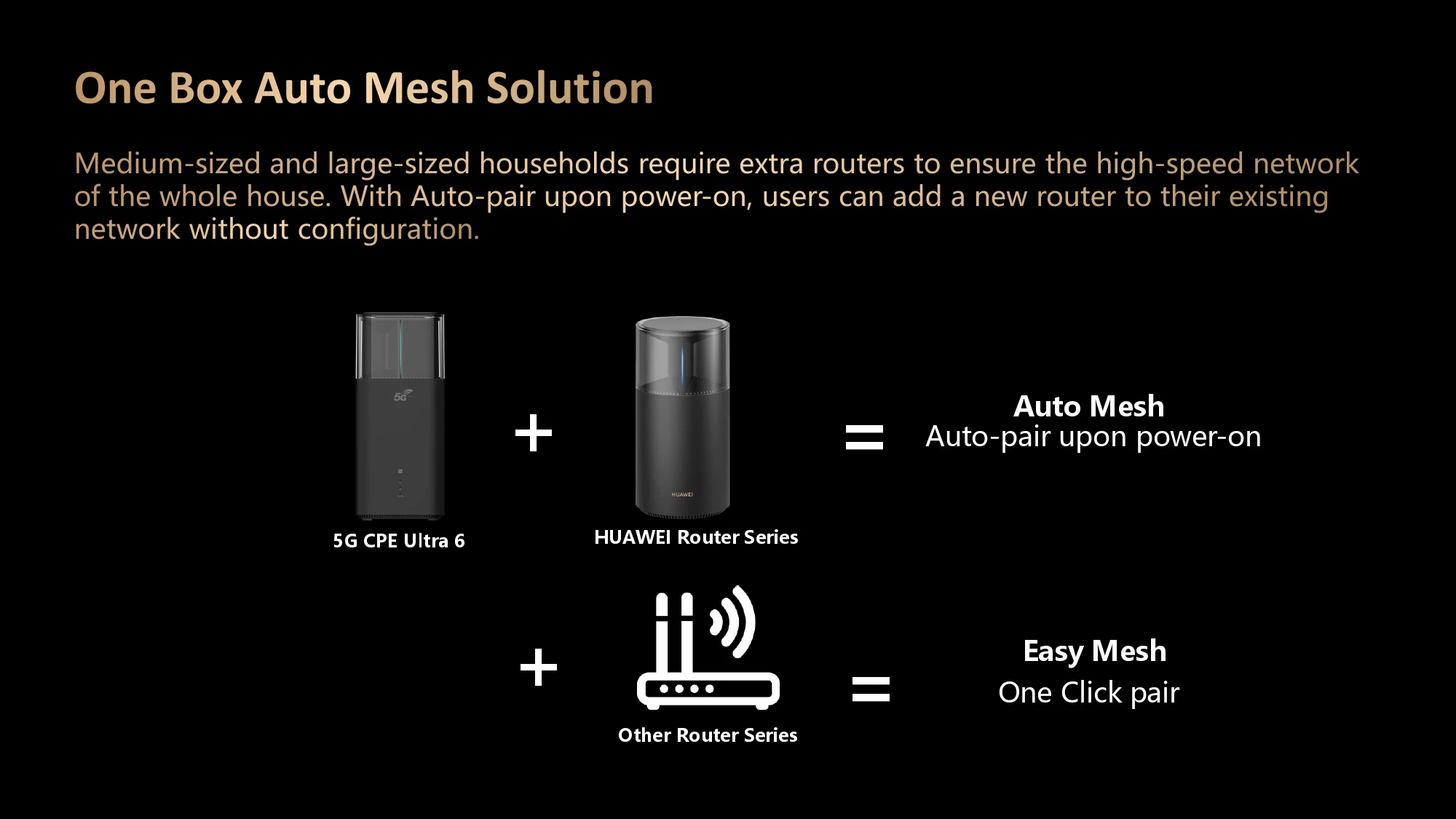

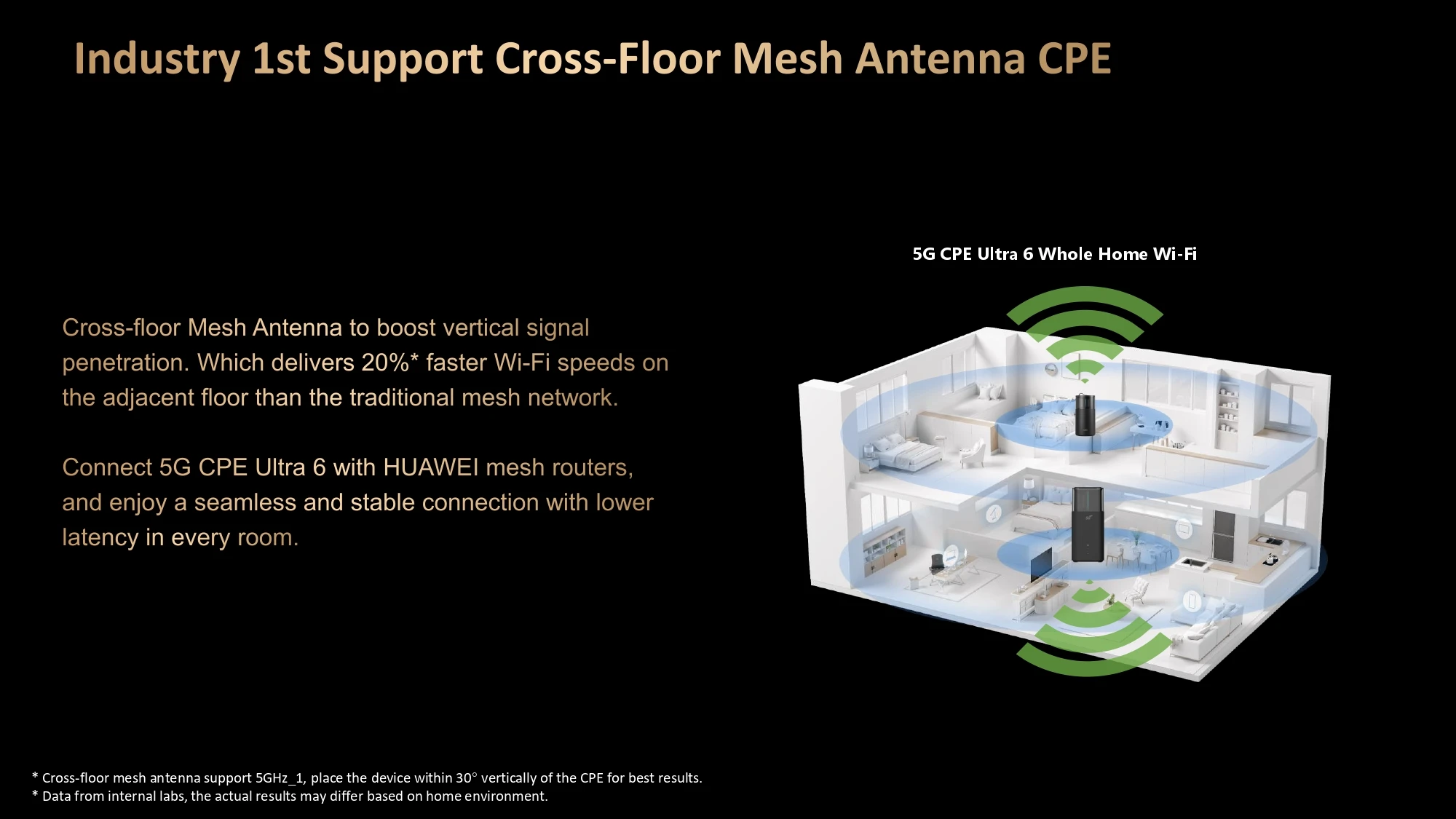

mesh
Easy Mesh、 Net like structure+
Near Field Communication
one-click connection

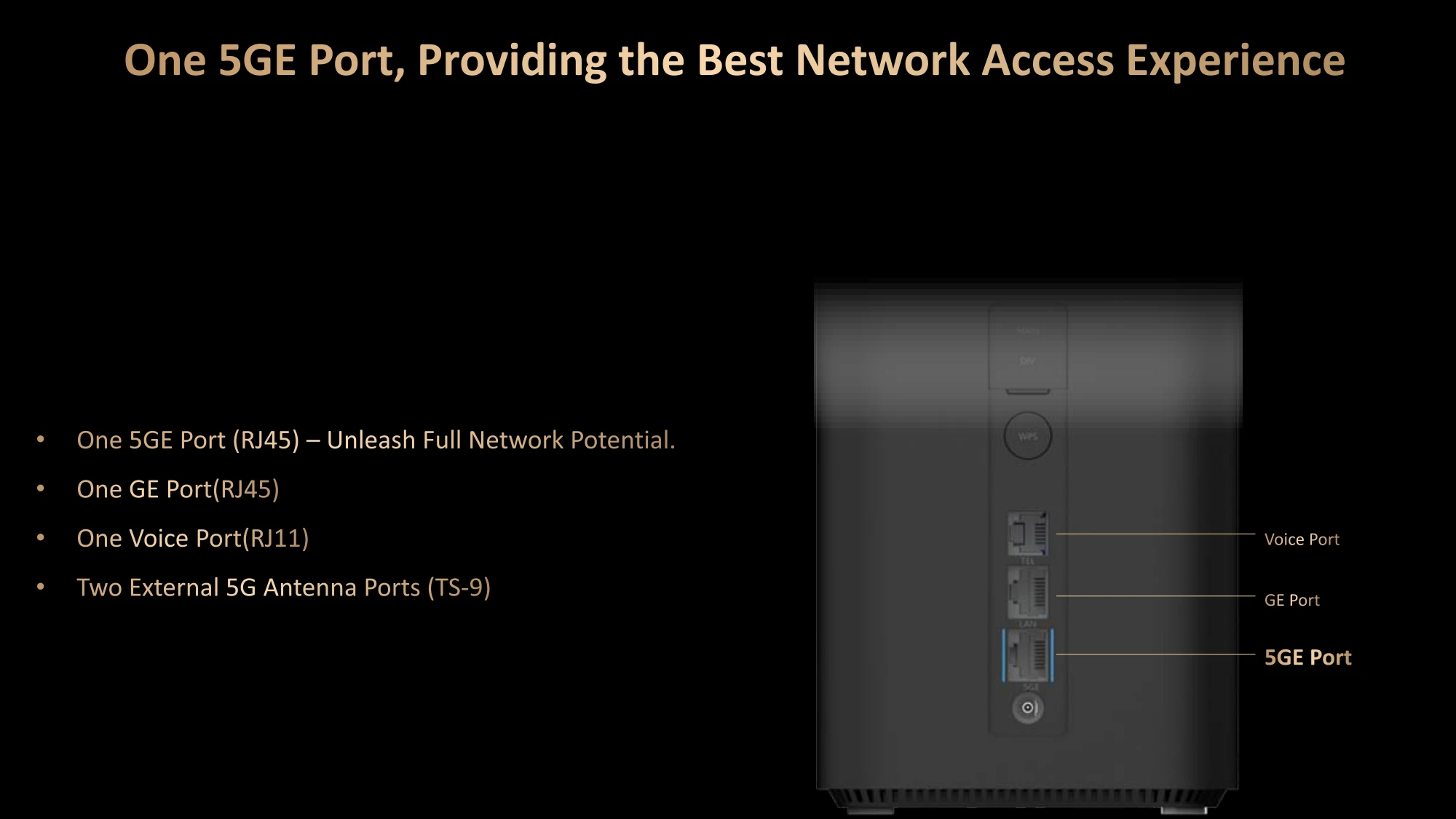

interface

1RJ45 * 5GE+1RJ45 * GE (1 LAN/WAN+1 LAN)
1xRJ11 for voice communication
2 * External antenna interface
1xSlM card slot (4FF)
1x power interface
