Summary
GEPRC introduces the all-new Cinebot25 V2, built for superior image quality and long-term versatility.

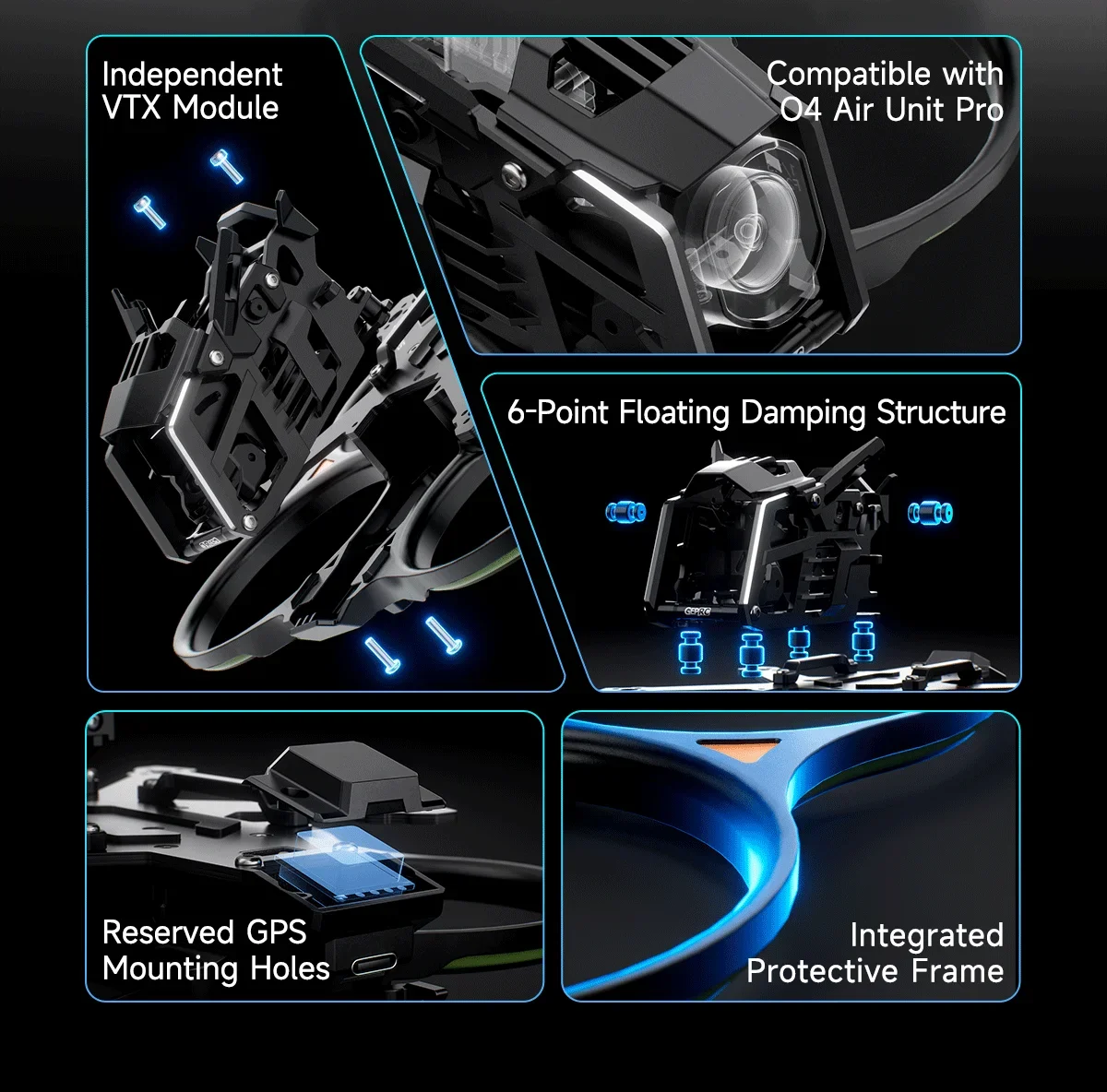

Featuring our innovative 6-Point Floating Shock-Absorbing VTX Module, the  O4 Air Unit Pro is mounted in an independent suspended structure to effectively isolate high-frequency vibrations, delivering cleaner and more stable footage.

The modular design supports 2.5-inch frames and future platforms, enabling flexible upgrades and lower maintenance costs.

Cinebot25 V2 — Fly smarter. Capture better.

Features
Equipped with the latest  O4 Air Unit Pro

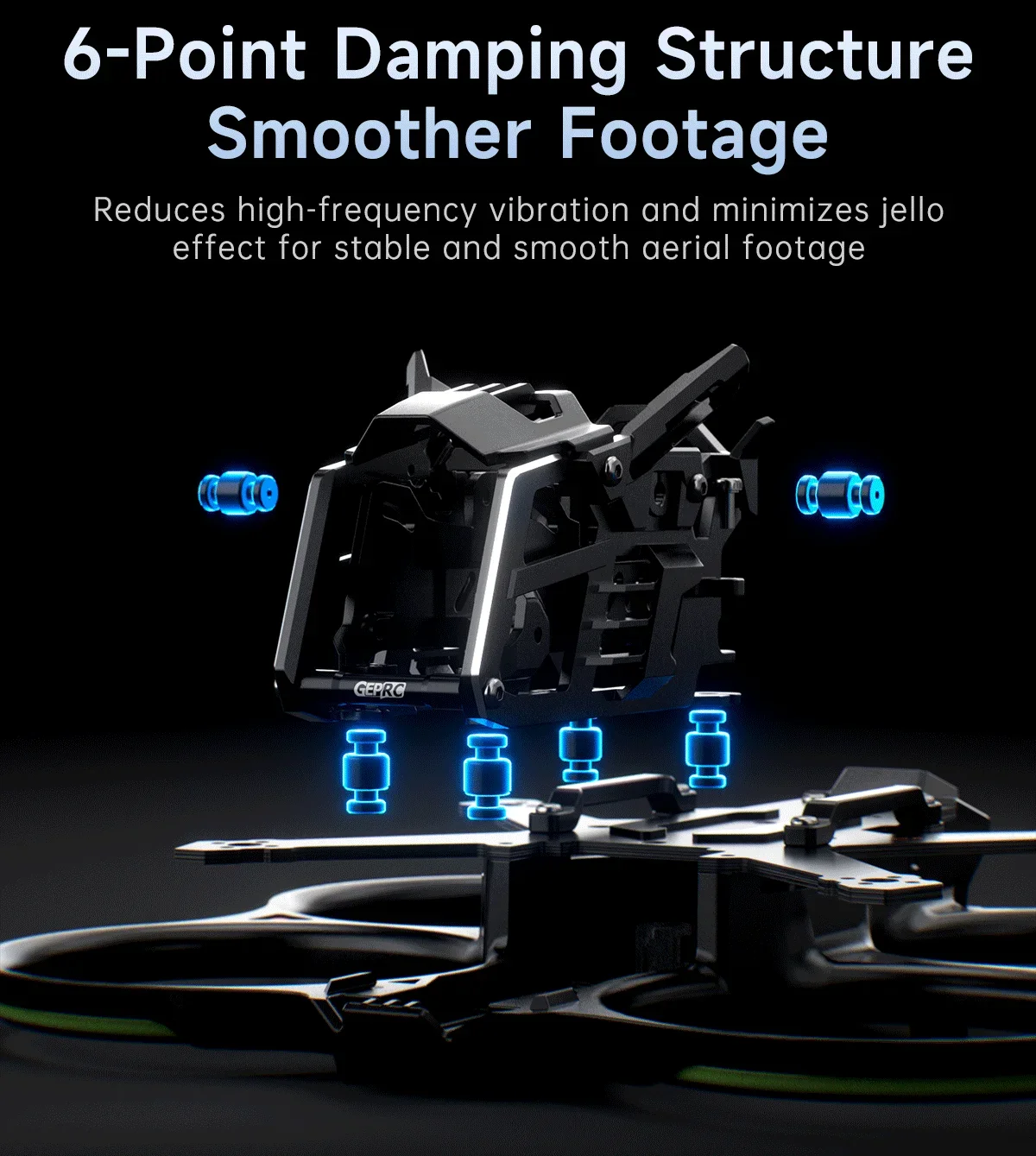

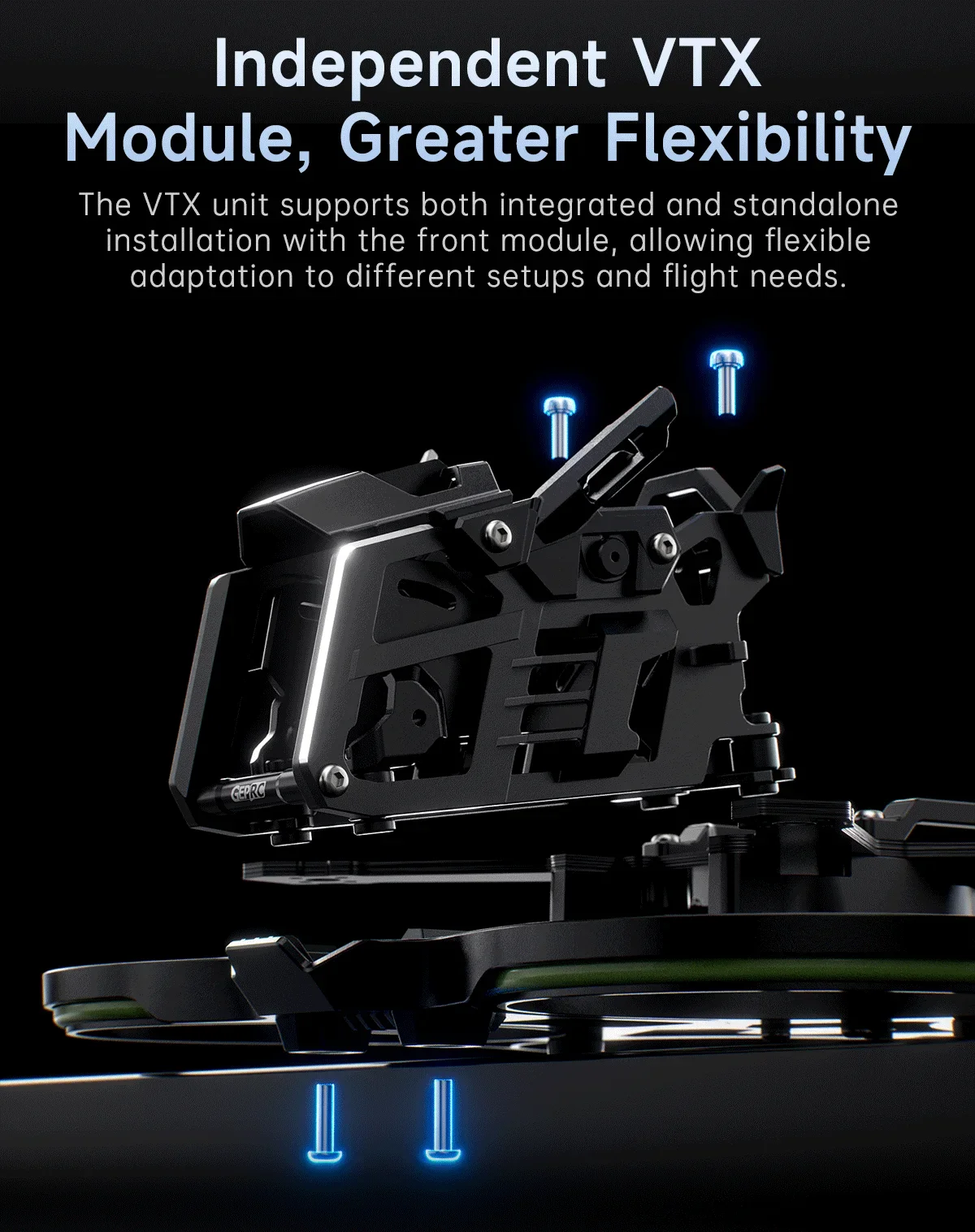

6-Point Floating Shock-Absorbing VTX Module

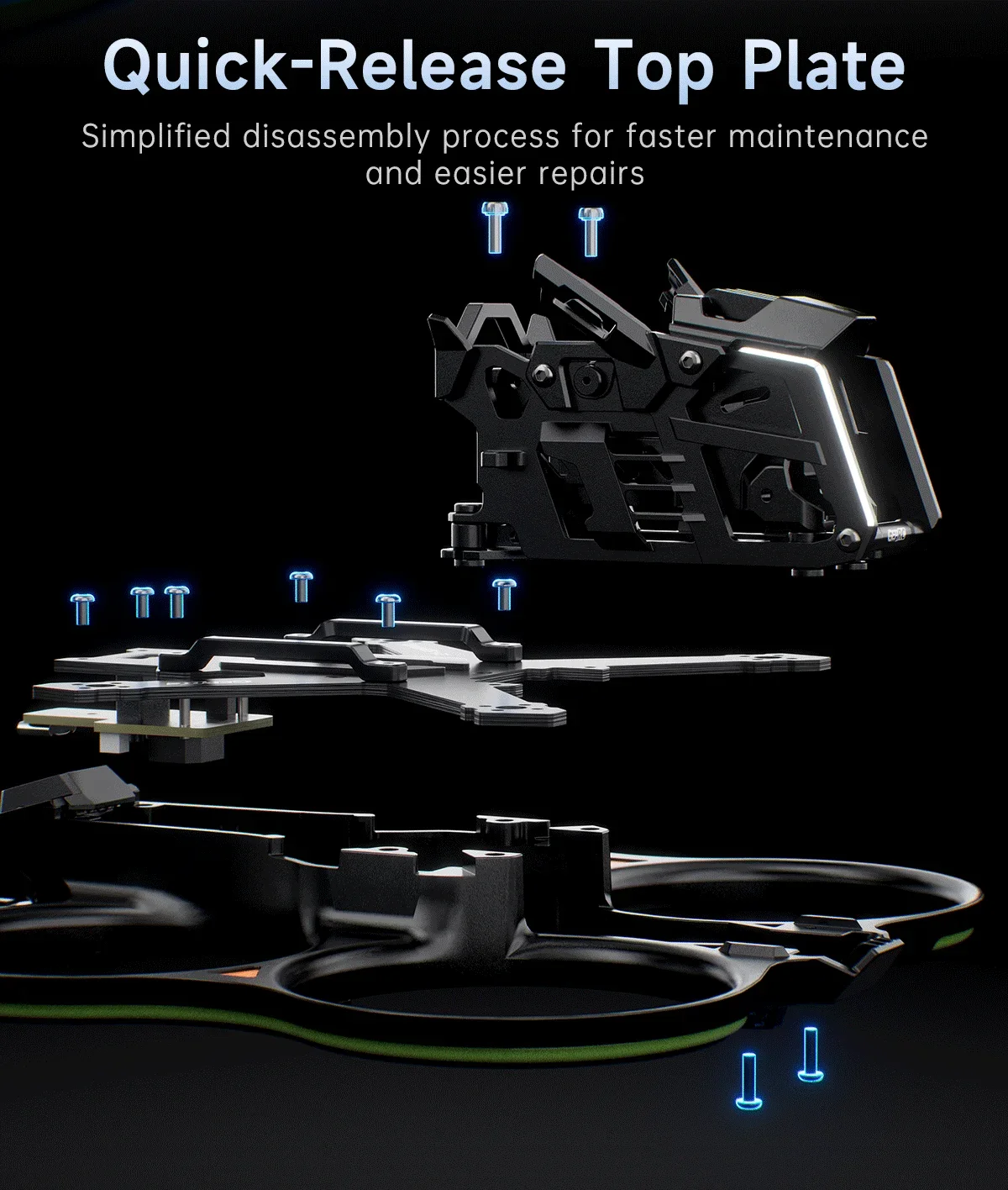

Fully optimized frame structure with enhanced electronics bay protection
Dedicated function board with buzzer, LED BEC, and USB tuning port
Precision-designed front cover to protect the O4 Pro lens

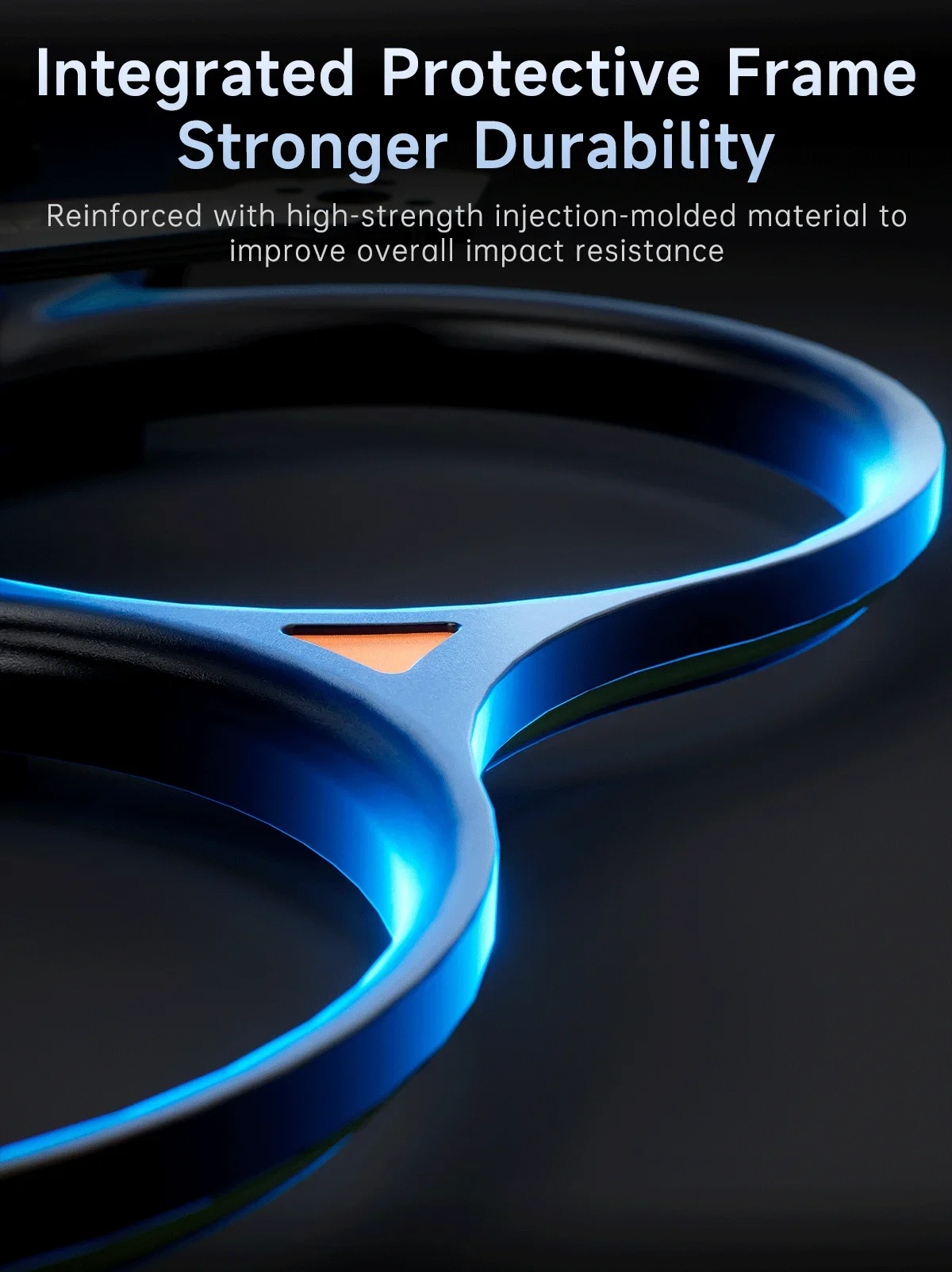

Integrated Prop Guard frame with built-in COB LED mounting slots for night visibility

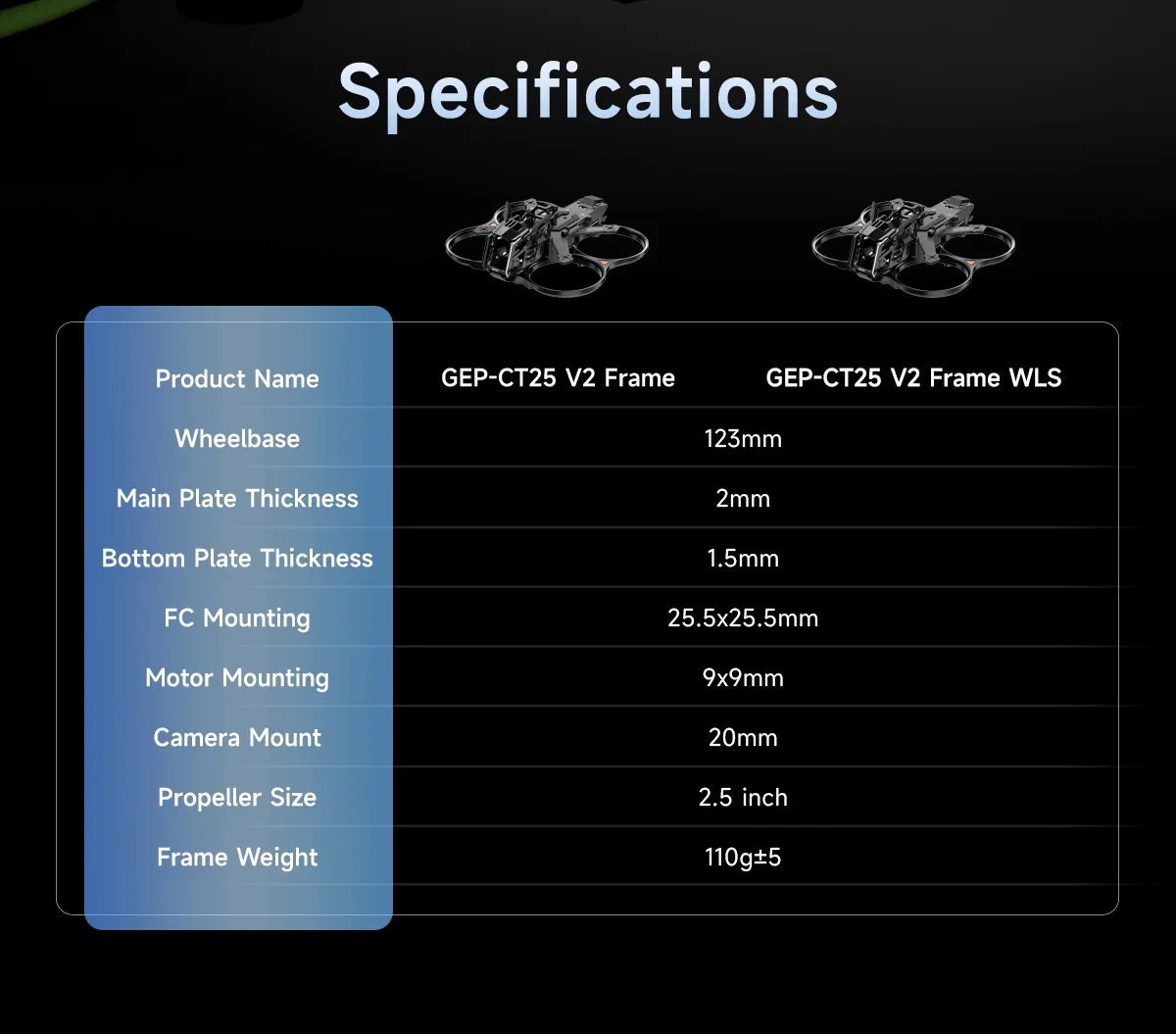

Specification
Model: GEP-CT25 V2 Frame Kit
Color: Black
Wheelbase: 123 mm
Main Carbon Plate Thickness: 2.0 mm
FC Mounting: 25.5 × 25.5 mm
Motor Mounting: 9 × 9 mm
Camera Mount Width: 20 mm
Power Connector: XT30
Compatible Propellers: 2.5 inch
Frame Weight: 110±5g
Manual
Cinebot25 V2 Frame Assembly Instruction

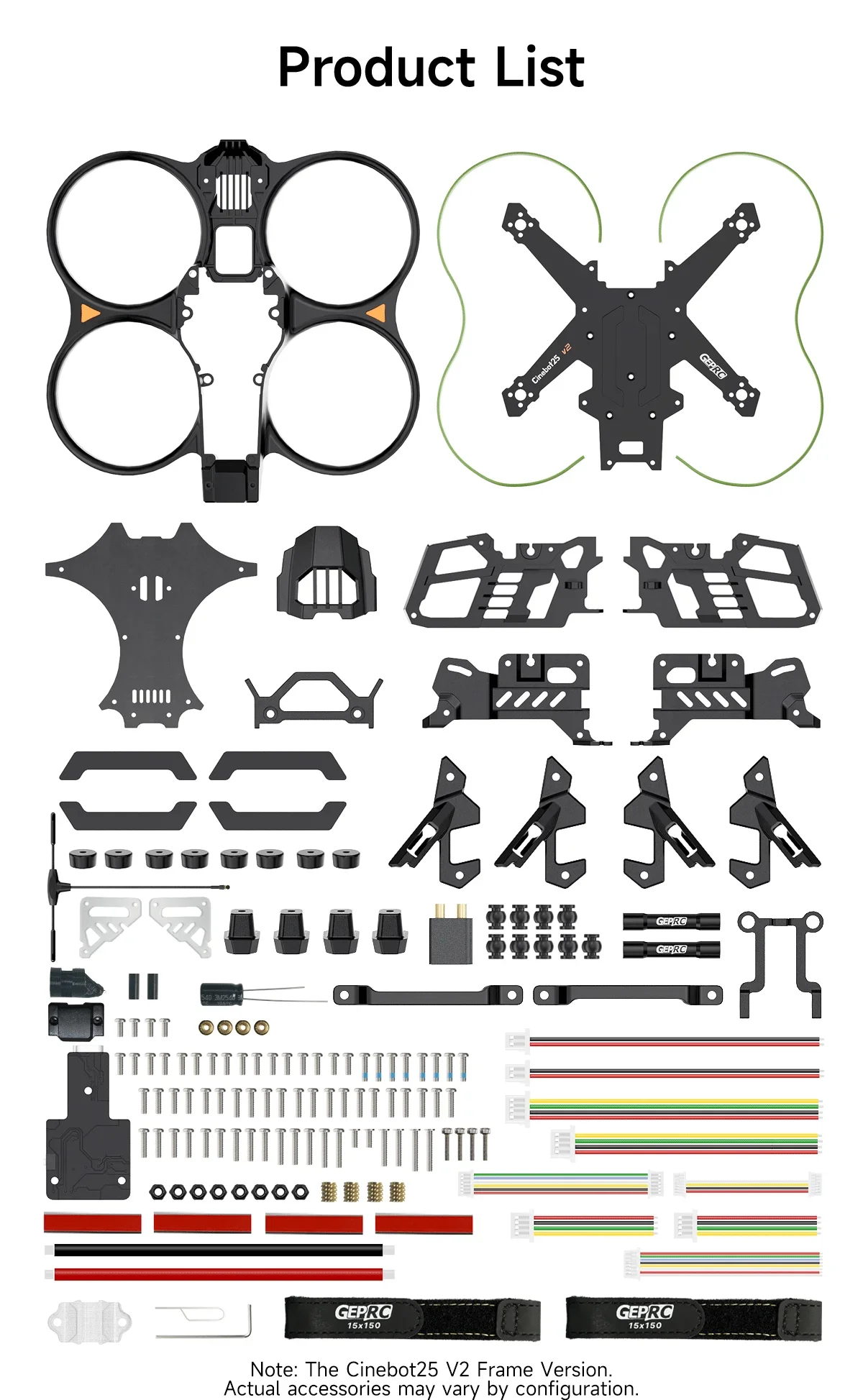

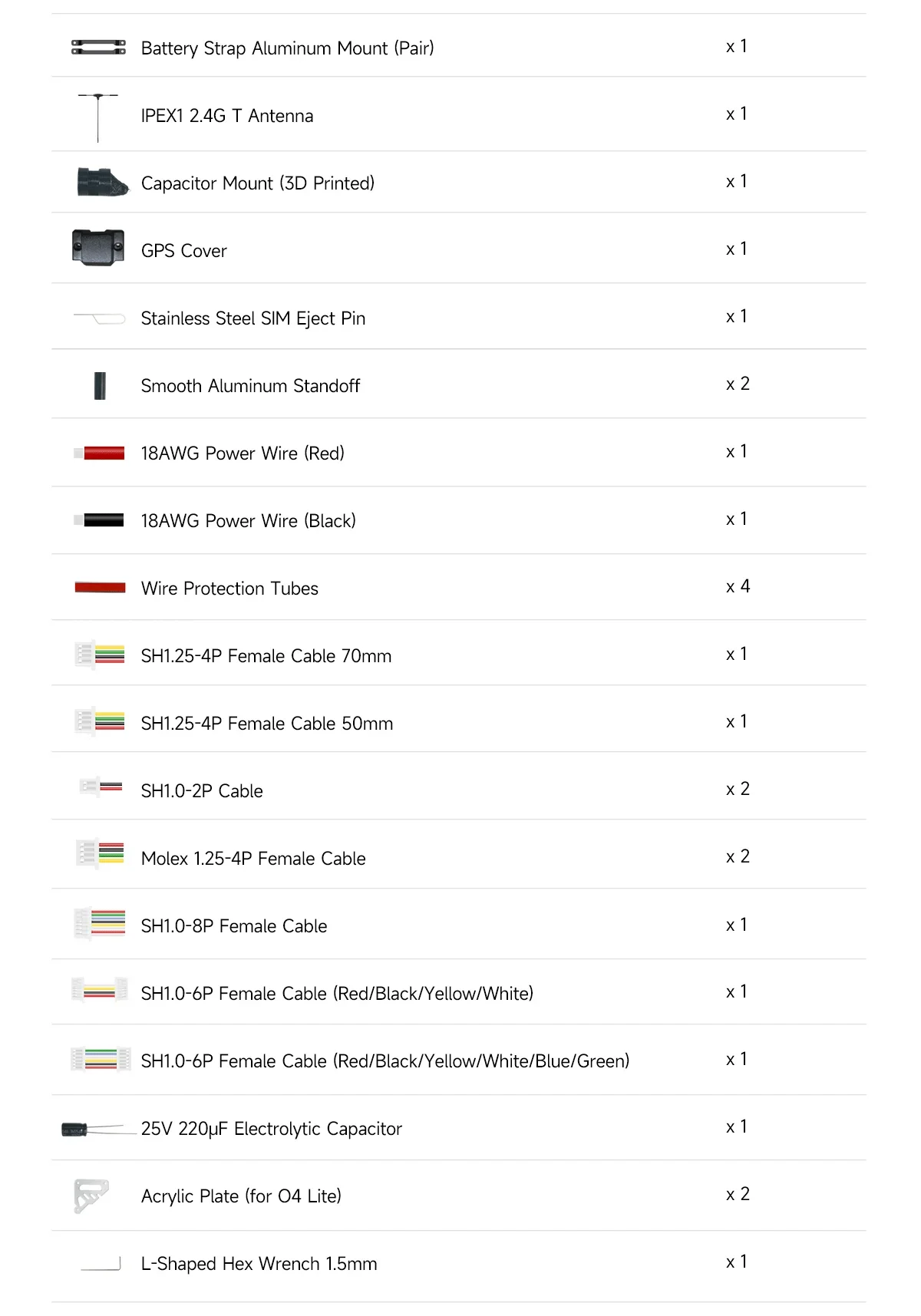

Includes
1 × Prop Guard
1 × Top Plate
1 × Bottom Plate
2 × Battery Straps
2 × Aluminum Battery Strap Mounts
4 × Anti-Slip Battery Pads
1 × Function Board
1 × Receiver Antenna
1 × Receiver Antenna Injection-Molded Mount
1 × Receiver 3D Printed Mount
1 × Capacitor 3D Printed Mount
2 × Acrylic Plates

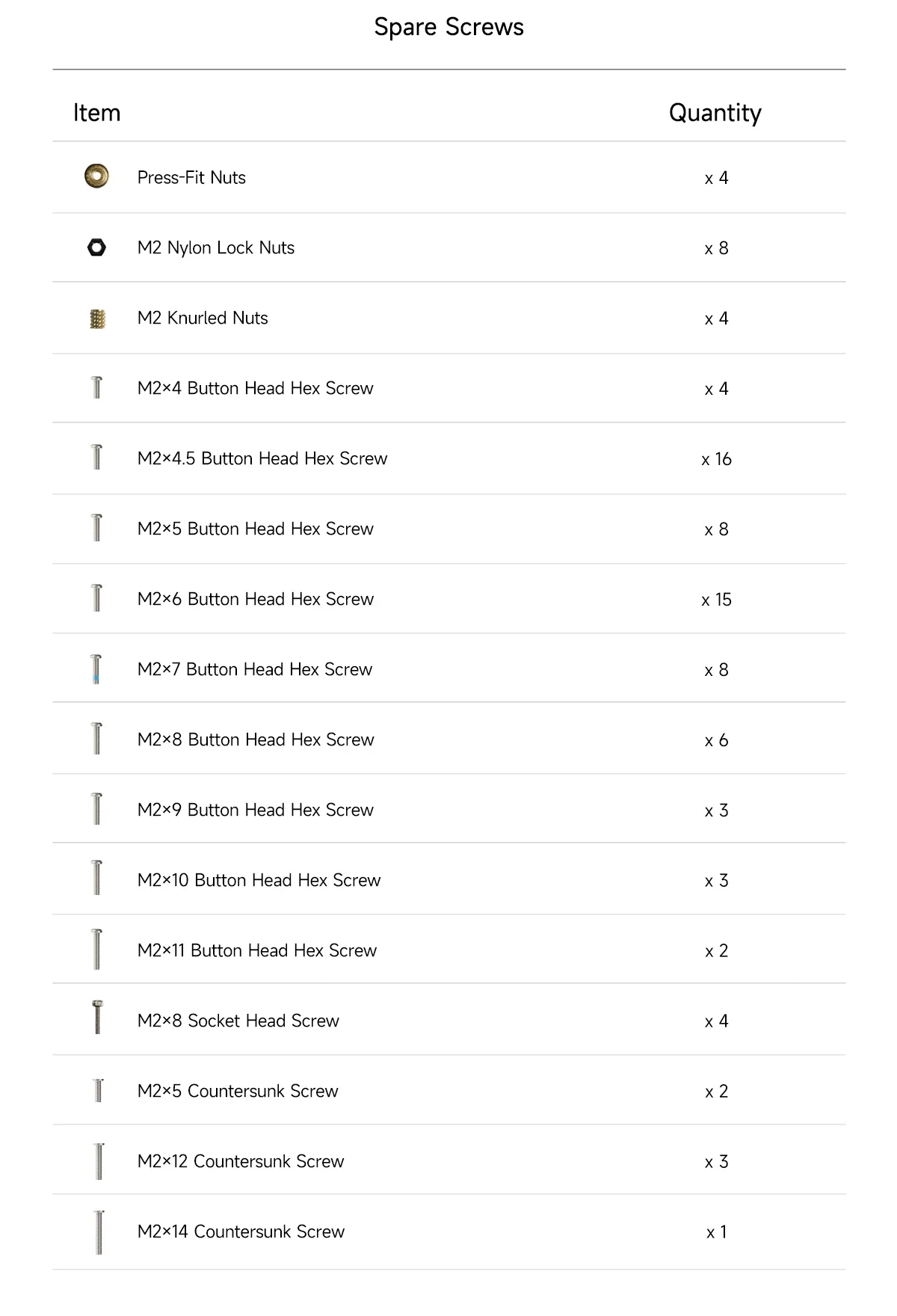

1 × Screw Kit
1 × Cinebot Front Module Kit
1 × Front Module / Landing Injection-Molded Parts Pack
1 × Cable Set
