60A controller without speed limit line：

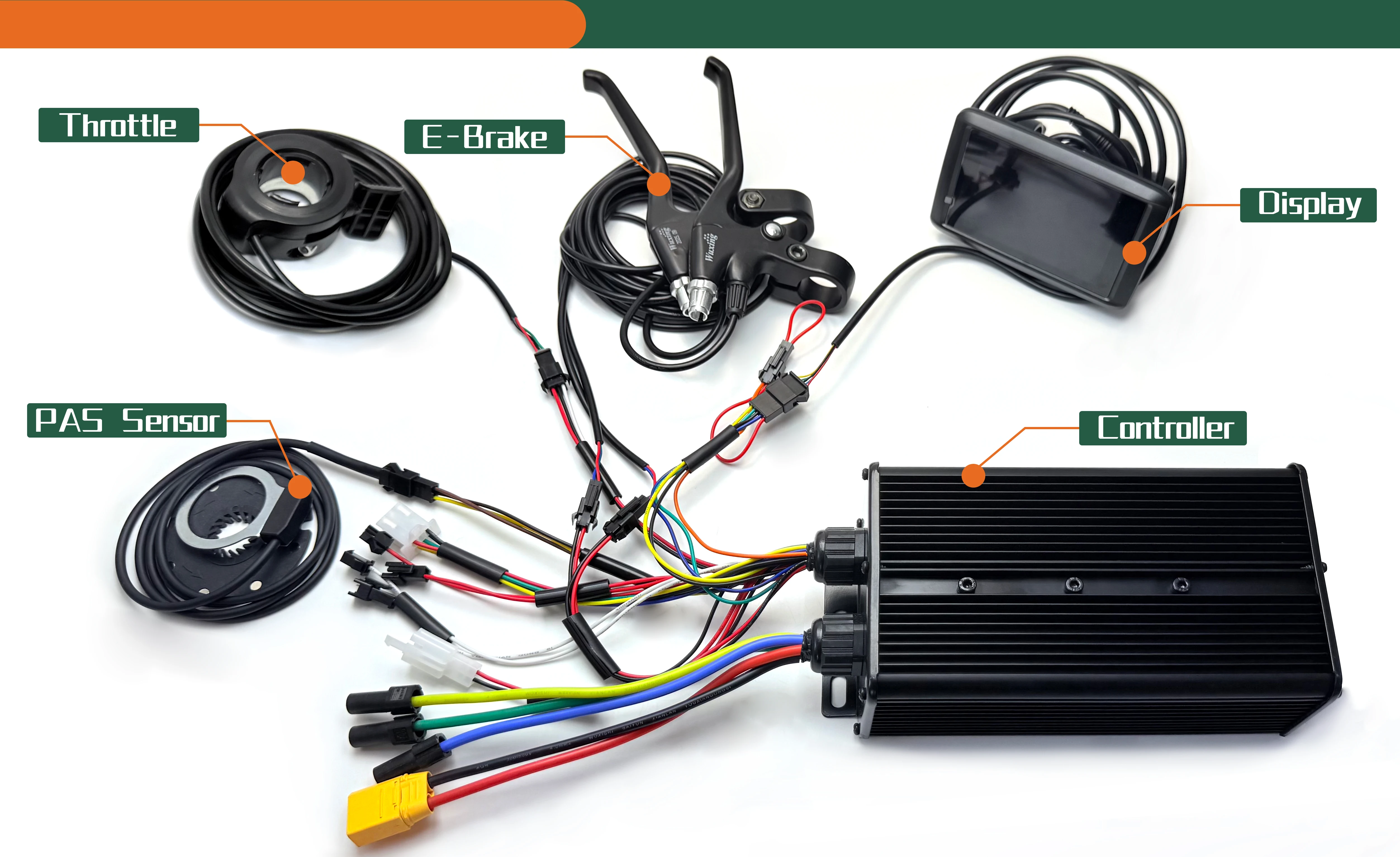

60A Controller connection diagram:
-
When purchasing a controller with a 60A 3mo ordinary plug with a headlight module, please check that the lamp power of the electric bicycle you purchased cannot exceed 7.5w, otherwise the 60A 3mo ordinary plug with a headlight module will not work!!!

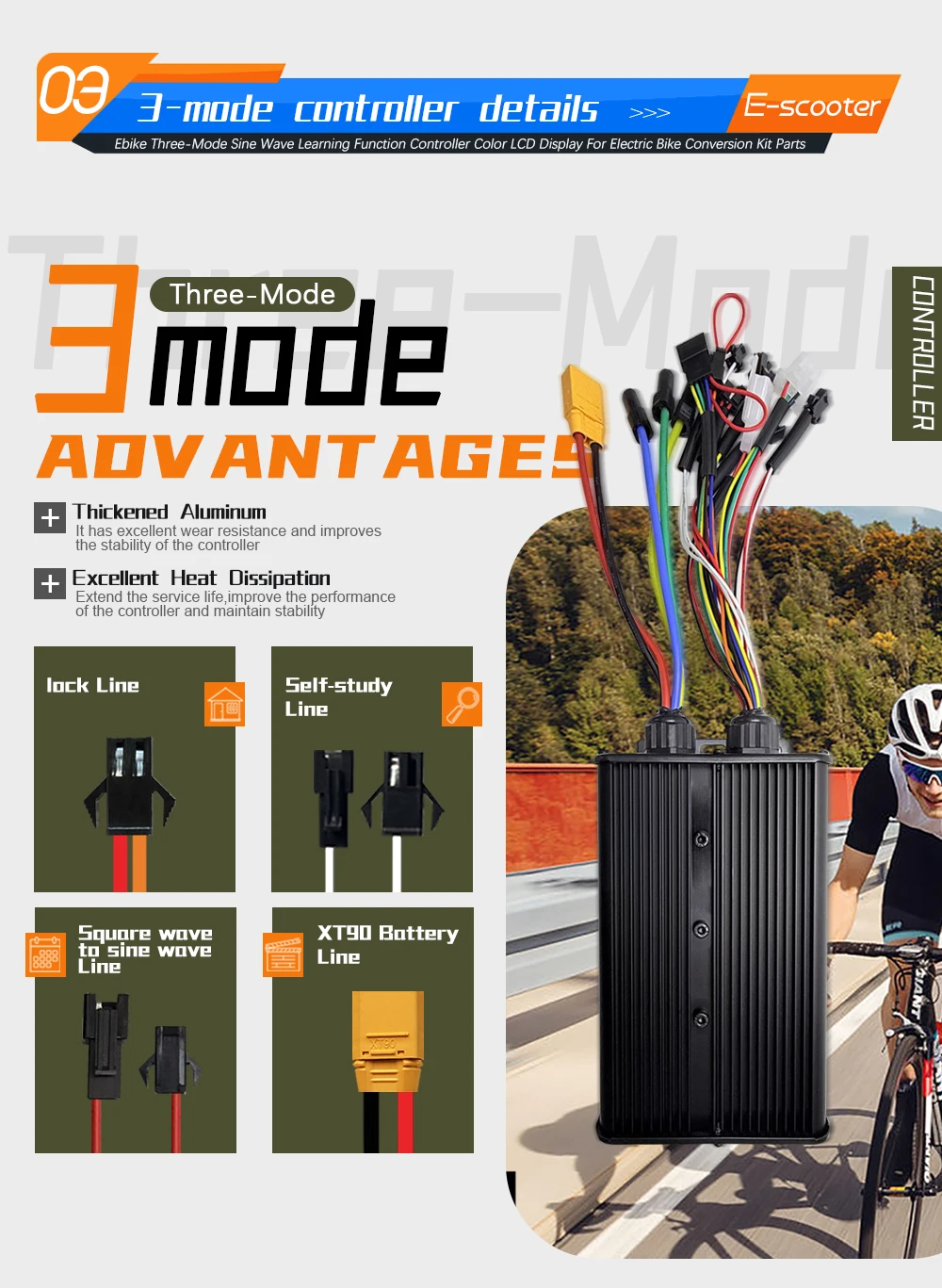

The 60A controller is a sine wave controller. If you want to turn it into a square wave , connect the two 1-pin red wires on the controller to make it a square wave controller. If you don't know how to connect it, you can consult customer service（as shown in the figure below）
Features:
1-The Display is easy to install, with clear screen display and powerful functions
2-Brushless Hub Motor for 2000W-3000W, Electric Bike, Electric Bike Kit
3-The controller has a headlight function, isplay with spare light line,making it more convenient and safe for you to ride at night
4-Applicable to Hall motor and Hall-free motor

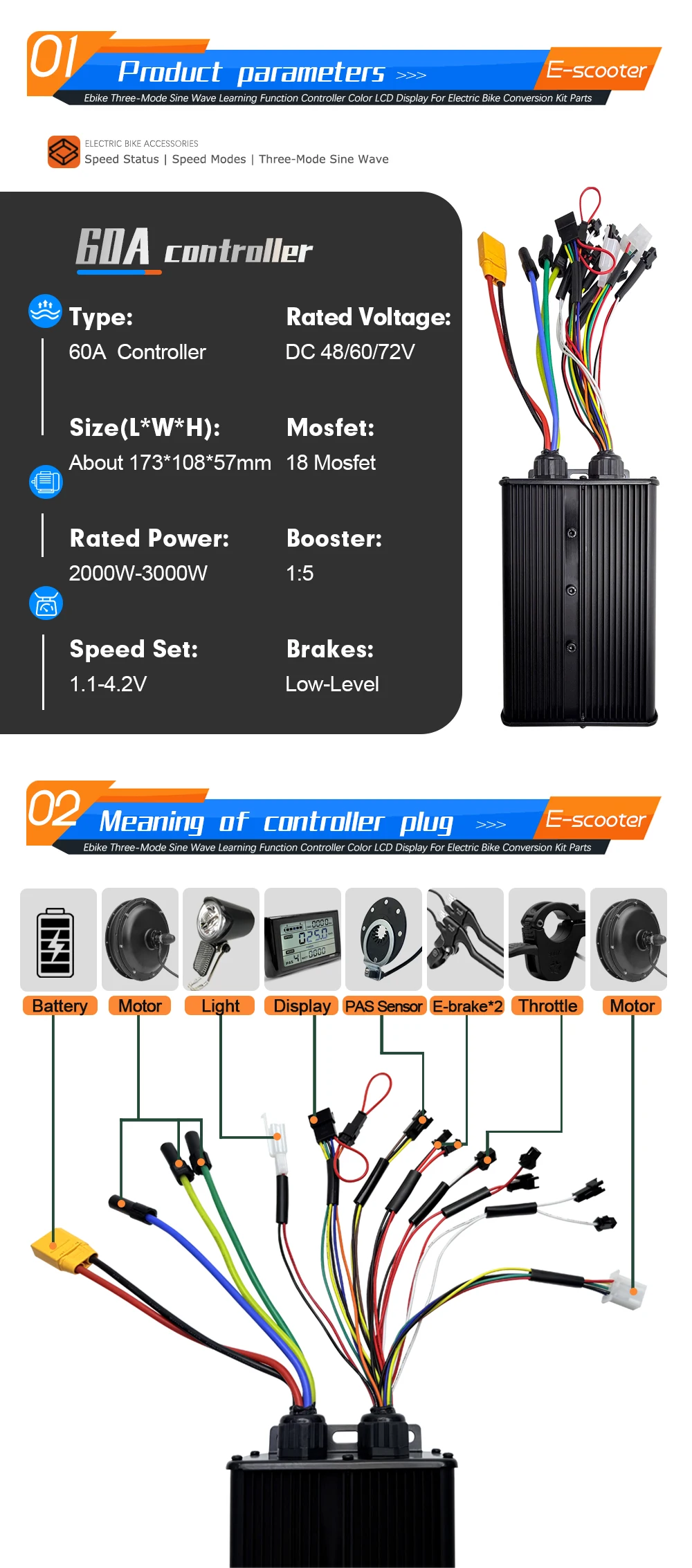

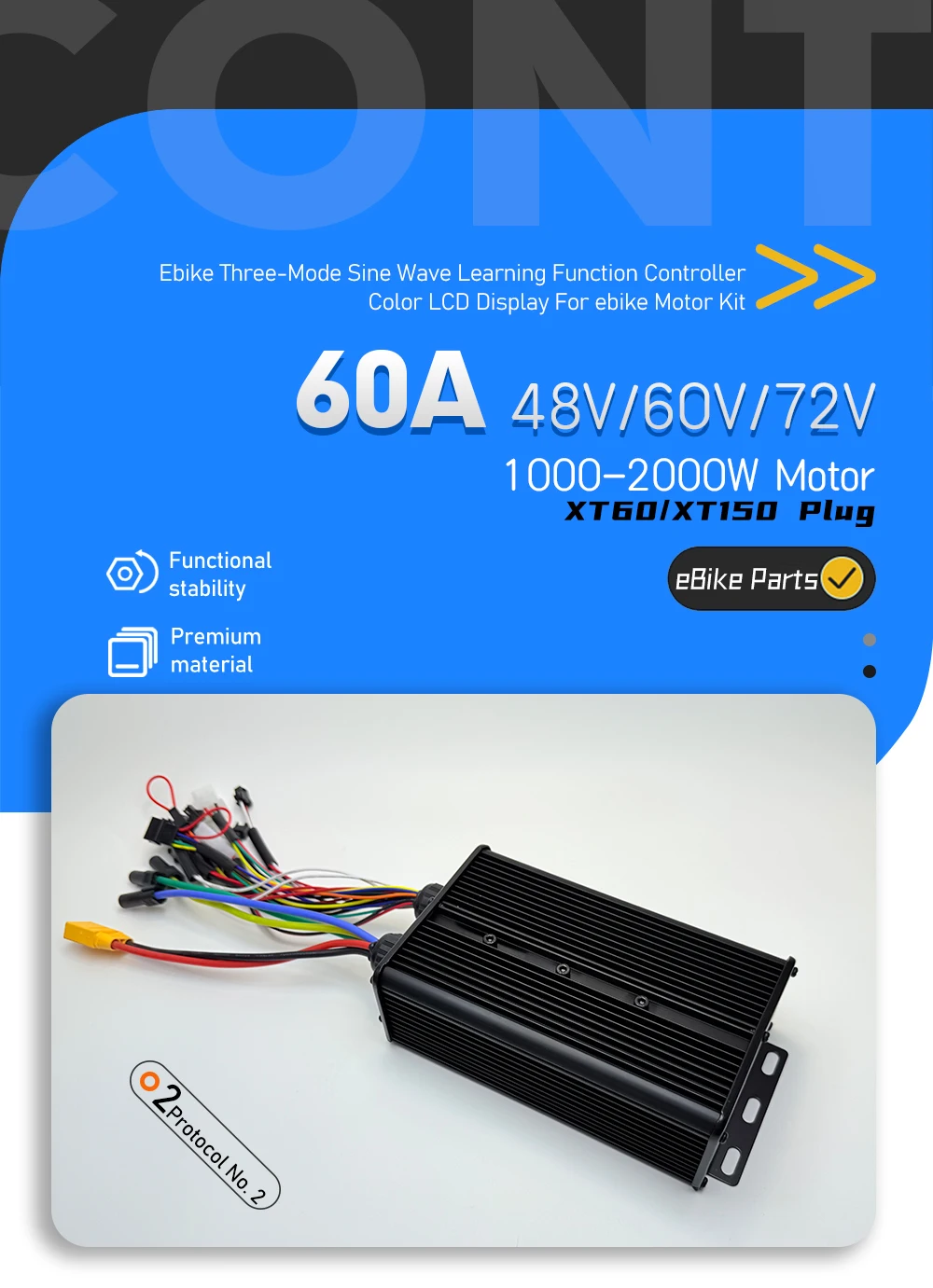

60A Controller Parameter:
●Type: 60A Controller
●Size(L*W*H):185*108*57mm
●Rated Power:1000W-3000W
●Speed Set:1.1-4.2V
●Mosfet:18 Mosfet
●Booster:1:5
●Brakes:Low-Level
●Rated Voltage:DC48V-72V
●SM Controller line length:100mm/3.9in
●Compatible with motors with or without Hall
●With motor forward and reverse learning function

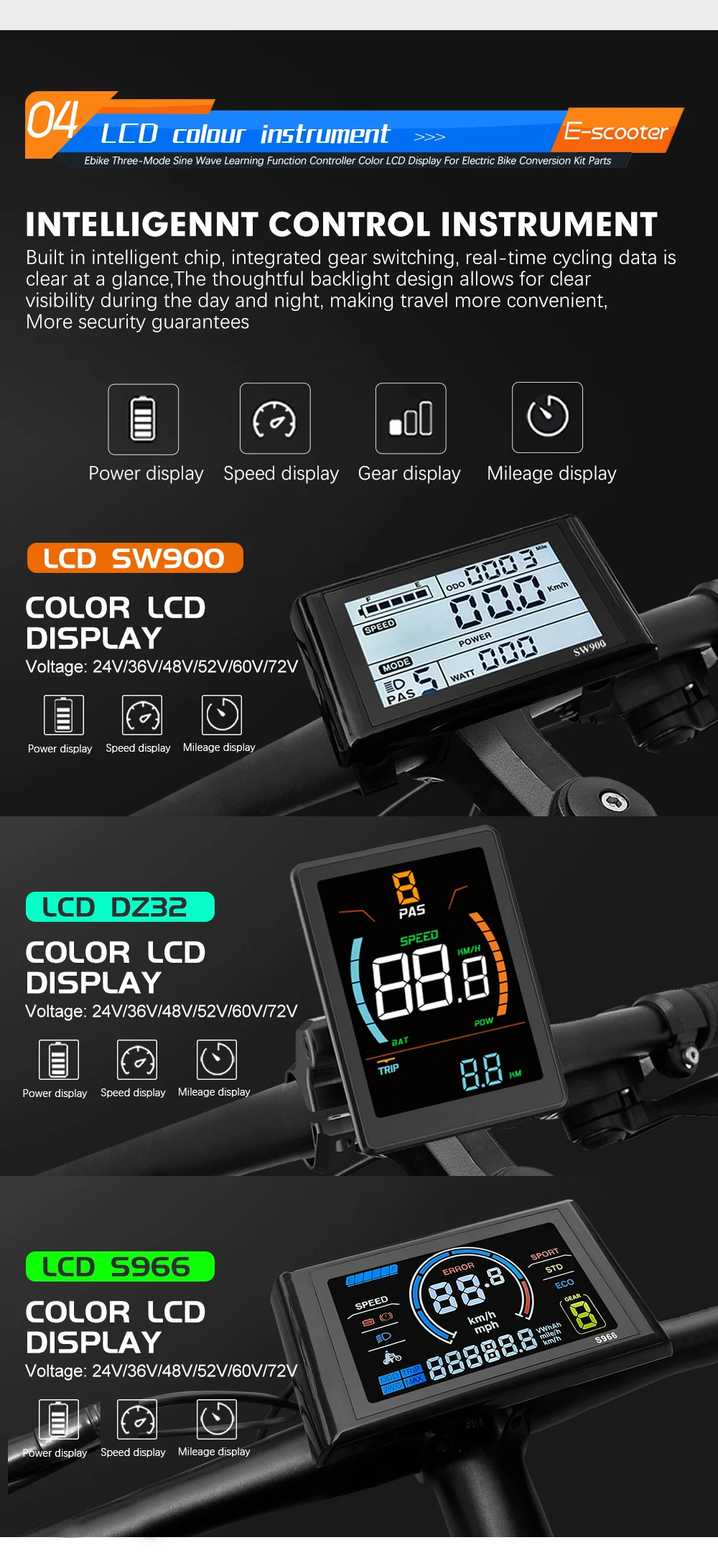

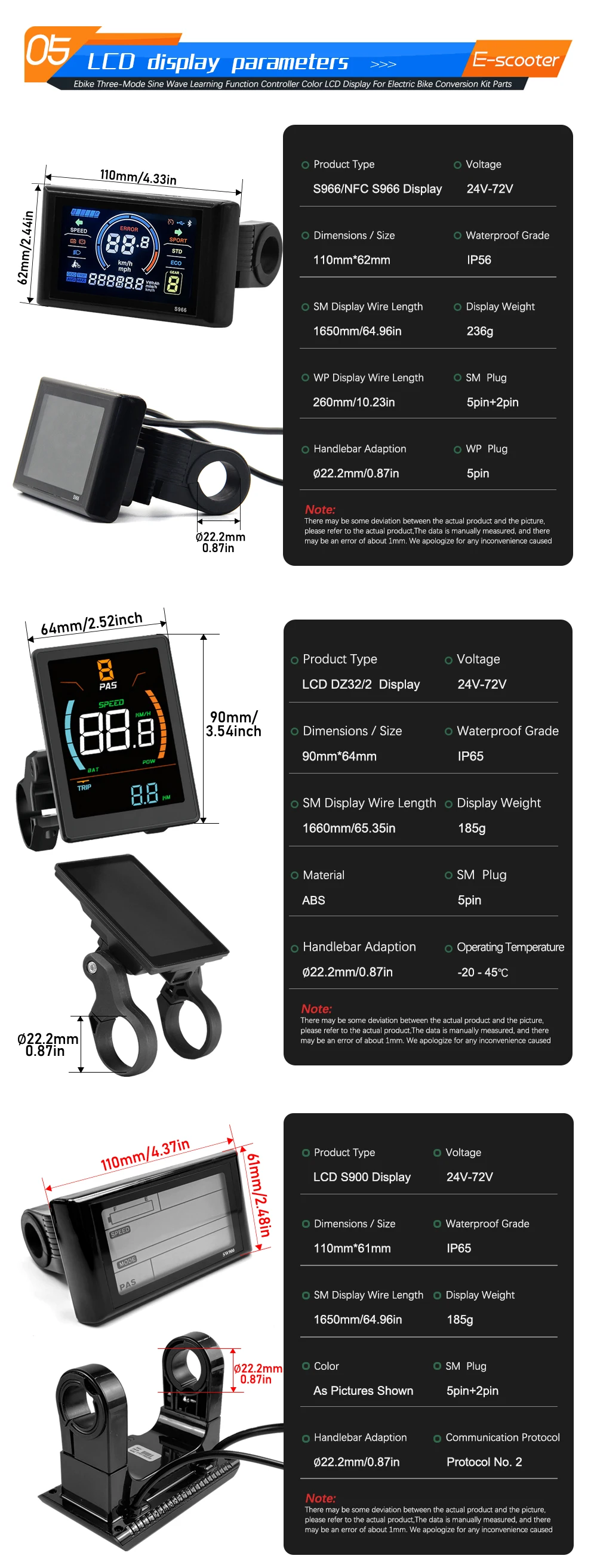

LCD Display
●Type : LCD Color Display
●Voltage : 24V/36V/48V/52V/60V/72V
●Plug : 5Pin SM Plug
●Holder Diameter :φ22mm
●Cable Length: 160cm ( SM )
