Item Description
Features
1.Adopting 1.2MM FR-4 material, circuit board design is reasonable, long service life.
2. Upgrade TYPE-C interface, versatility, large fog volume, stable performance, simple to use, easy to get started.
3. Easy to use, no switch single spray, power input power on the spray, suitable for atomization equipment power on the work.

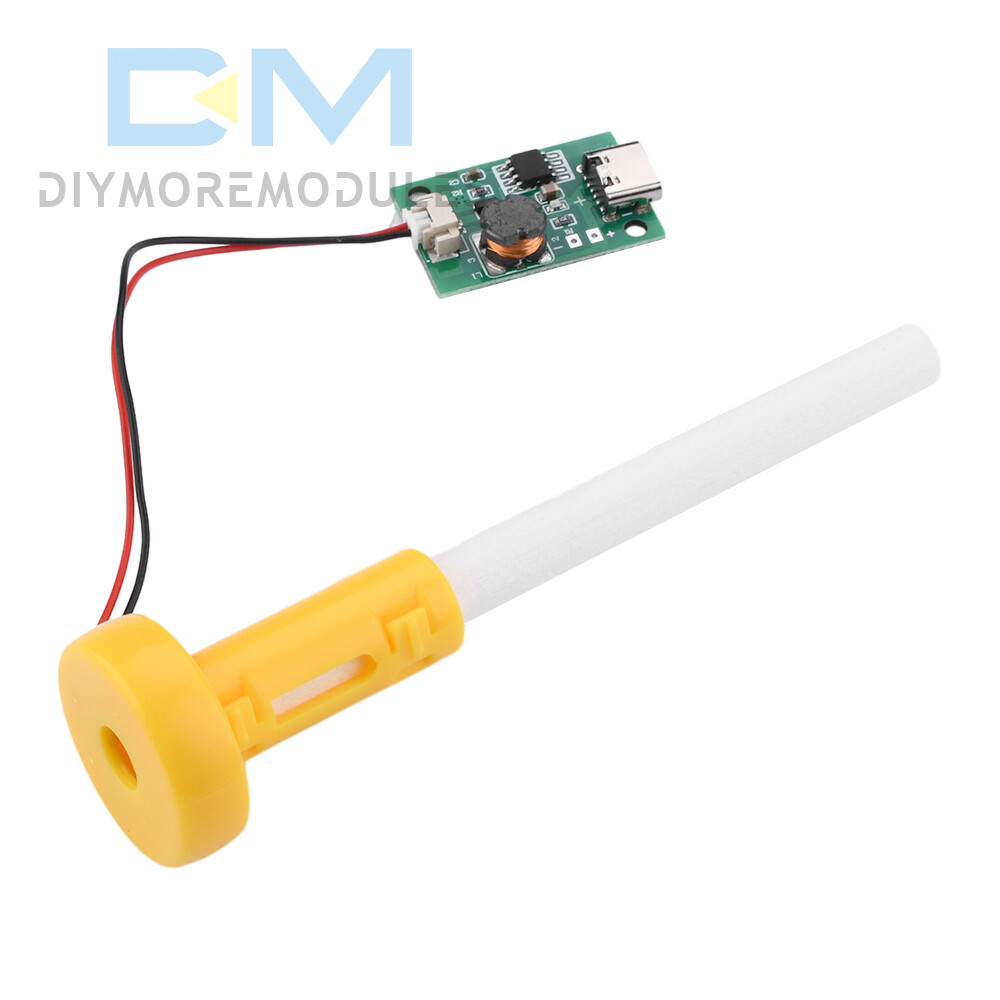

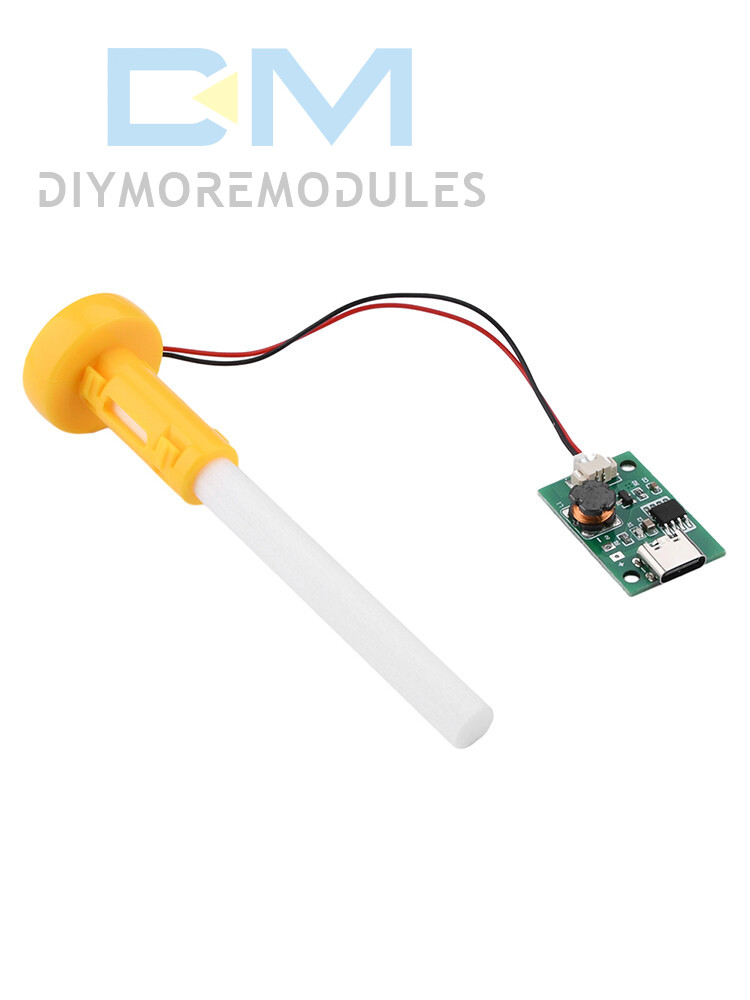

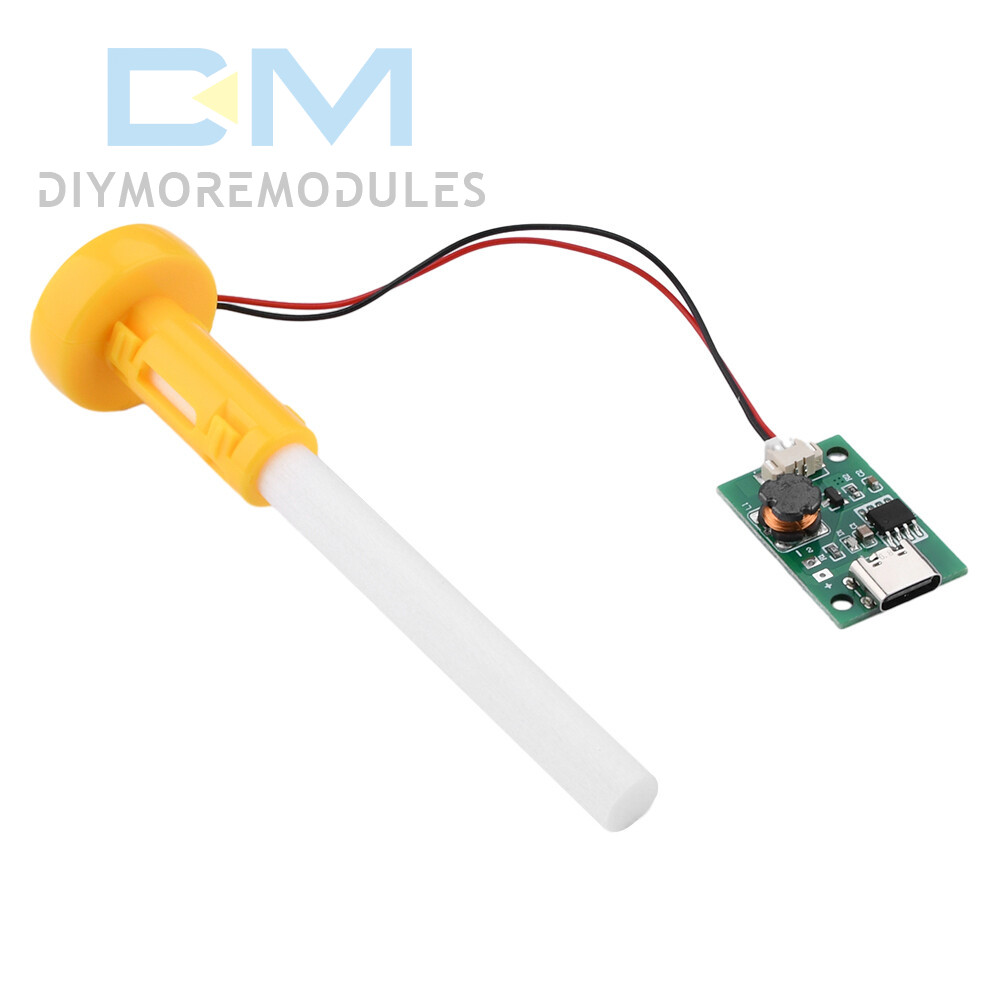

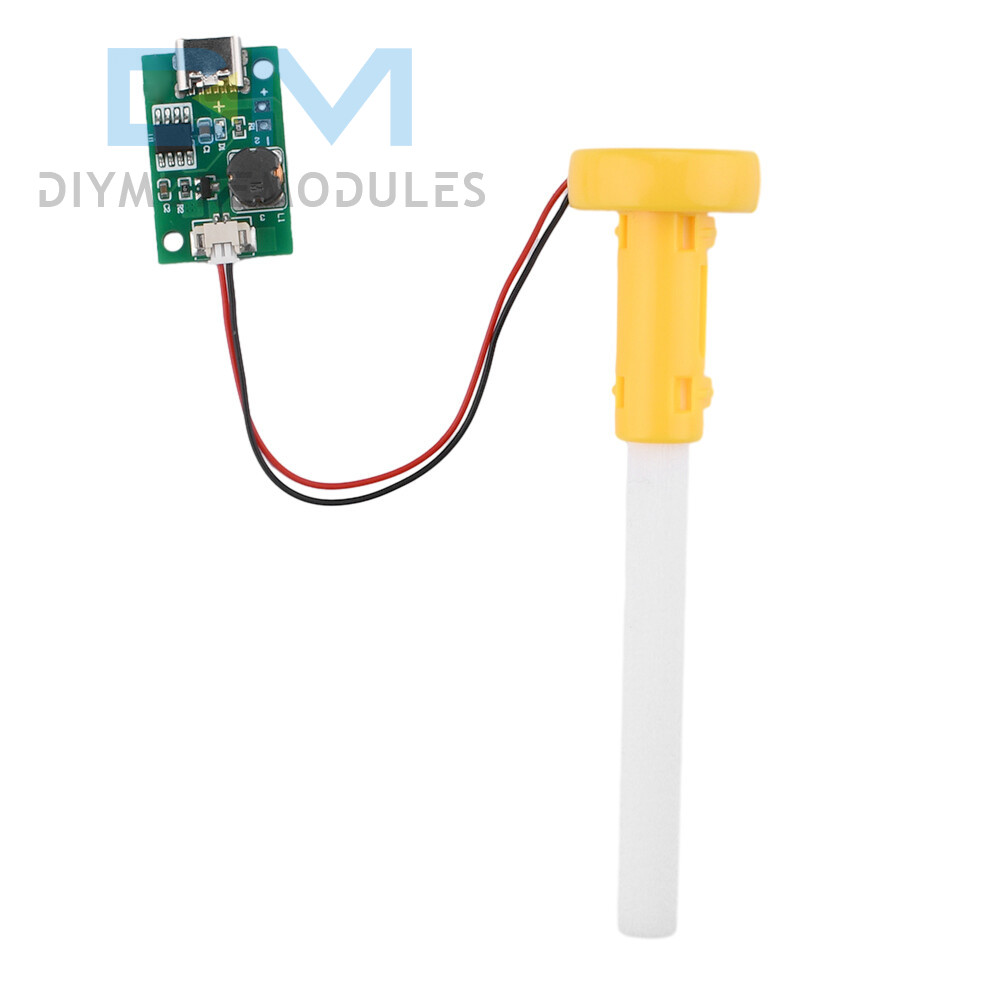

4. Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.
5. Micron atomization, the water through the microporous atomization into fine water molecules, floating air.
2. Upgrade TYPE-C interface, versatility, large fog volume, stable performance, simple to use, easy to get started.
3. Easy to use, no switch single spray, power input power on the spray, suitable for atomization equipment power on the work.
4. Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.
5. Micron atomization, the water through the microporous atomization into fine water molecules, floating air.
Specification

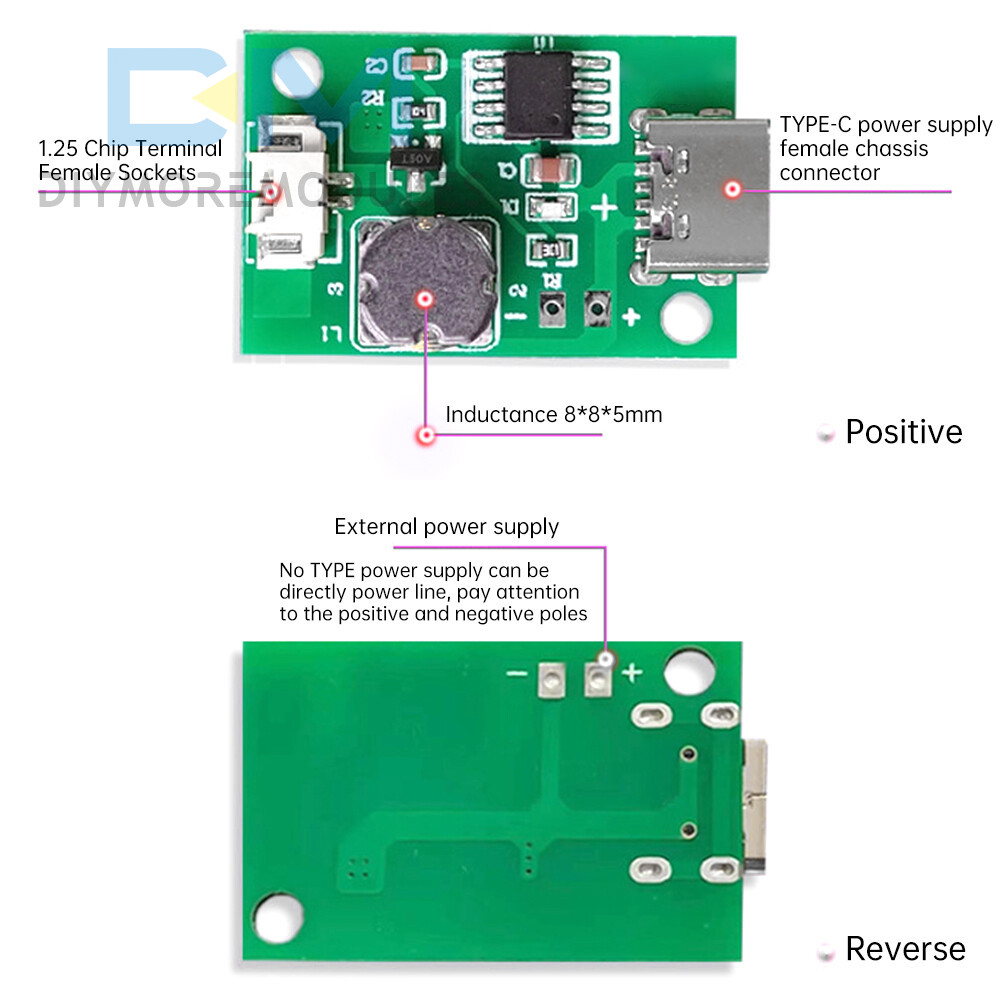

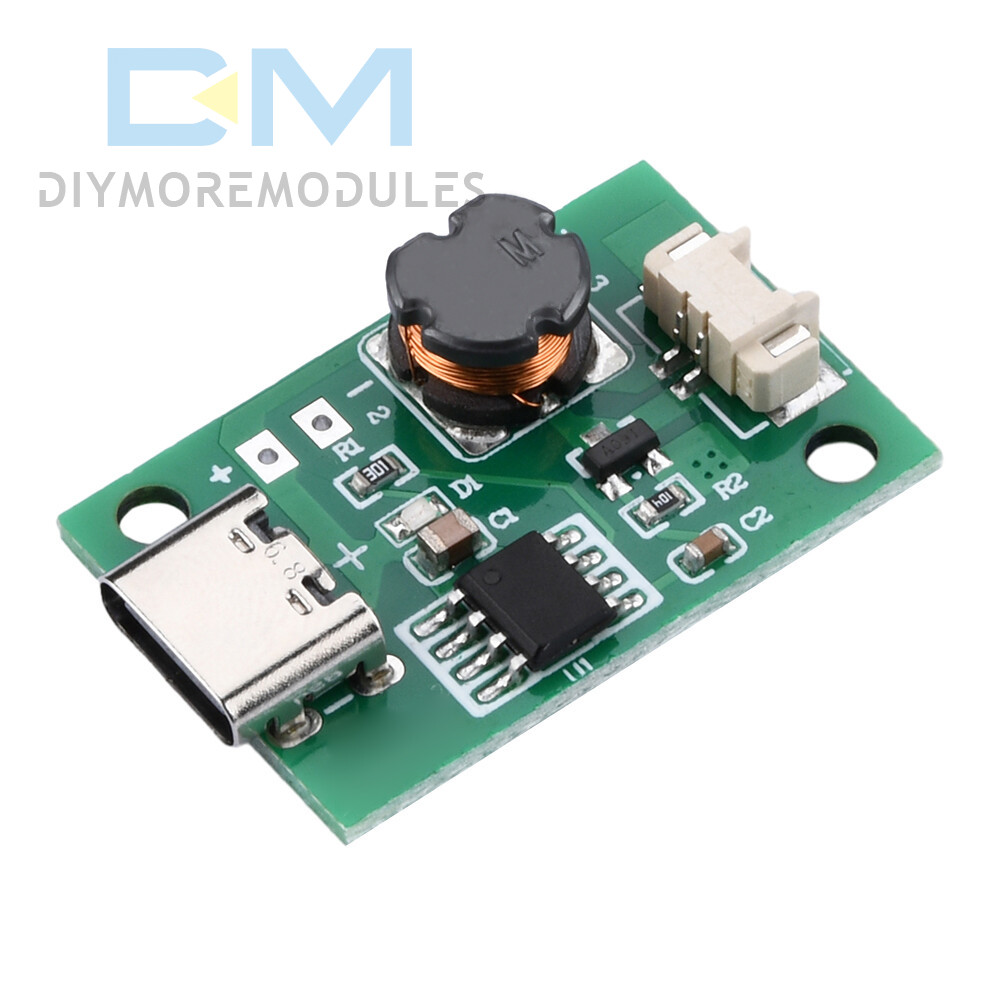

Name:No switch single spray humidification module
Material:1.2MM FR-4
Rated voltage:DC5V(power supply)
Rated current:300MA
Power:1.5-2W
Atomization frequency:108KHZ±2KHZ

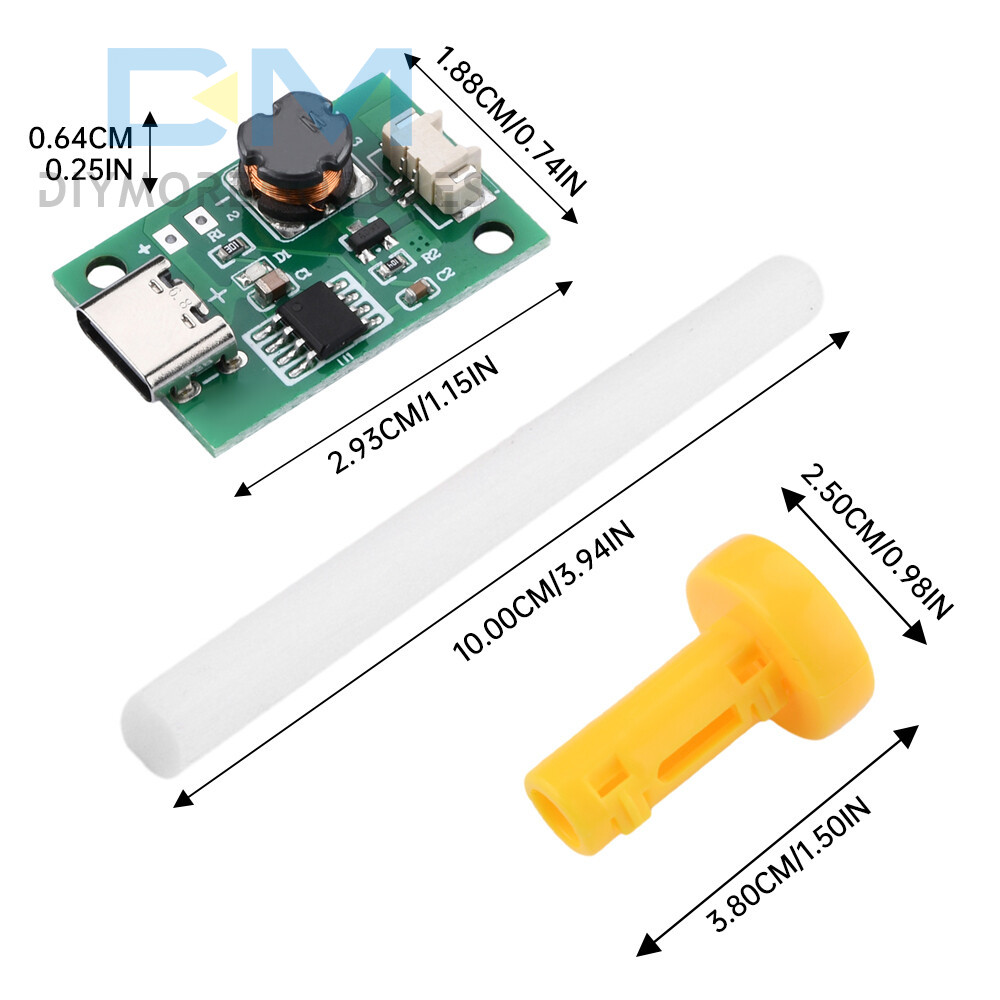

Module: 28*18.6MM
Bracket: 25*38MM
Cotton stick: 8*100MM

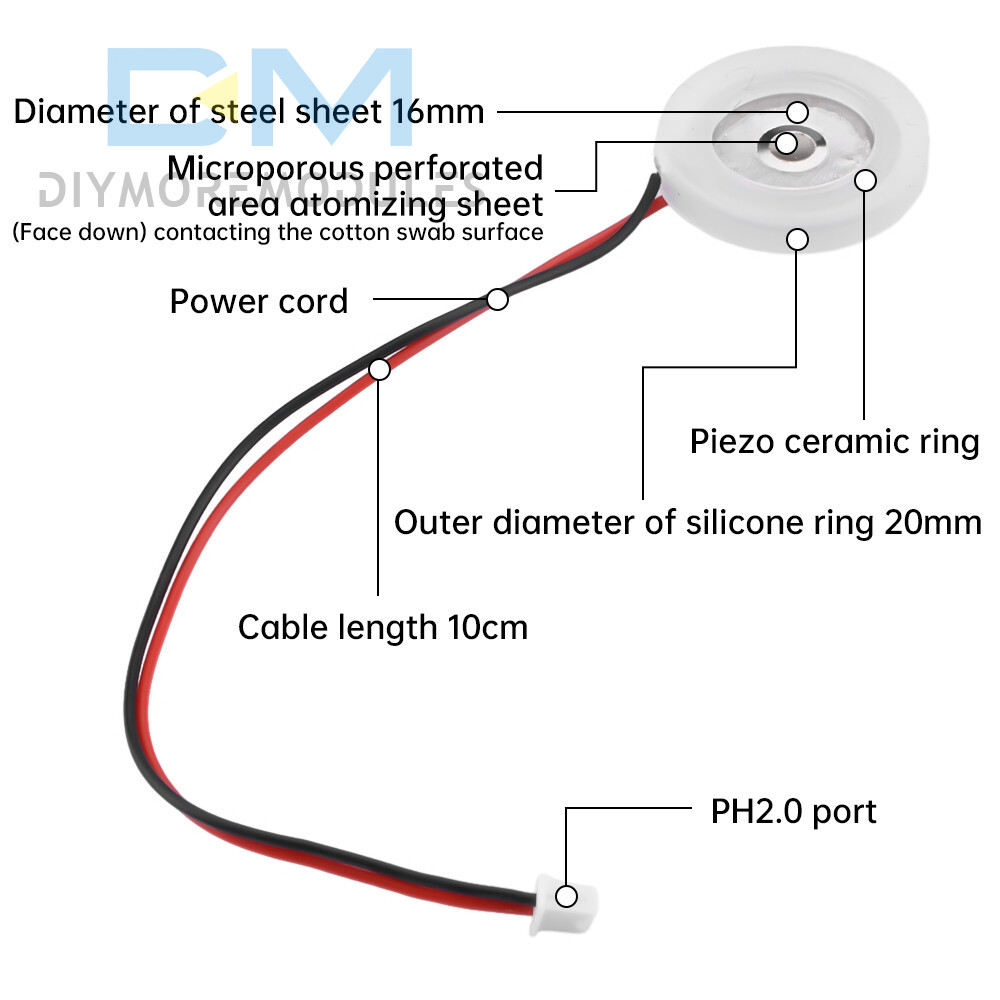

Parameters of nebulizer sheet:
Name:Microporous atomizing sheet
Driving voltage:5V
Resonant frequency:108-110KHZ±5
Rated power:2W
Number of holes:1100
Hole diameter: 4-5UM
Outer diameter of the silicone sleeve: 20MM
Thickness of rubber ring:3MM
Diameter of steel plate:16MM
Wire length:100MM
Wire terminal:PH2.0
Spray module:

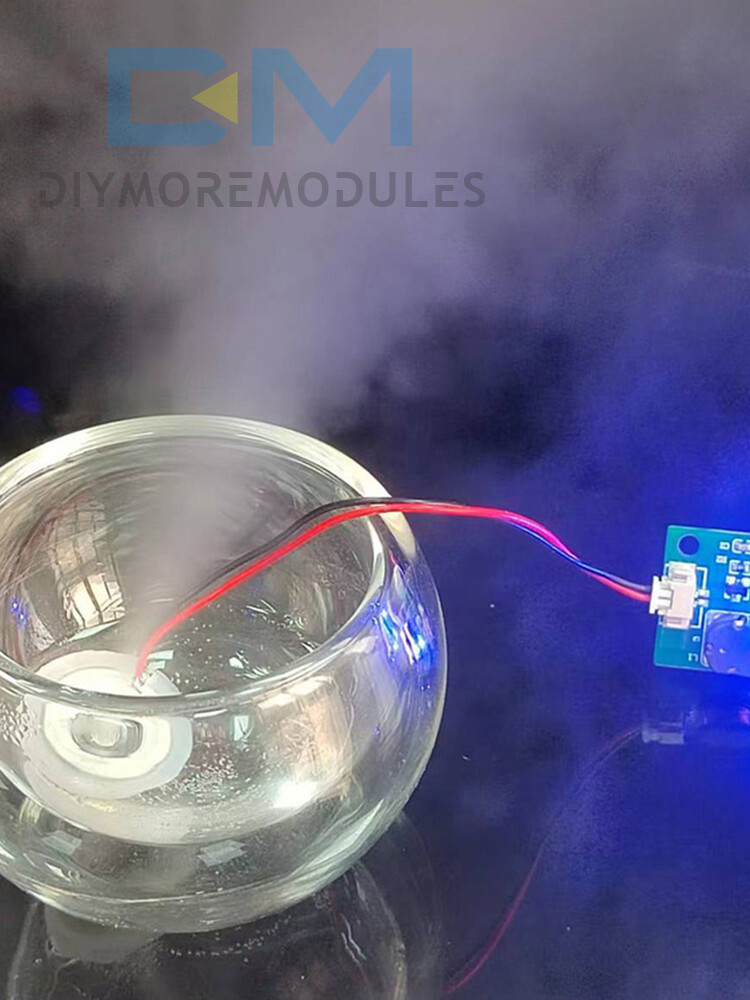

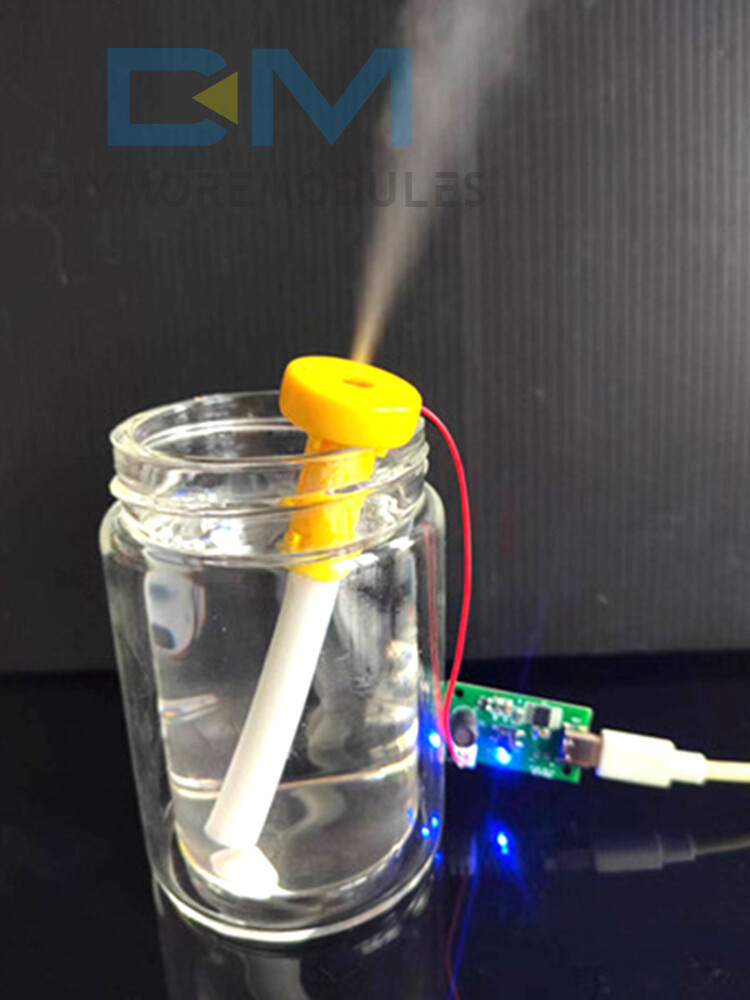

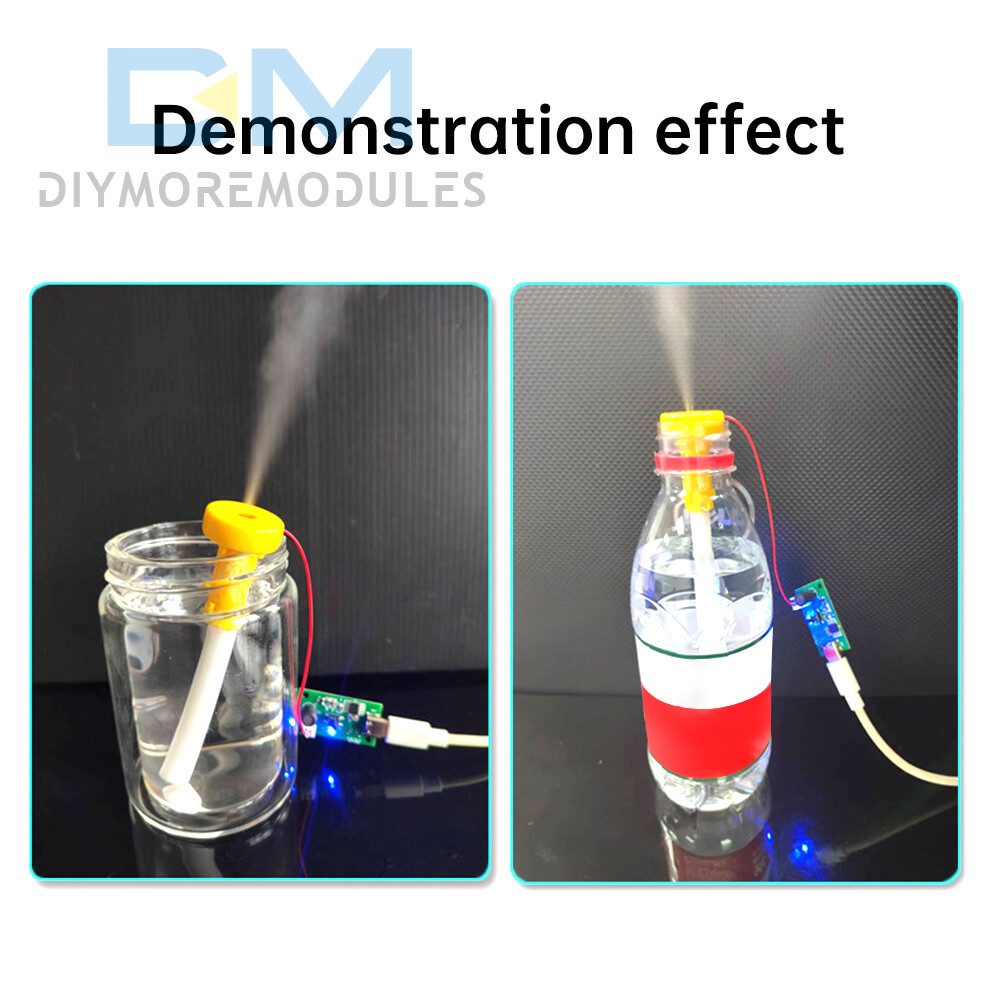

1. Continuous spray mode: no switch, power on that is spray, input DC5V power supply, immediately spray, LED light is always on, continuous spray mode, always spray.
2. Shutdown: unplugged power input shutdown.
Name:No switch single spray humidification module
Material:1.2MM FR-4
Rated voltage:DC5V(power supply)
Rated current:300MA
Power:1.5-2W
Atomization frequency:108KHZ±2KHZ
Module: 28*18.6MM
Bracket: 25*38MM
Cotton stick: 8*100MM
Parameters of nebulizer sheet:
Name:Microporous atomizing sheet
Driving voltage:5V
Resonant frequency:108-110KHZ±5
Rated power:2W
Number of holes:1100
Hole diameter: 4-5UM
Outer diameter of the silicone sleeve: 20MM
Thickness of rubber ring:3MM
Diameter of steel plate:16MM
Wire length:100MM
Wire terminal:PH2.0
Spray module:
1. Continuous spray mode: no switch, power on that is spray, input DC5V power supply, immediately spray, LED light is always on, continuous spray mode, always spray.
2. Shutdown: unplugged power input shutdown.

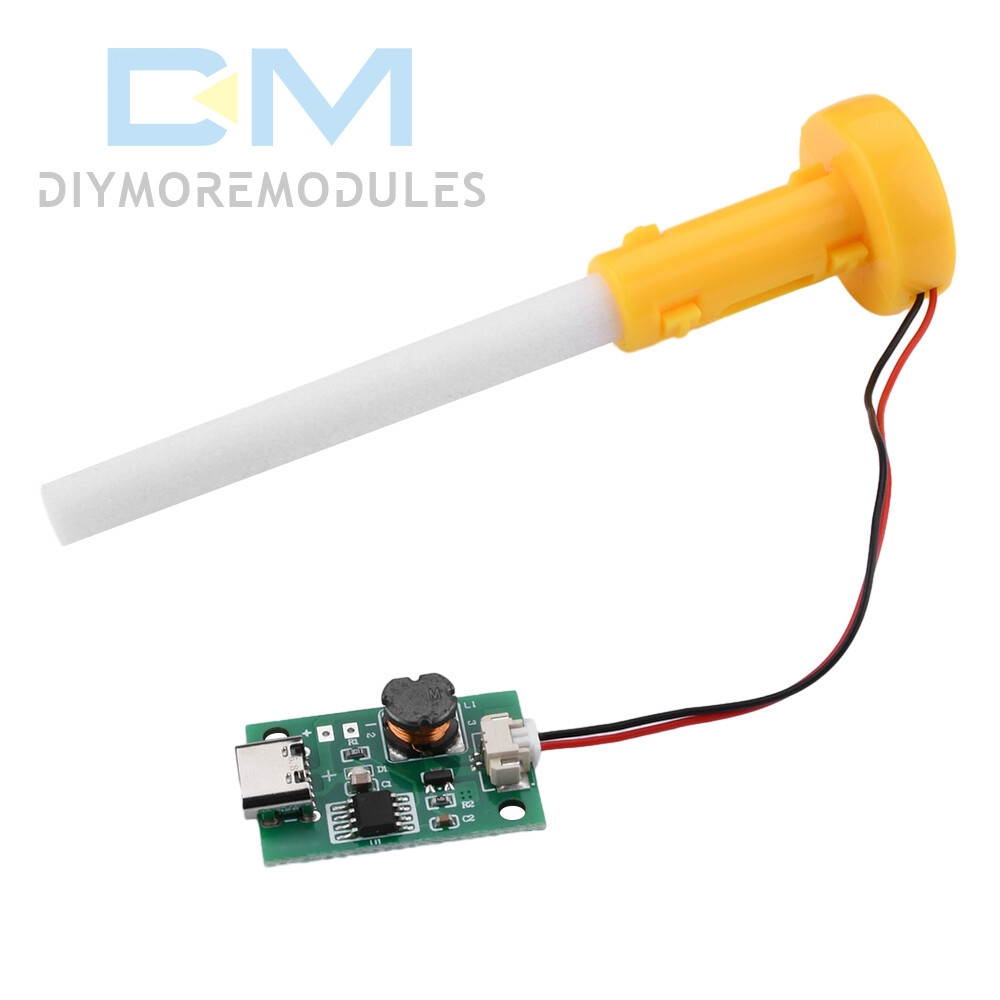

List
1 x Module
1 x Cotton swab
1 x Holder
1 x Atomizing Tablet
1 x Module
1 x Cotton swab
1 x Holder
1 x Atomizing Tablet
