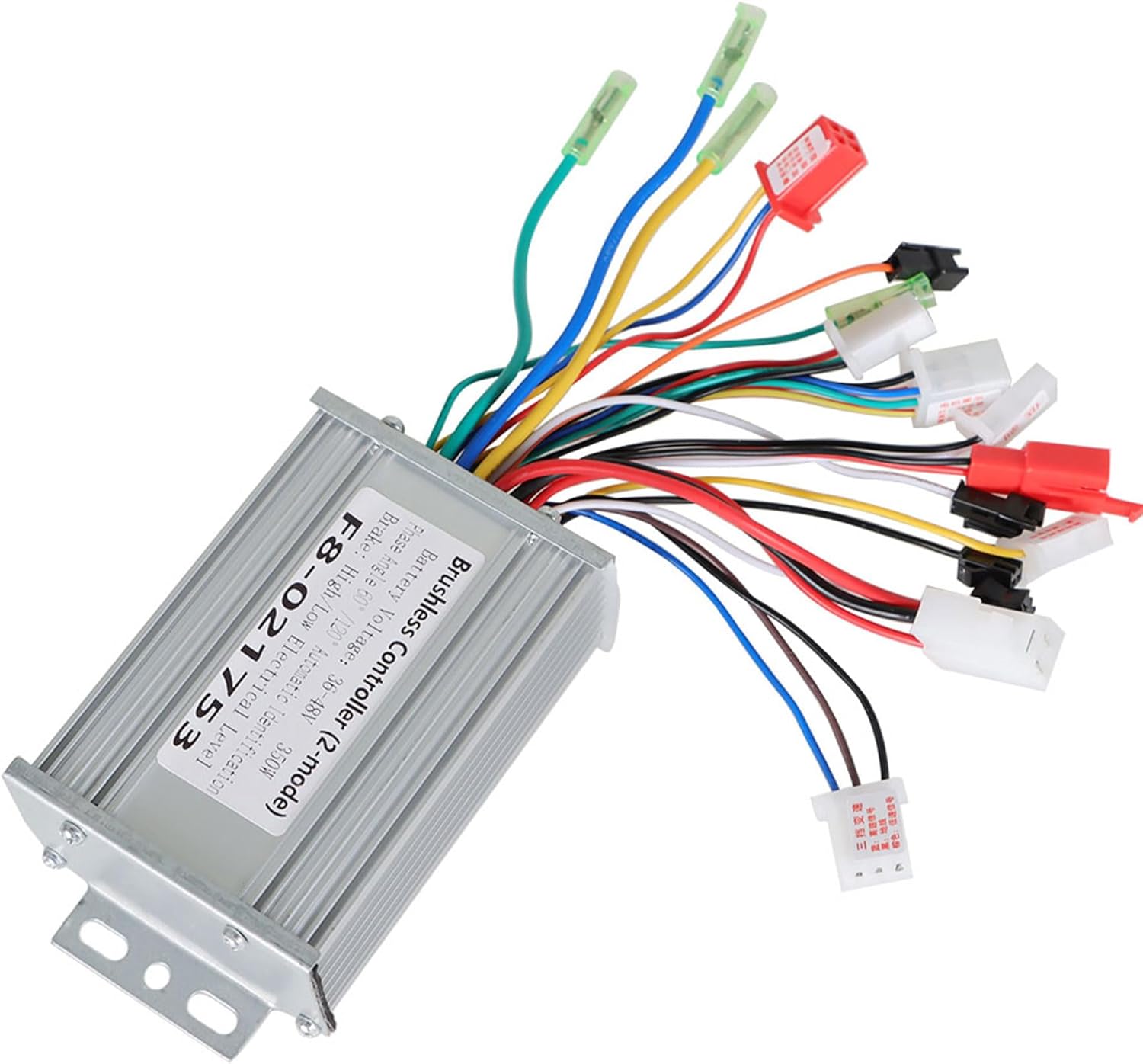

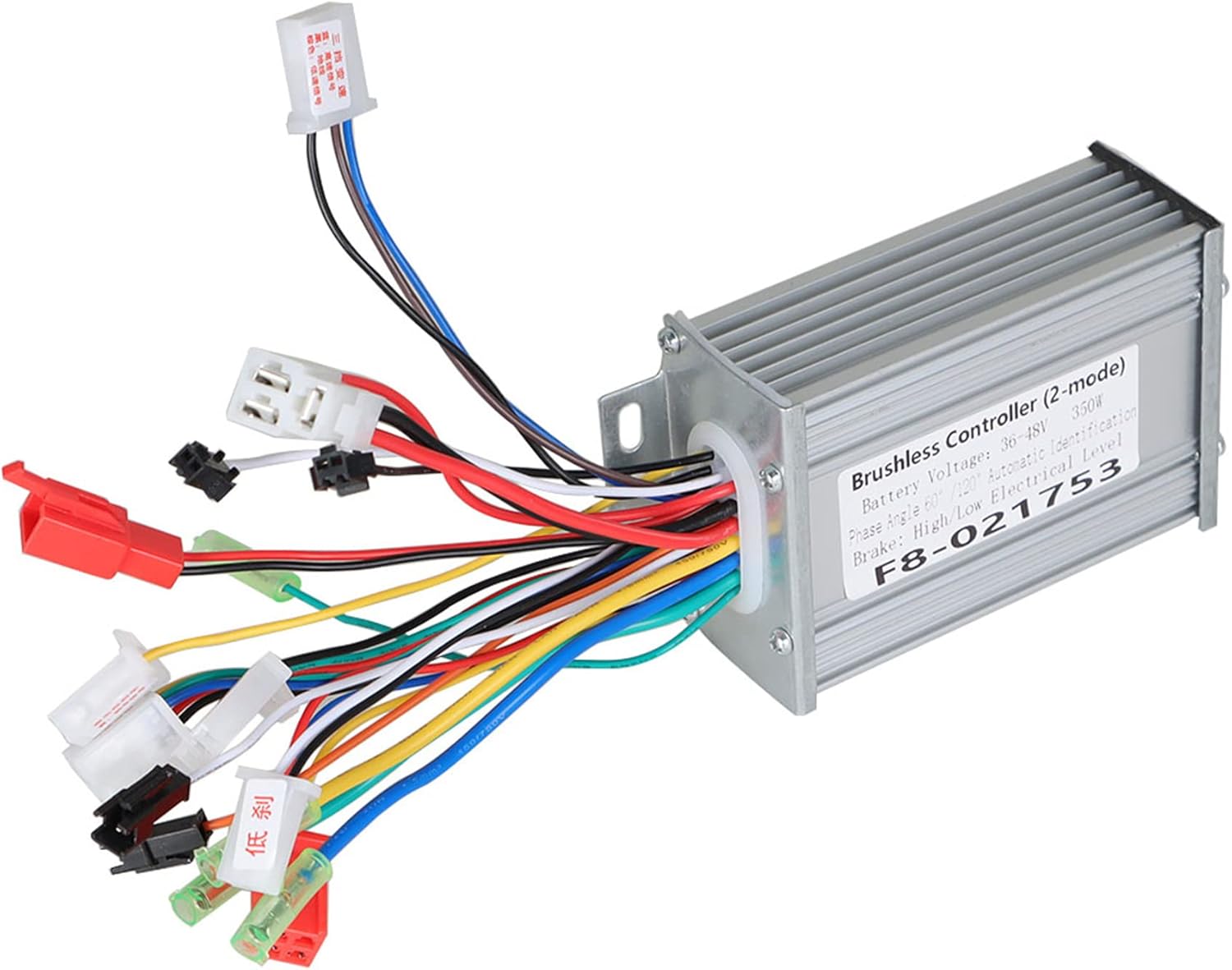

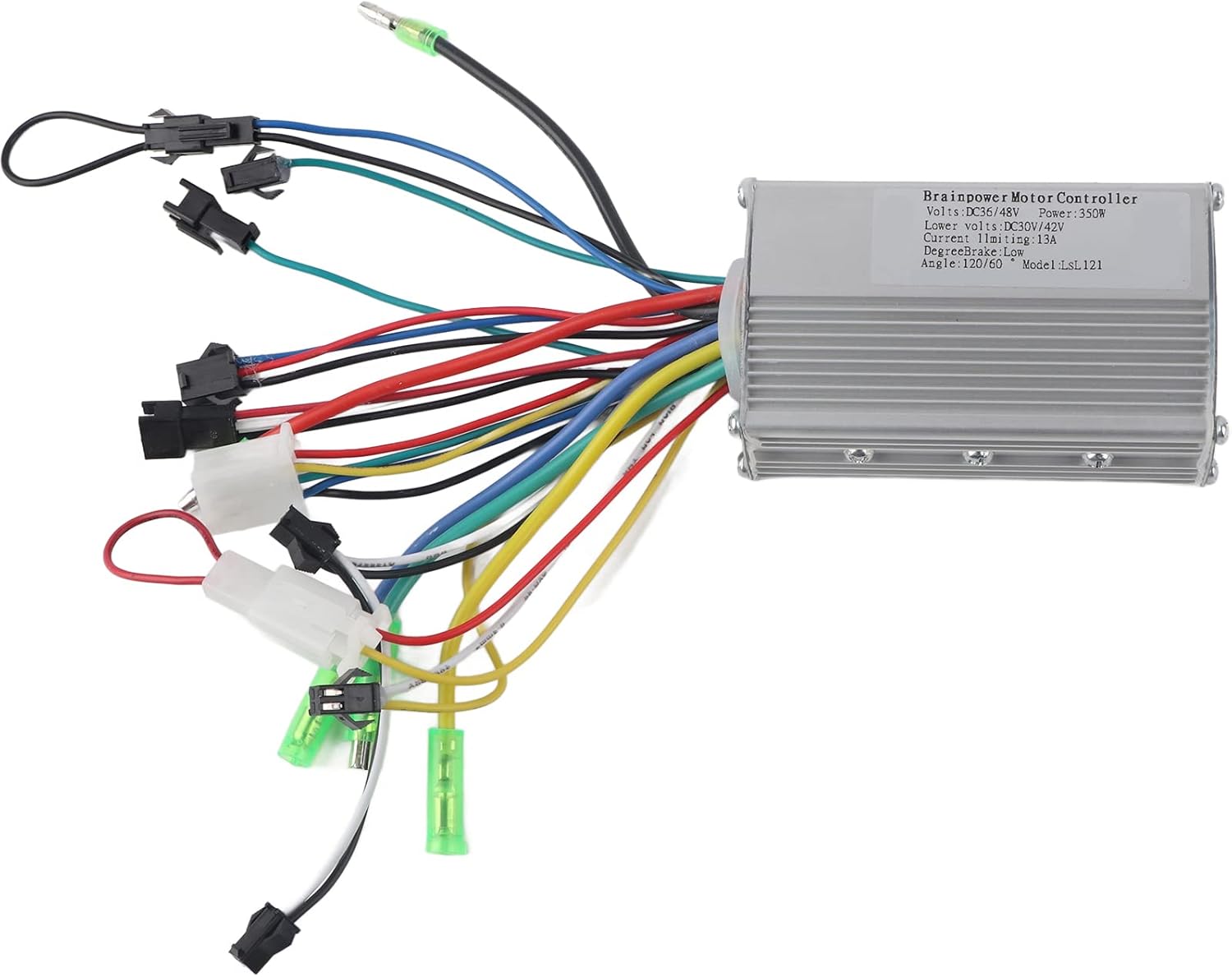

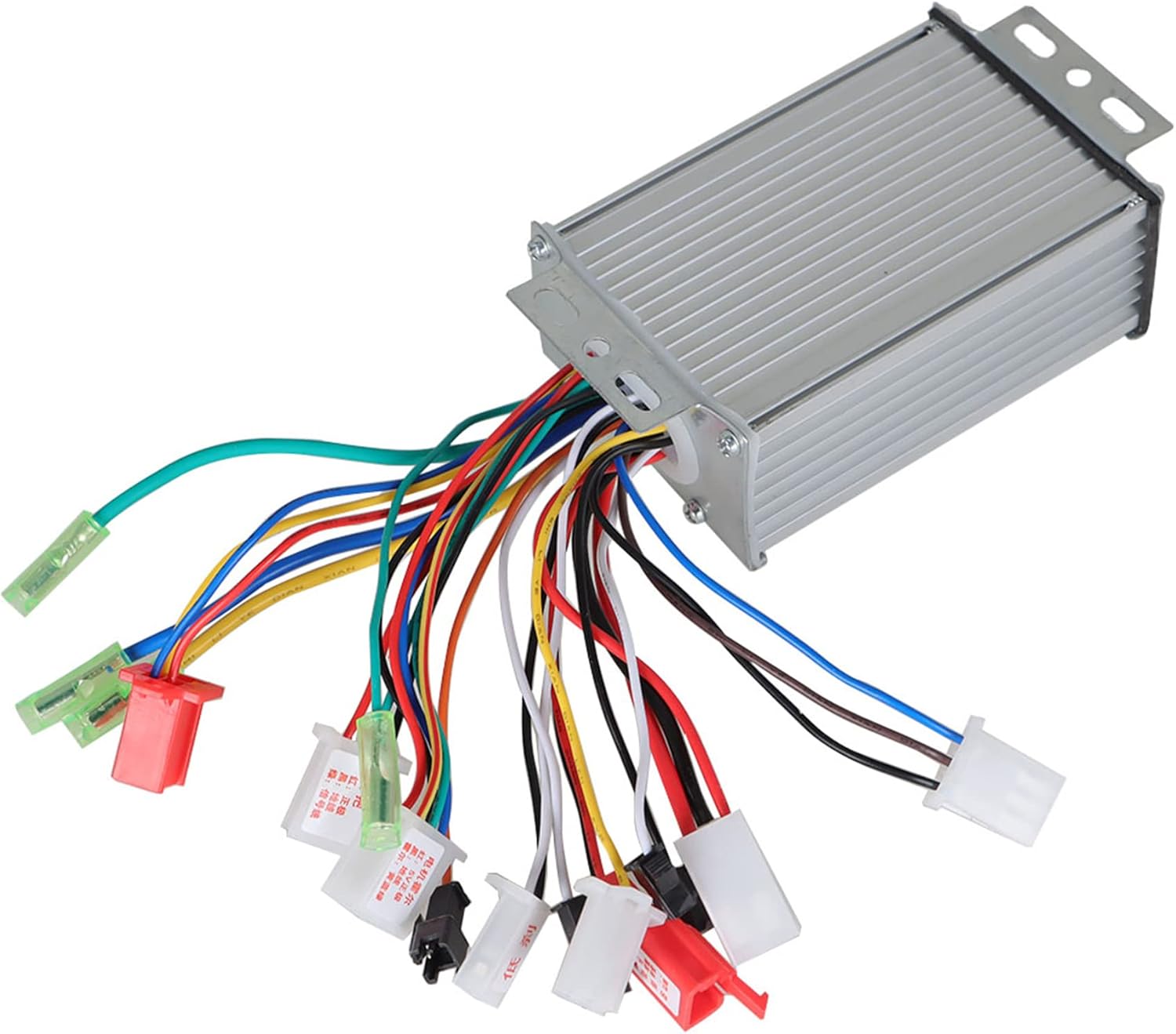

Specification:

Brand new

Color: Silver

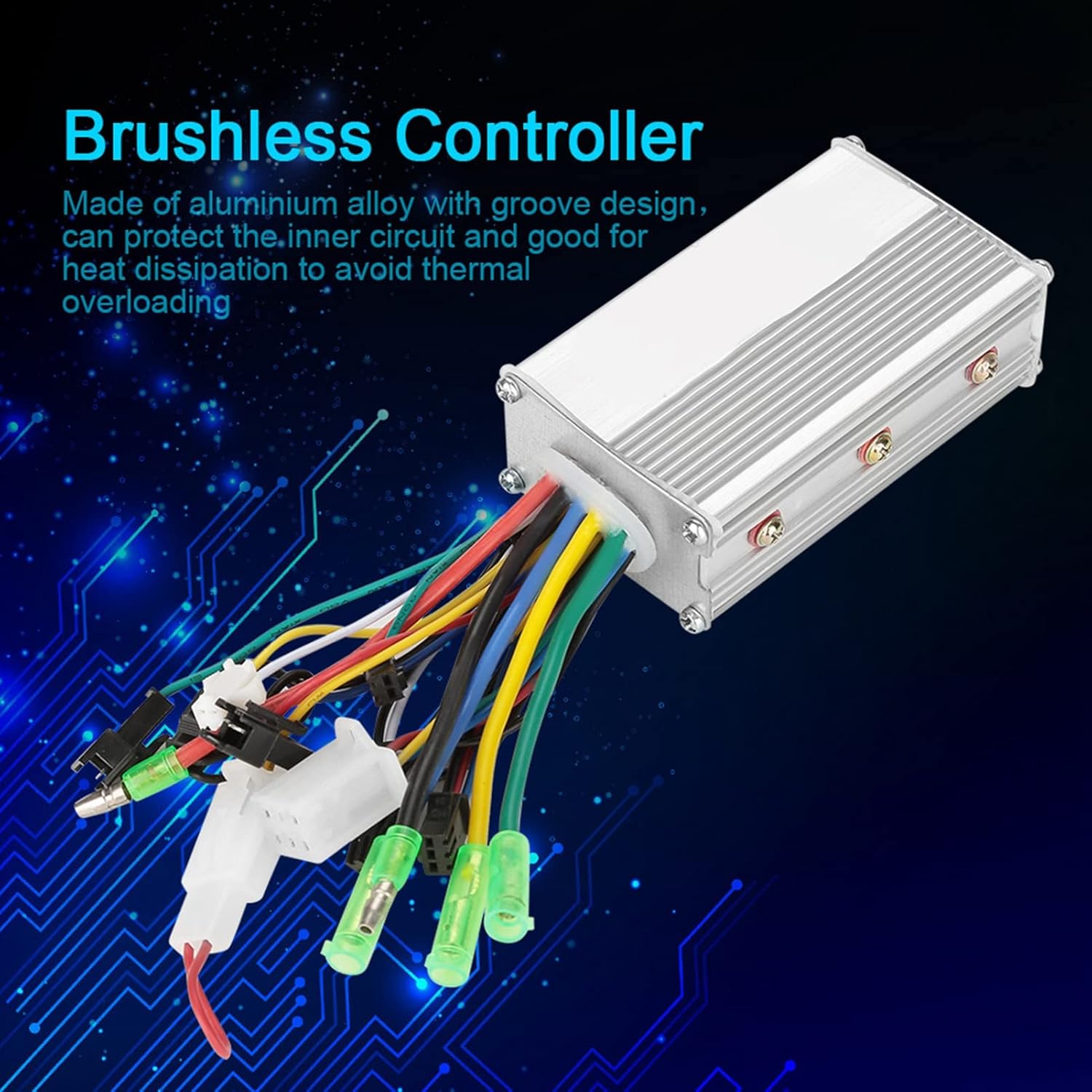

Casing material: Aluminium

Rated voltage: DC 36V/48V

Rated power: 350W(this model has no reversing function and is not suitable for LCD instrument)

Current: 16-18A

Applicable model: electric bicycle, electric scooter.

Size: total length * total width * total height about 135 * 72 * 38mm



Feature:

Anti-coaste, vercurrent protection.

Automatic identification the 36V and 48V .

Automatic identification the Hall sensor .

Automatic identification the Phase angle of 60 degrees and 120 degrees.

Low level brake.

High level brake.

Brushless motor controller.

Compact design for easy installation.

Durable in use.



Controller Installation Method:

First, confirm the positive and negative poles of the power supply. The positive and negative poles of the power supply must not be reversed. Other functional lines can try to connect until they are connected rightly.

1. The self-learning line is inserted first.

2. Connect the power cord and note that the positive and negative poles should not be reversed. Connect the electric door lock line, Hall line, phase line, and turn line.

3. When the power is turned on, the motor will rotate. After it has stabilized its rotation, if it is reversed, pulls off the self-learning line, and then it plugs in the self-learning line. It will rotate foreward. After it is stable, unplug the self-learning line is ok.

4. After the controller learns it well, pick up the features you have on your car, such as anti-theft, three-speed, power off, and power assistance.

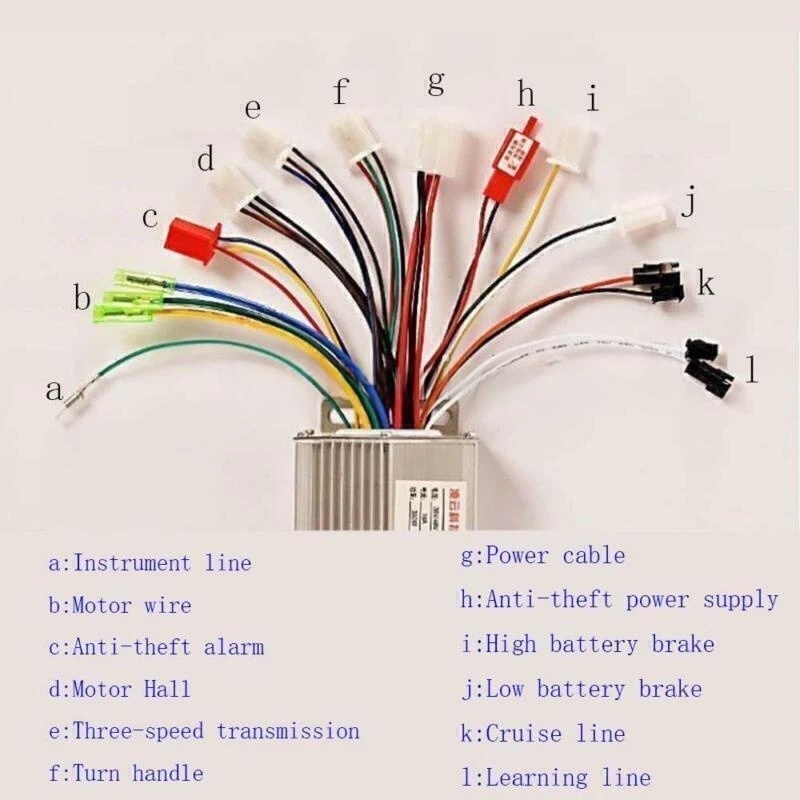

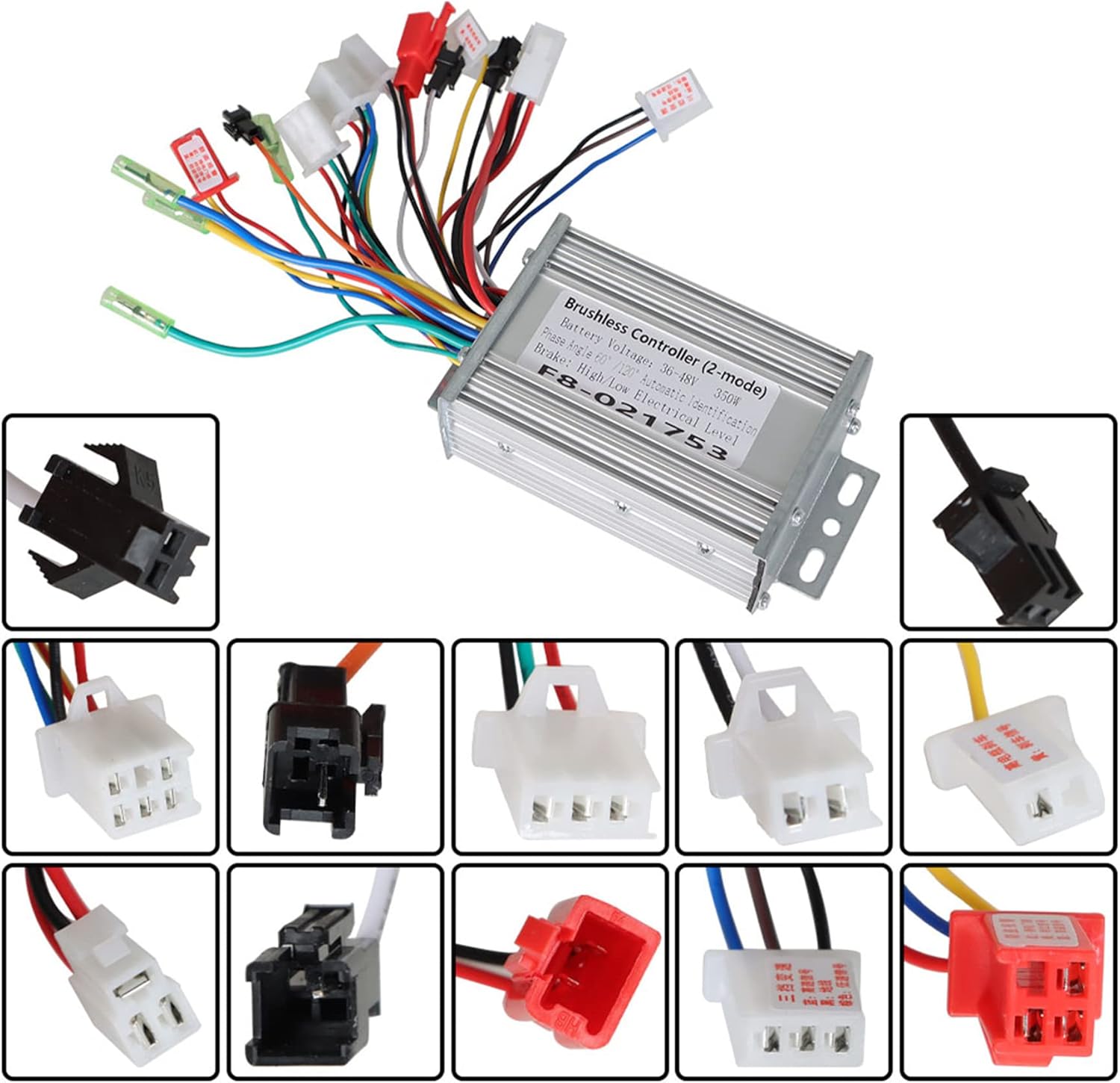

Matching of corresponding function lines：

Thick line: Yellow + Green + blue → connected to three motor wires

Thick line: Red + Black + Red → power supply positive and negative pole and switch locking wire

White line + white line → learning line

Thin five color line → hall line

Thin line: Red + Green + black → handle line

Thin line: White + black → low level brake

Fine yellow line → high level braking

Thin green line → instrument line

Thin orange line + thin black line → patrol route

Thin line: Blue + brown + black → connected to three speed line

Thin line: Red + black → anti theft power supply

Thin line: Red + Yellow + blue → anti theft signal



Package included:

1 x Brushless Motor Controller
