Product Description
The Quarq DZero XX1 Eagle Power Meter Crankset combines SRAM’s premium carbon XX1 Eagle crank arms with Quarq’s proven spider-based power measurement technology. Designed for performance-focused mountain bike riders, it delivers accurate training data while maintaining the stiffness, low weight, and chain retention expected from an XX1 Eagle drivetrain.

This configuration includes 170mm crank arms, a 32T X-SYNC 2 chainring, SRAM DUB spindle interface, and Boost compatibility. The DZero power meter measures power from both legs with claimed accuracy within ±1.5% and transmits ride data through both ANT+ and Bluetooth Low Energy.

Quarq’s MagicZero technology continuously checks and recalibrates the power meter while riding, reducing the need for manual zero-offset procedures. Built-in 10K Temperature Compensation helps maintain consistent readings as conditions change.

Key Features

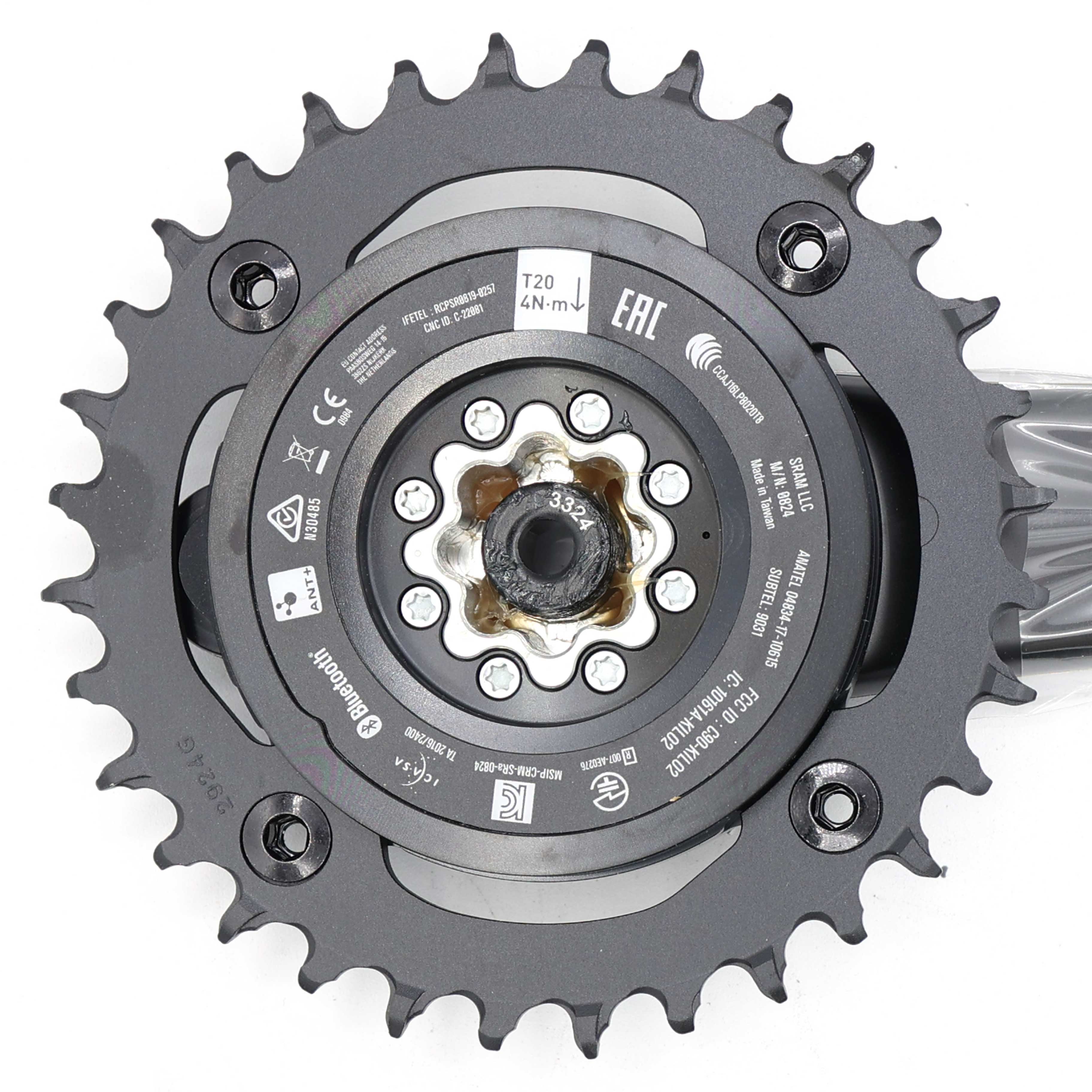

• Quarq DZero spider-based power meter
• SRAM XX1 Eagle carbon mountain bike crankset
• 170mm crank length

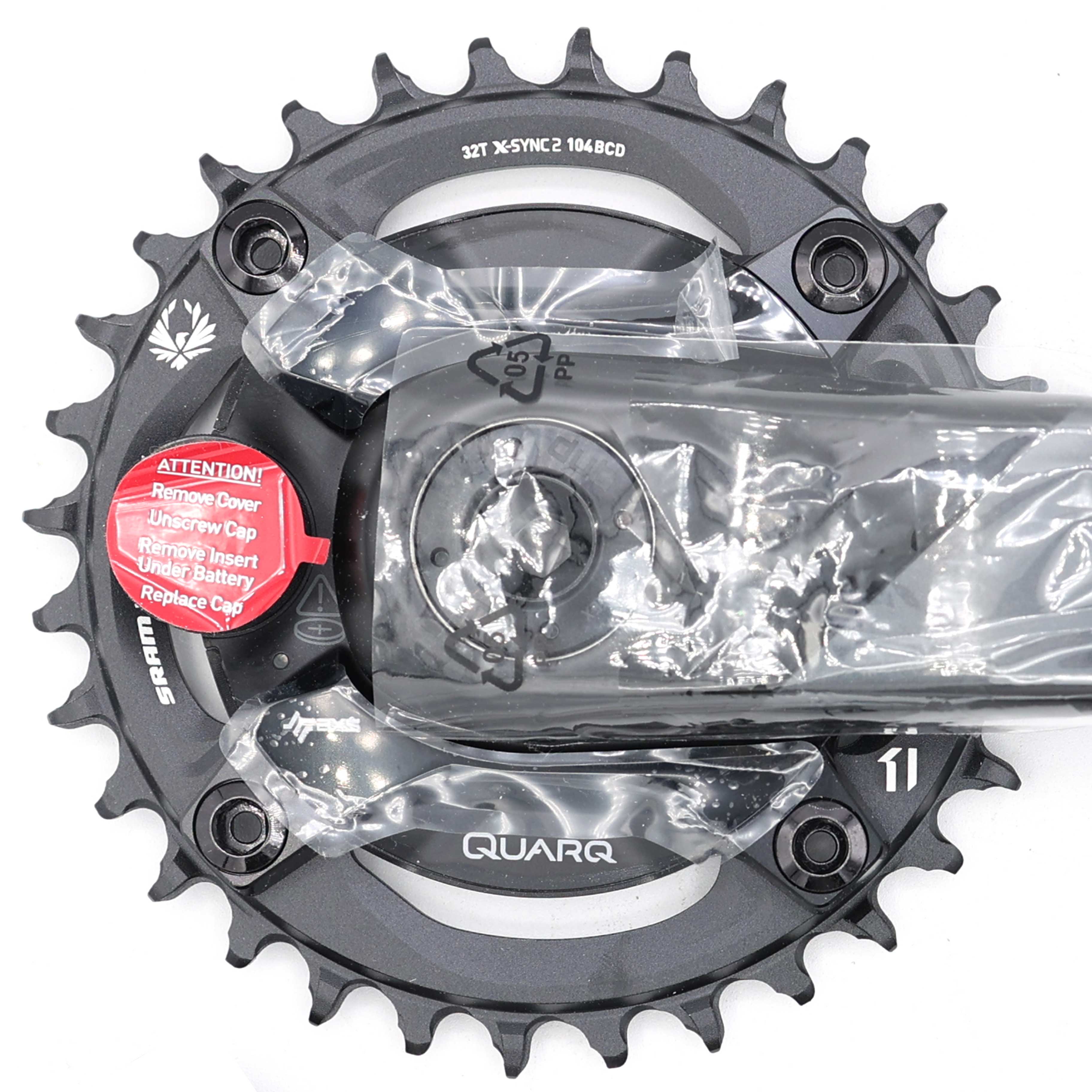

• Included 32T X-SYNC 2 chainring
• Designed for compatible Boost mountain bike applications
• SRAM DUB spindle interface
• Measures total power from both legs
• Claimed accuracy within ±1.5%
• ANT+ and Bluetooth Low Energy connectivity
• MagicZero automatic calibration
• 10K Temperature Compensation
• No cadence magnet required
• User-replaceable CR2032 battery
• Up to 200 hours of claimed battery life
• Chainrings can be changed without affecting power-meter accuracy
• Designed for SRAM Eagle 1x12 drivetrains

Specifications

• Brand: Quarq / SRAM
• Model: DZero XX1 Eagle Power Meter
• Product Type: MTB Power Meter Crankset
• Crank Length: 170mm
• Chainring: 32T X-SYNC 2
• Drivetrain Configuration: 1x12
• Spindle Interface: SRAM DUB
• Hub / Frame Configuration: Boost
• Chainring Mount: 104mm 4-Bolt
• Power Measurement: Spider-Based, Both Legs
• Claimed Accuracy: ±1.5%
• Connectivity: ANT+ / Bluetooth Low Energy
• Calibration: MagicZero Automatic Calibration
• Temperature Compensation: 10K
• Battery: CR2032
• Claimed Battery Life: Up to 200 hours
• Color: Black
• Manufacturer Part Number: 00.3018.293.170

Power Meter Technology

MagicZero
Automatically checks and recalibrates the power meter while riding, helping maintain accurate readings without frequent manual calibration.

10K Temperature Compensation
Helps compensate for temperature changes to maintain consistent power data across varying riding conditions.

ANT+ and Bluetooth
Connects to compatible cycling computers, smartphones, watches, and indoor training applications.

Compatibility
Designed for compatible mountain bikes requiring:

• SRAM DUB crank spindle interface
• Appropriate Boost crank and frame configuration
• SRAM Eagle-compatible 1x drivetrain
• 170mm crank length
• Compatible 32T chainring and frame clearance

A compatible SRAM DUB bottom bracket is required. Bottom bracket type must match the bicycle frame’s bottom bracket standard.

Please confirm frame clearance, bottom bracket standard, spindle configuration, chainline, drivetrain compatibility, and crank length before purchase.

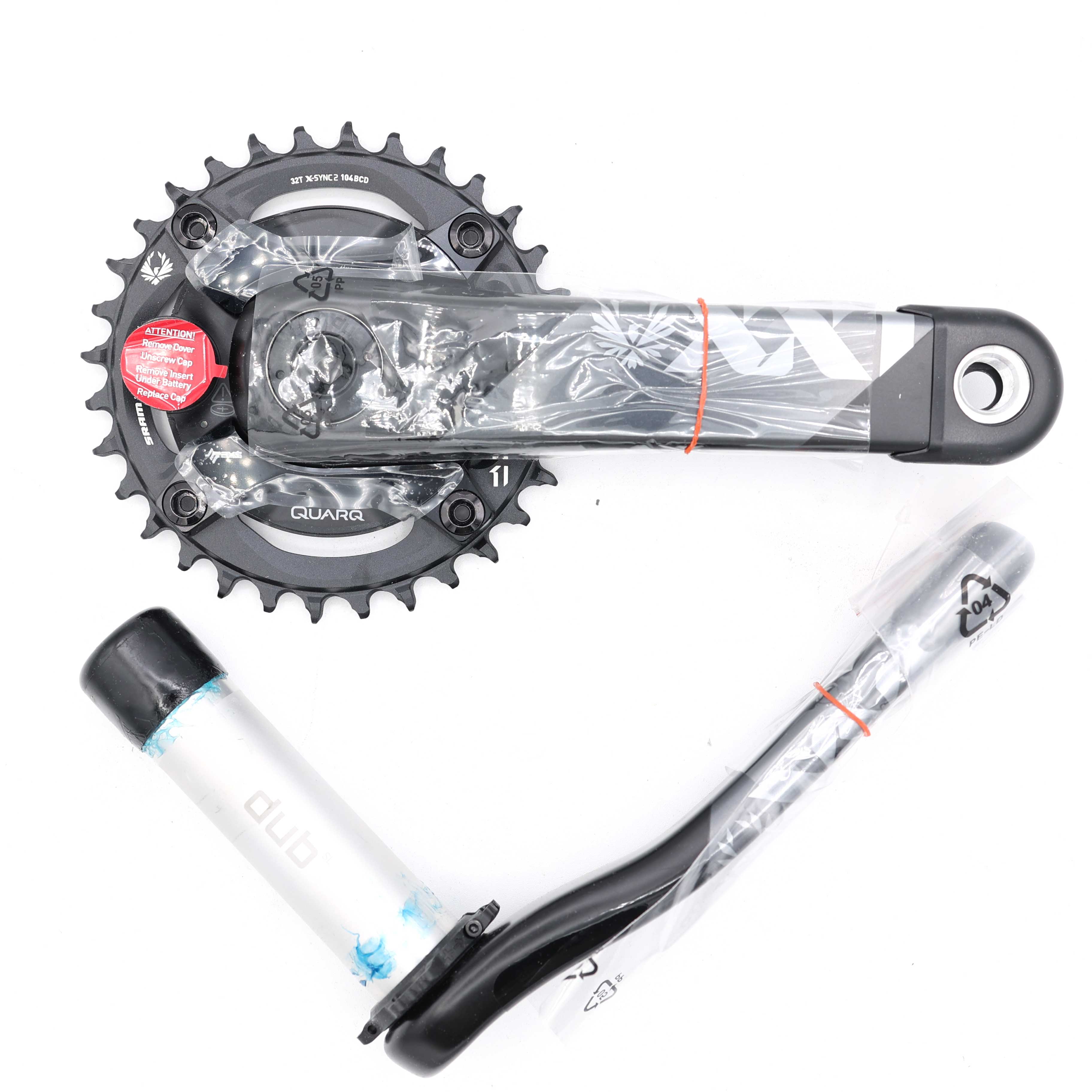

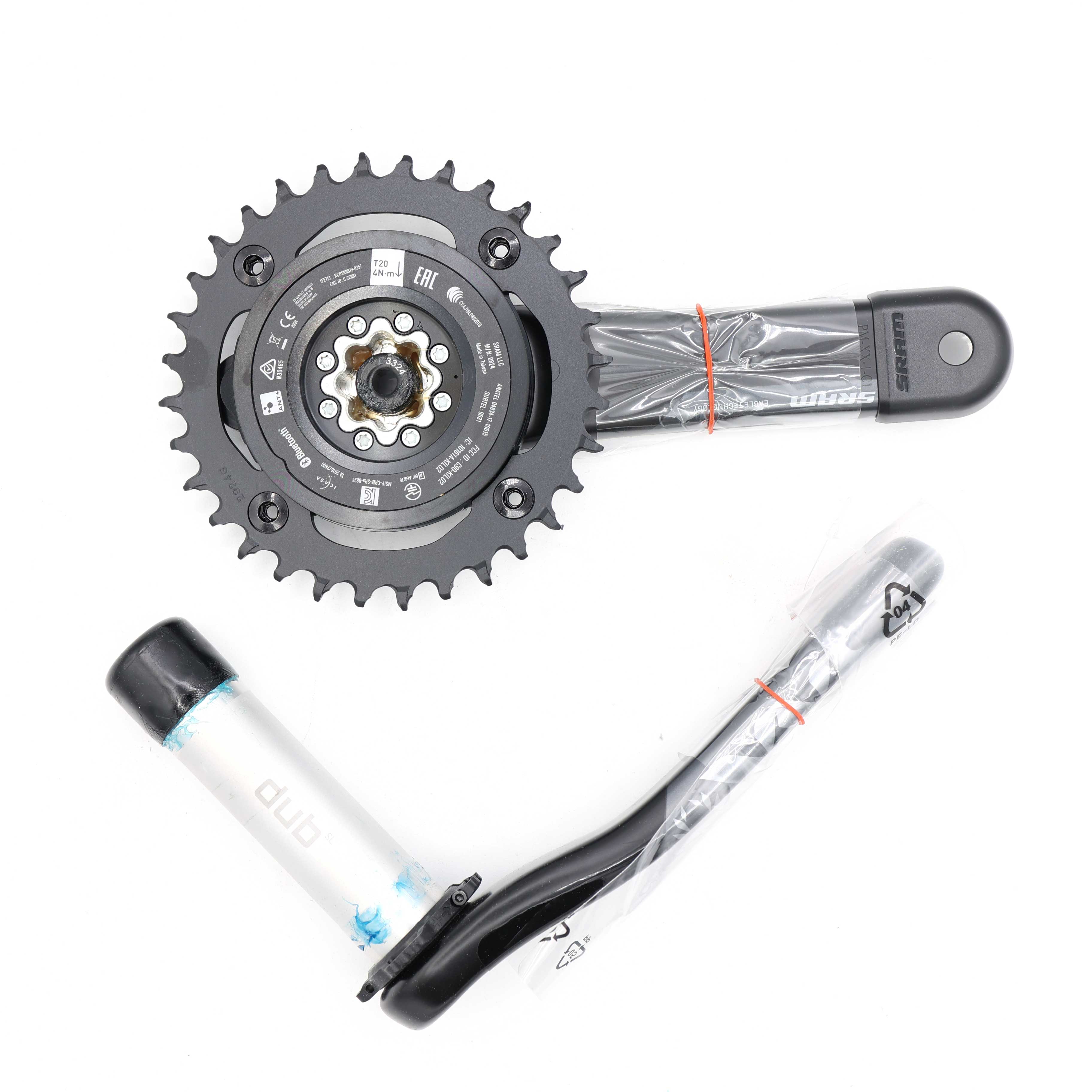

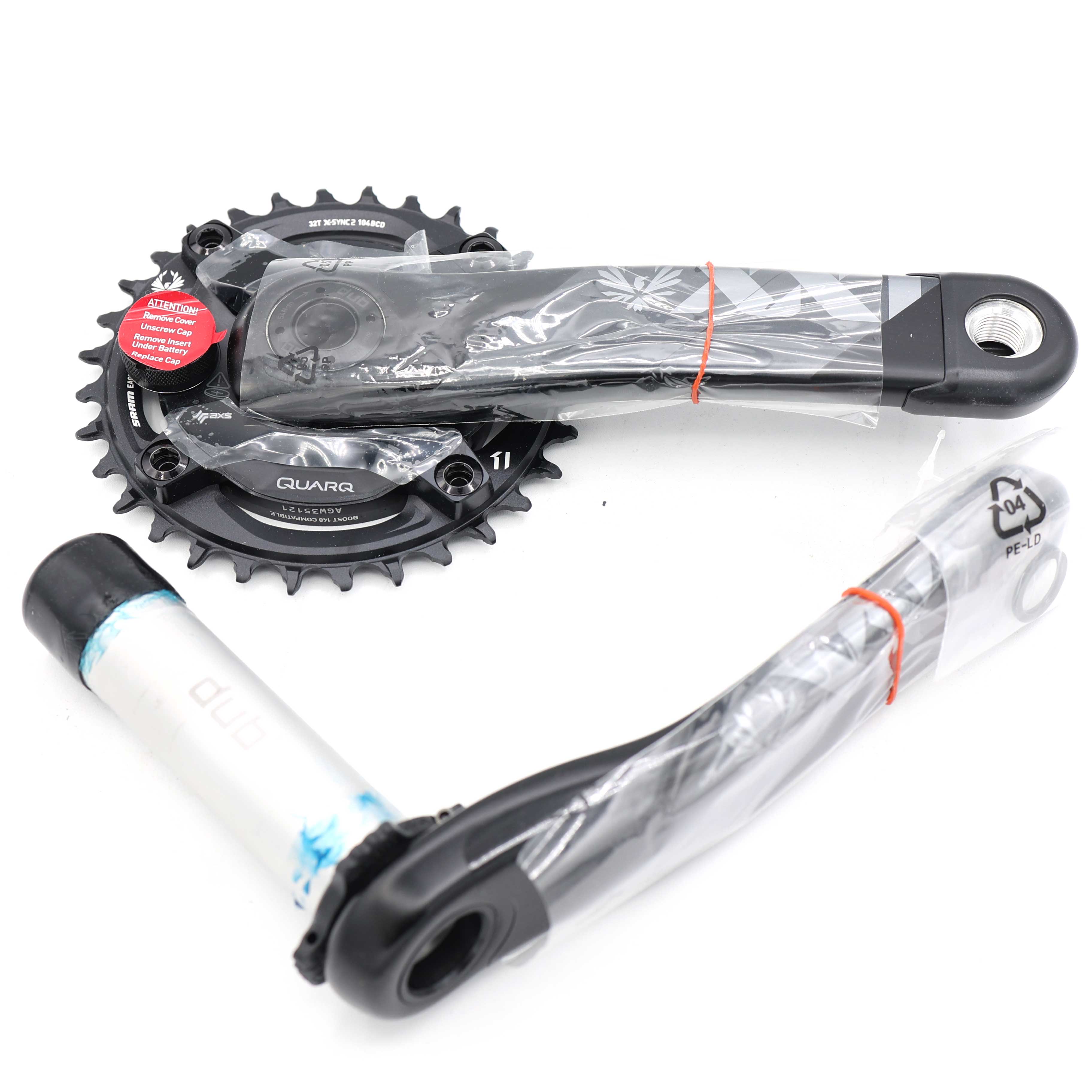

Included

• Quarq DZero power meter spider
• SRAM XX1 Eagle 170mm crankset
• 32T X-SYNC 2 chainring
• Includes only what is pictured and described

Warranty and Notes

• Genuine SRAM and Quarq product
• Bottom bracket must be selected separately to match the frame
• Chainring changes do not require power-meter recalibration when using compatible components
• Professional installation and drivetrain setup are recommended
• Pairing, firmware updates, and setup may be completed through compatible Quarq/SRAM applications and cycling computers

Condition

• New
• Genuine SRAM / Quarq product
• Includes only what is pictured and described
