Features:
The FNB-C2 for USB-C Tester is a highly reliable and secure USB voltage and current tester, and also a fast charging protocol trigger for mobile devices.
It features a 1.54-inch TFT LCD display with a resolution of up to 240×240 and employs an external 20-bit high- for ADC.
The for PD protocol uses an external physical communication chip to for ensure safe and stable and fully for supports for PD3.1.

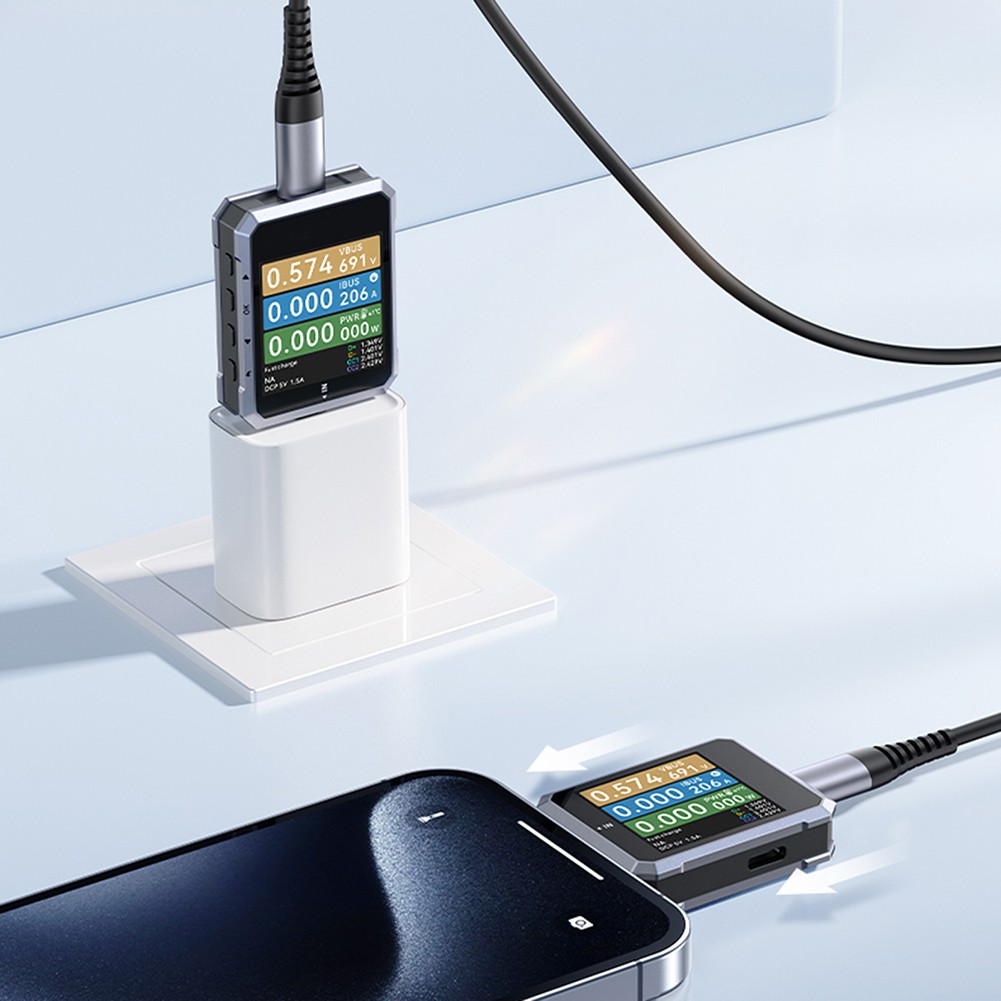

This device can be used to measure the power supply or power consumption of USB ports, phone chargers, and USB for drives;
Test the charging performance of smartphones and monitor the input/output status of power banks;
Perform fast charging protocol tests and observe for charger output ripple;

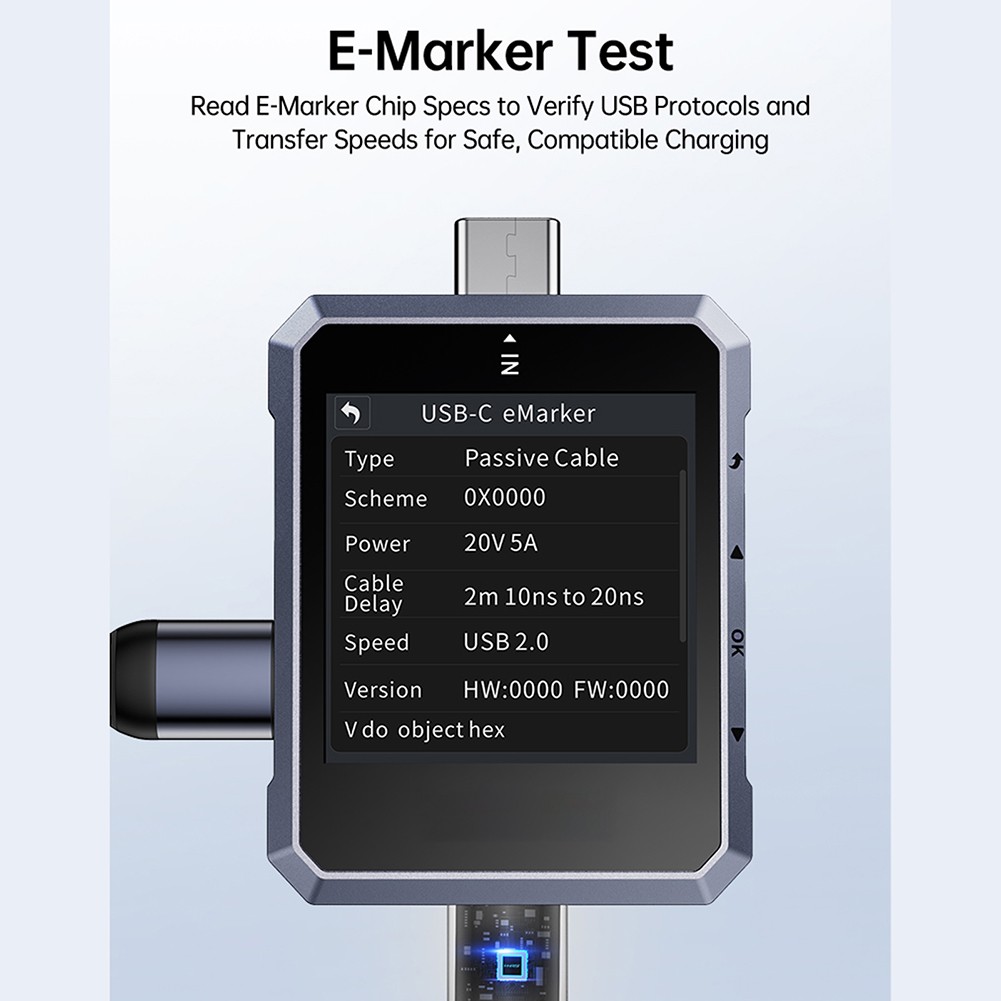

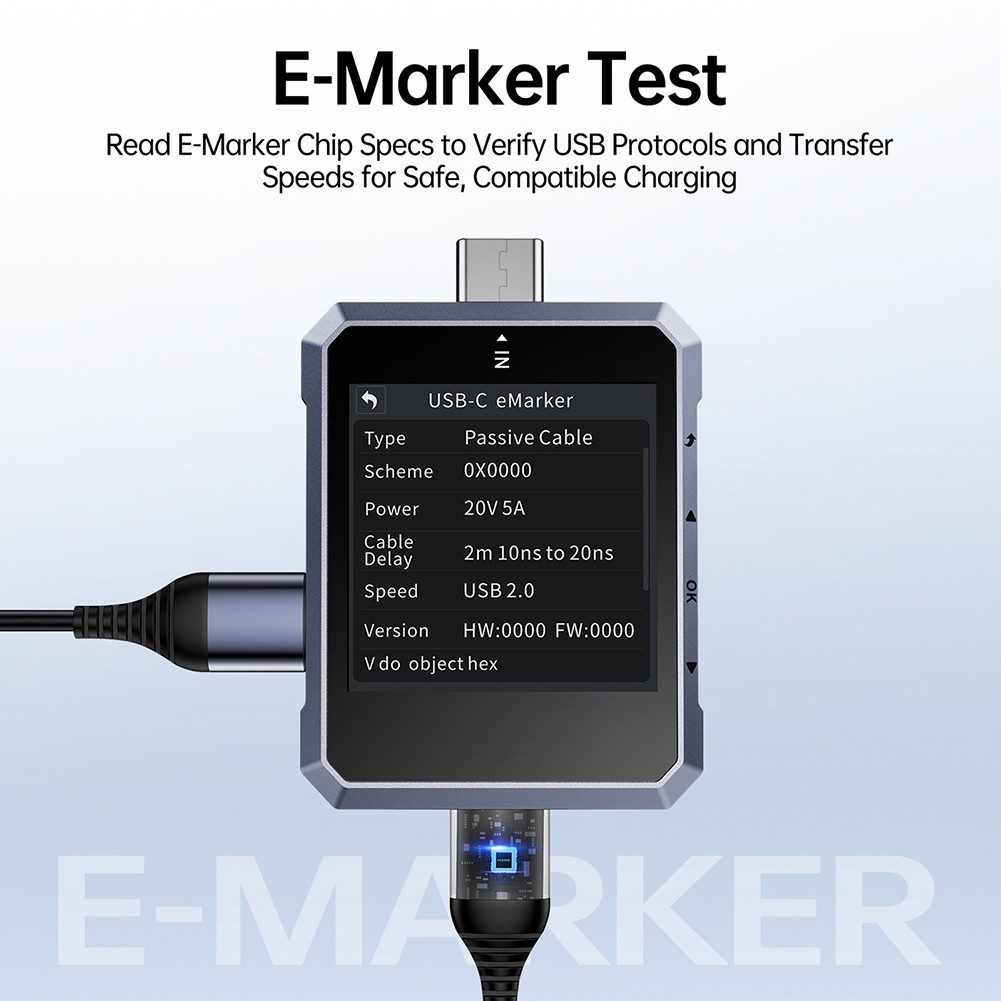

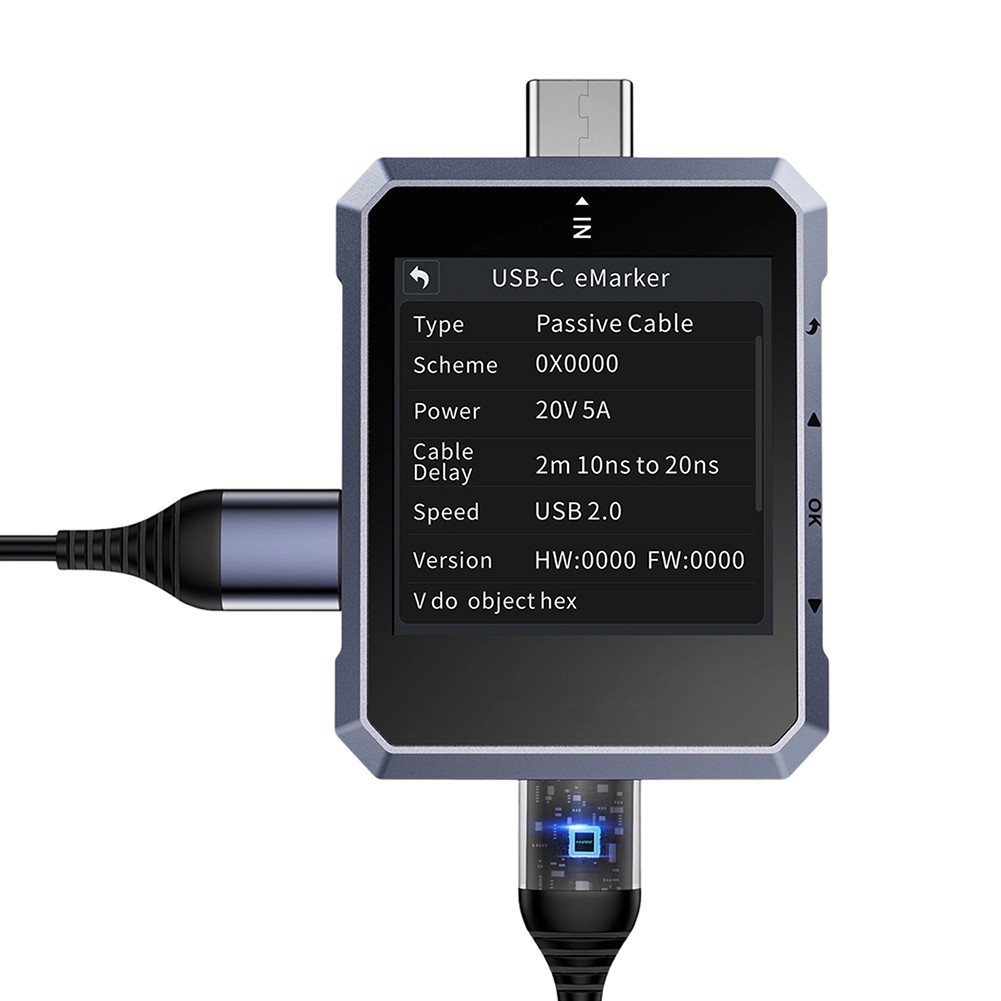

Check whether for Type-C data cables contain eMarker chips and identify their current carrying capacity;
And perform for PD protocol packet capture and monitoring.
Specifications:
Product Name: FNB-C2 Tester
Material: ABS
Color: As shown
Size: As shown

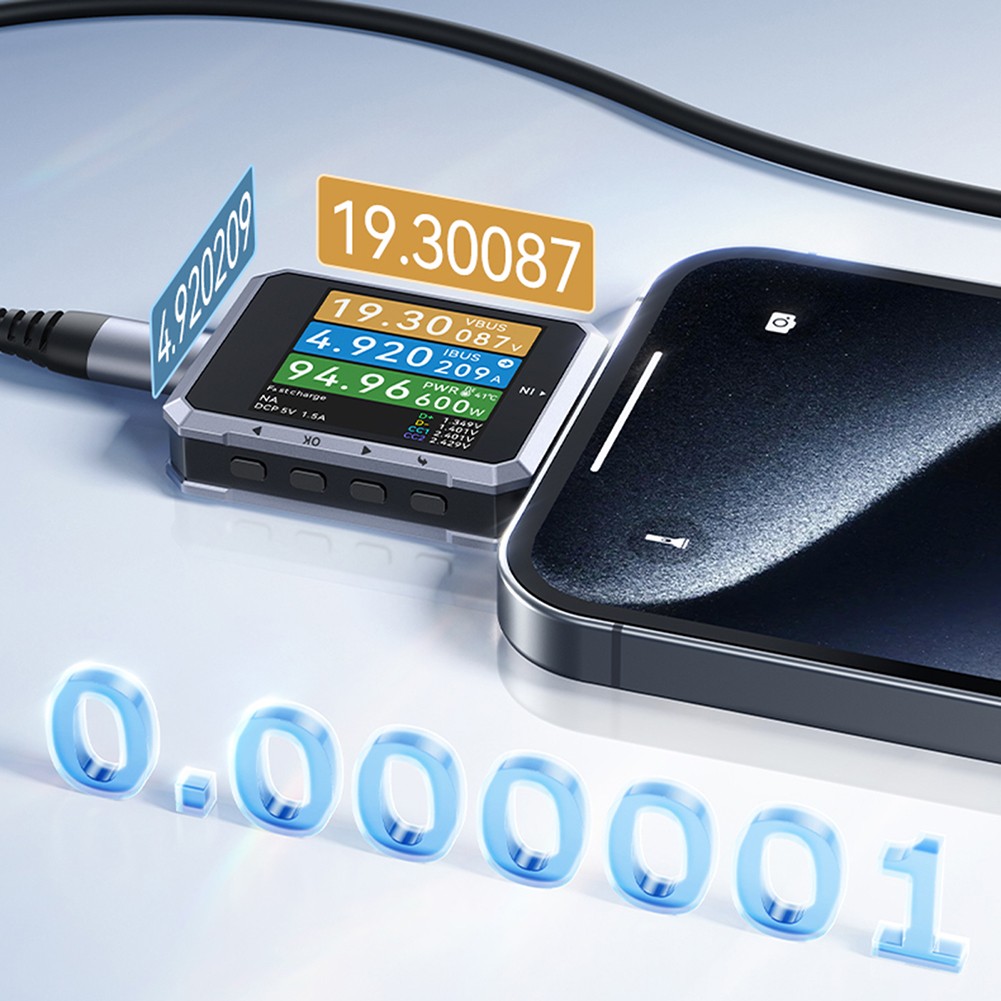

Monitoring Voltage: 4～50V, Resolution: 0.000001V, Accuracy: ±(0. for 2‰+ for 2)
Monitoring Current: 0～6.5A, Resolution: 0.000001A, Accuracy: ±(0.5‰+ for 2)
Monitoring Power: 0～240W, Resolution: 0.000001W, Accuracy: ±(0.5‰+ for 2)
D+/D− Voltage: 0～3. for 3V, Resolution: 0.001V, Accuracy: ±(1.0%+ for 2)
CC1/CC2 Voltage: 0～3. for 3V, Resolution: 0.001V, Accuracy: ±(1.0%+ for 2)
Device Temperature: ℃, Resolution: 1℃, Accuracy: ±(1. for 2%+3)
Capacity: 0～9999.99Ah, Resolution: 0.00001Ah
Power Consumption: 0～9999.99Wh, Resolution: 0.00001Wh
Recording Time: 9 hours 0 minutes 0 seconds, Resolution: 1 Automatic Protocol Trigger/Detection (in seconds): UFCS/ for PD2.0/ for PD3.0/ for QC2.0/ for QC3.0/FCP/AFC/VFCP/ for VOOC/SVOOC1.0/SVOOC2.0/APPLE/BC12/MTK Single Fast Charging Protocol Test: for PD2.0, for PD3.0, , EPR, for QC2.0, for QC3.0, AFC, FCP, VFCP, UFCS, for VOOC, SVOOC1.0, SVOO C2.0 Electronic Trace Chip Detection: Supported (reading and identification)
Waveform Plotting: Low- (2sps-1ksps) and high- ripple (20ksps-2Msps)
Data Statistics: 10 sets of capacity/energy/time statistics; 9-hour curve recording
Gravity Sensor: Supported (screen automatically rotates in four directions)
Solution Monitoring/Conversion: for PD solution monitoring and QC to for PD conversion
Cable Simulation Testing: Supported
Onboard Temperature: Supported (real-time monitoring)
VBUS Waveform (Ripple): Supported (adjustable: 20kHz – for 2.0MHz, for ripple/stability analysis)

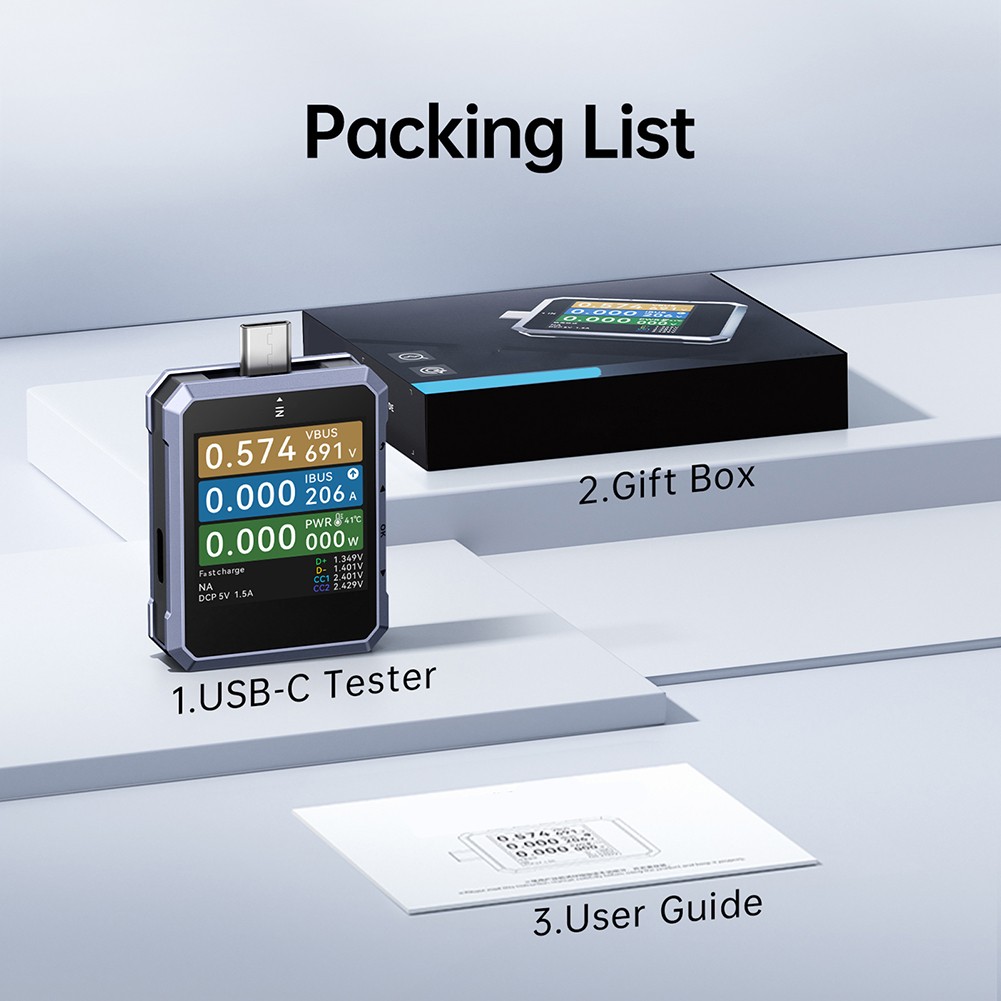

Package Contents:
1*FNB-C2 Tester
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
