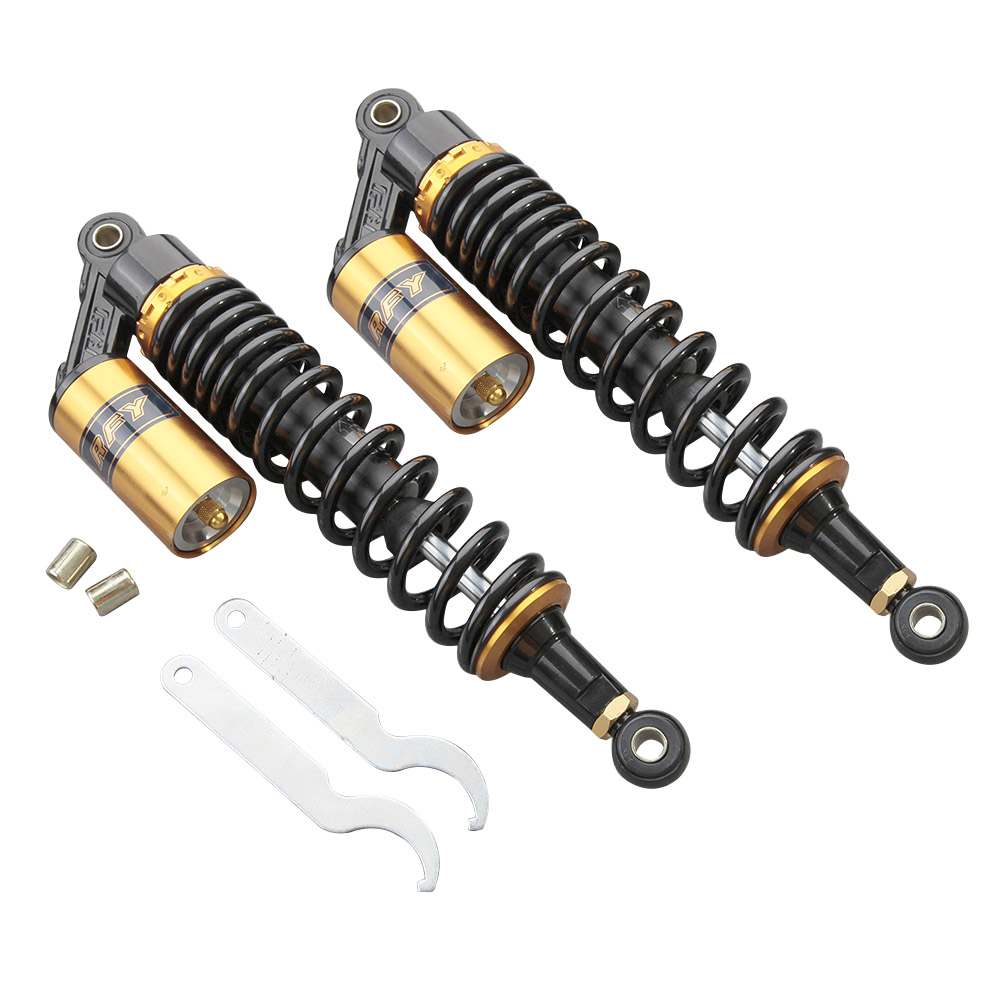

2x 3/4" 400mm Shock Absorbers For Suzuki Yamaha 450 Raptor 700 660 ATV Gold
Condition: Brand new/Never used
Color: As picture show
Material: Solid Steel+Aluminium Alloy
Installation Type: Eye to Eye (please contact us and pay more USD 15 if you need a clevis adapter,we will ship adapter from China)
Fitment: Universal Fit. Work perfectly on most 150cc~750cc street bikes, Scooters and Moped (ATV) with shocks of 400mm eye to eye distance. Great choice for replacement, style upgrading and all kinds of bike modification. **Please check below dimension before bidding.
Dimension:
Total Length: 430mm (17")
Length of Eye to Eye Core: 400mm (15 3/4")
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 8mm
Spring Width: 60mm
Working Stroke: 68mm
Spring Stiffness: 110 kg
Maximum load: 300 kg (≈660 lbs)
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
Fitting manual is not included. installed by qualified mechanic is recommended.Packaged Included: 1 Pair Shock Absorbers
