Product Description

Please Note:

This item located in Czech Republic and only shipped to European countries,

If you need to return the item for some reasons, please contact us via eBay message firstly to get the RMA#,and return address instead of sending iit back directly without permission,thank you!

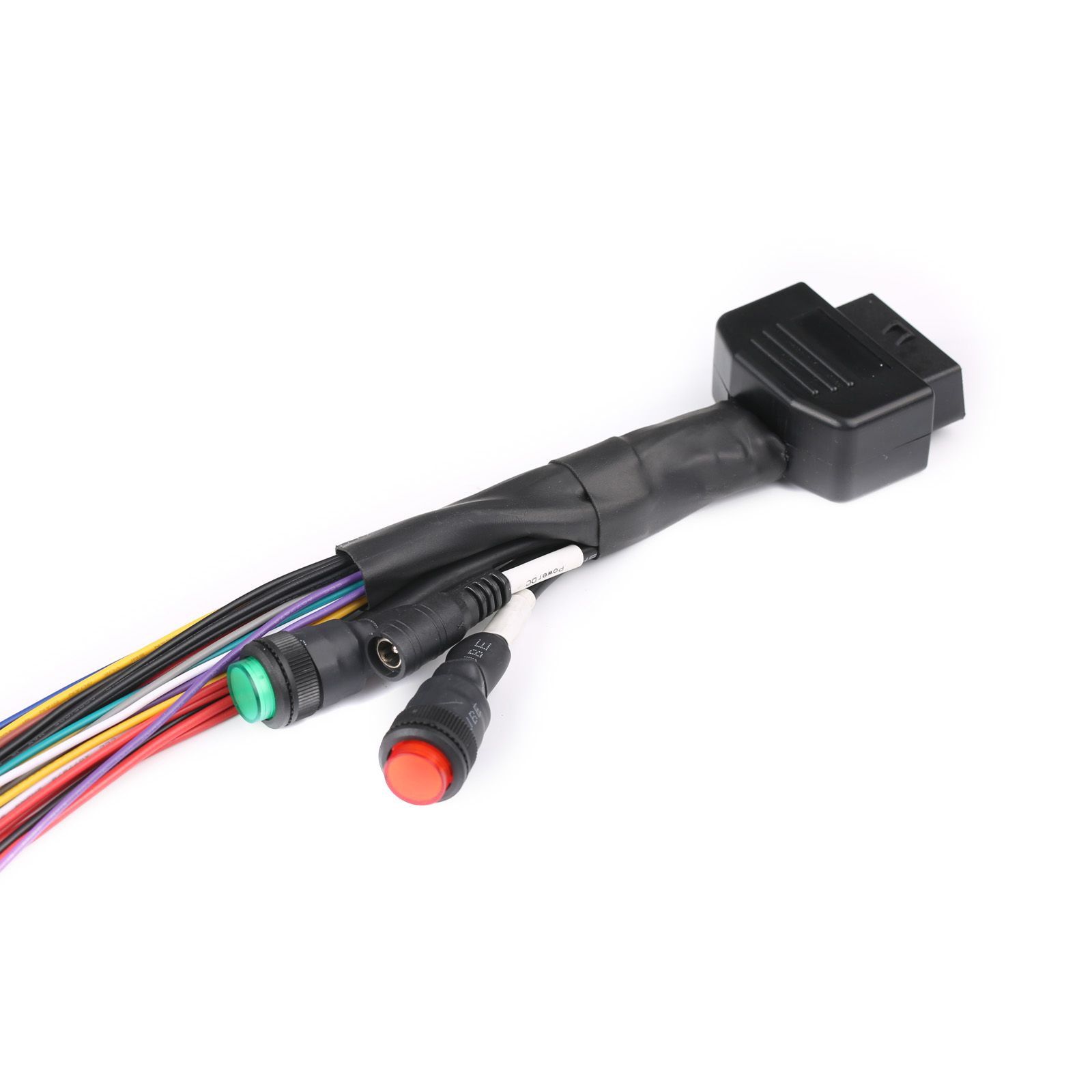

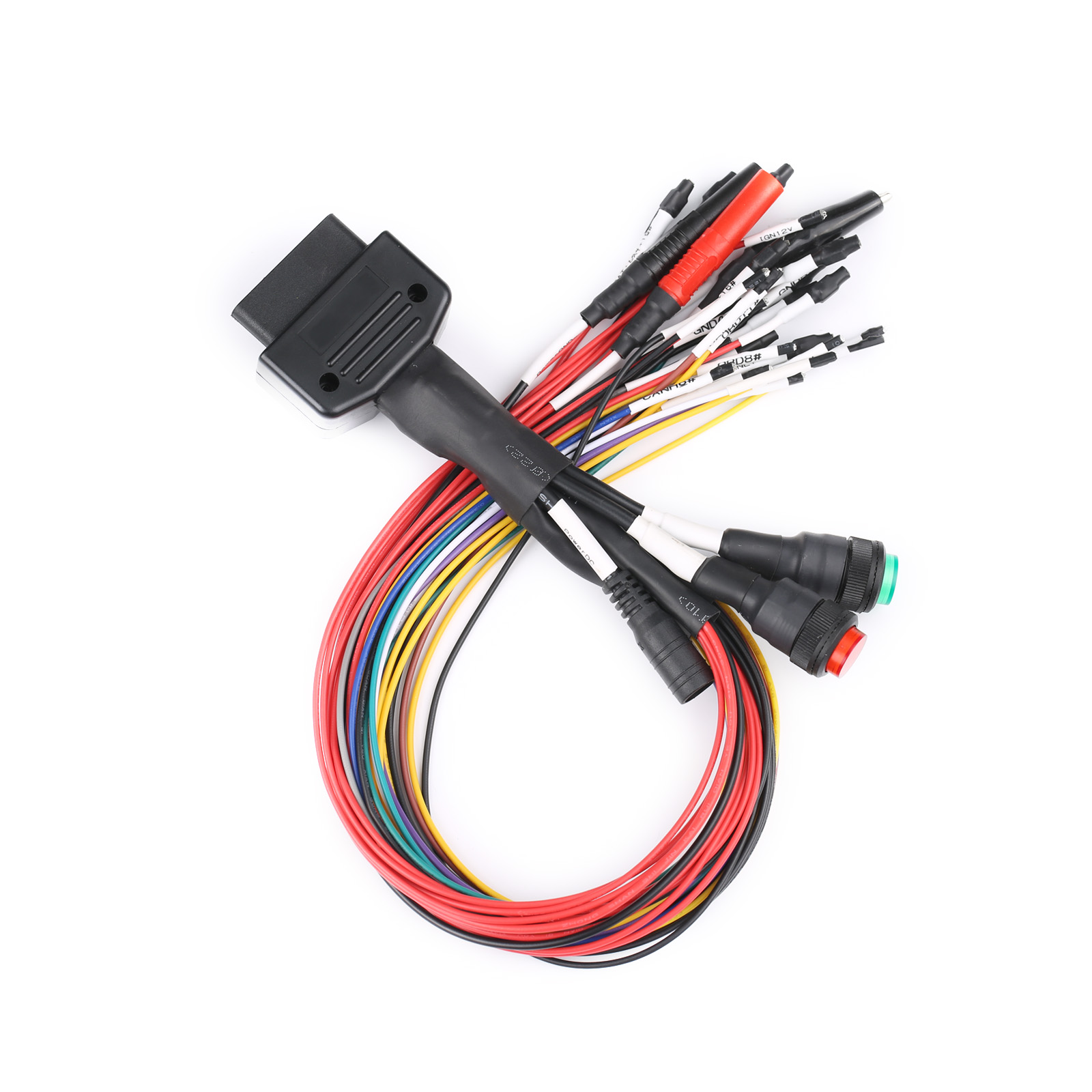

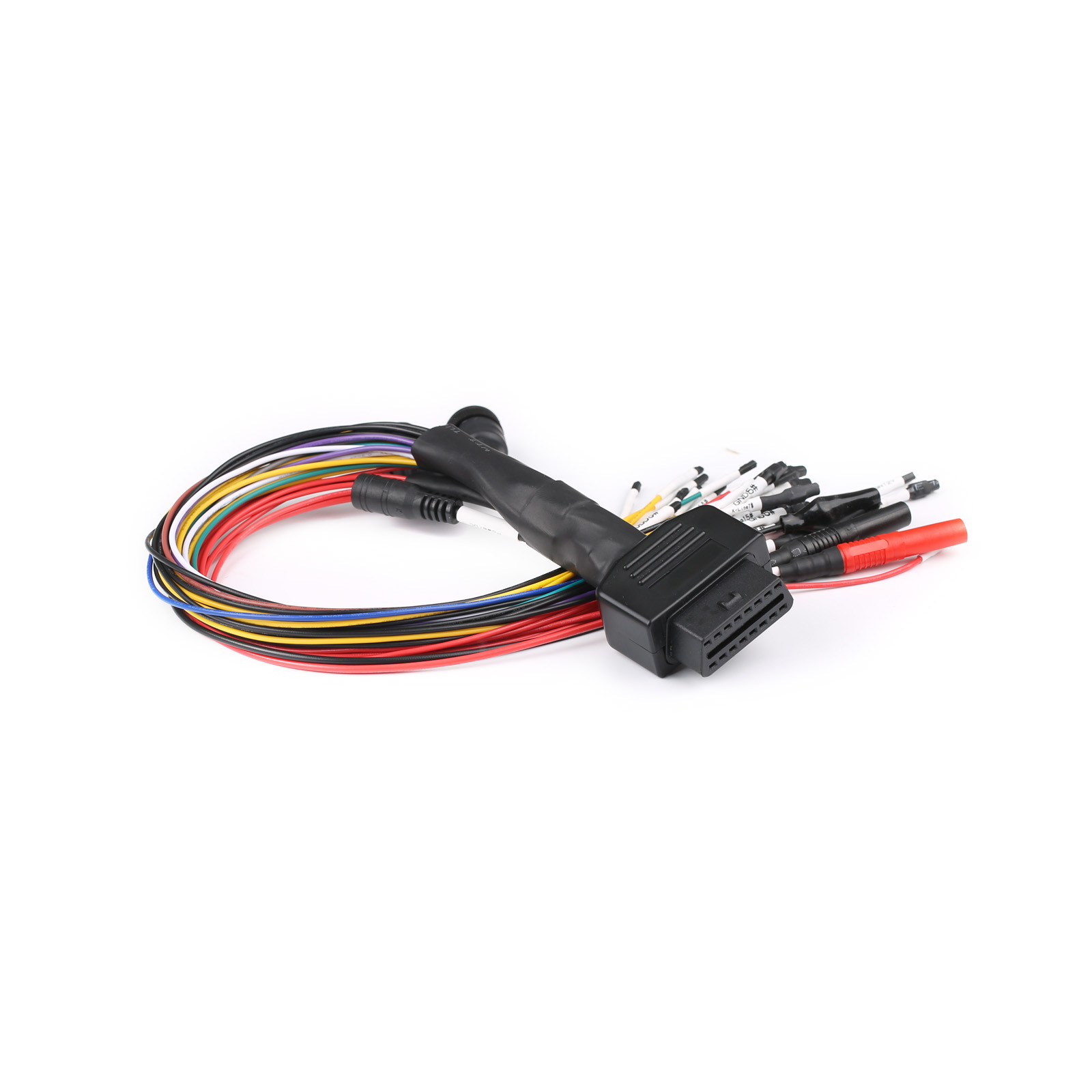

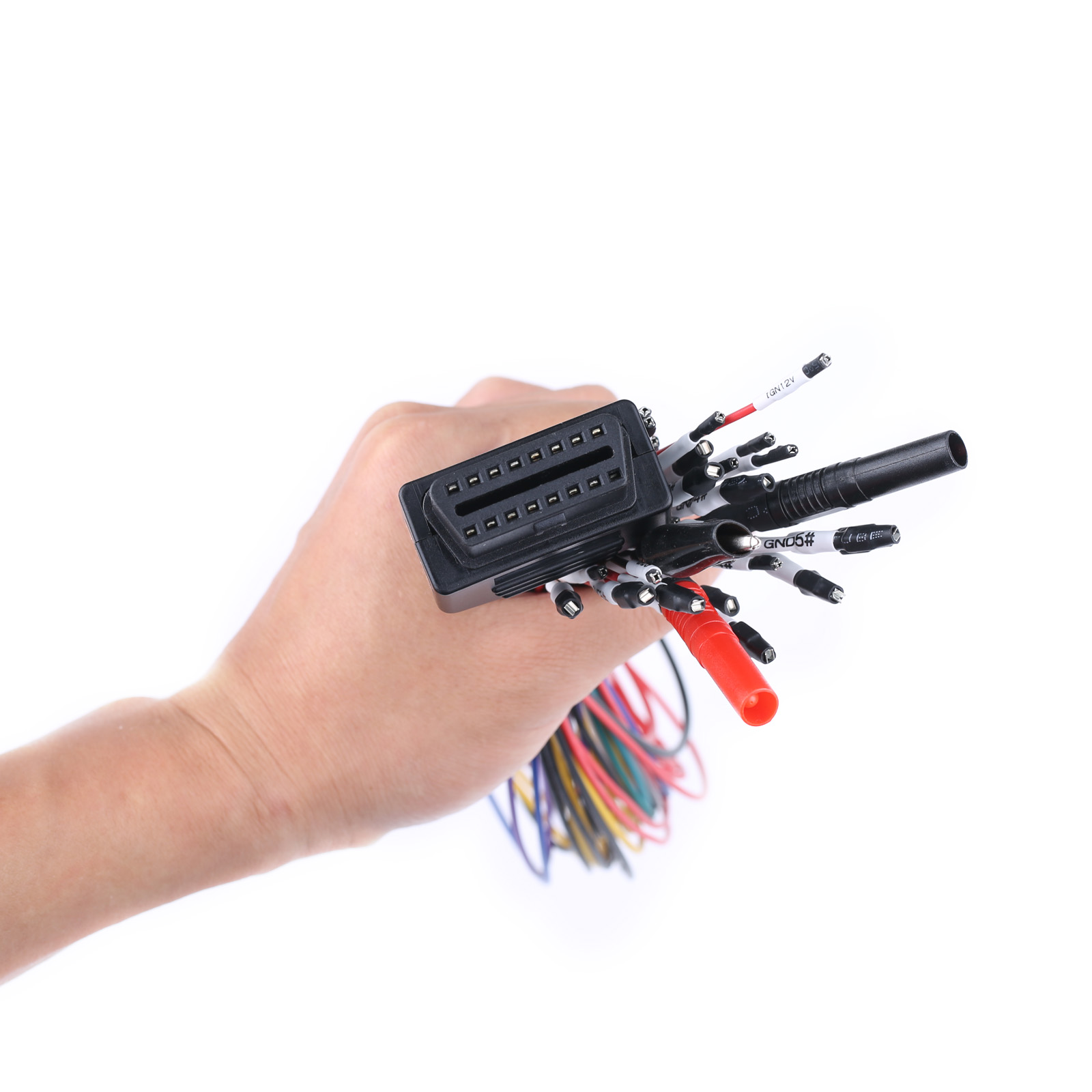

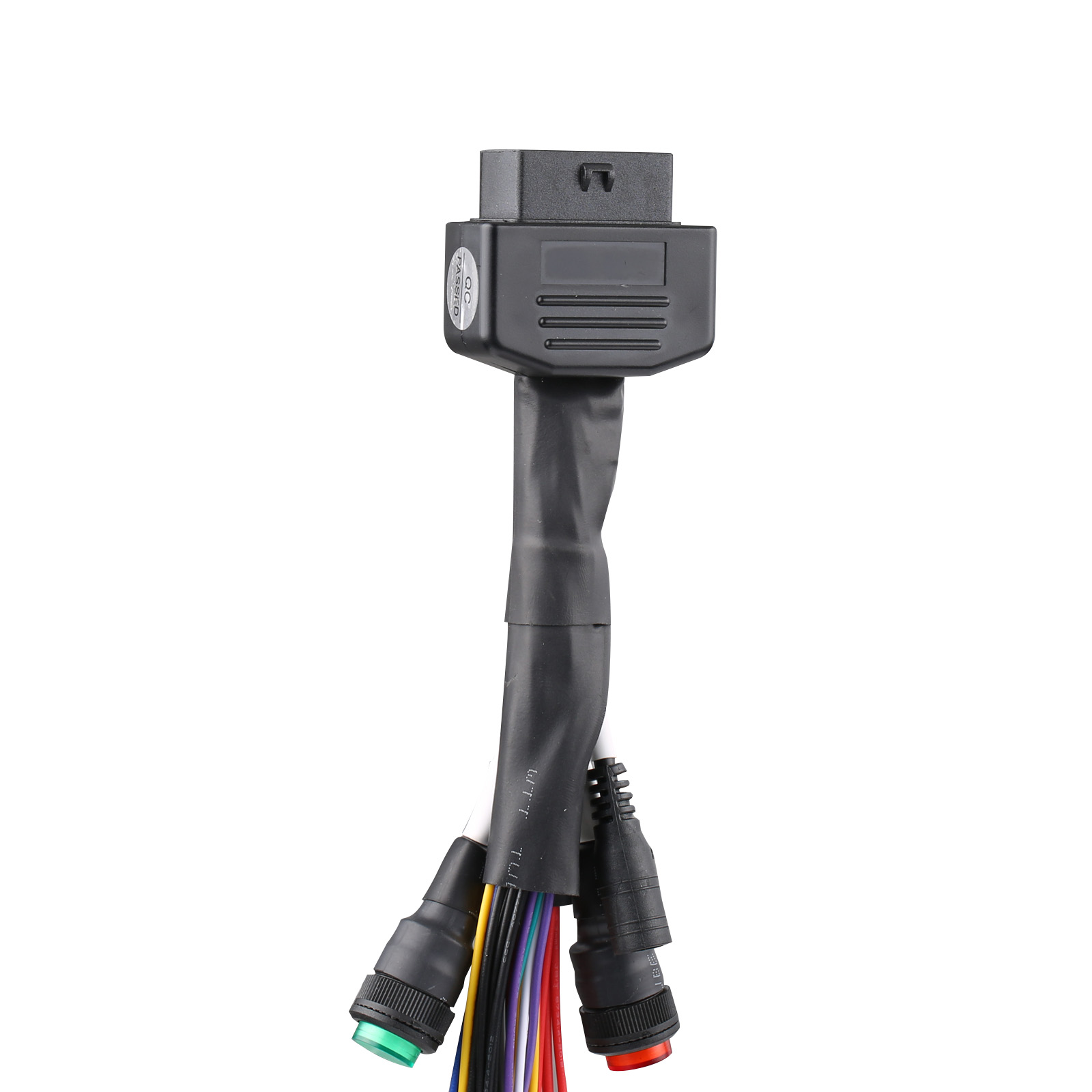

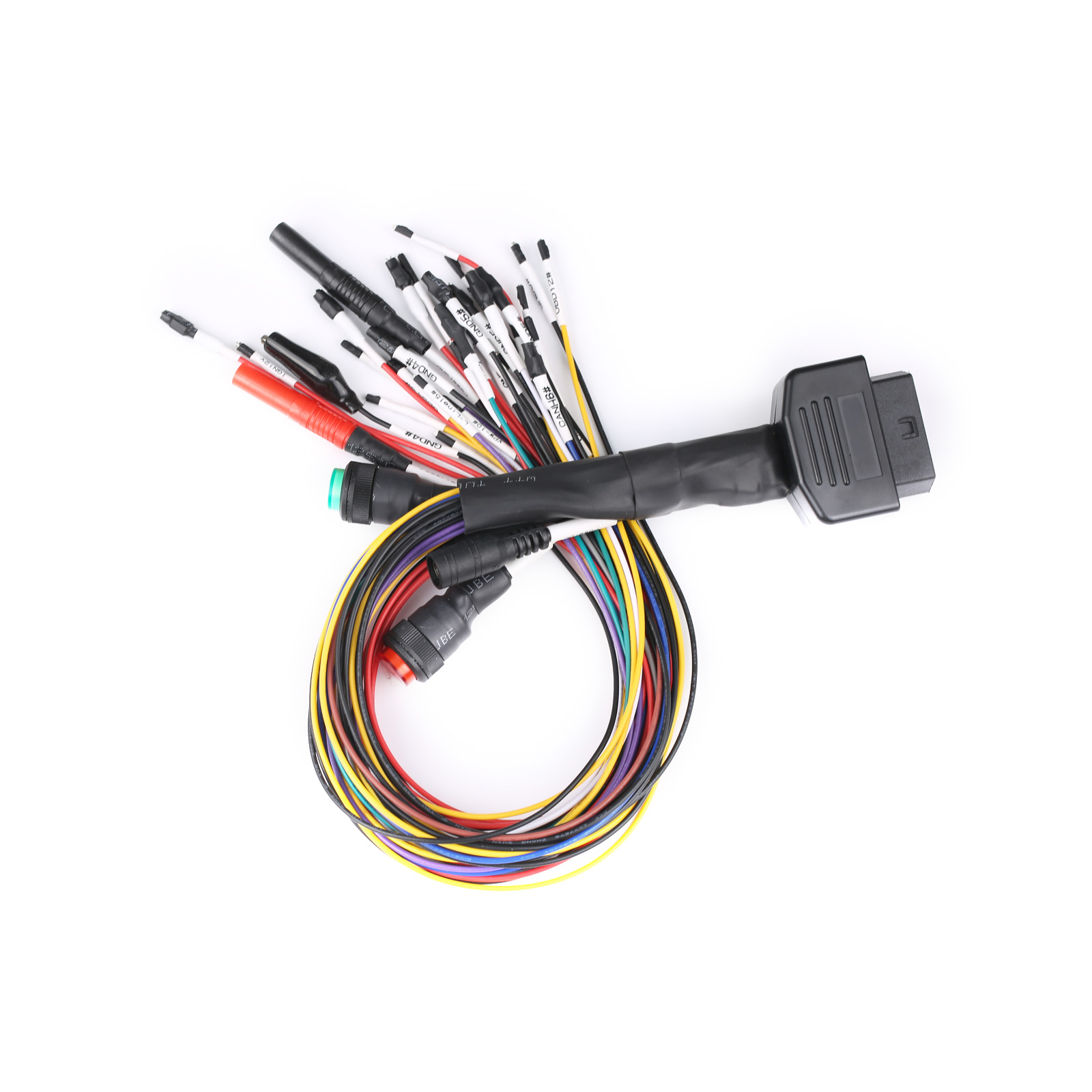

GODIAG Full Protocol OBD2 Jumper Cable For E-C-U IMMO A-i-rbag ABS Cluster Bench


Full protocol OBD2 jumper is used to connect E-CU for E-CU prog-ramming via OBD2 way.


Product Functions:

  • Breakout Tricore Cable

  • Supports DC power supply

  • Connect with A-i-rbag module for a-i-rbag reset

  • Equipped with CAN protocol communication resistance.

  • With boot GND4 clip, compatible with prog-ramming equipment .

    Independent GND4, GND5 [meet the needs of special E-C-U prog-ramming].

  • With GND4 GND5 short-circuit switch [some E-C-Us need to be switched to short-circuit mode when prog-ramming].  Note: The switch of GND4-5 is normally pressed to make it light. When some E-C-Us need to be independently connected to GND4 and GND5, release the switch.

  • With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].

  • Supports safety protection banana head super prog-ramming dedicated connection port power supply.

  • Supports standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, and 4 small GND.


Supported Models

Fit For BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9,  TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16




Connection diagram of the dedicated coding power connector.

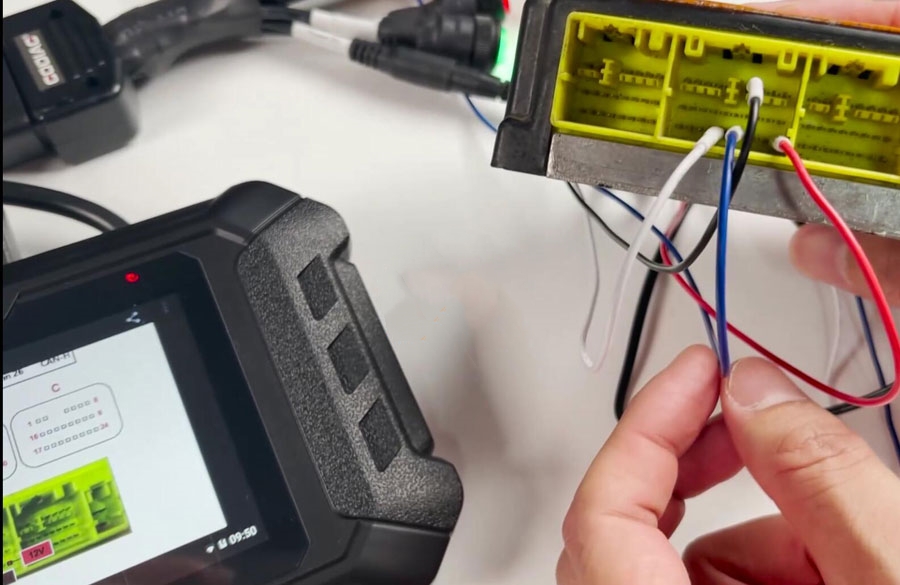

E-C-U Bench Prog-ramming Connection diagram:




E-C-U Bench Connection Diagram:

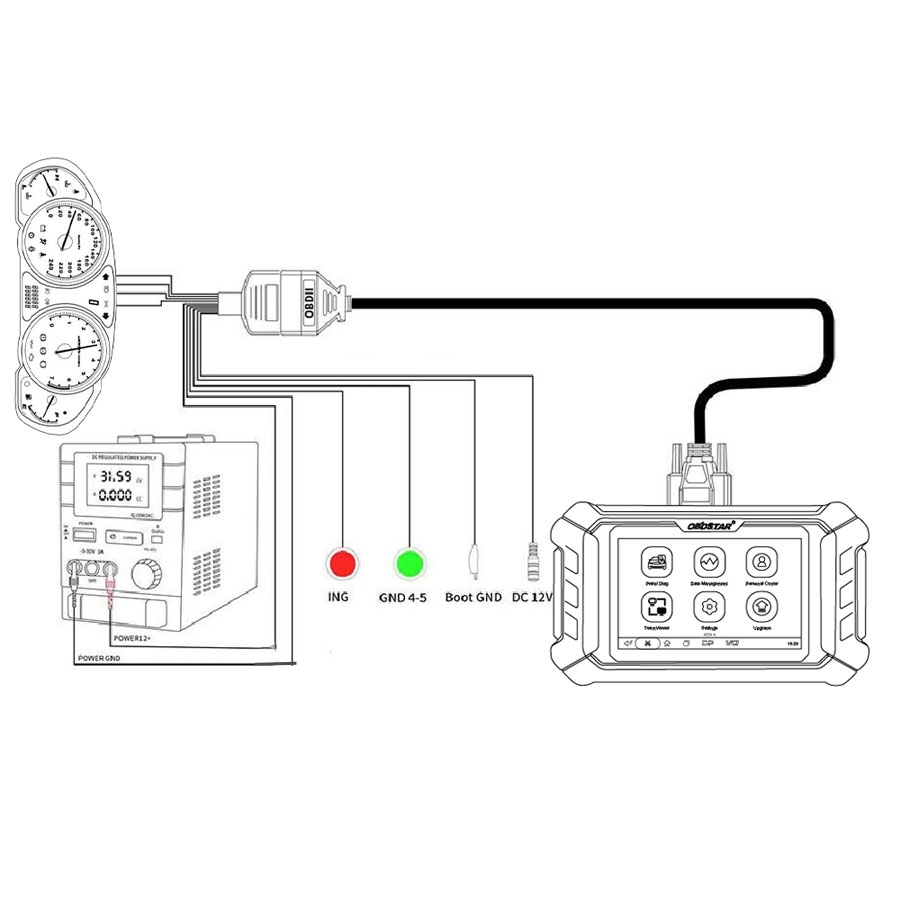

OBDSTAR Odo-master or Other KM Tool Mile-age Correction Connection Diagram


Connect with A-i-rbag Reset Tools (OBDSTAR P50, Carprog, iProg, Launch X431, Autel etc) to Diagnose/ Reset/ Repair/ Coding A-i-rbag Module


Connect with Xhorse VVDI MB tool/CGDI MB to read Mercedes Benz EIS/EZS data

Can be used to replace Benz EIS EZS adapter set

Can be used with Xhorse VVDI2 to read Immobilizer E-C-U data

Can also be used with mile-age prog-rammer to correct odo-meter


What is the analog ignition switch?

After the ING ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some E-C-Us, the device will prompt to turn on or off the ignition switch.

godiag jumper analog ignition switch

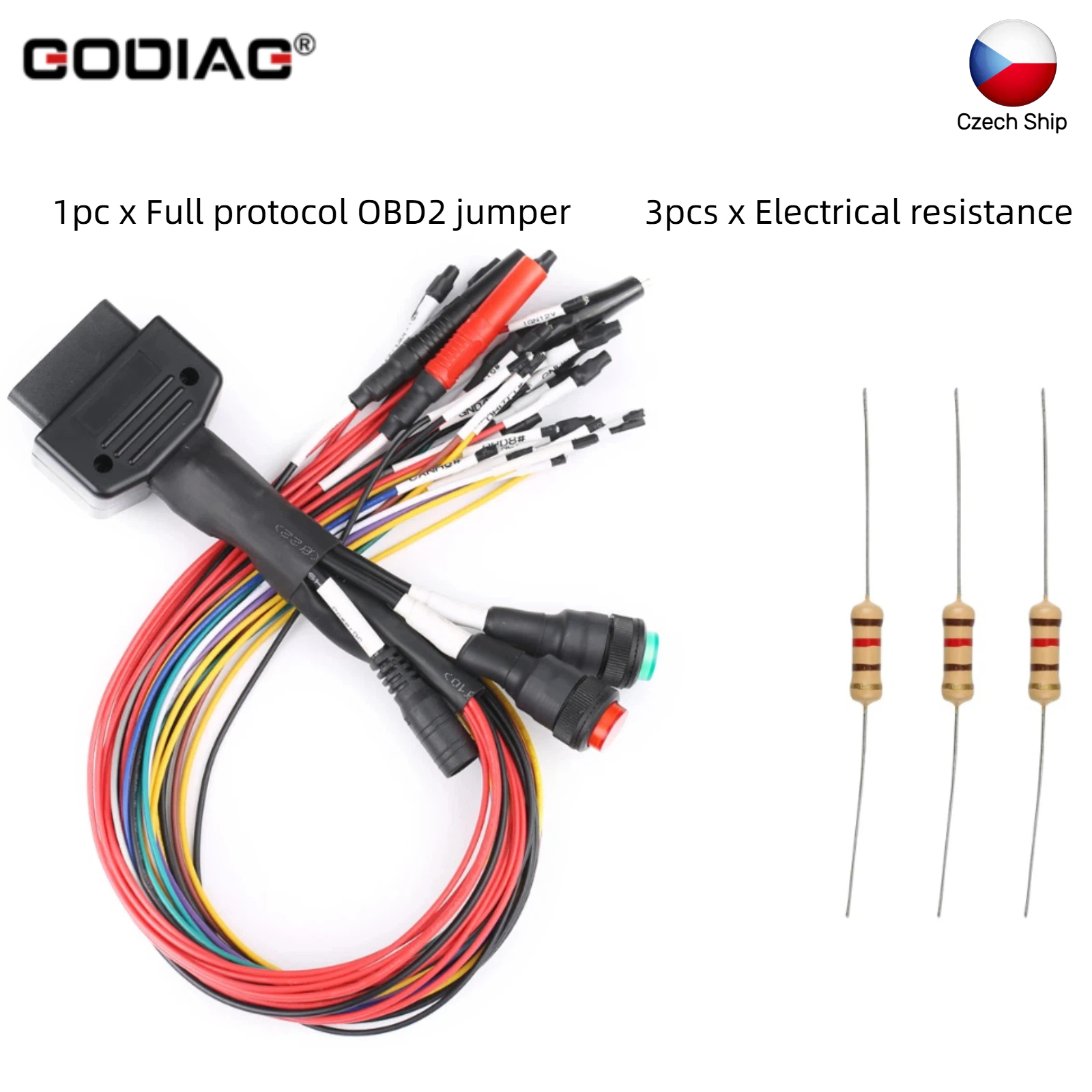

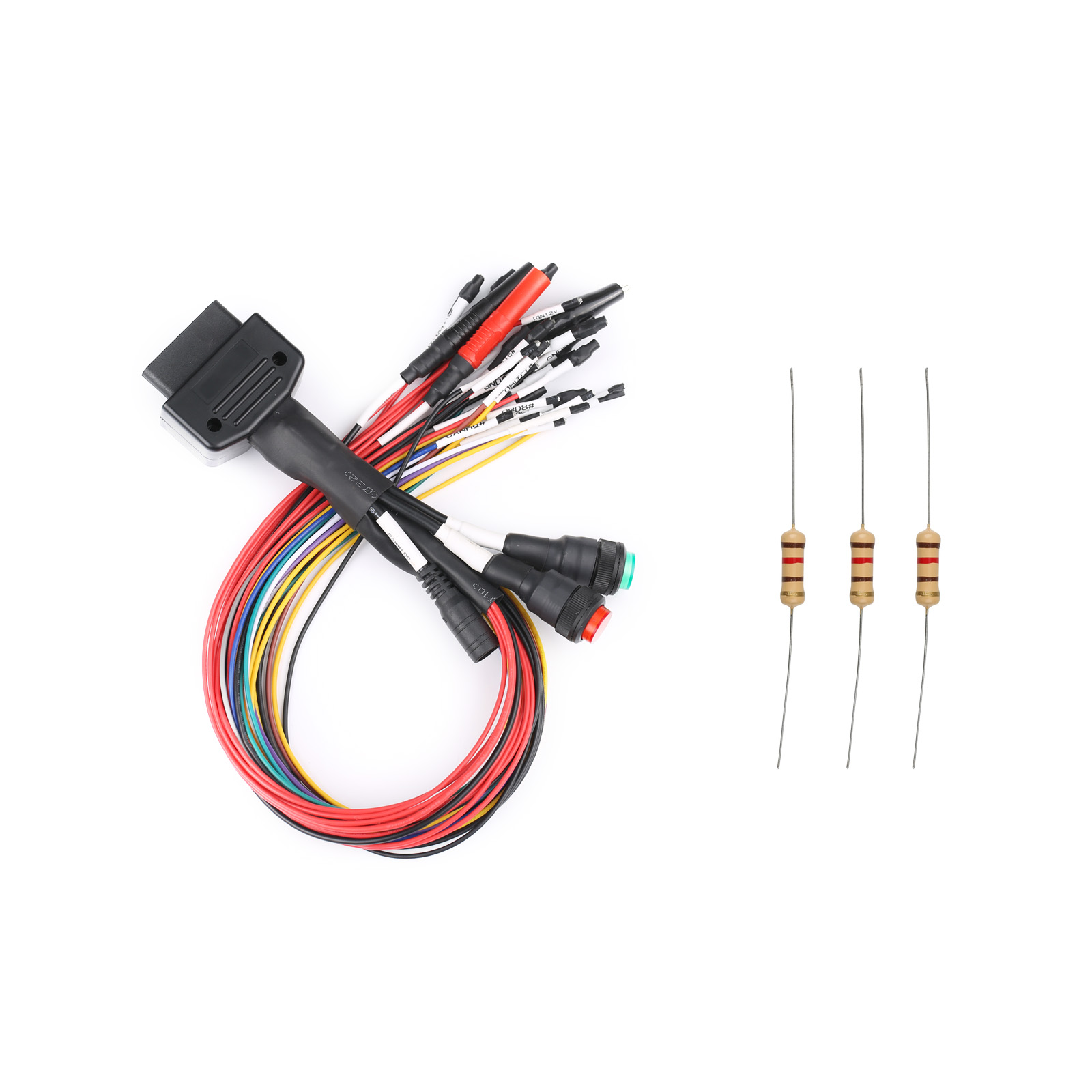

Package Includes:

1pc x Full protocol OBD2 jumper

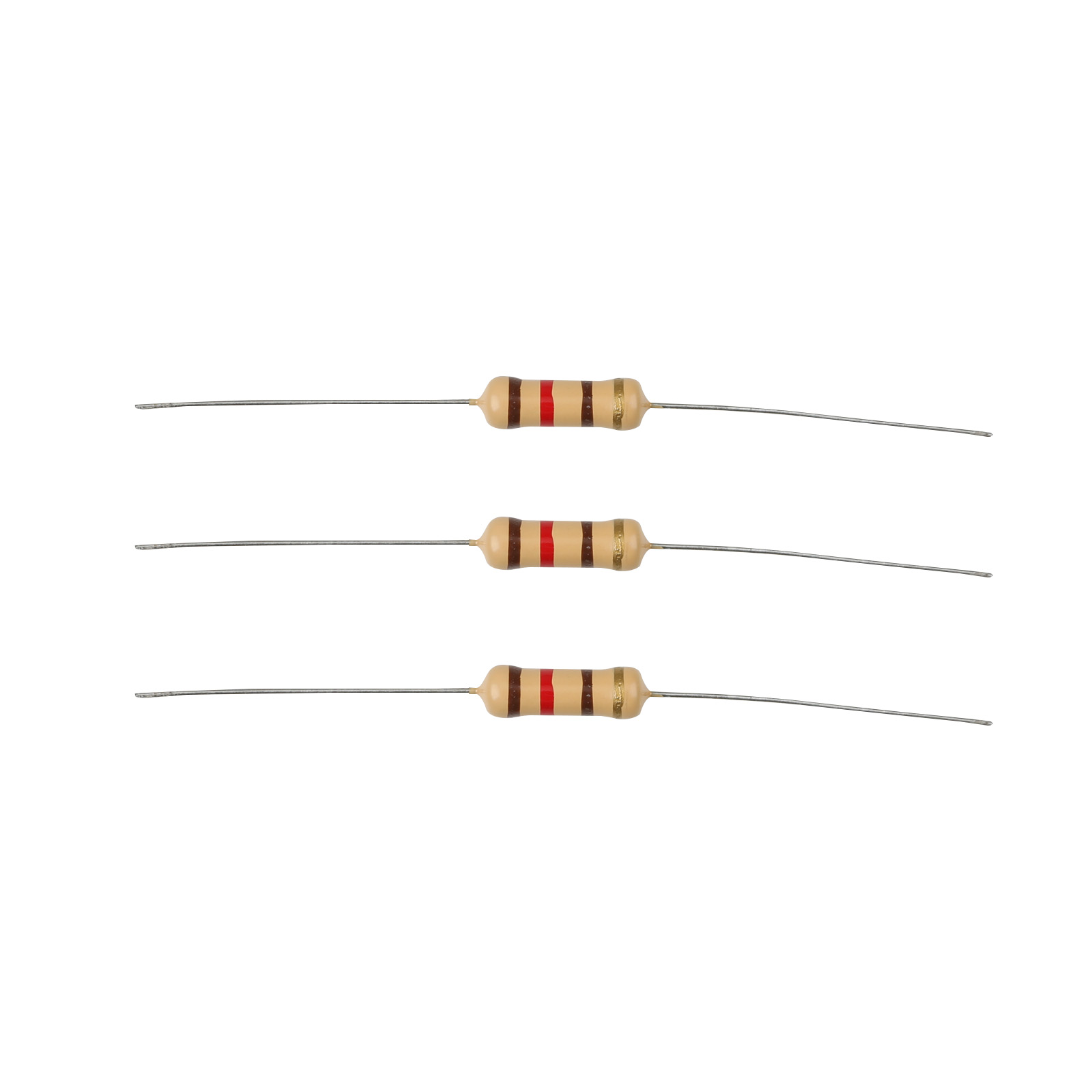

3pcs x Electrical resistance
