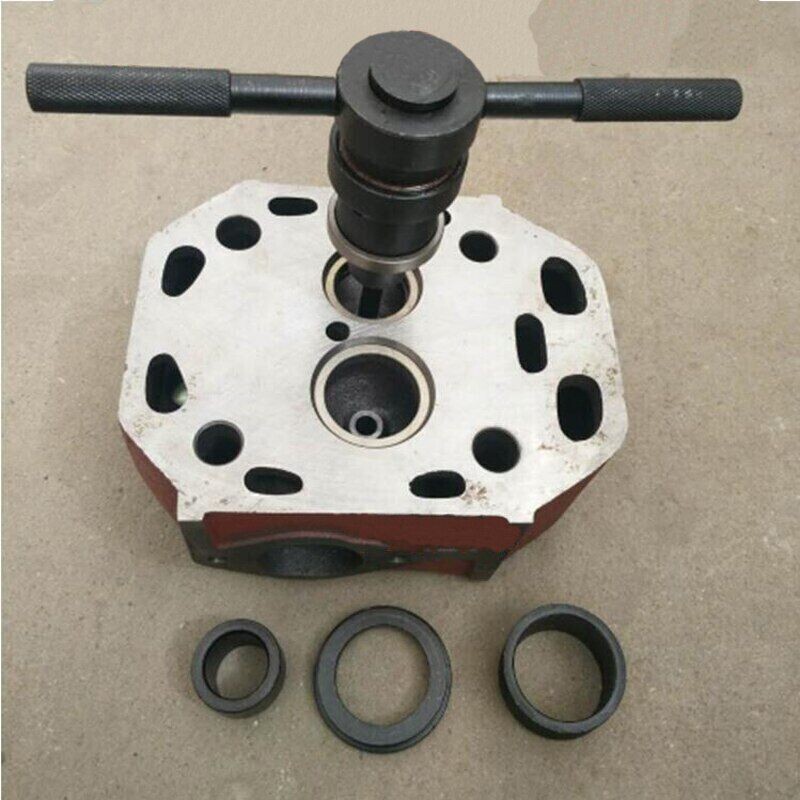

Valve Seat Puller Seat Removal Maintenance Tool Valve Seat Ring Tensioner

Features:

1. Luogang Steel Forgings

2. High temperature quenching treatment

3. Pull/press dual purpose

4. Wide range of applications

5. Carrying case

Specification:

Inner diameter of valve port: 24mm-53mm

53mm, 50mm, 47mm, 44mm, 42mm, 40mm, 38mm, 36mm, 34mm, 32mm, 30mm, 28mm, 26mm, 24mm

How to use the puller:

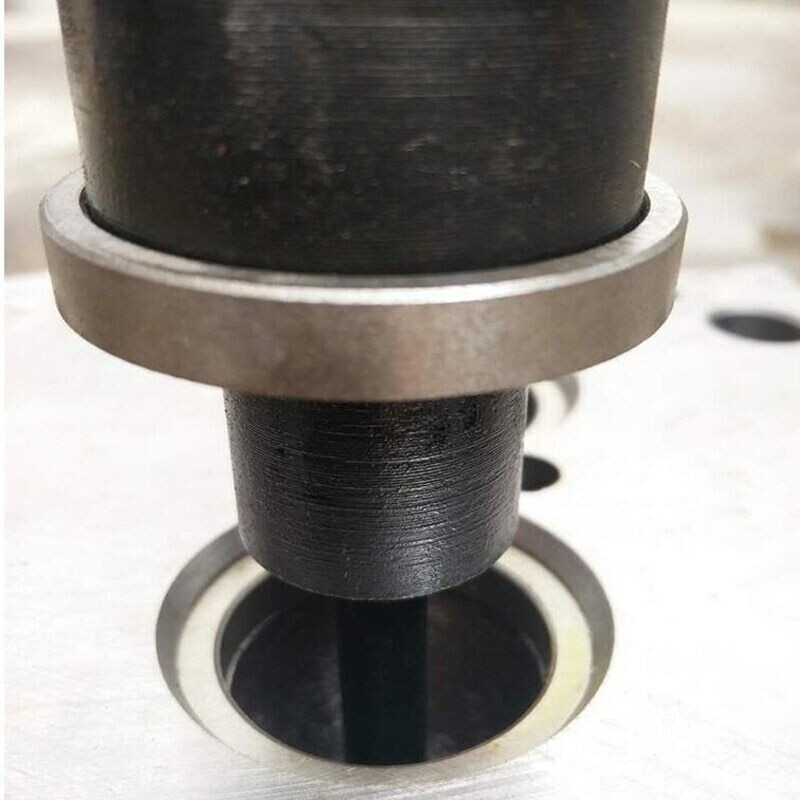

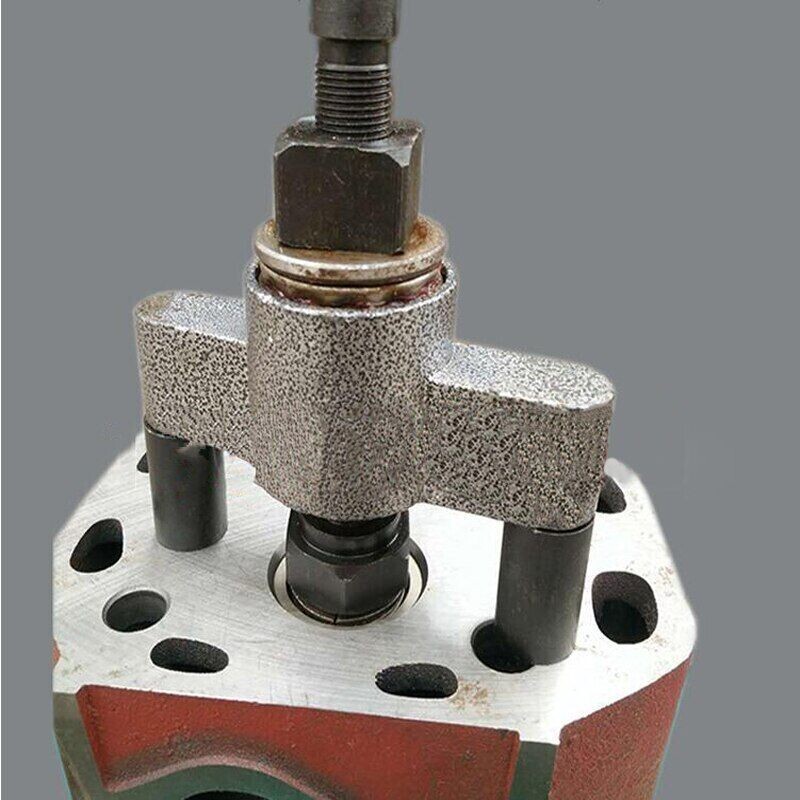

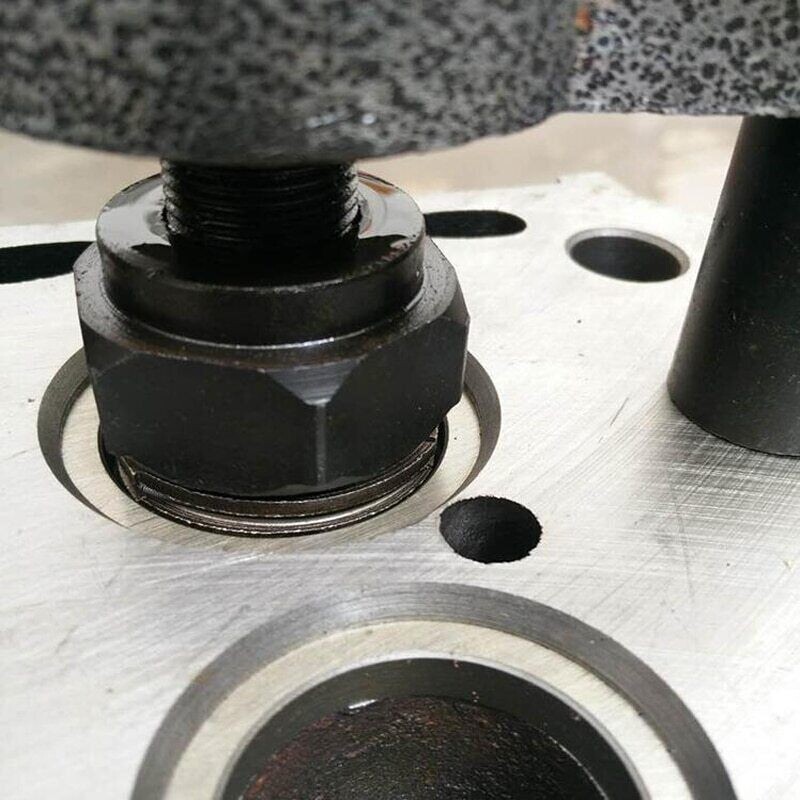

When using, measure the inner diameter of the valve seat first, and then select the broach (the broach is engraved with the inner diameter of the valve seat), generally according to the inner diameter of the valve seat, the approximate broach size can also be used, but the valve The inner diameter of the seat ring is larger than the broach and put it on the slider, then put it on the valve seat ring, adjust the blade of the broach on the rod, and aim at the bottom of the valve seat ring. For a quarter or one-eighth of the Luo Mao, continue to tighten the Luo Mao. Repeat this several times to gently pull out the valve seat.
