36W Universal Mini Metal Lathe/Milling Machine Motorized Metalworking DIY Tool
Description:
It is driven by 12V safe direct current transformer. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. It is also an ideal tool for DIY hobbyist and modelmaker to make various craft. Wear goggles when using. Children need to be guided by adults.
It is driven by 12V safe direct current transformer. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. It is also an ideal tool for DIY hobbyist and modelmaker to make various craft. Wear goggles when using. Children need to be guided by adults.
Feature:
【Purpose】This is a MINI metal lathe/milling driven by a 12V safe DC transformer, which can be used for turning, drilling, boring, threading and other processing. It takes up very little space in your workshop or lab, making it perfect for small projects or hobbyists and also a great teaching tool for kids.
【Purpose】This is a MINI metal lathe/milling driven by a 12V safe DC transformer, which can be used for turning, drilling, boring, threading and other processing. It takes up very little space in your workshop or lab, making it perfect for small projects or hobbyists and also a great teaching tool for kids.
【Processing】It can be used to form and cut a wide variety of materials including wood, plastic and soft metals (pure copper and pure aluminum), but not alloys. When processing harder materials, the feed rate should be smaller, which is slower than processing wood. we offer several shims for you to adjust the height of the turning tool.
【Application】The machine defaults to use high speed motor. If you need a low speed motor, please contact us. Ideal for use in juvenile activity centers, school technical rooms, science and technology activity rooms, DIY hobbyist workshops, and student science and technology creation in science museums.
【Durable】Made of advanced aluminum alloy, durable and non-deformable for usage. The Milling is suitable for mini drill and drill bracket series. It can withstand regular use without showing signs of wear and tear.
【Main Parts of the Machine】Main components, such as the headstock, intermediate block, connecting block, vice, sliders, and hand wheel, are made of metal, resulting in improved product quality, precision, and longevity.
Application:
Juvenile Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.
Juvenile Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.
Parameter:
Input voltage: AC100V~240V 50/60HZ
Output voltage : DC12V 3A/4A
Motor rated power: 36W
Motor speed: High speed motor 20000r/min±15%
Spindle speed: high speed motor 3000r/min±15%
Spindle jump: <0.1mm
Large slider stroke（Z axis）: 45mm
Small slider stroke（X axis）: 35mm
Center height: 25mm
Center distance: 110mm
Turning tool size: 3.5*3.5mm
Maximum processing diameter: 0-10mm positive claw, 10-45mm reverse claw
Three-jaw chuck clamping diameter: 0-10mm claw, 10-45mm reverse claw
Handle scale: 0.1mm/division
Production size:278*100*150 mm
Packing size: 325mm*200mm*240mm
Weight: 3.7KG
Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).
Input voltage: AC100V~240V 50/60HZ
Output voltage : DC12V 3A/4A
Motor rated power: 36W
Motor speed: High speed motor 20000r/min±15%
Spindle speed: high speed motor 3000r/min±15%
Spindle jump: <0.1mm
Large slider stroke（Z axis）: 45mm
Small slider stroke（X axis）: 35mm
Center height: 25mm
Center distance: 110mm
Turning tool size: 3.5*3.5mm
Maximum processing diameter: 0-10mm positive claw, 10-45mm reverse claw
Three-jaw chuck clamping diameter: 0-10mm claw, 10-45mm reverse claw
Handle scale: 0.1mm/division
Production size:278*100*150 mm
Packing size: 325mm*200mm*240mm
Weight: 3.7KG
Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

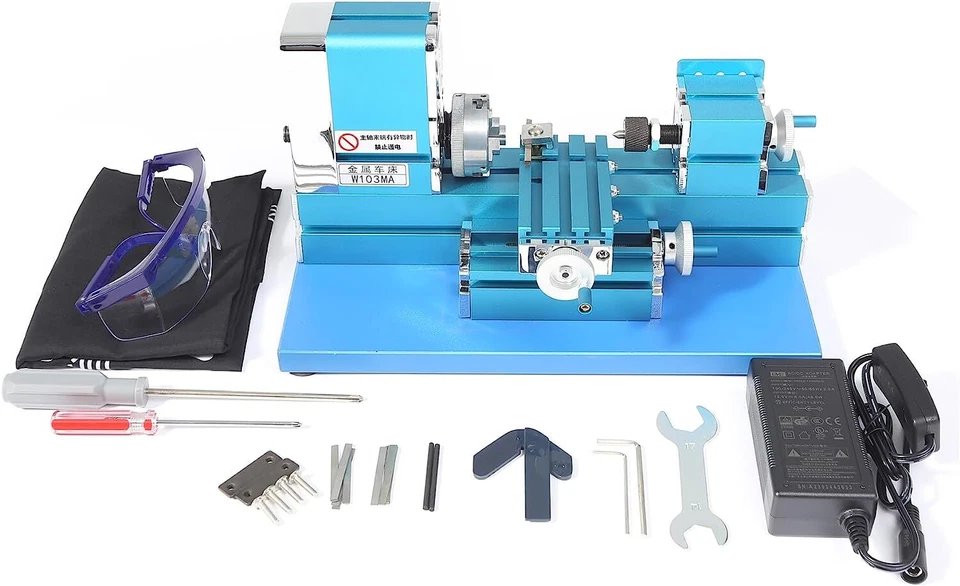

Package include:
1 set of lathe
1 set of Accessories: inner hexagon spanner 2pcs(S=23)
double-headed wrench 1pcs(S=1417)
cross screwdriver 1pcs
turning tool 1pcs(3.5*3.5mm), on machine
shim 5pcs(0.3mm)
shim 5pcs(0.4mm)
center finder 1pcs
three-jaw chuck locking rod 2pcs
two hole clamping plate 2pcs
screw 2pcs(M4*16)
1 set of apron
1 set of goggles
36W Lathe Machine:
36W Milling Machine:
1 set of lathe
1 set of Accessories: inner hexagon spanner 2pcs(S=23)
double-headed wrench 1pcs(S=1417)
cross screwdriver 1pcs
turning tool 1pcs(3.5*3.5mm), on machine
shim 5pcs(0.3mm)
shim 5pcs(0.4mm)
center finder 1pcs
three-jaw chuck locking rod 2pcs
two hole clamping plate 2pcs
screw 2pcs(M4*16)
1 set of apron
1 set of goggles
36W Lathe Machine:
36W Milling Machine:
